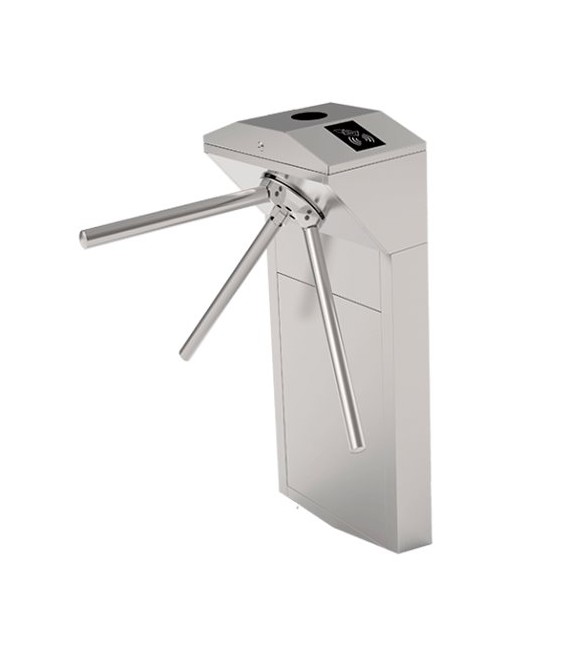

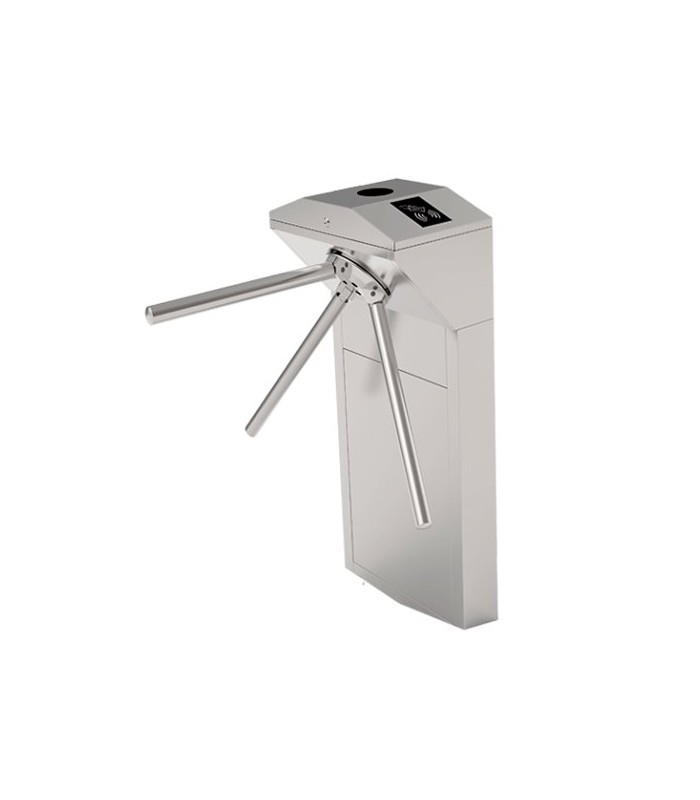

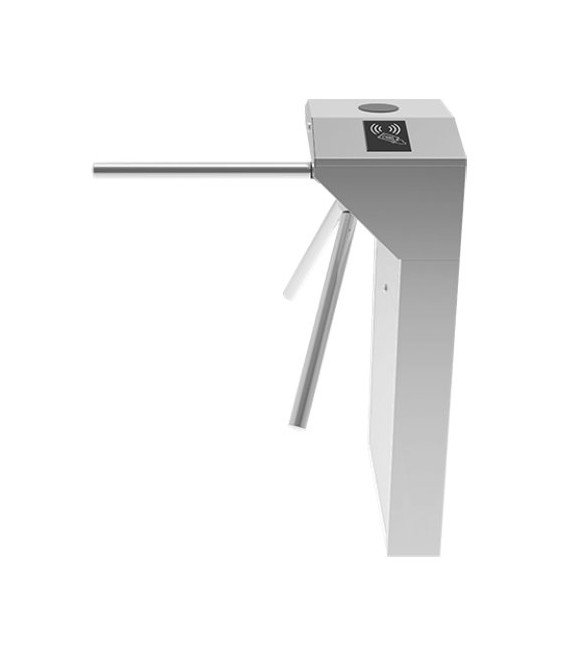

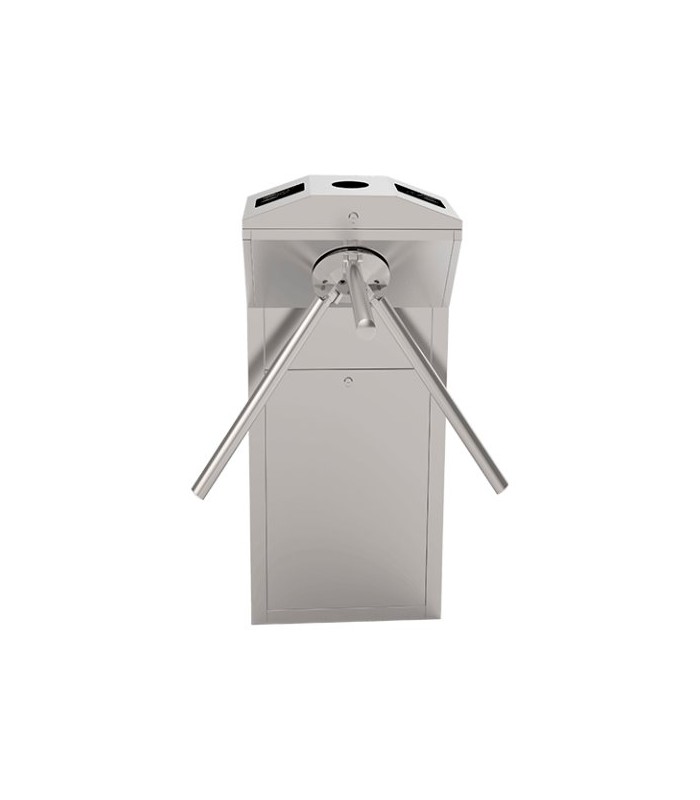

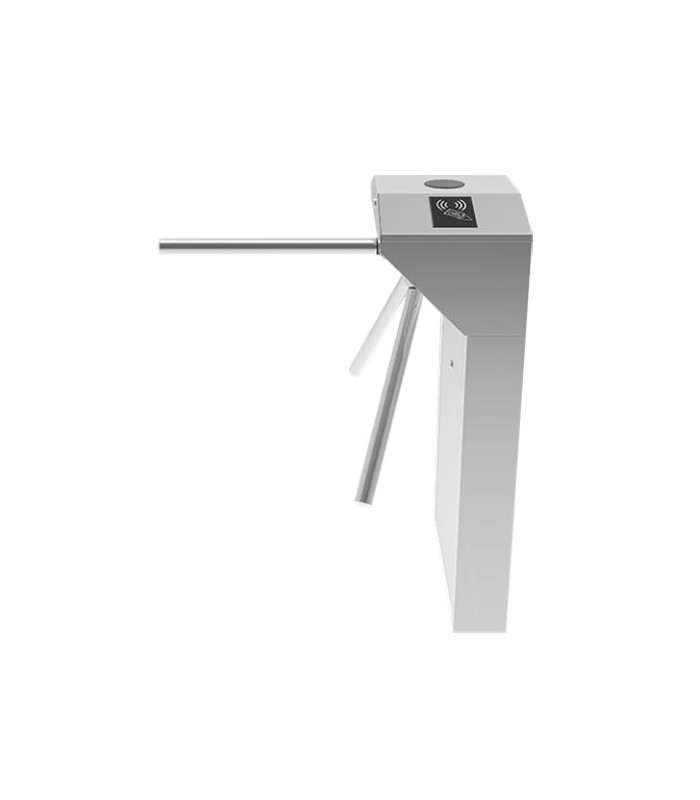

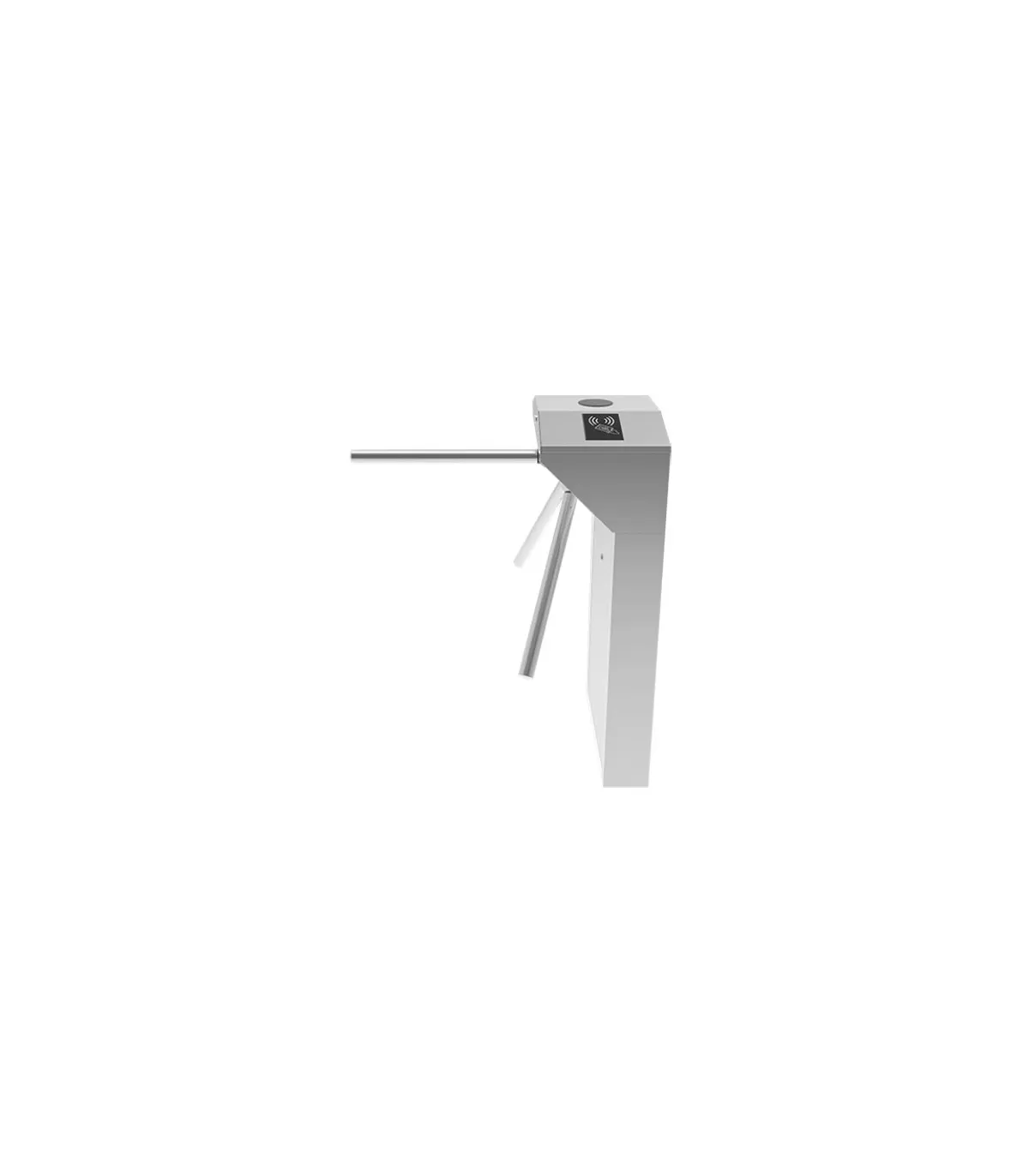

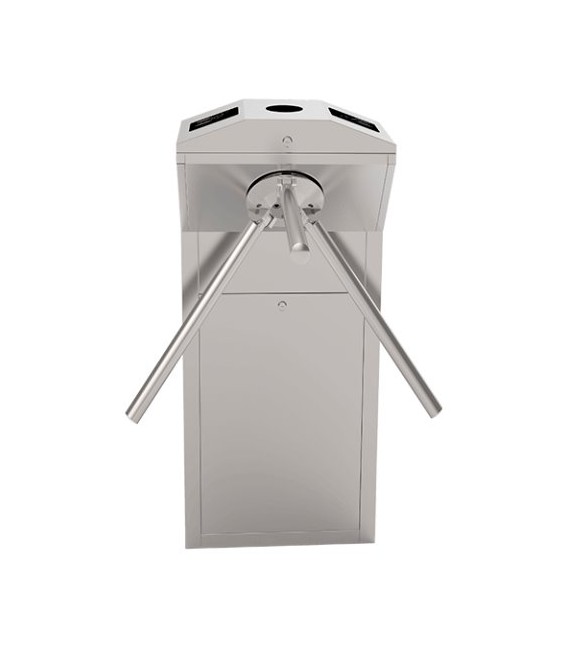

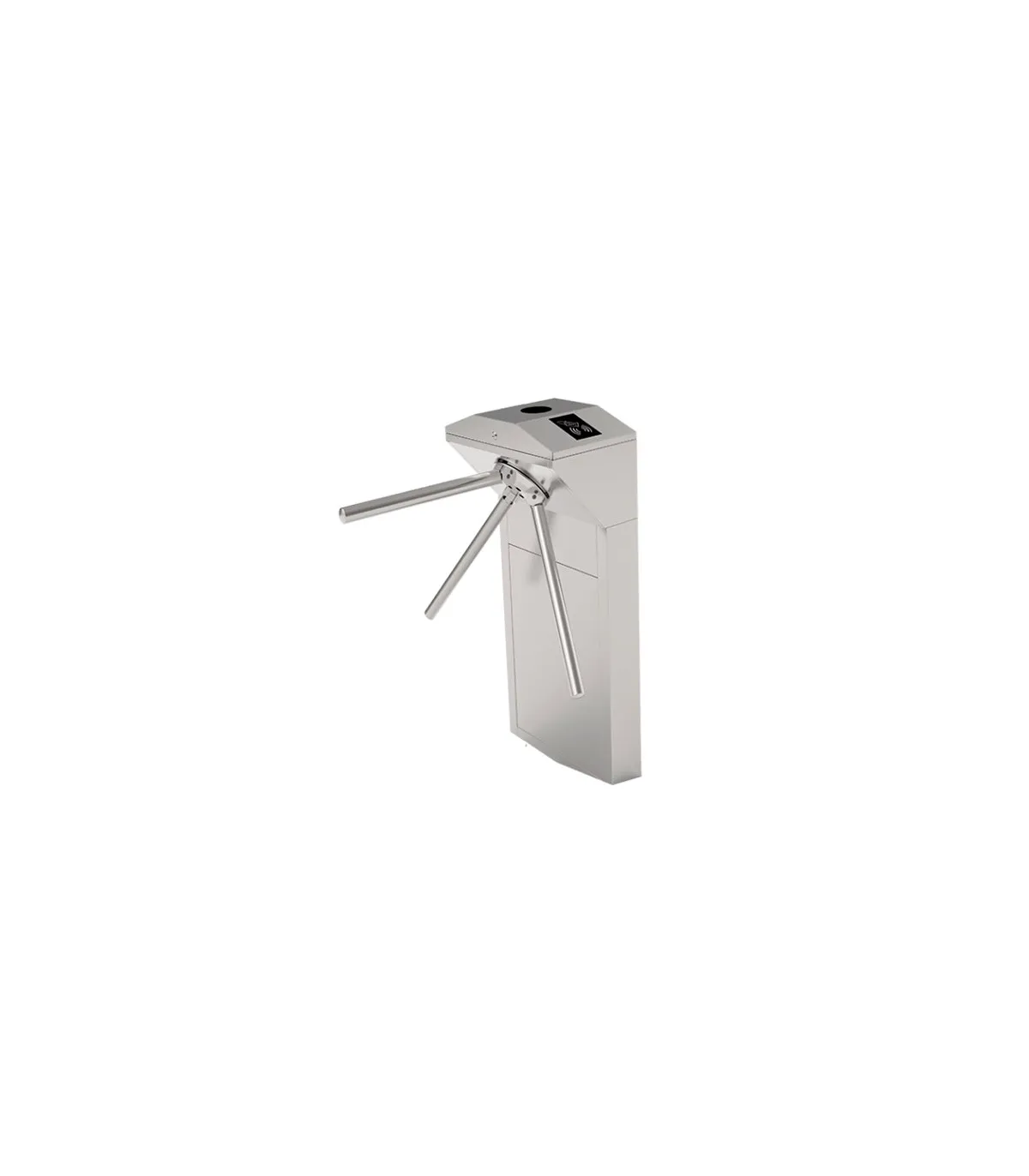

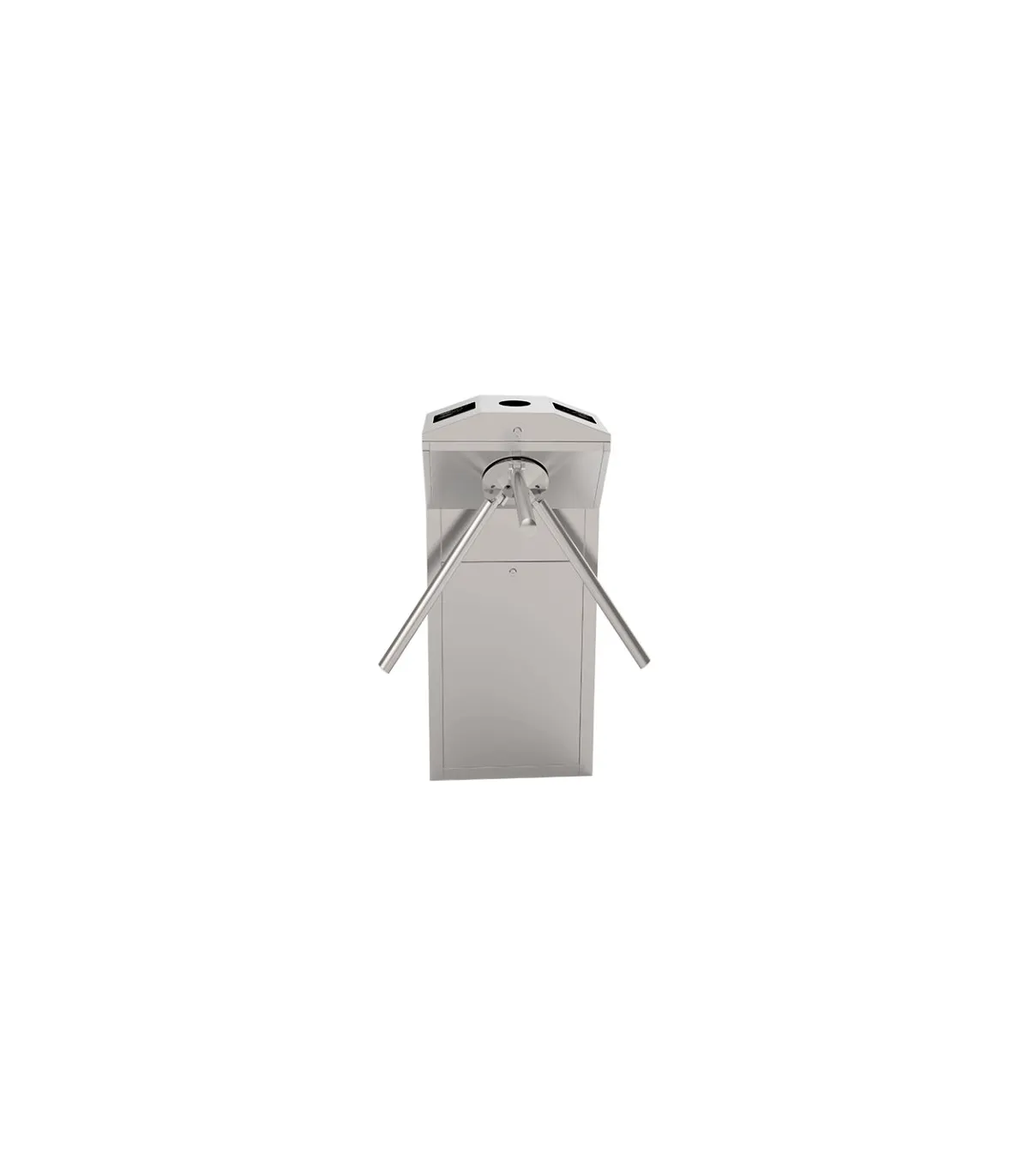

ZK-TS1000-PRO Bidirectional Access Turnstile
- ZKTeco
- Single bidirectional tripod turnstile
- Semi-automatic rotating arm movement
- 550mm passage width
- LED indicator
- Mechanical system for actuation force adjustment
- Emergency mode
- Main turnstile configuration plate (opening times, counter, relay inputs)
- Made of SUS304 stainless steel
- Configuration modes: one or two directions with Access Control, free passage in one or two directions
- Compatible with Plug & Play third-party access control systems
- Universal covers for card readers
Technical Specifications
| Brand | ZKTeco |
| Model | TS-TS1000-PRO |
| Controller | Turnstile control board compatible with any Access Control system |
| LED Indicator | Turnstile status LED indicator |
| Arm Movement | Mechanical arm rotation (user-driven) |
| Emergency Mode | Arm folding for emergency in case of power loss |
| Safety | 3 arms / Anti-tailgating security Mechanical system for actuation force adjustment |
| Compatibility | Integrable with any Plug & Play third-party Access Control / Universal covers for RFID readers |
| Configuration Modes | One or two directions / Free passage in one direction and mechanically configured Access Control in the opposite direction |
| Material | SUS304 stainless steel and PC covers |
| Power | Power: AC 110/220 V Consumption: 68 W (startup), 15 W (standby), 60 W (unlocking) |
| Operating Temp. | -28º C ~ +60º C |
| Line Dimensions | 550 mm |
| Passage Dimensions | 550 (W) x 520 (D) mm |
| Dimensions | 1010 (H) x 310 (W) x 520 (D) mm |
| Weight | 35 kg |
| Protection | Indoor |
Contents
- ZKTeco tripod turnstile
- Mounting material
- User manual
- Safety keys
