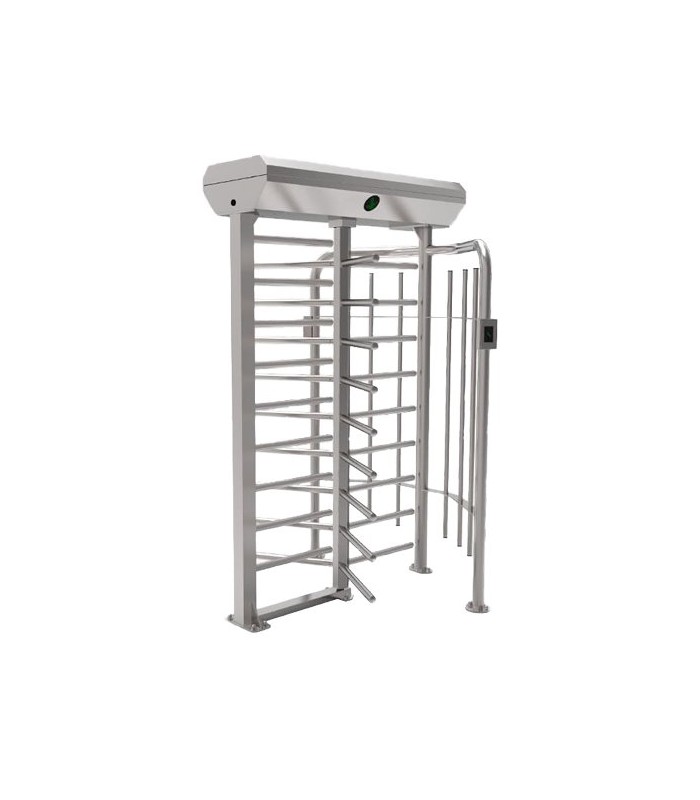

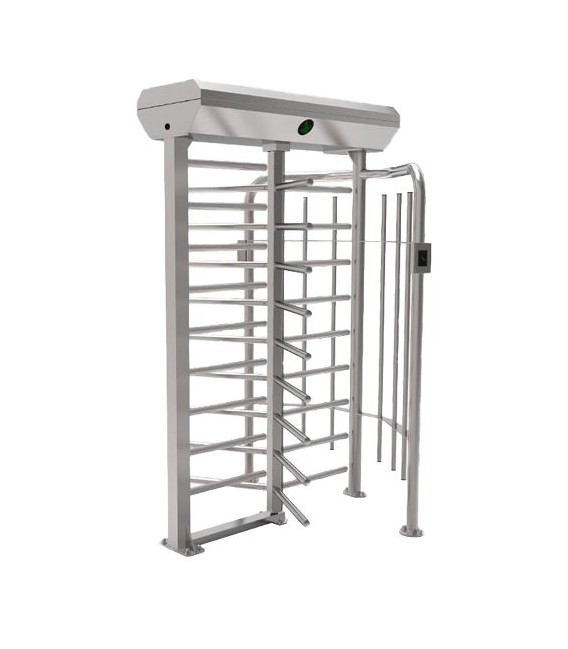

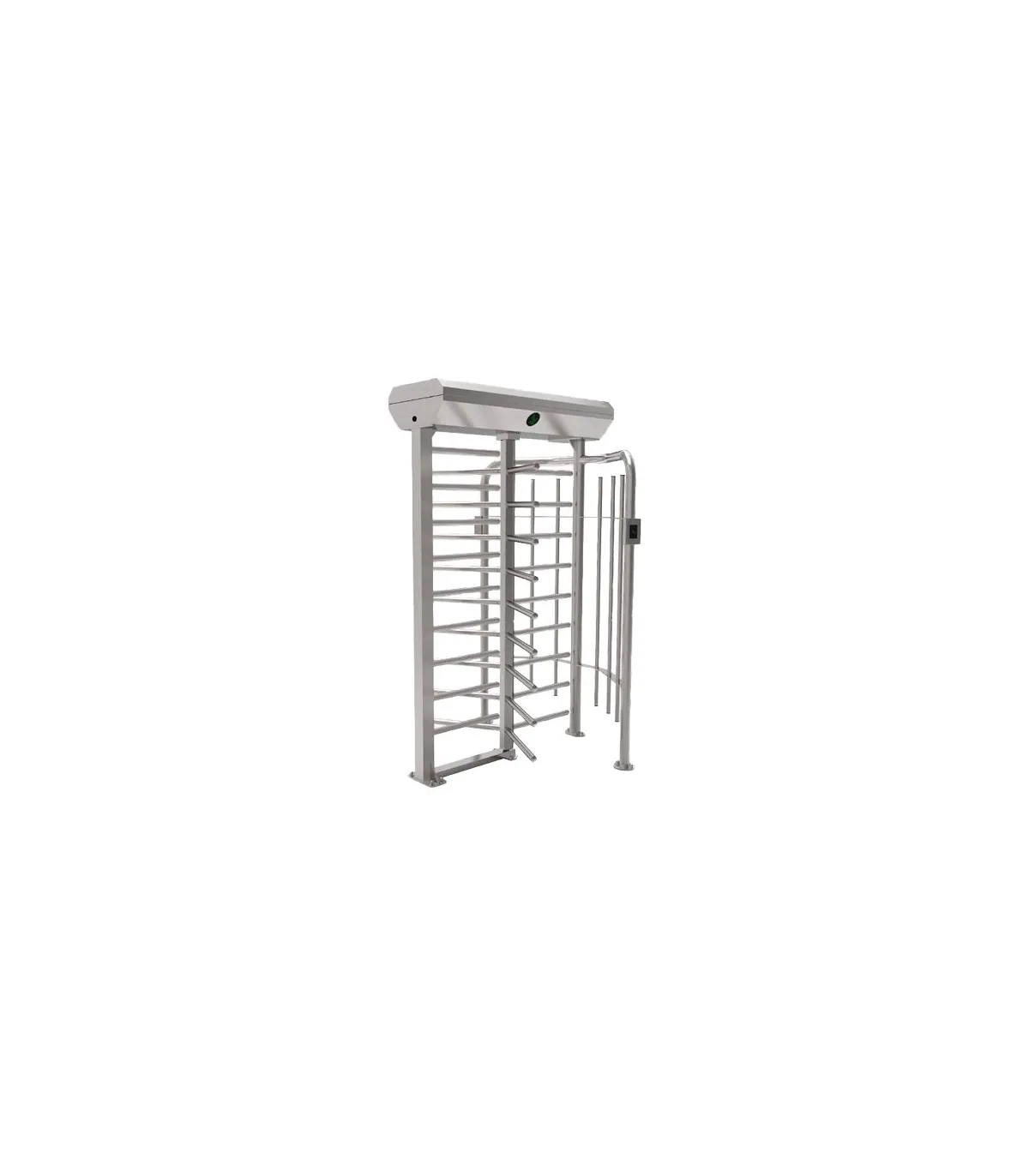

ZK-FHT2300 Bidirectional Access Turnstile
- ZKTeco
- Single bidirectional turnstile gate
- Semi-automatic rotary movement of arms
- Passage width of 580 mm
- LED indicator
- Mechanical system for adjusting actuation force
- Emergency mode
- Main turnstile configuration plate (opening times, counter, relay inputs)
- Made of SUS304 stainless steel
- Configuration modes: one or two directions with Access Control, free passage in one or two directions
- Compatible with Plug & Play third-party access control systems
- Universal covers for card readers
Technical Specifications
| Brand | ZKTeco |
| Model | FHT-FHT2300 |
| Controller | Turnstile control board compatible with any Access Control system |
| LED Indicator | Turnstile status LED indicator |
| Arm Movement | Mechanical arm rotation (user-driven) |
| Emergency Mode | Arm unlocking for emergency in case of power loss |
| Safety | Triple 9-arm / Anti-tailgating security Mechanical system for adjusting actuation force |
| Compatibility | Integrable with any Plug & Play third-party Access Control / Universal covers for RFID readers |
| Configuration Modes | One or two directions / Free passage in one direction and Access Control in the mechanically configured opposite direction |
| Material | SUS304 stainless steel |
| Passing Speed | 20-25 people/minute |
| Power Supply | AC 110/220 V |
| Operating Temperature | -28º C ~ +60º C |
| Line Dimensions | 580 mm |
| Passage Dimensions | 580 (W) x 990 (D) mm |
| Dimensions | 2220 (H) x 1395 (W) x 1400 (D) mm |
| Weight | 220 kg |
| Protection | Indoor / Outdoor (IP54) |
Content
- ZKTeco Turnstile Gate
- Mounting materials
- User manual
- Safety keys
