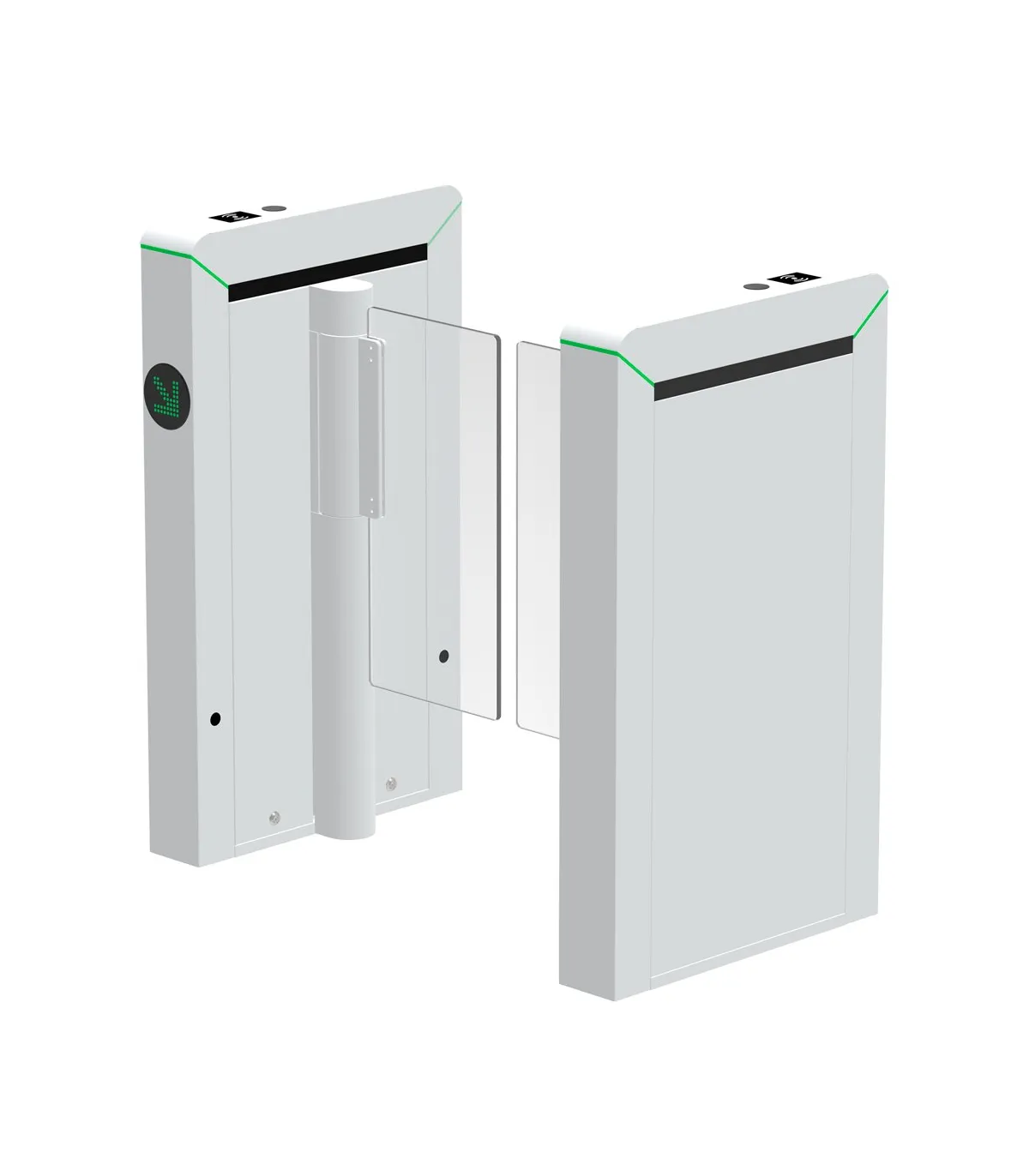

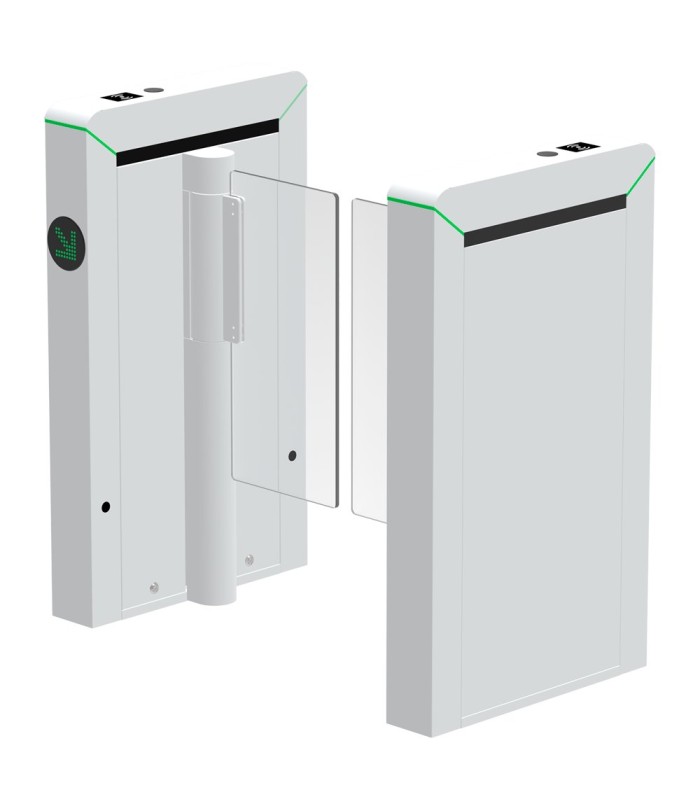

ZK-TS-MARS-S100 Bidirectional Access Turnstile
- ZKTeco
- Motorized single bidirectional access turnstile
- Automatic movement of acrylic barrier in the direction of travel
- Brushless motor
- 650mm pass width with compact furniture
- LED indicator
- Emergency mode
- Main turnstile configuration plate (opening times, counter, relay inputs) with display
- Secondary plate for connection to main plate
- Manufactured in stainless steel SUS304 and acrylic barriers
- Configuration modes: one or two directions, free passage in one or two directions
- Compatible with Plug & Play third-party Access Control systems
- Ergonomic design
- Universal covers for card readers
Technical Specifications
| Brand | ZKTeco |
| Model | TS-MARS-S100-SS |
| Controller | Main turnstile control plate with display compatible with any Access Control system |
| LED Indicator | Turnstile status LED indicator |
| Barrier Movement | Angular opening of acrylic barrier in the direction of travel (entry or exit) |
| Emergency Mode | Barrier opening for emergency with fire signal Automatic barrier opening in case of power failure |
| Safety | Configurable anti-tailgating with sound and closure |
| Compatibility | Integrable with any Plug & Play third-party Access Control / Universal covers for RFID readers |
| Configuration Modes | One or two directions / Free passage in one direction and Access Control in the opposite direction |
| Manufacturing Material | Stainless steel SUS304 with acrylic doors and PC covers |
| Passing Speed | 25 people/minute |
| Infrared Sensor | 4 pairs of infrared sensors |
| Reliability | Brushless motor 5,000,000 cycles |
| Power Supply | AC 110/220 V / 50 W max. |
| Operating Temperature | -28º C ~ +60º C |
| Line Dimensions | 650 mm |
| Pass Dimensions | 650 (W) x 600 (D) mm |
| Dimensions | 1020 (H) x 120 (W) x 600 (D) mm |
| Weight | 25 kg (each unit) |
| Protection | Indoor |
Content
- ZKTeco Motorized Turnstile
- Mounting material
- Instructions for use
- Safety keys
