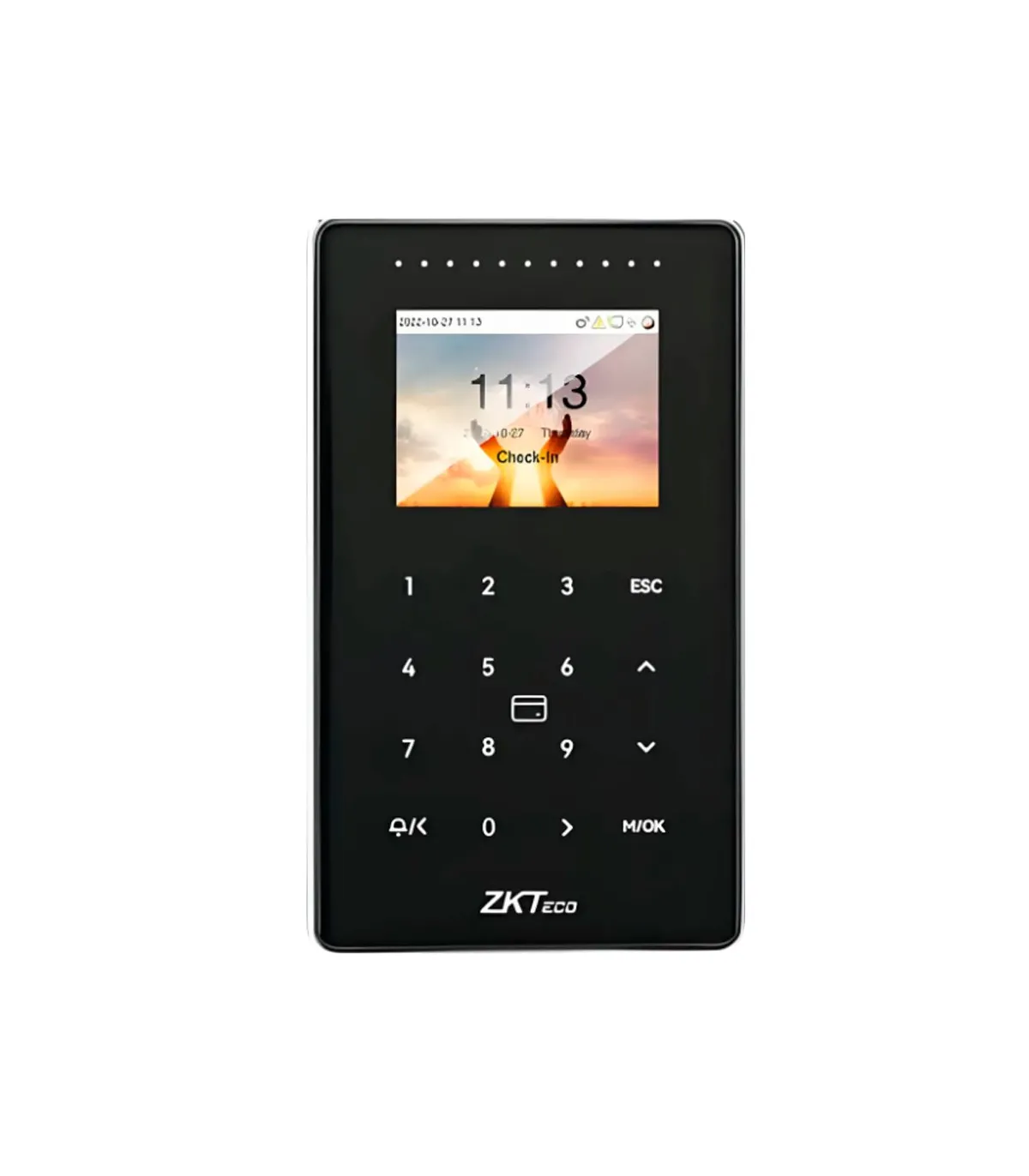

IP65 IK04 ZKTeco ZK-SC800-12-W-B Access Control and Time Attendance
- ZKTeco
- Stand-alone access control and time attendance reader
- Identification by EM and MF card, password, and/or combinations
- 2.4" TFT color display
- Capacity of 50,000 cards/passwords and 200,000 records
- TCP/IP and WiFi communication
- Integrated controller (door sensor, push button, and relay)
- IP65 weatherproof and IK04 vandal-proof
- Compatible with ZKBioTime 8 software for attendance and access management
- Compatible with ZKBio CVSecurity project software
- Compatible with GoTime Cloud software for cloud-based attendance control management
Technical Specifications
| Brand | ZKTeco |
| Model | ACO-SC800-12-W-B |
| CPU | 1GHz Dual Core CPU, DDR2 64M, Flash 256M |
| Capacity | Up to 50,000 cards/passwords |
| Records | 200,000 records |
| Identification Modes | Card, PIN, and/or combinations |
| Proximity Card | RFID EM 125 kHz and MF 13.56 MHz |
| Display | 2.4" TFT color display |
| Communication | TCP/IP, WiFi, RS485, and Wiegand |
| Integrated Controller | Door sensor, push button, relay, Wiegand IN/OUT, alarm input, and alarm output |
| Software | Access Software: ZKBioCVSecurity Attendance Software: ZKBioTime 8.0 | GoTime Cloud |
| Power Supply | DC 12 V / 3 A max. |
| Protection Grade | IP65 weatherproof IK04 vandal-proof |
| Operating Temperature | -10º C ~ +55º C |
| Dimensions | 85 (W) x 143 (H) x 20 (D) mm |
| Weight | 600 g |
Content
- ZKTeco stand-alone device
- Mounting materials
- User manual
