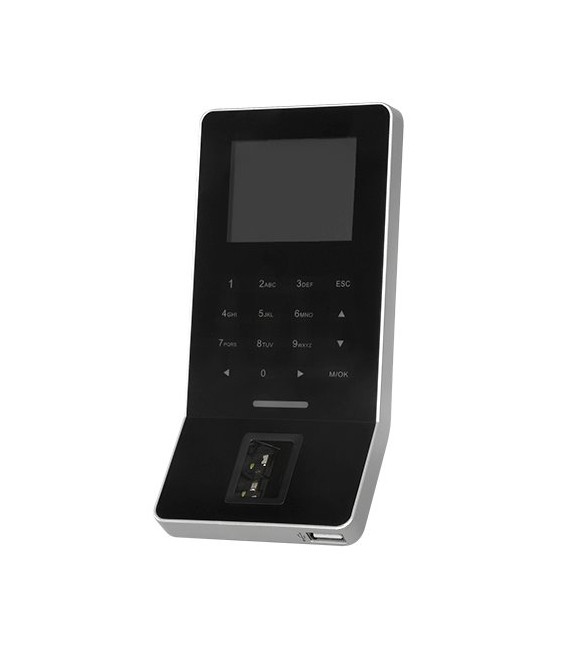

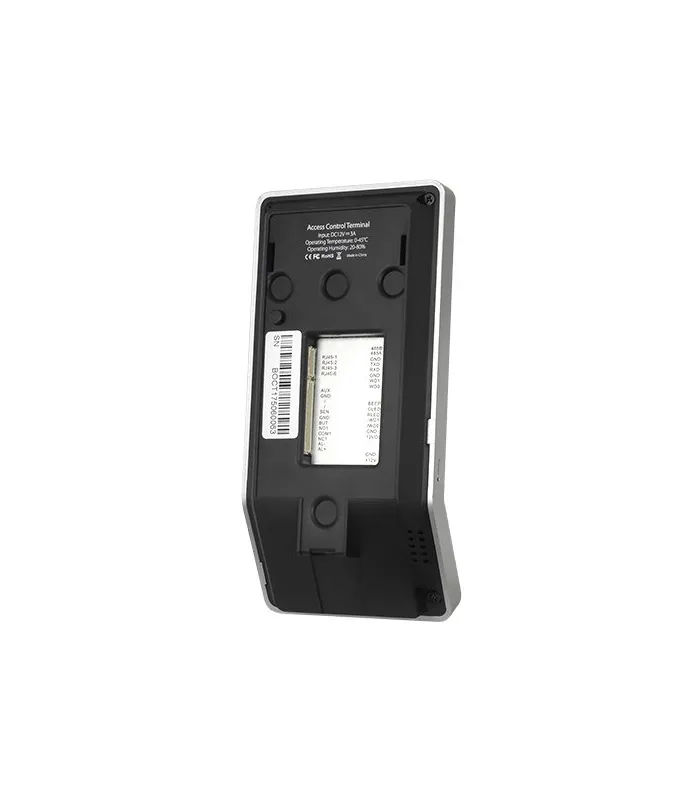

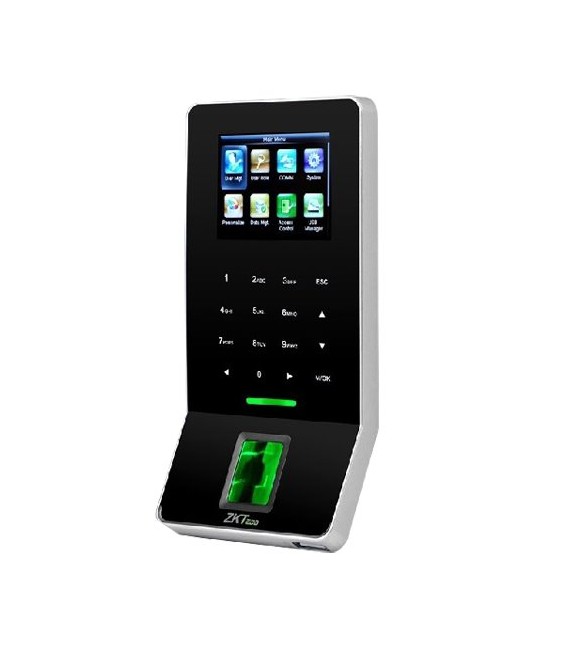

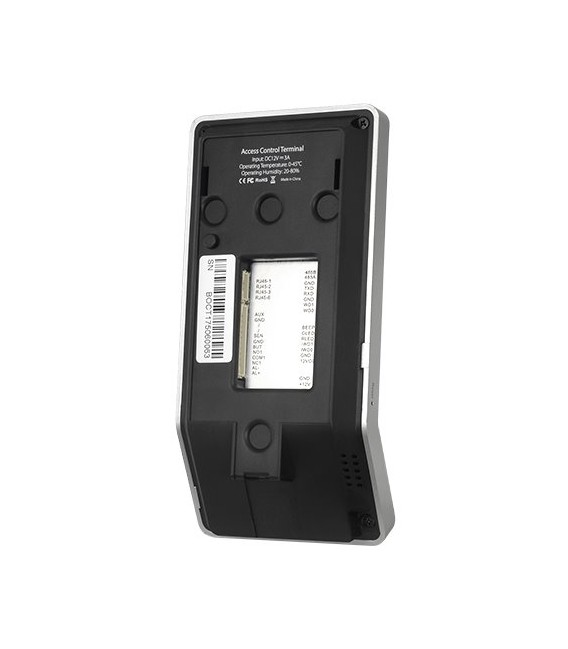

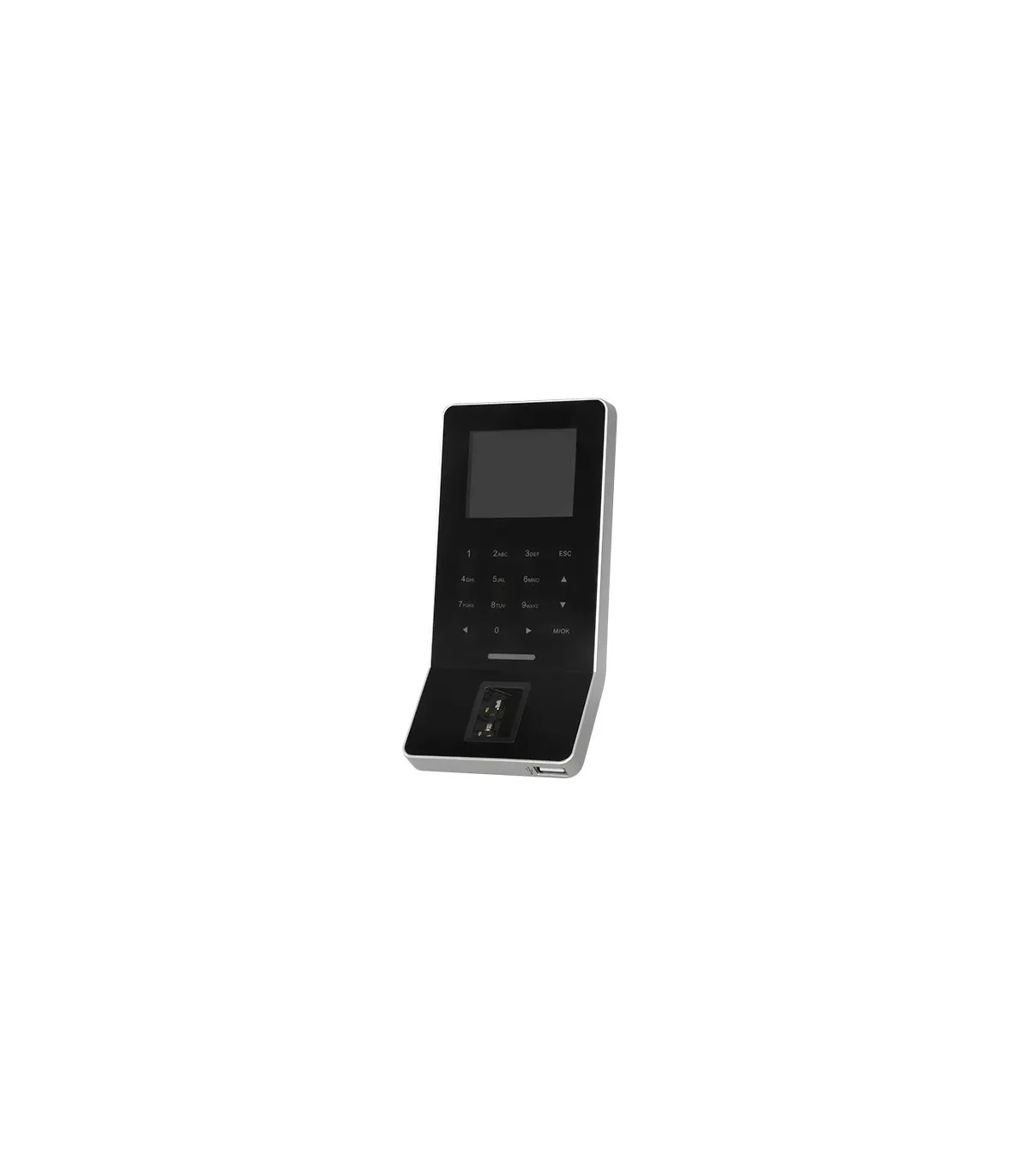

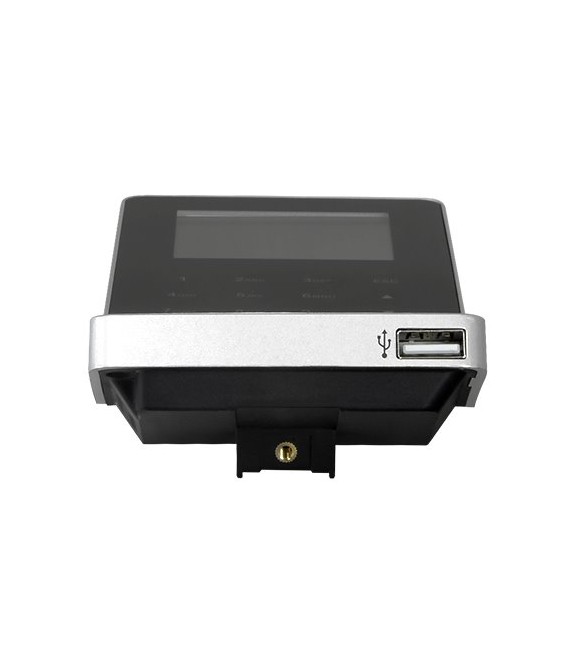

ZK-F22 Access Control
- ZKTeco
- Stand-alone biometric access reader
- Identification by EM card, fingerprint, password, and/or combinations
- SilkID optical sensor
- 2.4" TFT LCD screen and keypad
- Capacity for 3,000 fingerprints, 5,000 cards, and 30,000 records
- TCP/IP, WiFi, RS485, USB, and Wiegand 26 communication
- Integrated controller (door sensor, push button, auxiliary input, and relay)
- Anti-passback function
- Compatible with ZKBioTime 8 software for attendance and access management
- Compatible with ZKBio CVSecurity project software
Technical Specifications
| Brand | ZKTeco |
| Model | ACO-F22-BLACK-1 |
| Hardware CPU | Linux OS |
| Sensor | ZK BioID Optical Sensor |
| Sensor Resolution | 500DPI |
| Activation Sensor | Auto-activation by infrared |
| Algorithm | ZK Finger VX10.0 |
| Verification Time | < 1 sec |
| Capacity | Up to 3,000 fingerprints and 5,000 cards (RFID EM 125 kHz) |
| Records | 30,000 records |
| Identification Modes | Fingerprint, card, PIN, and/or combinations |
| Screen | 2.4" color TFT |
| Communication | TCP/IP, WiFi, RS485, RS232, and USB |
| Functions | Automatic state change and anti-passback |
| Outputs | Wiegand OUT, relay, alarm, and auxiliary for linkages |
| Inputs | Wiegand IN, door sensor, and open button |
| Software | Access Software: ZKBioCVSecurity Attendance Software: ZKBioTime 8.0 |
| Power Supply | DC 12 V / 3 A max. |
| Protection Grade | Suitable for indoor use |
| Operating Temp. | 0º C ~ +45º C |
| Dimensions | 78 (W) x 158 (H) x 19 (D) mm |
| Weight | 600 g |
Content
- ZKTeco biometric device
- Mounting materials
- User manual
