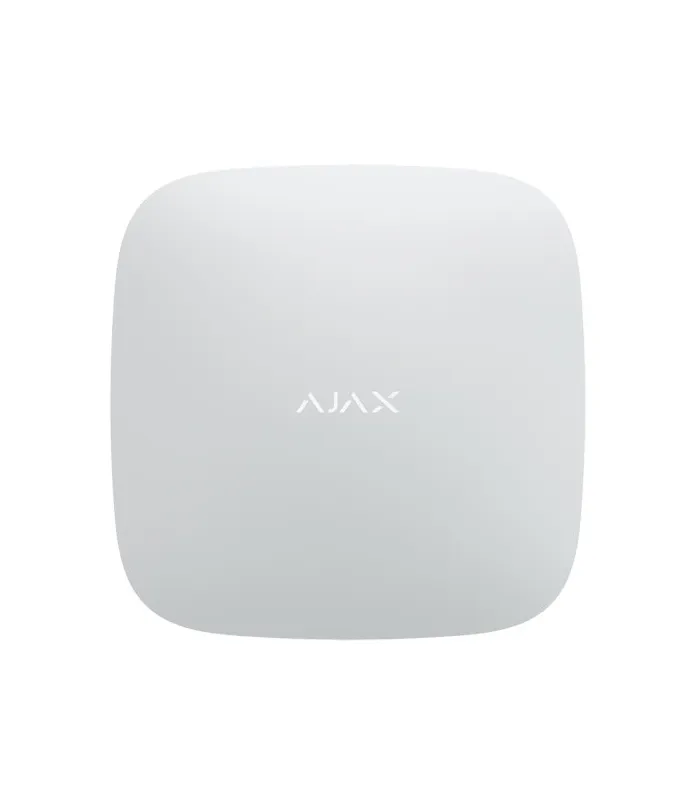

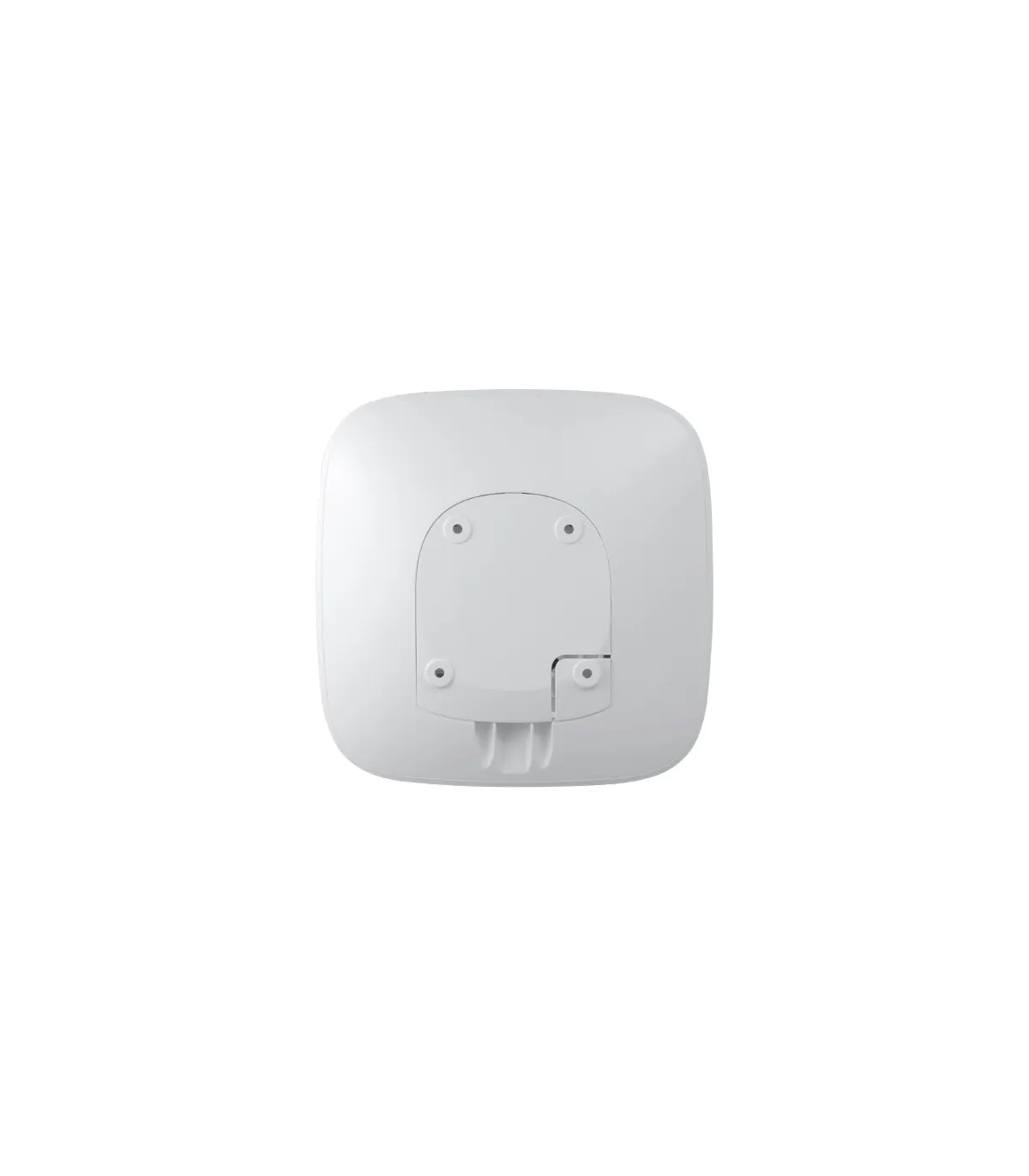

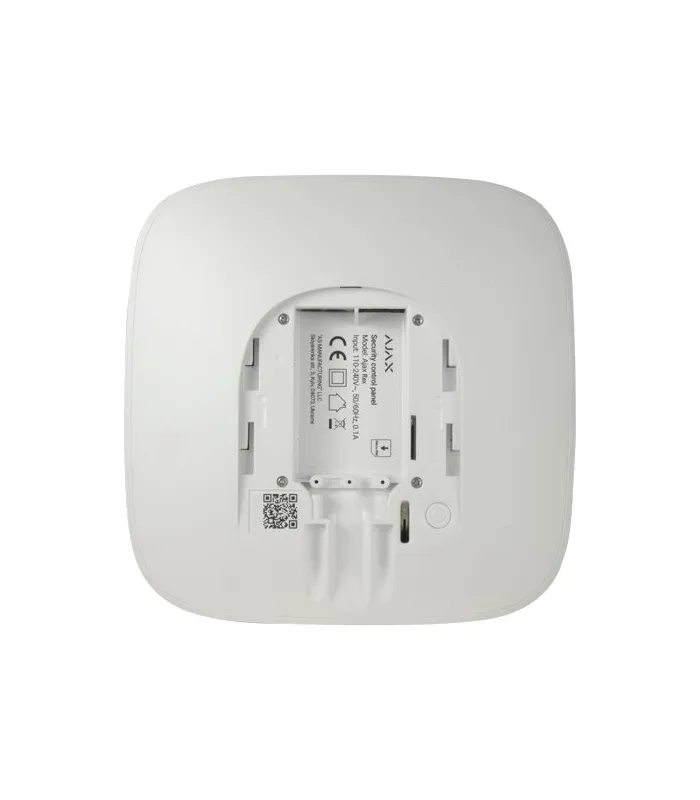

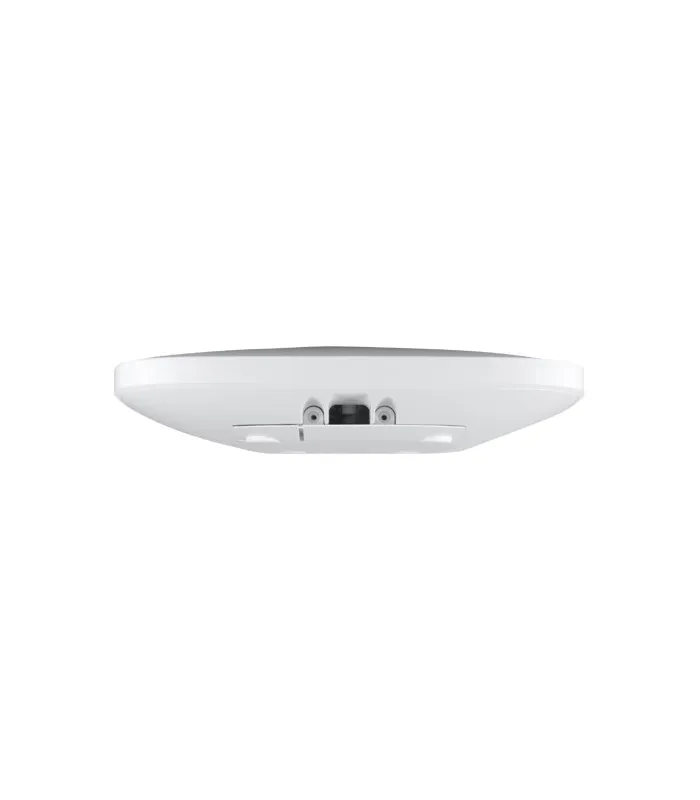

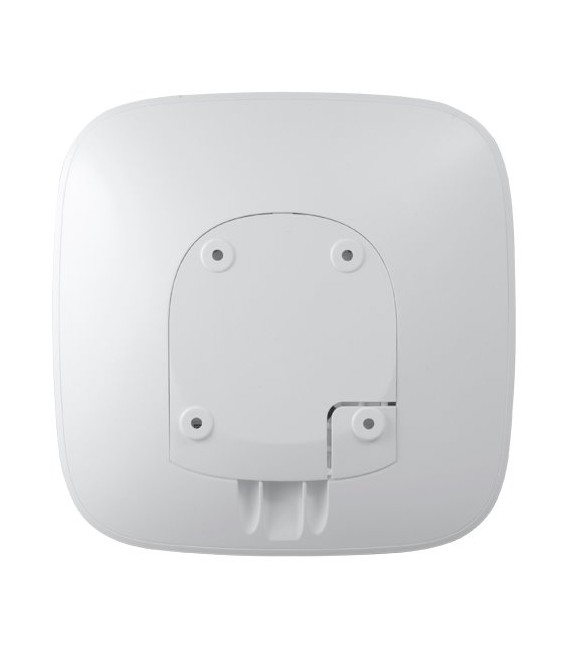

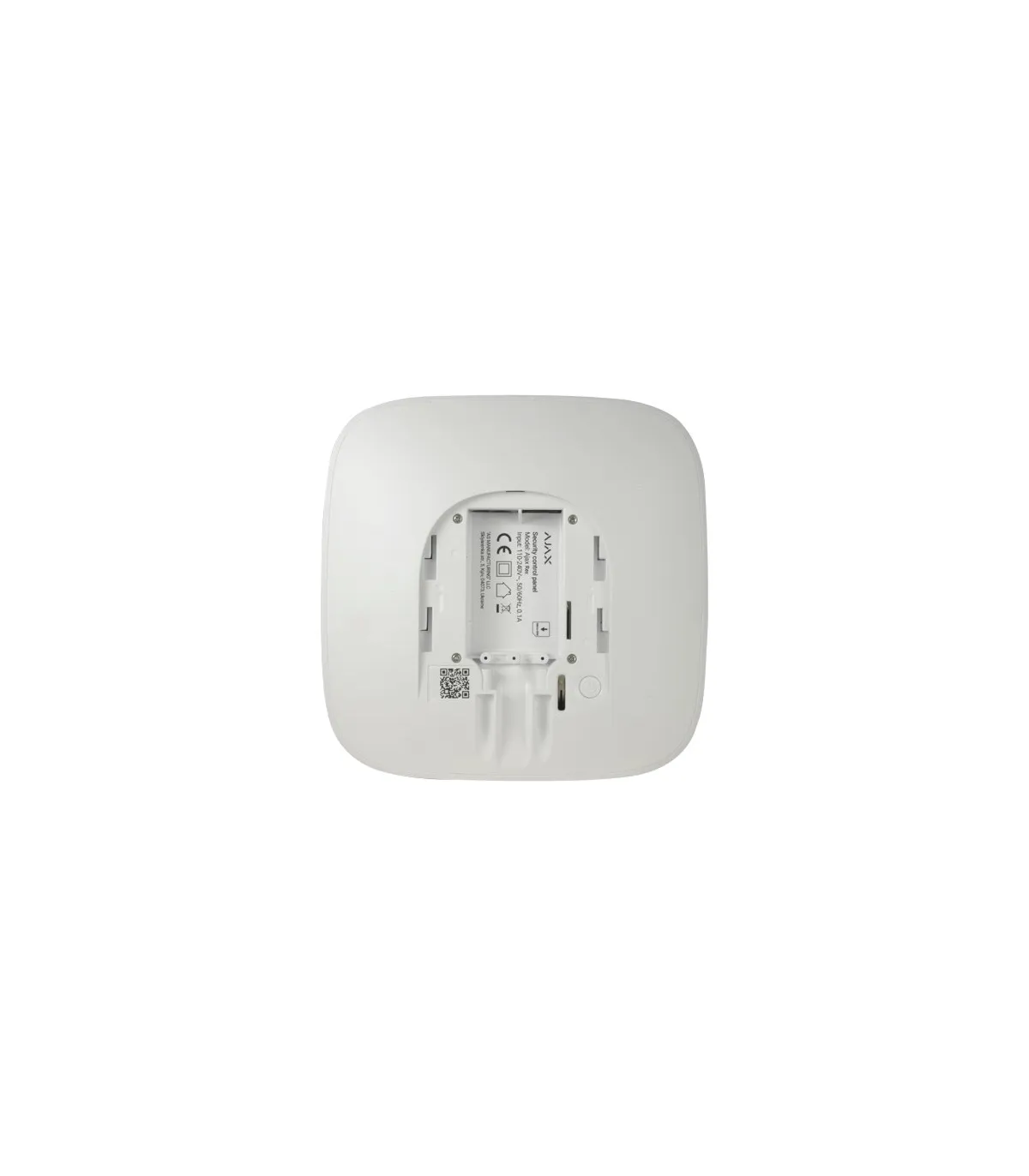

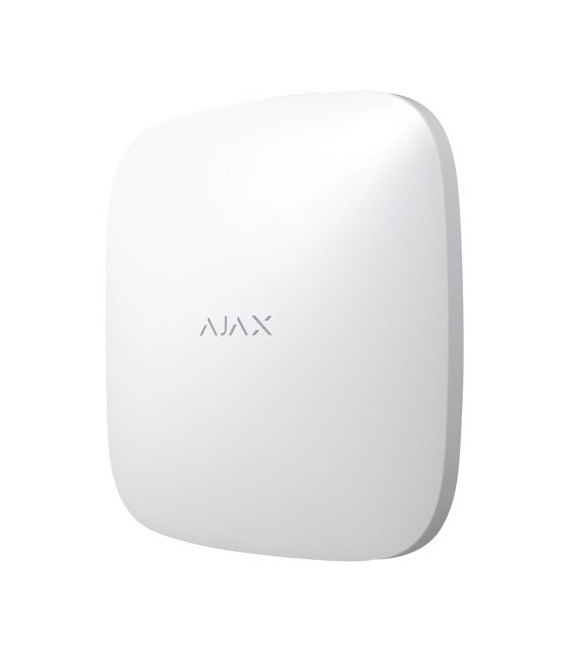

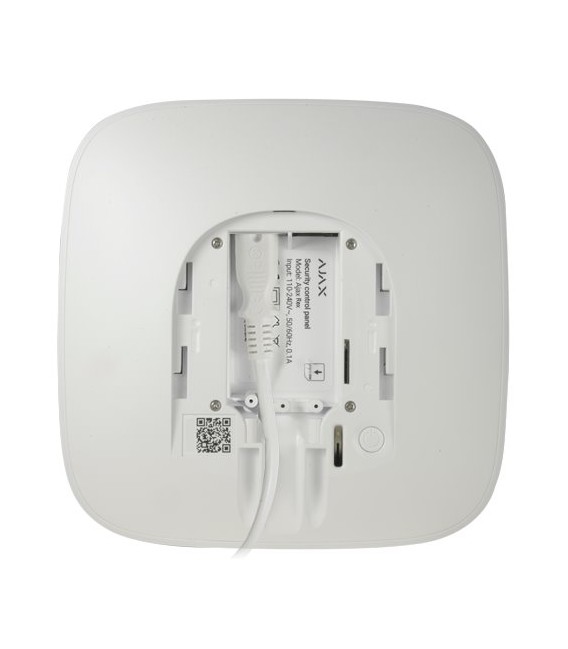

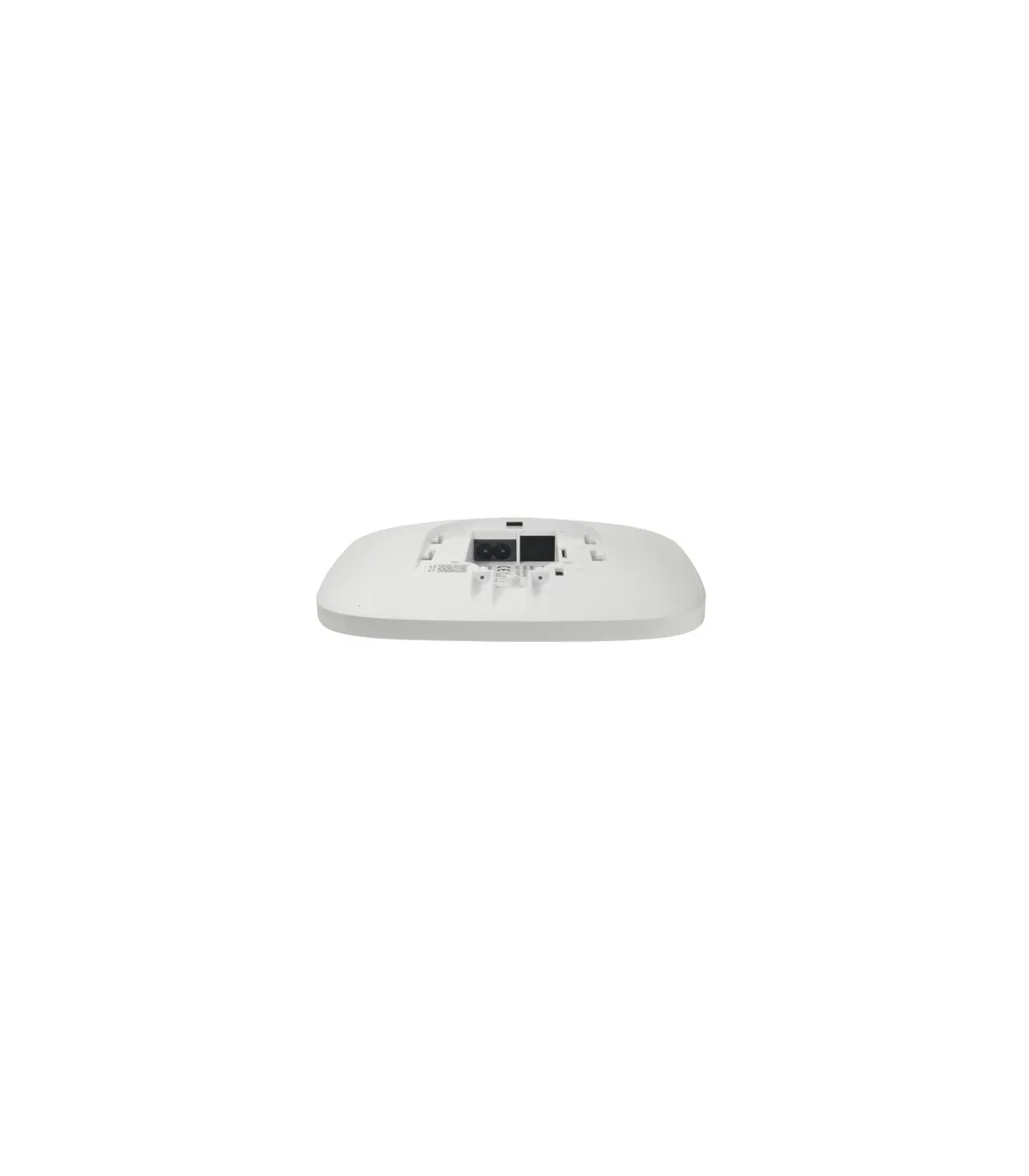

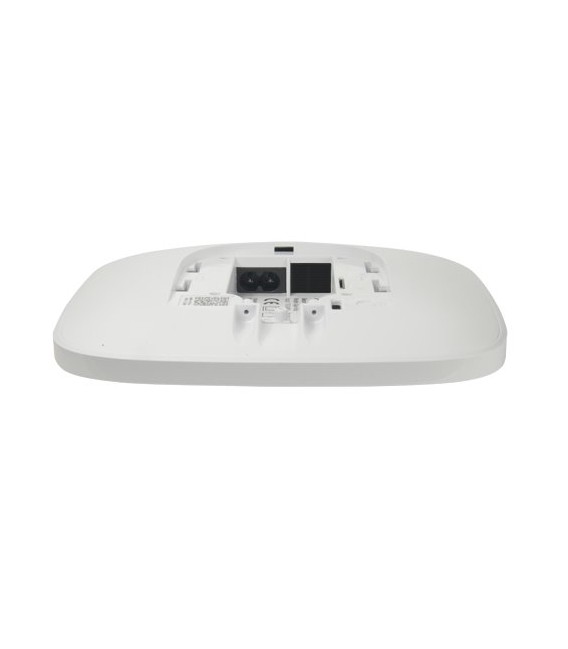

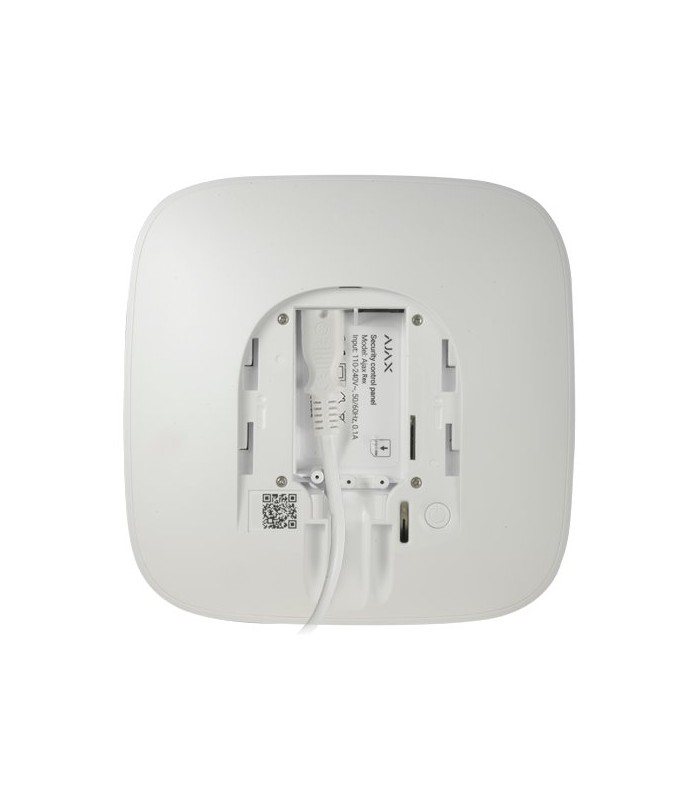

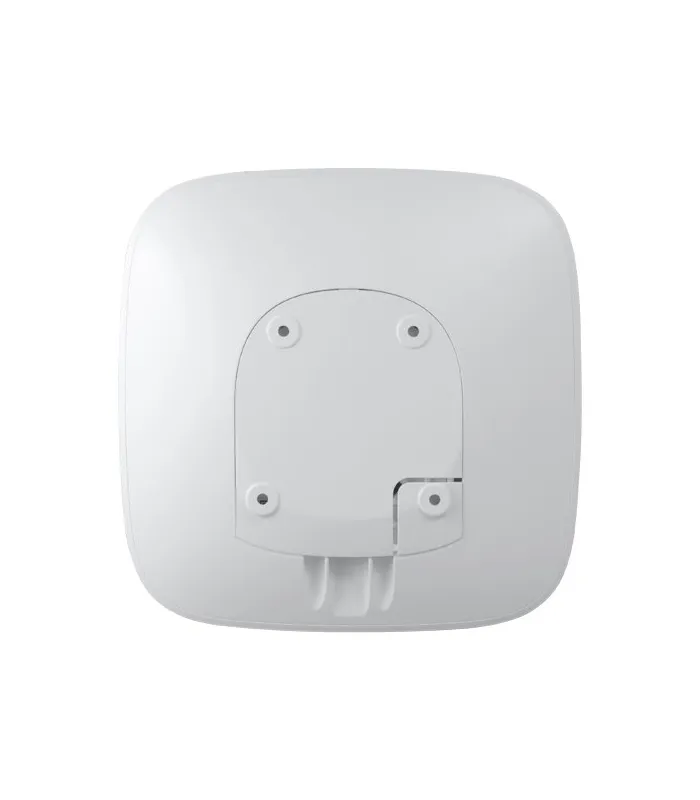

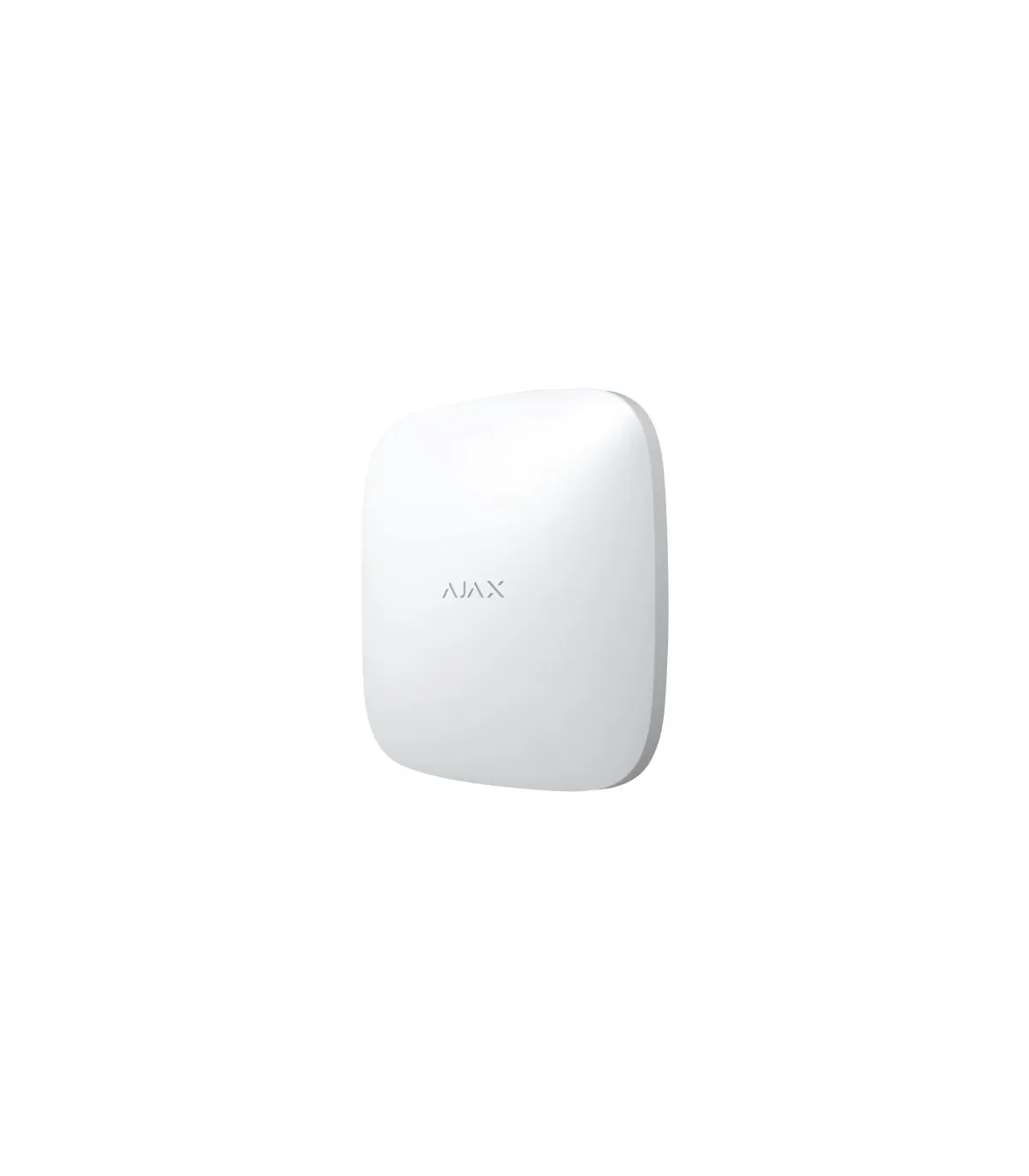

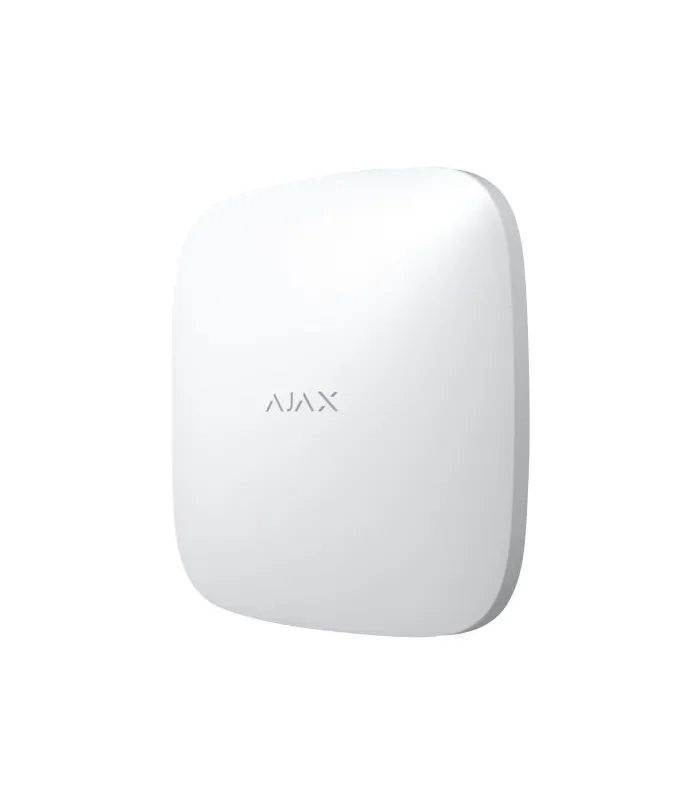

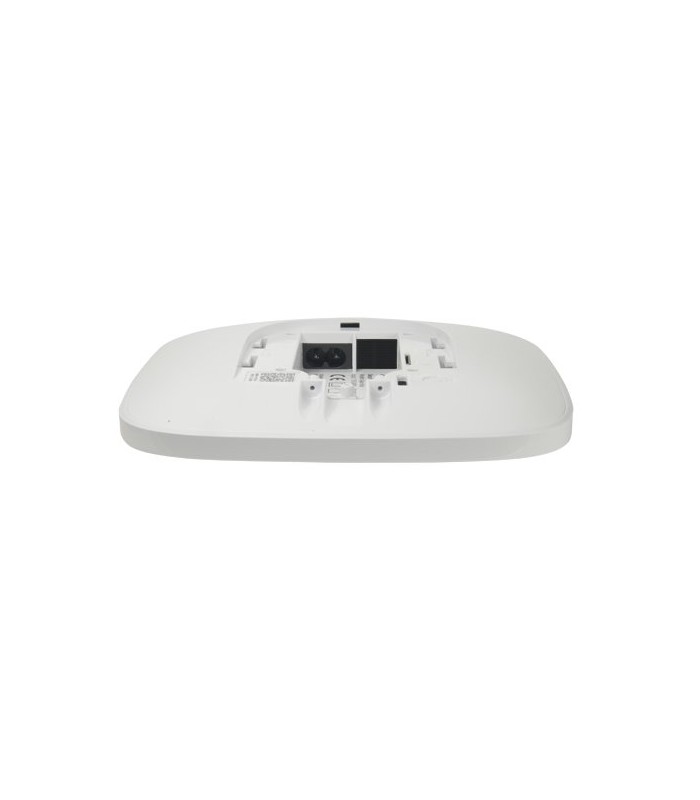

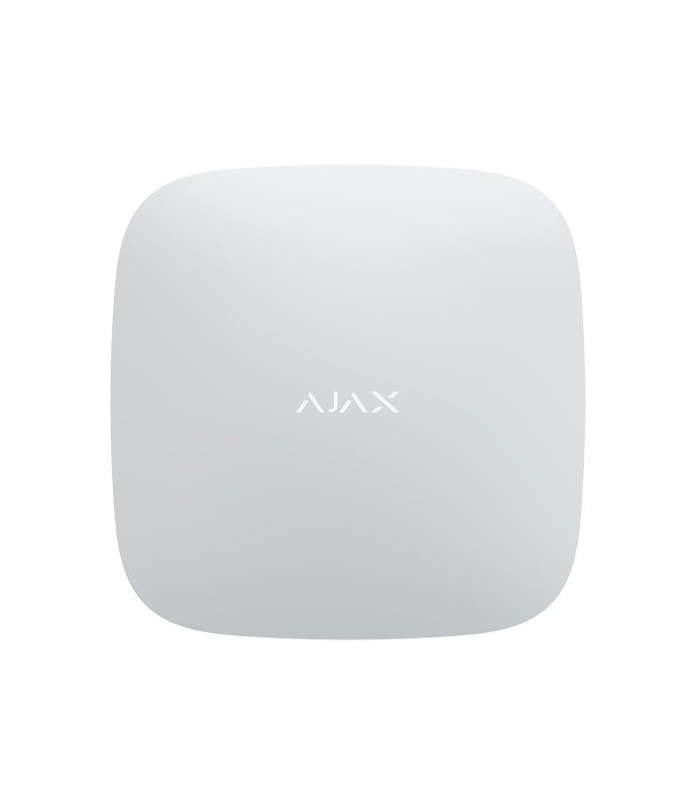

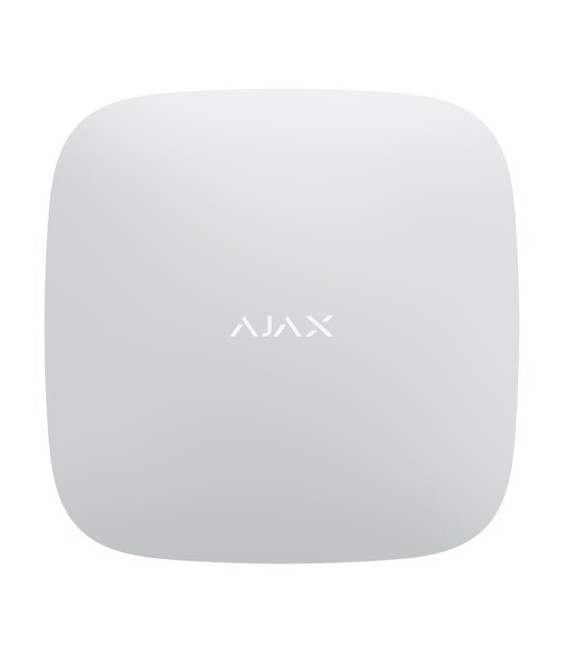

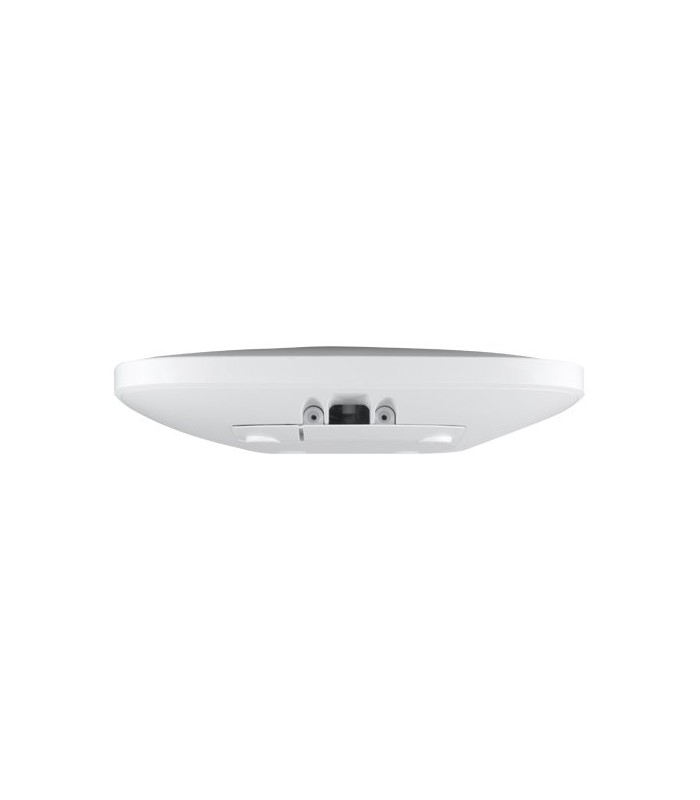

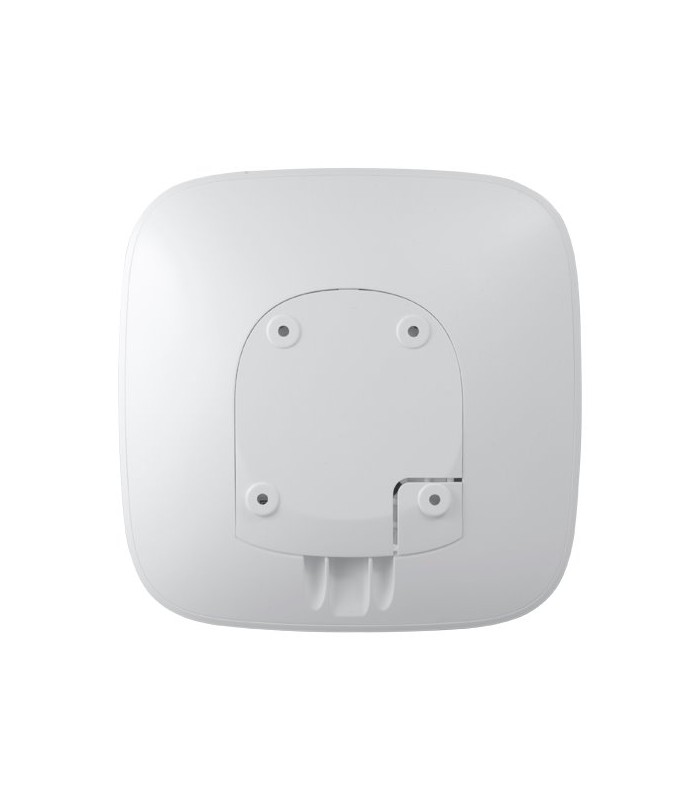

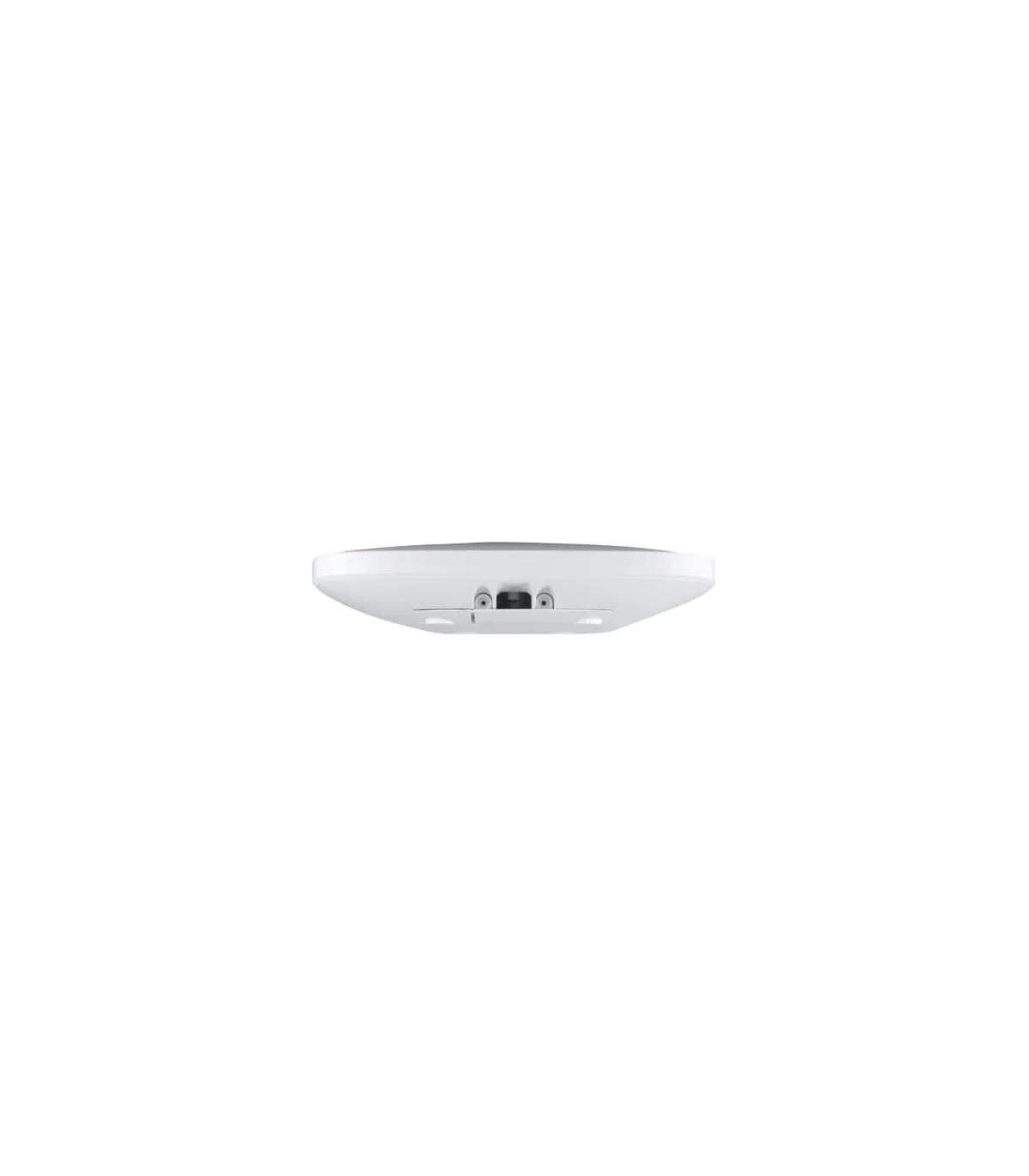

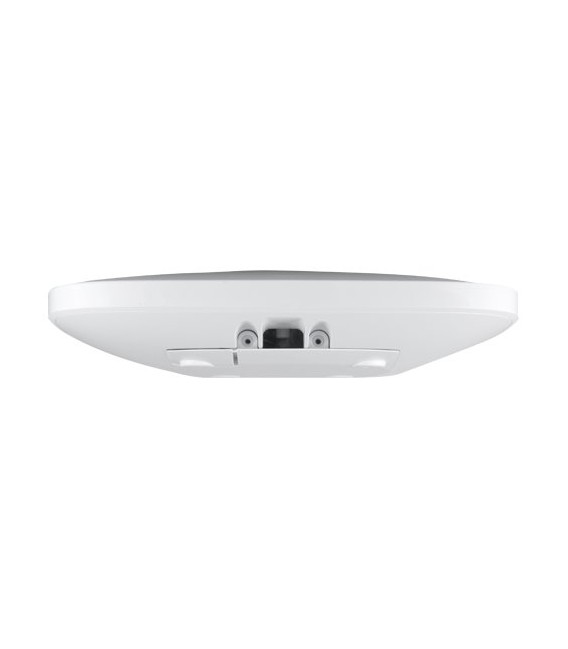

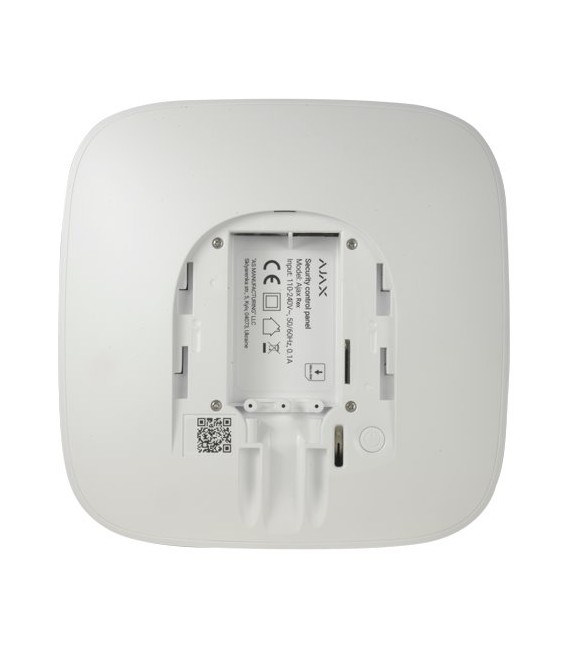

Ajax Wireless Repeater AJ-REX-W
- Wireless Repeater
- 868 MHz Jeweller Wireless
- Up to 99 devices (Hub and Hub 2)
- Up to 149/199 devices (Hub Plus/Hub 2 Plus)
- Backup battery up to 35 hours
- Mobile App and PC Software
€120.90
Reference:
AJ-REX-W
Brand:
Ajax AJ-REX-W Wireless Repeater
The Ajax AJ-REX-W Wireless Repeater is the perfect solution for extending the coverage of your Ajax security system. With this device, you can extend the signal of your detectors and sensors up to 1,700 meters in open spaces, providing complete protection for your home or business.
In addition, the Ajax AJ-REX-W Wireless Repeater features a backup battery that ensures its operation even in case of power outages. Its installation is simple and quick, and its compact and discreet design makes it ideal for any type of environment.
General Features
- Ajax
- Wireless Repeater
- Bidirectional
- Jeweller 868MHz Protocol
- Internal antenna with free space range of 1800 m
- Supervision every 12 s
- Anti-tamper protection
- Anti-jamming
- Backup battery
- Supports up to 99 / 149 (Hub / Hub Plus) connected wireless devices
- Compatible with other alarm accessories from our catalog
- Power supply 110-240 V AC
- For indoor use
- Includes mounting bracket
- White color
Technical Specifications
| Brand | AJAX |
| RF Frequency | 868 MHz. Jeweller radio protocol |
| Security Grade | Grade 2 |
| Internal Security | Anti-tamper protection |
| Internal Siren | Not available |
| Maximum Devices | Up to 99 (Hub and Hub 2) / 149 (Hub Plus) / 199 (Hub 2 Plus) / Max. 10 sirens |
| Maximum Repeaters | 1 ReX per Hub / 5 per Hub Plus, Hub 2, and Hub 2 Plus |
| Compatibility | Not compatible with Ajax MotionCam, ocBridge Plus, and uartBridge |
| Cover Material | ABS plastic |
| Power Supply | AC 110~250 V, 50/60 Hz |
| Backup Battery | Up to 35 hours |
| Operating Temp. | -10º C ~ 40º C |
| Dimensions | 163 (H) x 163 (W) x 36 (D) mm |
Package Contents
- Wireless Repeater
- Power cable
- User manual
AJ-REX-W
Data sheet
- Brand
- AJAX
- Case Color
- White
- PoE powered
- 220 VAC
- Use
- Indoor
- Product type
- Repetidor
Specific References
- EAN13
- 4823114015830
