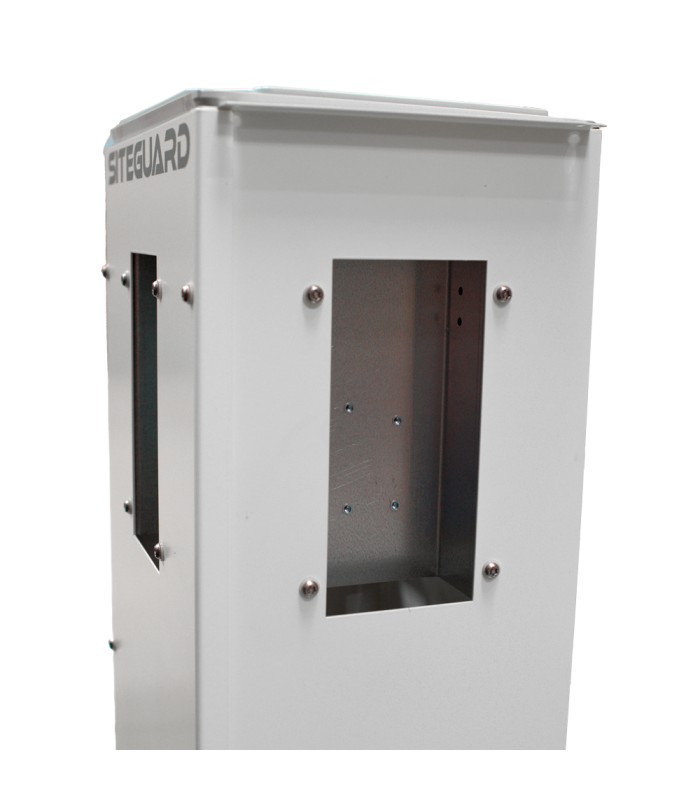

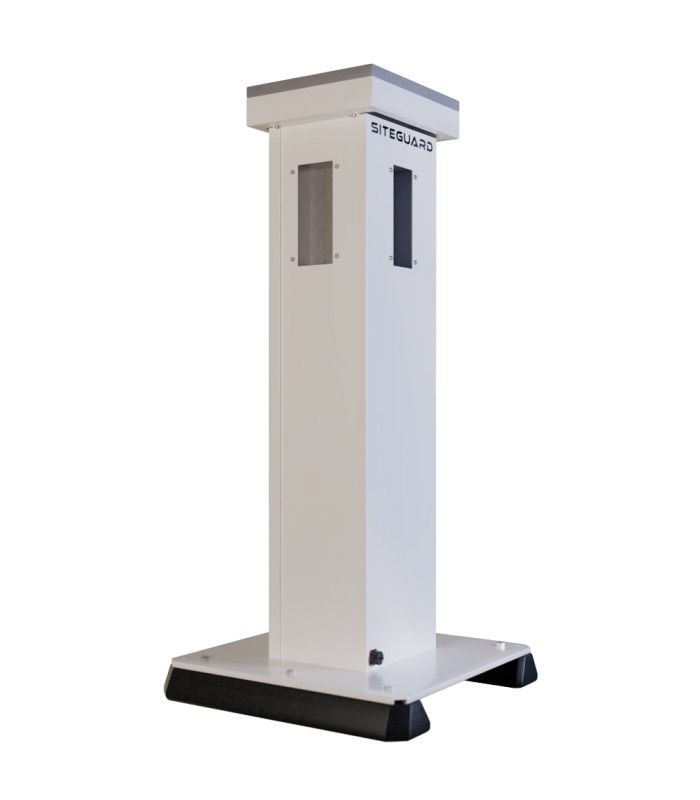

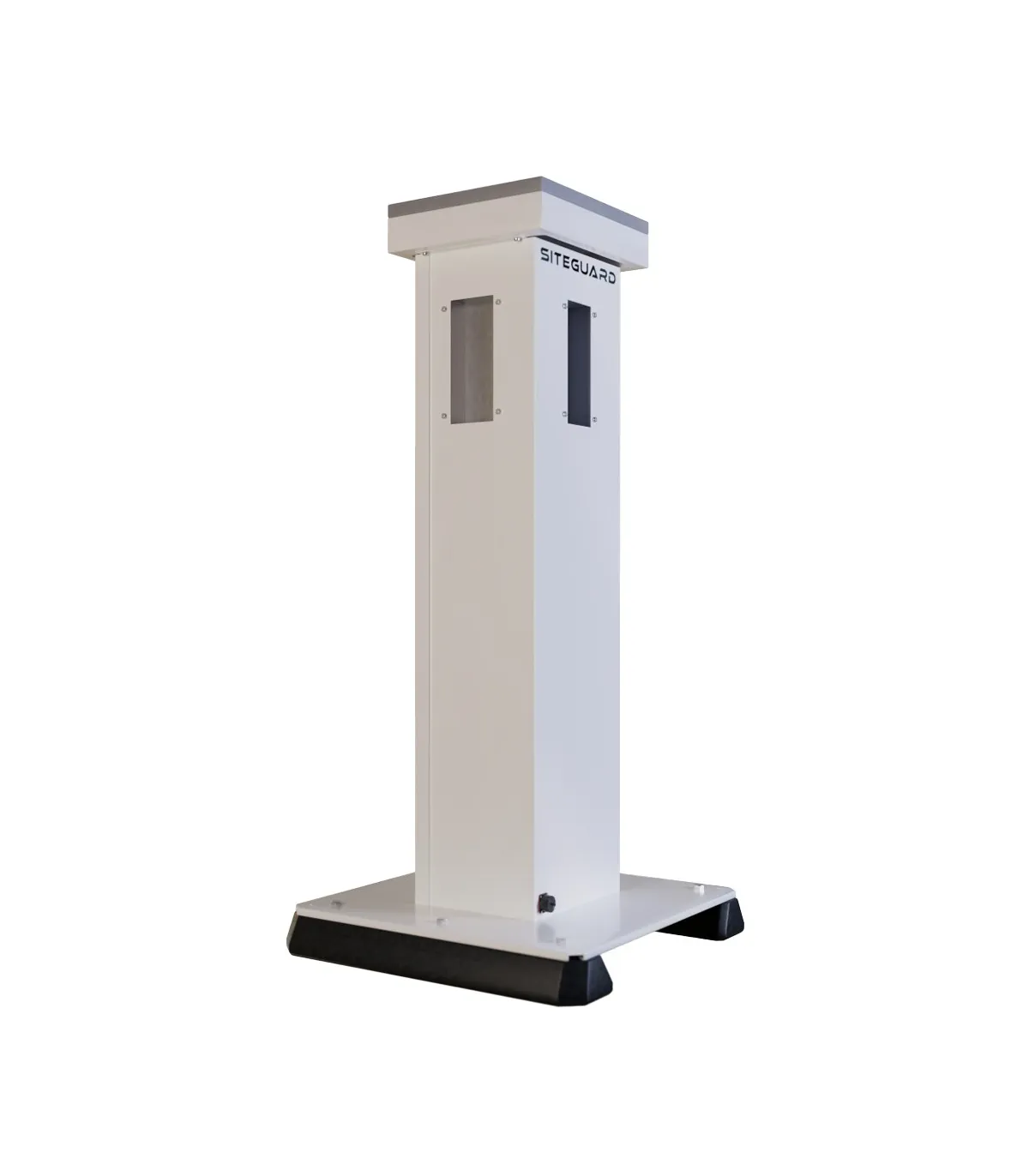

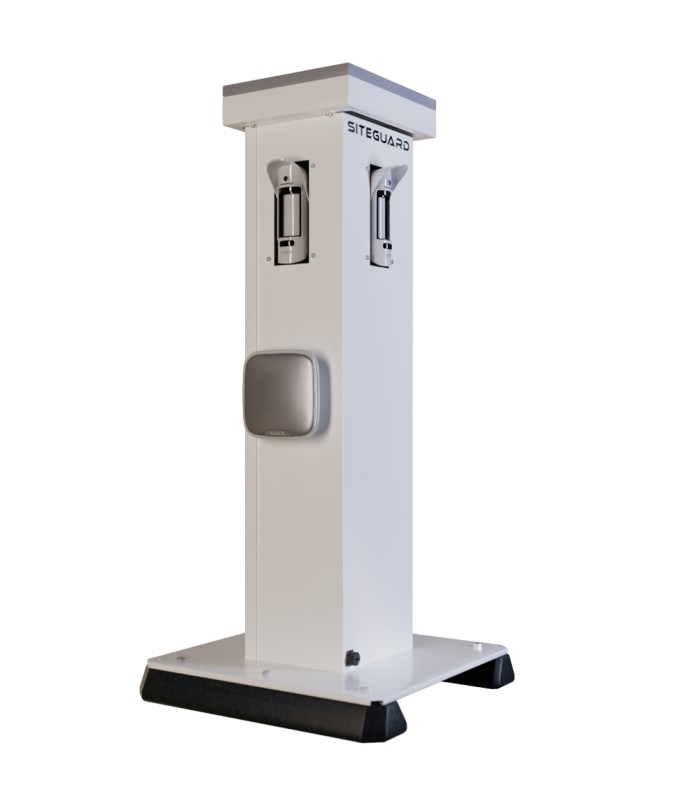

Tower for 360º perimeter protection AJ-SITEGUARD-W
- SiteGuard Ajax Ready
- Tower for perimeter protection
- 12V solar panel and MPPT regulator

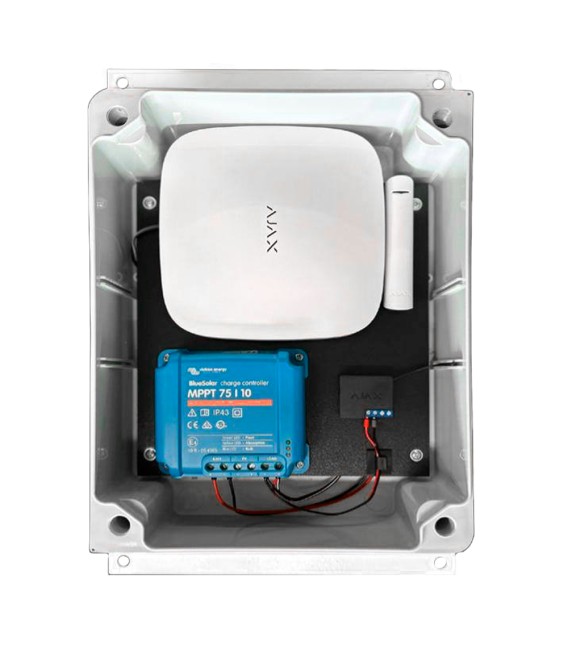

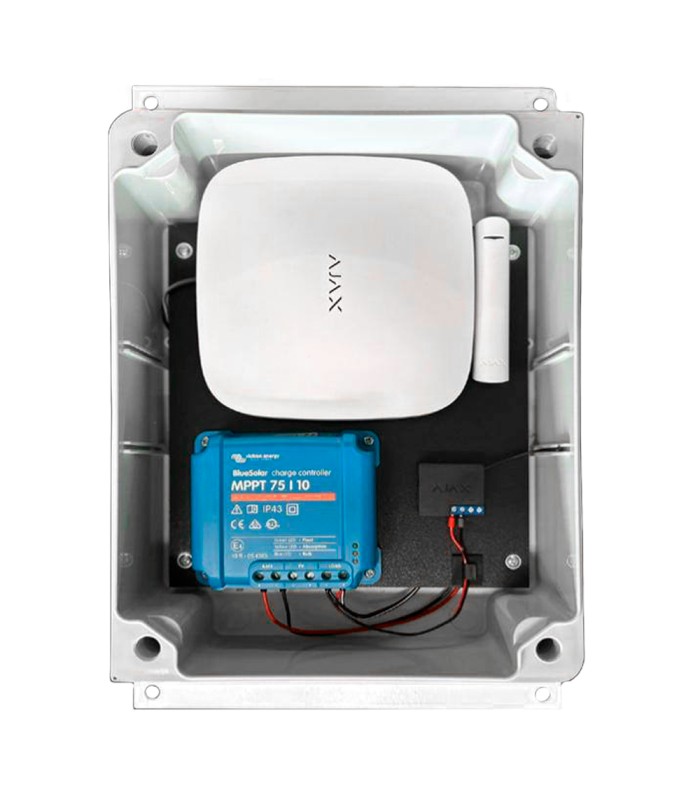

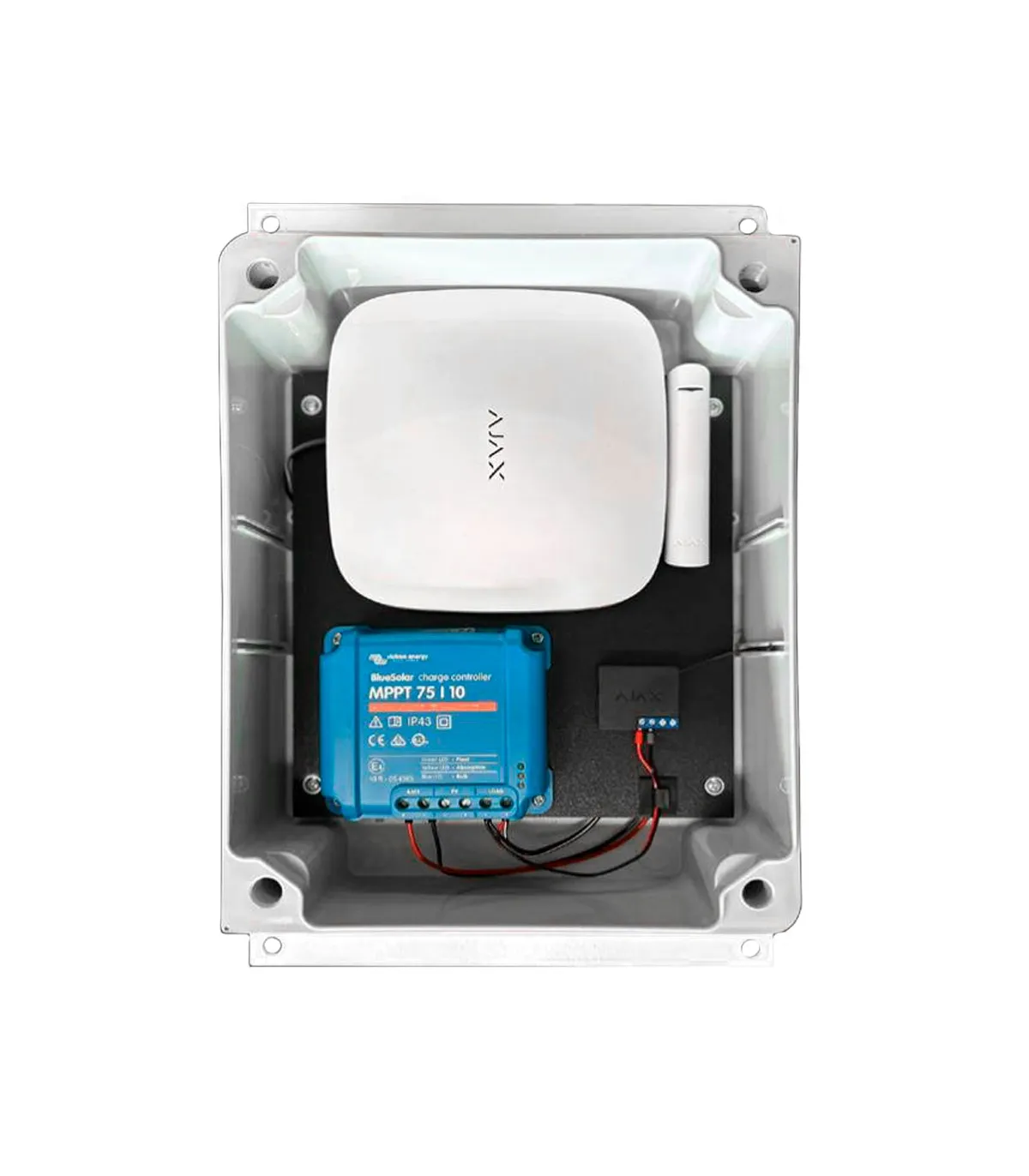

- Includes IP65 housing to protect the MPPT regulator and alarm panel
- Prepared for installation of a security system Ajax intrusion
- Wiring for connection of a 12V backup battery (up to 85 Ah)
- 2 anti-vibration blocks screwed to the base of the tower
- Recommended Ajax devices (not included): AJ-HUB2-4G-W/B, 1 x AJ-DC1224V-PCB2, 4 x AJ-MOTIONCAMOUTDOR-W, 2 x AJ-STREETSIREN-W/B, 1 x AJ-DOORPROTECTPLUS-W and 1 x AJ-RELAY
- Recommended backup battery (not included): BATT-1244-U
- Color White
Technical specifications
General | |
| Brand | SiteGuard Ajax Ready |
| Use | Tower for 360º perimeter protection with instant photo verification |
| Equipment included | Solar Panel MPPT Regulator Structure 2 anti-vibration blocks screwed to the base of the tower tower Connection for installation of lead acid backup battery External power connector for indoors (optional use) |
| Recommended Ajax devices | Control panel: 1 x AJ-HUB2-W/B or AJ-HUB2-4G-W/B Power module: 1 x AJ-DC1224V-PCB2 Outdoor PIRCam: 4 x AJ-MOTIONCAMOUTDOOR-W or AJ-MOTIONCAMOUTDOOR-PHOD-W Outdoor siren: 2 x AJ-STREETSIREN-W/B Tilt and impact detector: 1 x AJ-DOORPROTECTPLUS-W/B or AJ-DOORPROTECTPLUS-S-W/B (tamper detection) Relay: 1x AJ-RELAY (solar panel power control) |
| Backup battery connection | Connection to install lead battery acid 12 V (up to 85 Ah) |
| Recommended backup battery | BATT-1244-U |
| Tower material | Steel galvanized |

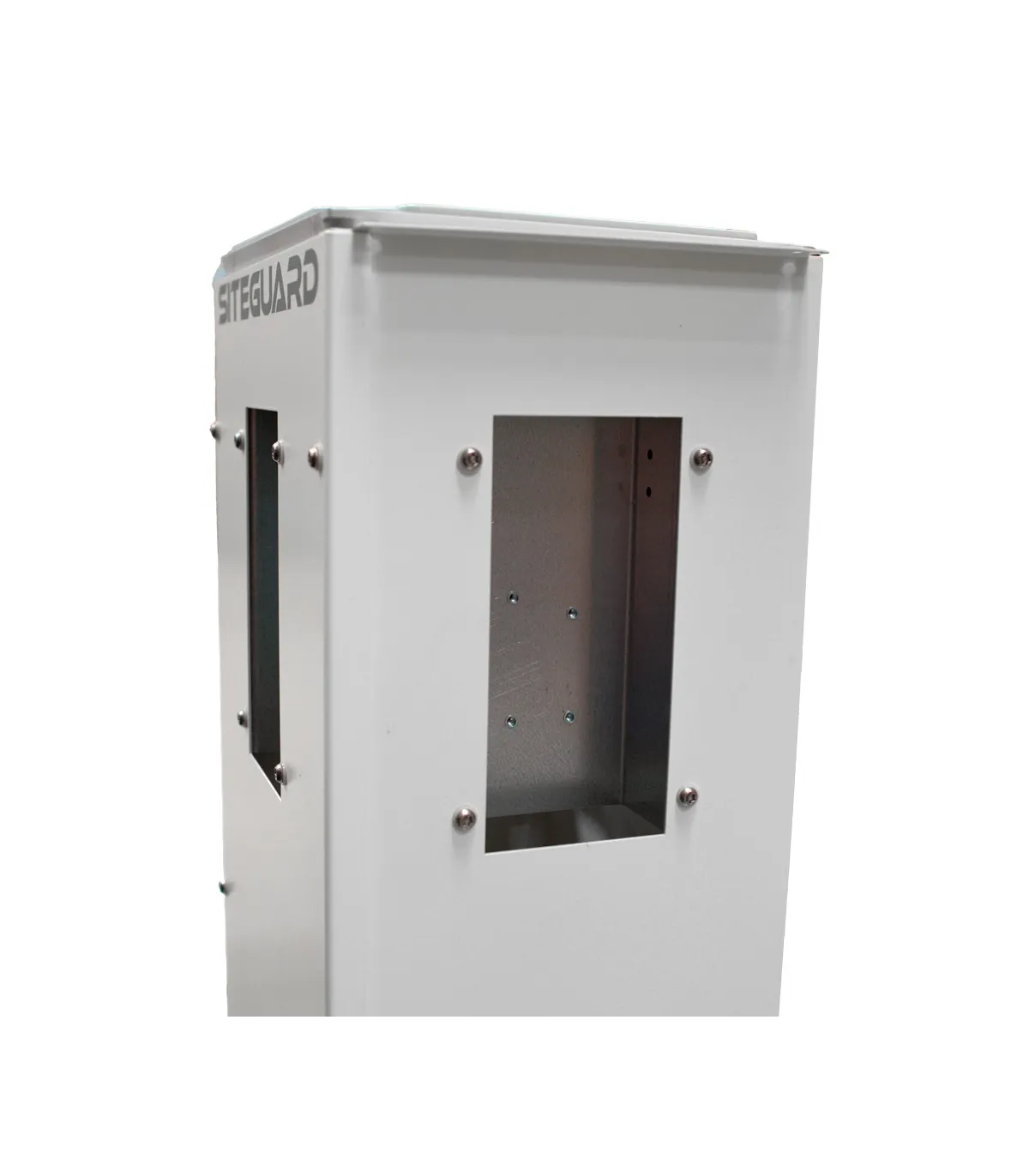

| Junction box | Available for equipment storage. Protection IP65 |
| Dimensions | Height: 138 cm Base: 68 (W) x 68 (D) cm |
| Bolts | TX30 M6 x 12 mm |
| Weight (without battery) | 37 kg |
| Color | White |

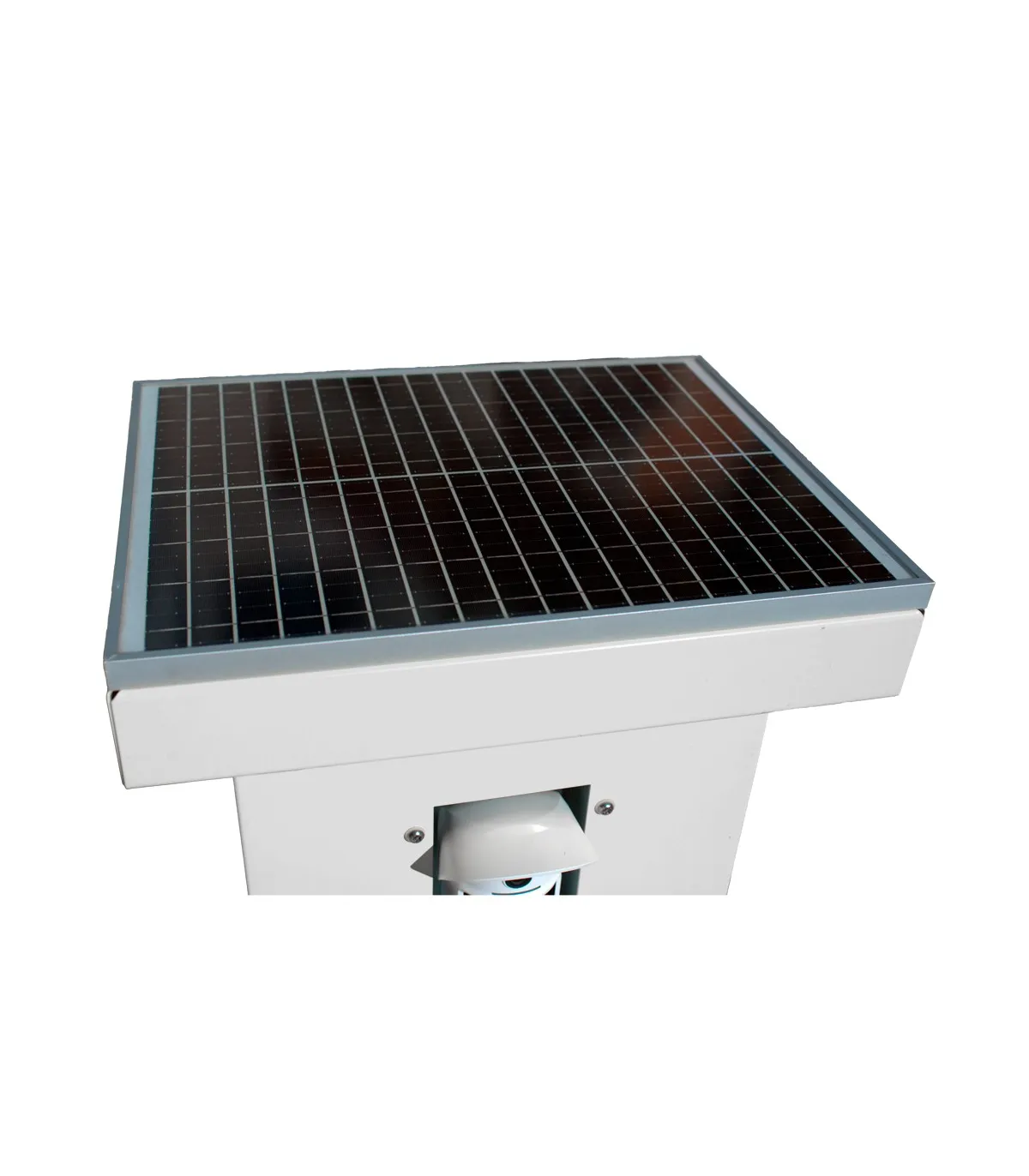

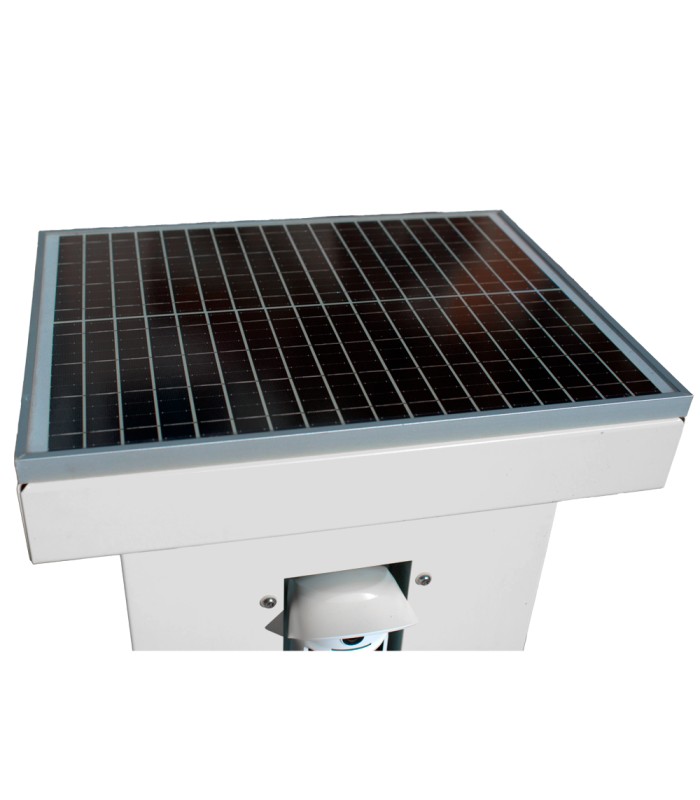

Solar Panel | |
| Nominal power | 25 W |
| Cell type solar | Monocrystalline |
| Maximum peak voltage (Vmp) | 18 V |
| Open circuit voltage (Voc) | 22.41 V |
| Short circuit current | 1.54 A |
| Maximum current | 1.4 A |
| Dimensions | 421 (H) x 320 (W) x 20 (D) mm |
| Weight | 0.75 kg |
| Material | Tempered glass |
| Useful life | >20 years |
| Degree of case protection connections | IP65 |

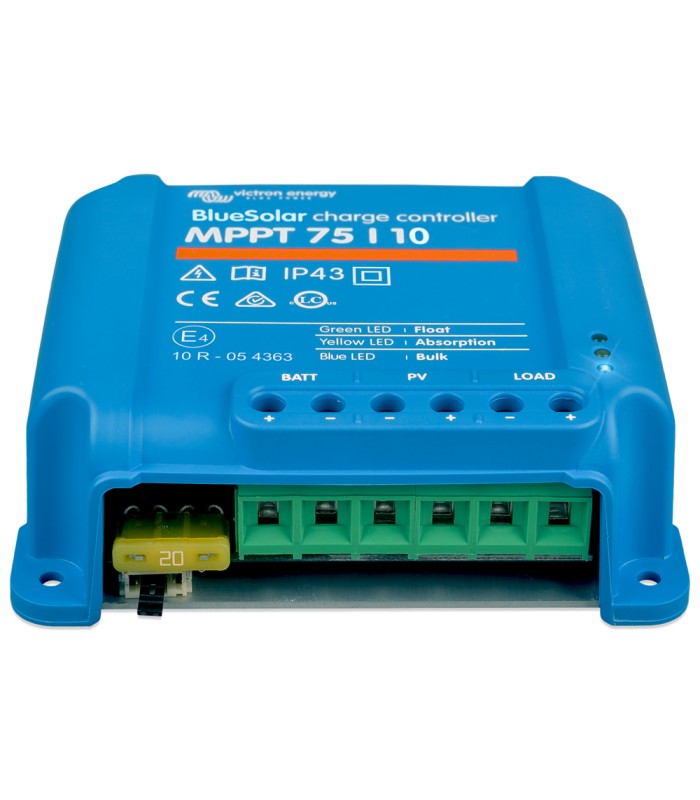

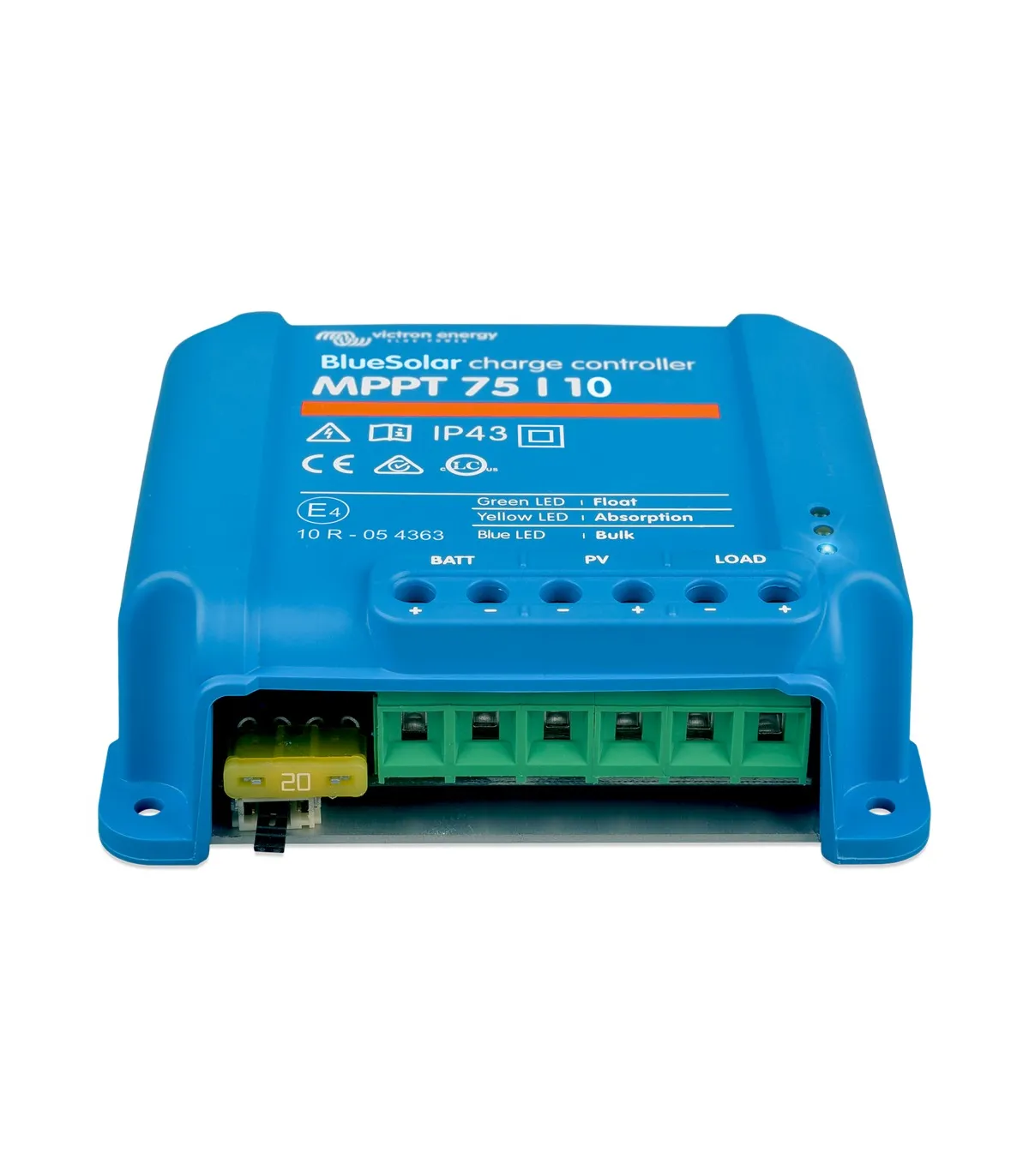

MPPT regulator | |
| Brand | Victron Energy |
| Battery voltage | 12 V (preset for lead acid battery) |
| Rated load current | 10 A |
| Nominal potential | 145 W (@12 V) |
| Maximum solar short circuit current | 13 A |
| Automatic load shedding | Available |
| Maximum efficiency | 98% |
| Charging algorithm | Adaptive multi-stage for optimization of recharge cycles and charge maintenance for extended periods of time |
| Maximum continuous charging current | 15 A |
| Charge disconnection voltage load | 11.1 - 11.8 V |
| Load reconnection voltage | 13.1 - 14V |
| Protection | Against short circuits, excess temperature and fuse to protect against battery polarity reversal |
| Operating temperature | -30ºC to +60ºC |
| Dimensions | 100 (H) x 113 (W) x 40 (D) mm |
| Weight | 0.15 kg |
Contents
- Steel tower galvanized
- Solar Panel
- MPPT regulator
- 2 anti-vibration blocks on the base
- Connection for backup battery installation
- External connector for indoor power supply
- Mounting material
