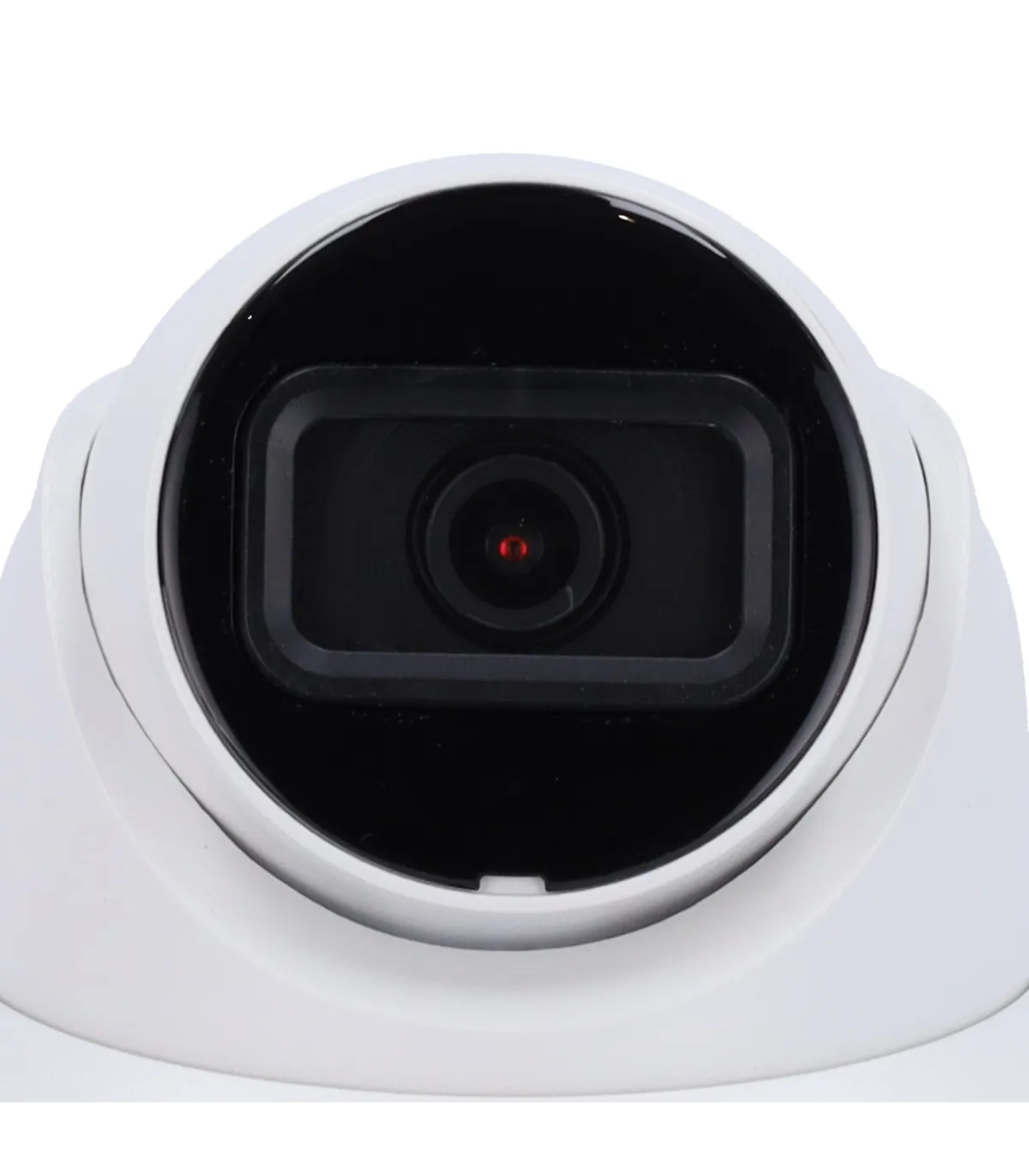

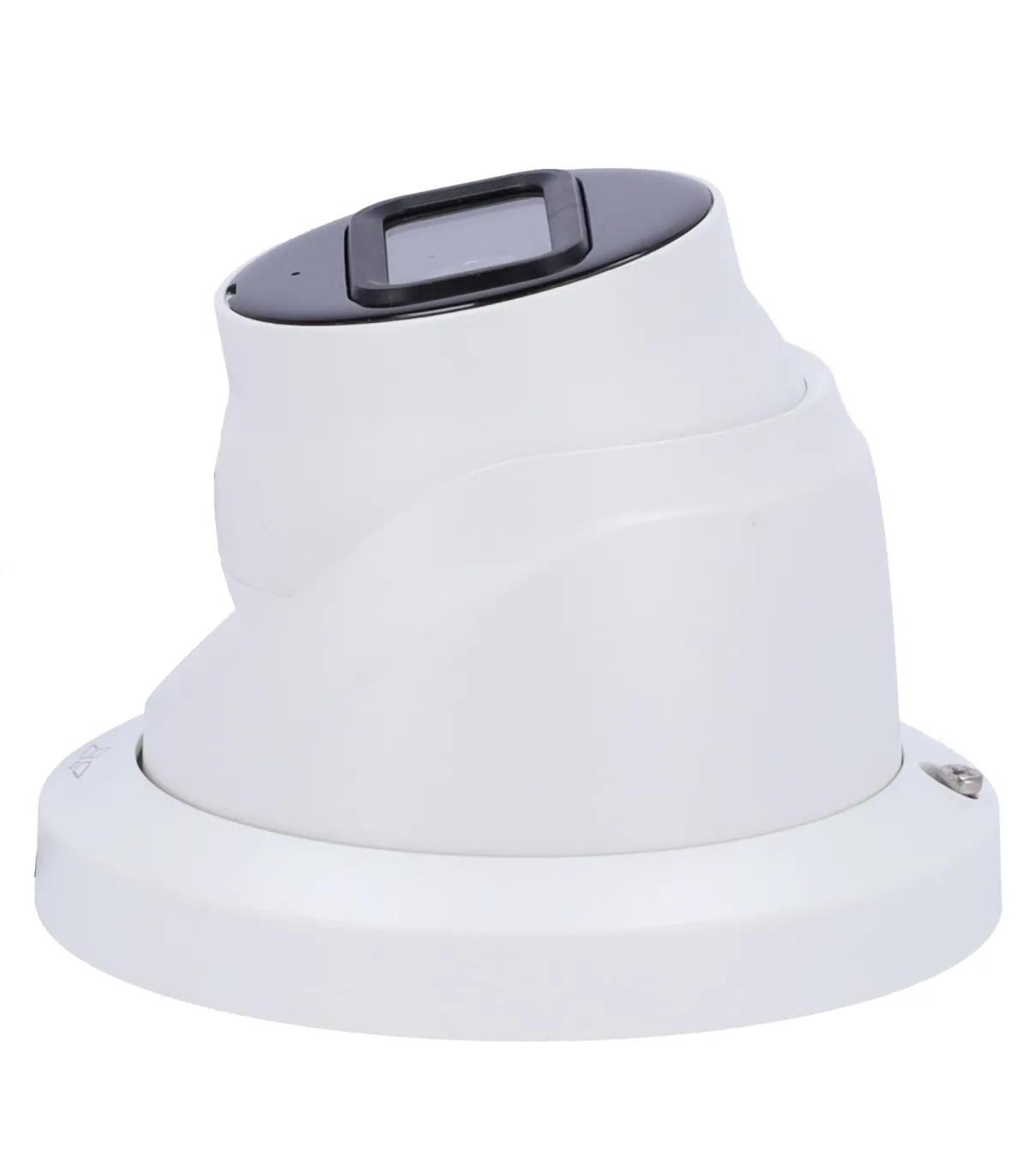

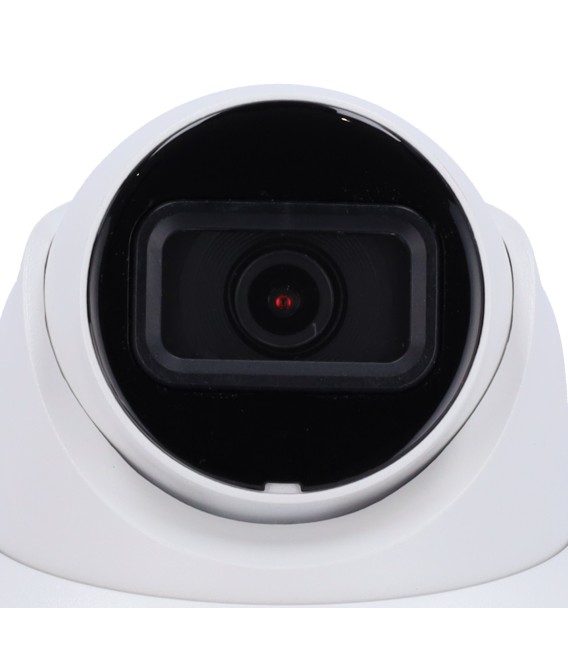

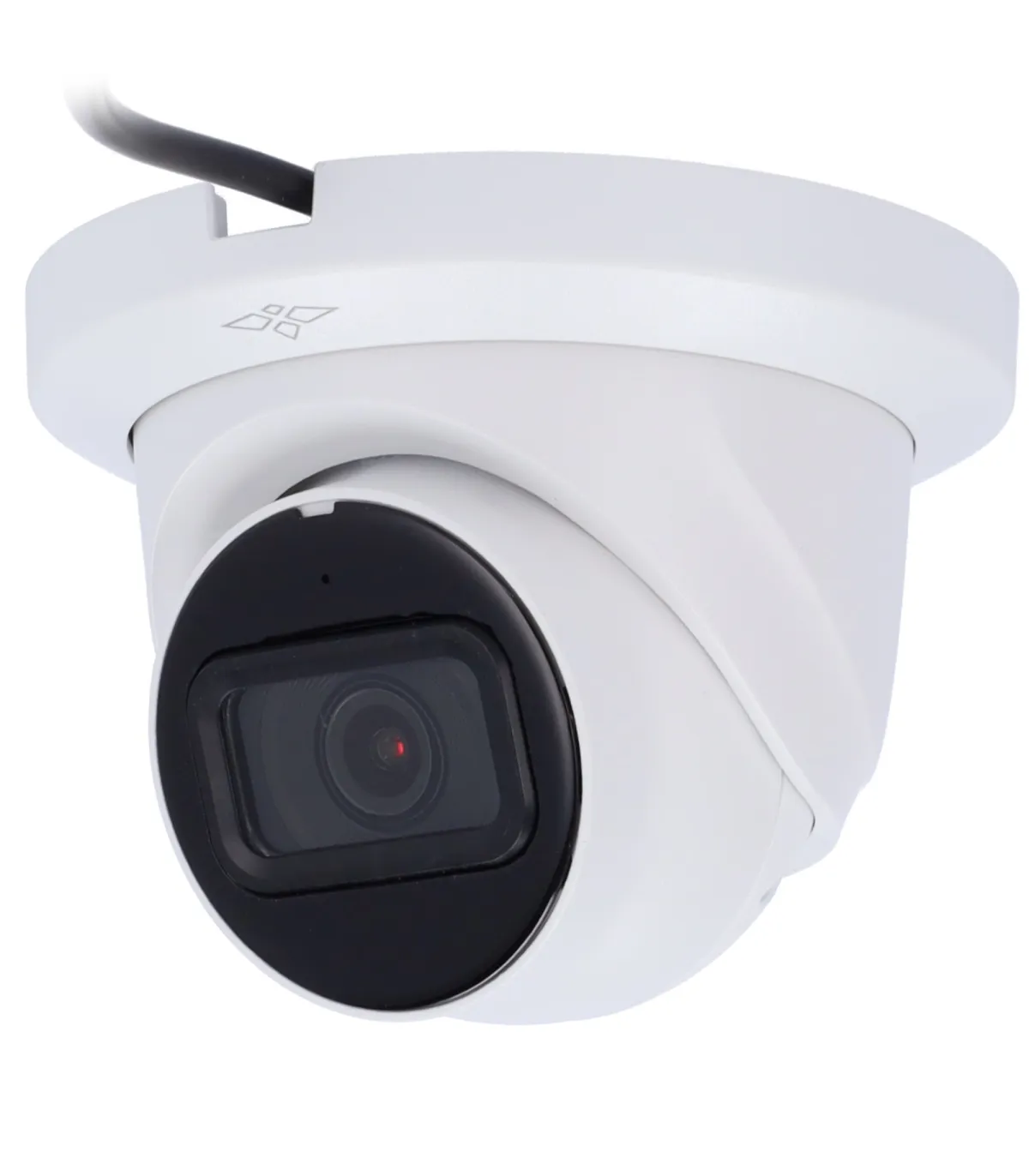

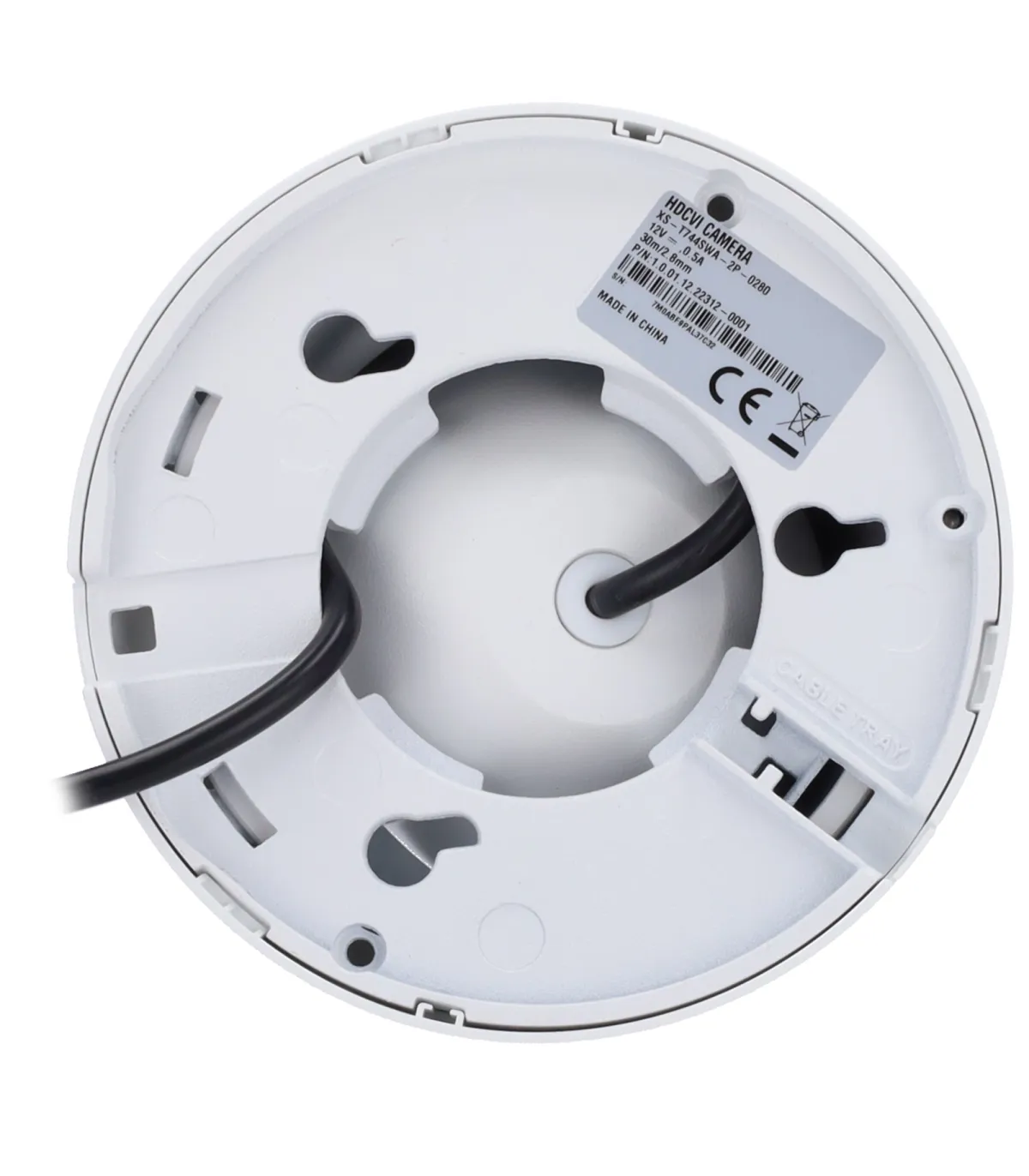

Turret X-Security Camera PRO Range XS-T744SWA-2P-0280
Brand: X-SECURITY
- X-Security PRO Series Turret Camera
- 4 in 1 Output
- 1/2.8" CMOS Sensor
- 2.8mm Lens | IR Range 30m
- Audio over Coaxial Cable in HDCVI
X-Security PRO Range Turret Camera XS-T744SWA-2P-0280
- X-Security
- Turret Camera HDTVI, HDCVI, AHD, and Analog
- PRO Range
- 1/2.8" CMOS
- 2 Mpx (1920x1080)
- 4 in 1 Output
- 2.8 mm Lens
- 0 Lux
- IR Range 30 m
- Audio over Coaxial
- Starlight
- IR CUT
- IP67 Waterproof
Technical Specifications
| Brand | X-Security |
| Range | PRO |
| Image Sensor | 1/2.7" CMOS |
| Maximum Resolution | 2 Mpx (1920x1080) |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Lens | 2.8 mm |
| Minimum Illumination | 0.002 Lux/F1.6, 30 IRE, 0 Lux IR on |
| Infrared Illumination | 0 Lux / SMART IR (30 m) |
| Day/Night | Auto / Color / BW (Black and White) |
| Audio | Integrated Microphone (Audio via coaxial cable in HDCVI) |

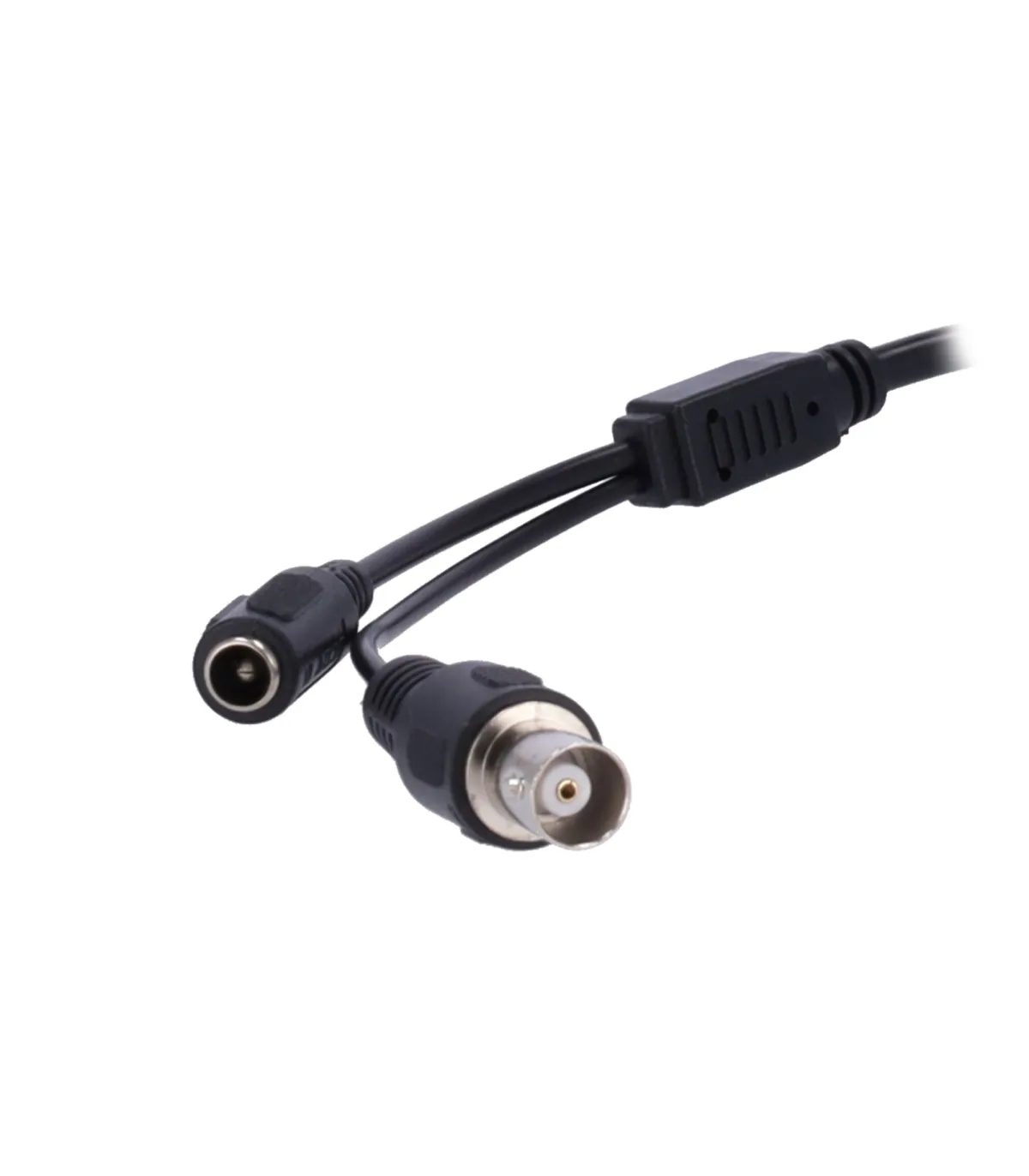

| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Through Switch |
| Basic Functions | OSD Menu (remote) |
| Configurable OSD Functions | DWDR, 3D-DNR, HLC, BLC, Mirror, Smart IR |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 434 mA, 3.1 W max |
| Protection Grade | IP67 Waterproof |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | 88.1 (H) x 109.9 (Ø) mm |
| Weight | 450 g |
Content
- X-Security 4N1 Turret Camera
- 3 plugs and 3 screws for mounting
- Instructions for use
- Allen key
- Installation template
