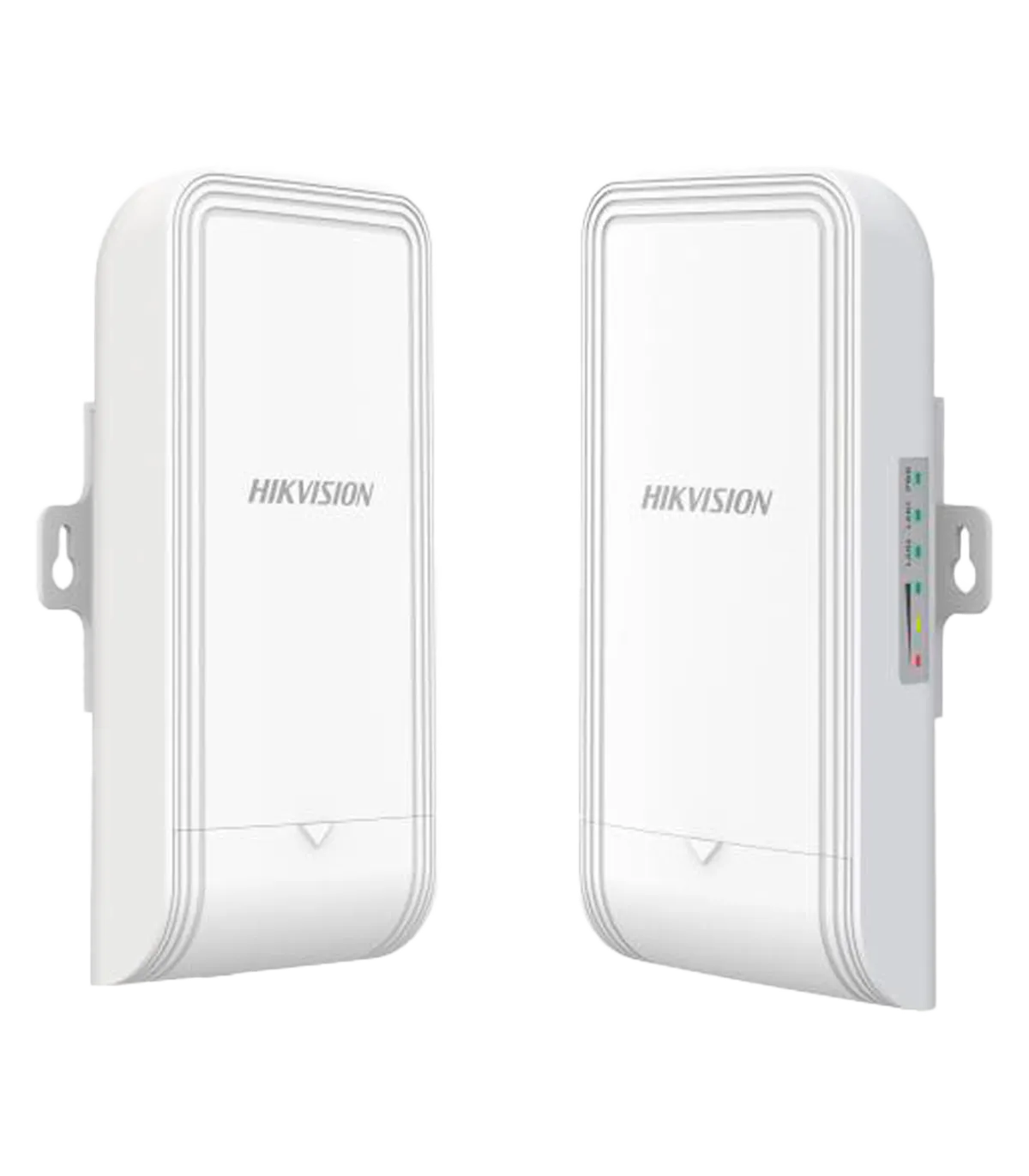

Hikvision Outdoor Wireless Bridge 500 m Range 2.4 GHz IP55 DS-3WF0EC-2NT

Description & Key Features: DS-3WF0EC-2NT

The Hikvision radio links provide robust and reliable wireless solutions for long-distance data transmission, significantly reducing the complexity and costs associated with traditional wiring. They are particularly suitable for video surveillance installations and security systems that require flexibility, high transmission capacity, and easy scalability. These devices easily integrate with centralized video management systems, enabling centralized monitoring and control of the wireless network.

• Device for high-power radio links at 2.4 GHz
• IP55, suitable for outdoor use
• Can be configured as a CPE for a radio link and as an AP for a radio link
• Allows connections up to 300 Mbps for 2.4 GHz
• MIMO technology with 7 dBi directional antennas to provide horizontal coverage: 65°, vertical: 65° - Operating temperature range of -30 to 70 ºC
• Connection distance up to 500 m
• 2 paired units

Specifications: DS-3WF0EC-2NT

Package Contents

• 2x DS-3WF0EC-2NT
• 2x Passive PoE Injectors
• Instructions

Use Case

In a typical deployment scenario, the DS-3WF0EC-2NT can be utilized in a large outdoor facility where traditional cabling is impractical. For instance, a security company may need to set up a video surveillance system across a sprawling industrial site. By leveraging the high-power capabilities of the DS-3WF0EC-2NT, the installers can create a point-to-point connection that spans up to 500 meters, ensuring reliable data transmission without the need for extensive wiring. The device's MIMO technology and dual directional antennas enhance the signal quality, providing a stable connection even in challenging environments. Additionally, the IP55 rating ensures that the equipment can withstand harsh weather conditions, making it ideal for outdoor installations. This setup not only simplifies the installation process but also allows for remote monitoring and centralized management through compatible systems, enhancing overall operational efficiency.
