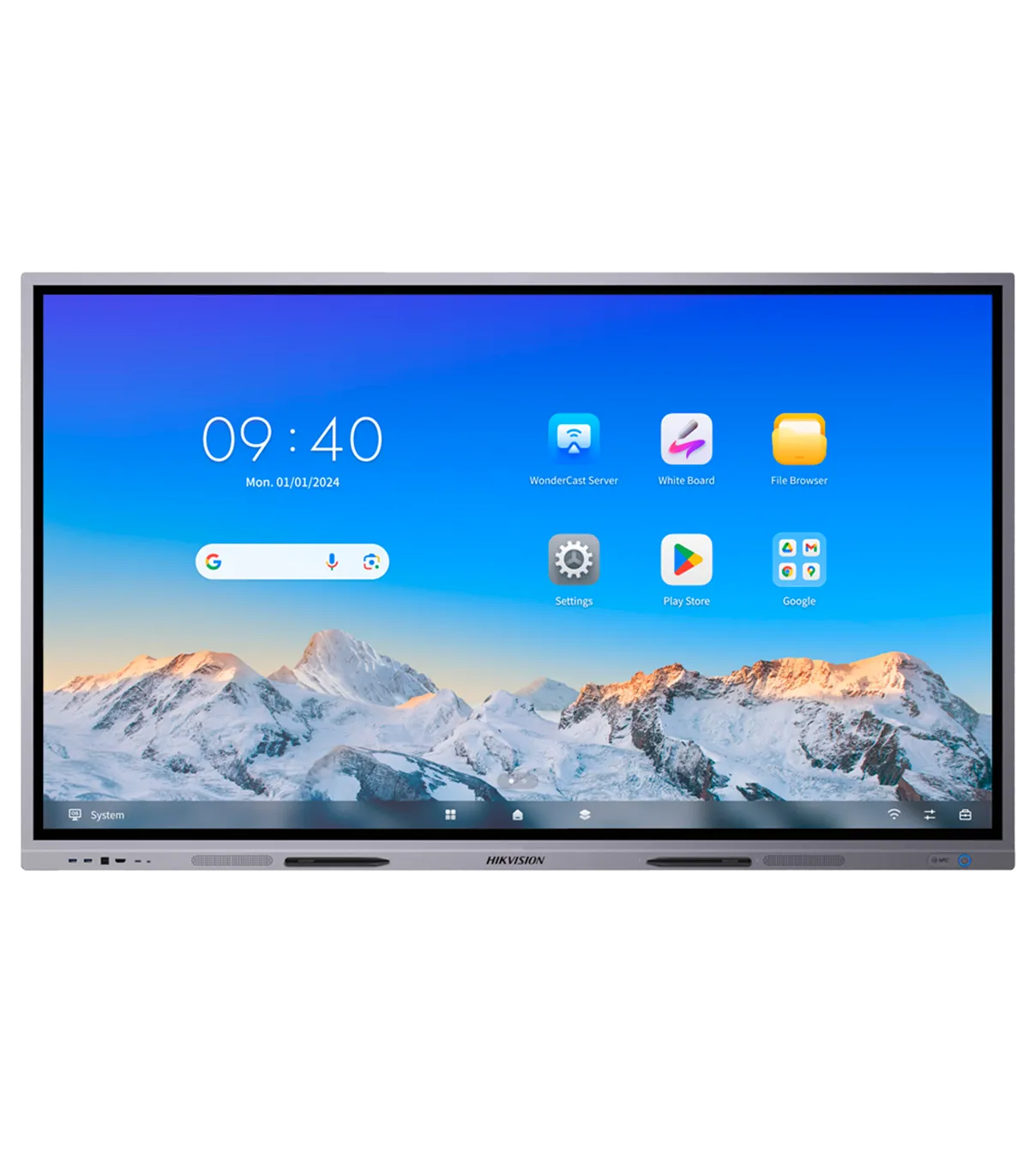

Hikvision CCTV Monitor 65-inch 4K Android 13 DS-D5C65RB/A(EDLA)
- 65" Interactive Monitor
- 4K Resolution
- Android 13
- EDLA Certification
- 8 GB RAM and 128 GB ROM
Description & Key Features: DS-D5C65RB/A(EDLA)
The DS-D5C65RB/A(EDLA) is an advanced interactive display designed for enhancing collaboration and productivity in various environments such as classrooms, conference rooms, and corporate offices. This device features a 65-inch interactive monitor with 4K resolution, making it ideal for presentations and interactive sessions. With its Google EDLA certification, users benefit from high security, access to Google Play for app downloads, and compatibility with various video conferencing tools, ensuring a seamless experience.
An interactive display is a digital device with touch technology that allows direct interaction with its software or a connected PC (as a peripheral or via OPS), promoting collaboration, productivity, and active user participation. These displays integrate advanced functionalities such as touch writing, real-time annotation tools, and connectivity with multiple devices, making them a versatile solution adaptable to various needs.
Additionally, having the Google EDLA certification offers advantages such as high security, access to Google Play for downloading and using applications, and compatibility with various video conferencing tools, allowing the connection of peripherals for use, among other benefits, significantly enhancing the user experience.
- Interactive monitor 65"
- 4K resolution
- Android 13
- Google EDLA certification
- Brightness 400 cd/m2
- Processor 4x A76+4x A55
- 8 GB RAM
- 128 GB ROM
Specifications: DS-D5C65RB/A(EDLA)
General | |
| Brand | HIKVISION |
| Type | Interactive monitor |
| Size | 65" |
Panel | |
| Resolution | 3840x2160 |
| Refresh rate | 60 Hz |
| Aspect ratio | 16:9 |
| Brightness | 400 cd/m2 |
| Contrast | 5,000:1 (typical) 30,000:1 (dynamic) |
| Response time | 5 ms |
| Backlight | DLED |
| Viewing angle (horizontal / vertical) | 178º / 178º |
| Operation | 16/7 |
| Lifetime | 50,000 h |
Touch Technology | |
| Touch technology | Infrared touch frame |
| Simultaneous touches | 50 |
| Touch accuracy | 1.5 mm |
| Touch response time | ≤ 2 ms |
Connectivity | |
| Inputs | HDMI 2.0 x3 VGA x1 DP 1.2 x1 Audio 3.5mm x1 USB-B 3.0 (touch) x3 USB-A 3.0 x4 USB-A 2.0 x1 USB-C 2.0 x2 (Supports DP 1.2 and 15 W charging functions on the rear and 65 W on the front) RS232 x1 RJ45 x2 OPS x1 |
| Outputs | HDMI 2.0 x1 Audio 3.5 mm x1 SPDIF x1 |
| Bluetooth | 5.1 |
| NFC | For wireless screen transmission on Android devices |
| WiFi | Wi-Fi AP & Station, 2.4 G/5 G Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) Authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP |
| Network | 1,000 Mbps |
System | |
| Operating System | Android 13.0 |
| Google EDLA certification | Yes |
| Processor | 4x A76 (2.4 GHz) + 4x A55 (1.8 GHz) |
| GPU | Mail-G610 MC4 |
| RAM | 8 GB |
| ROM | 128 GB |
Audio and Video | |
| Speakers | 2x20 W + subwoofer 25 W |
Physical Appearance | |
| Brightness sensor | Yes |
| Glass hardness | 7 Mohs |
| Anti-glare glass | Yes |
| Front buttons | Power On/Off |
| Dimensions | 1,491.88 (W) x 895.1 (H) x 82.3 (D) mm |
| VESA | 600x400 mm |
| Weight | 36.6 kg |
Power | |
| Power supply | AC 100 ~ 240 V, 50/60 Hz |
| Power consumption without OPS | 107 W |
Package Contents
- Interactive monitor
- Power cable (3 m)
- HDMI 2.0 cable (3.5 m)
- USB cable (for touch) (3 m)
- 2x Passive stylus
- Remote control
- Fixed wall mount
- User manual
Use Case
The DS-D5C65RB/A(EDLA) is ideally suited for educational institutions and corporate environments where interactive learning and collaboration are essential. For instance, in a modern classroom, teachers can utilize the 65-inch interactive monitor to engage students through real-time annotations and collaborative projects. The 4K resolution ensures that all content is displayed with exceptional clarity, enhancing the learning experience. Furthermore, the device's Google EDLA certification guarantees a secure platform for accessing educational applications from Google Play, making it easy for educators to integrate technology into their lessons. In corporate settings, the monitor can be used for video conferencing, allowing teams to connect seamlessly with remote participants. The extensive connectivity options, including multiple HDMI and USB ports, facilitate easy integration with existing systems, ensuring a plug-and-play experience. Overall, the DS-D5C65RB/A(EDLA) enhances productivity and engagement in any collaborative environment.
Data sheet
- Brand
- HIKVISION
- Compatible models
- T1040T,T1040T,SF-BRKT-FIX-100,SF-BRKT-FIX-100,IB-WH3193-W2,IB-WH3193-W2,IB-IBD3110-L2,IB-IBD3110-L2,IB-IBD3110-L,IB-IBD3110-L,IB-EST08-W2-WHEELS,IB-EST08-W2-WHEELS,IB-EST08-W2-V3-B,IB-EST08-W2-V3-B,IB-EST009-W-WHEELS,IB-EST009-W-WHEELS,IB-EST009-W,IB-EST0
Specific References
- EAN13
- 6942160466965
