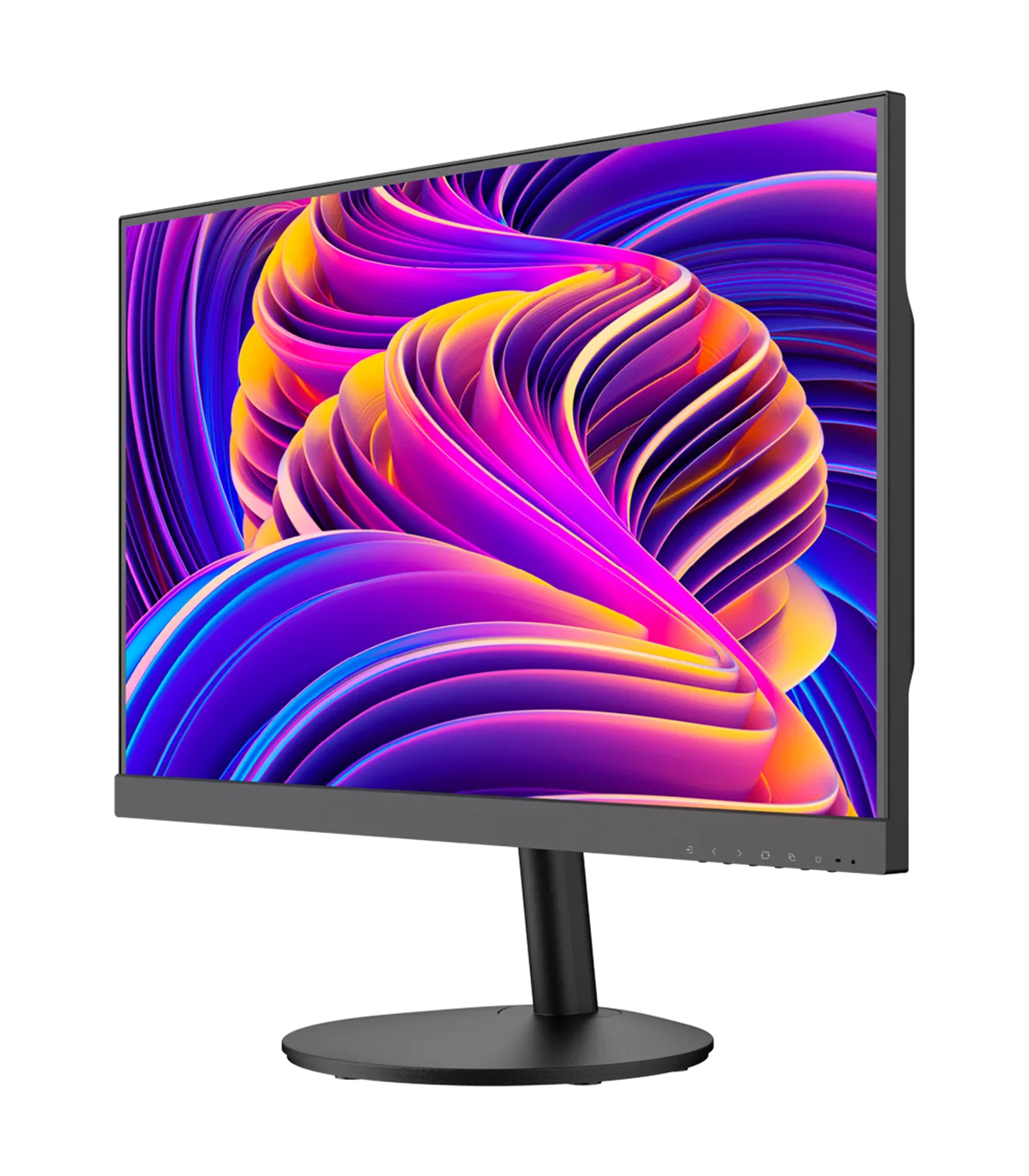

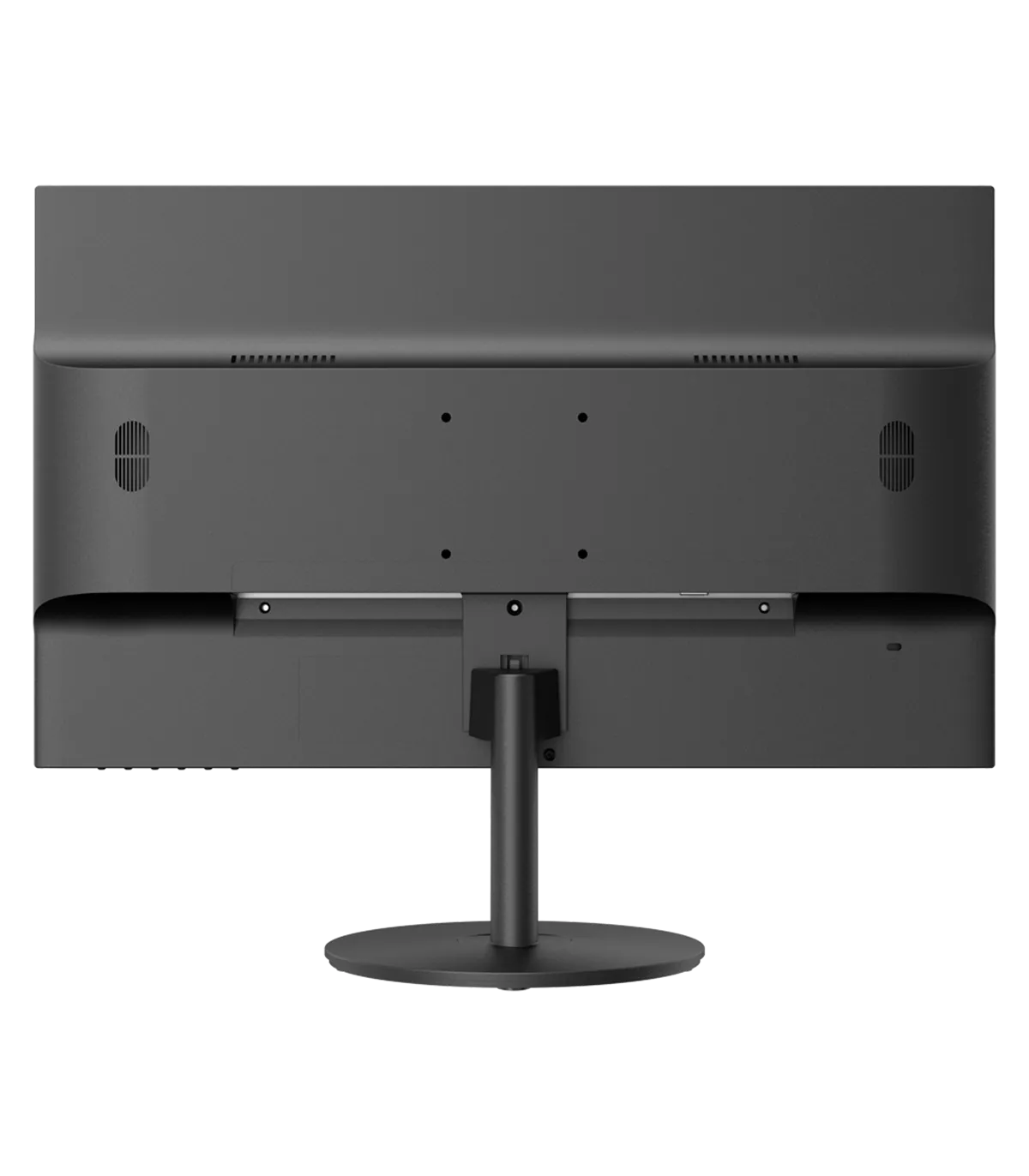

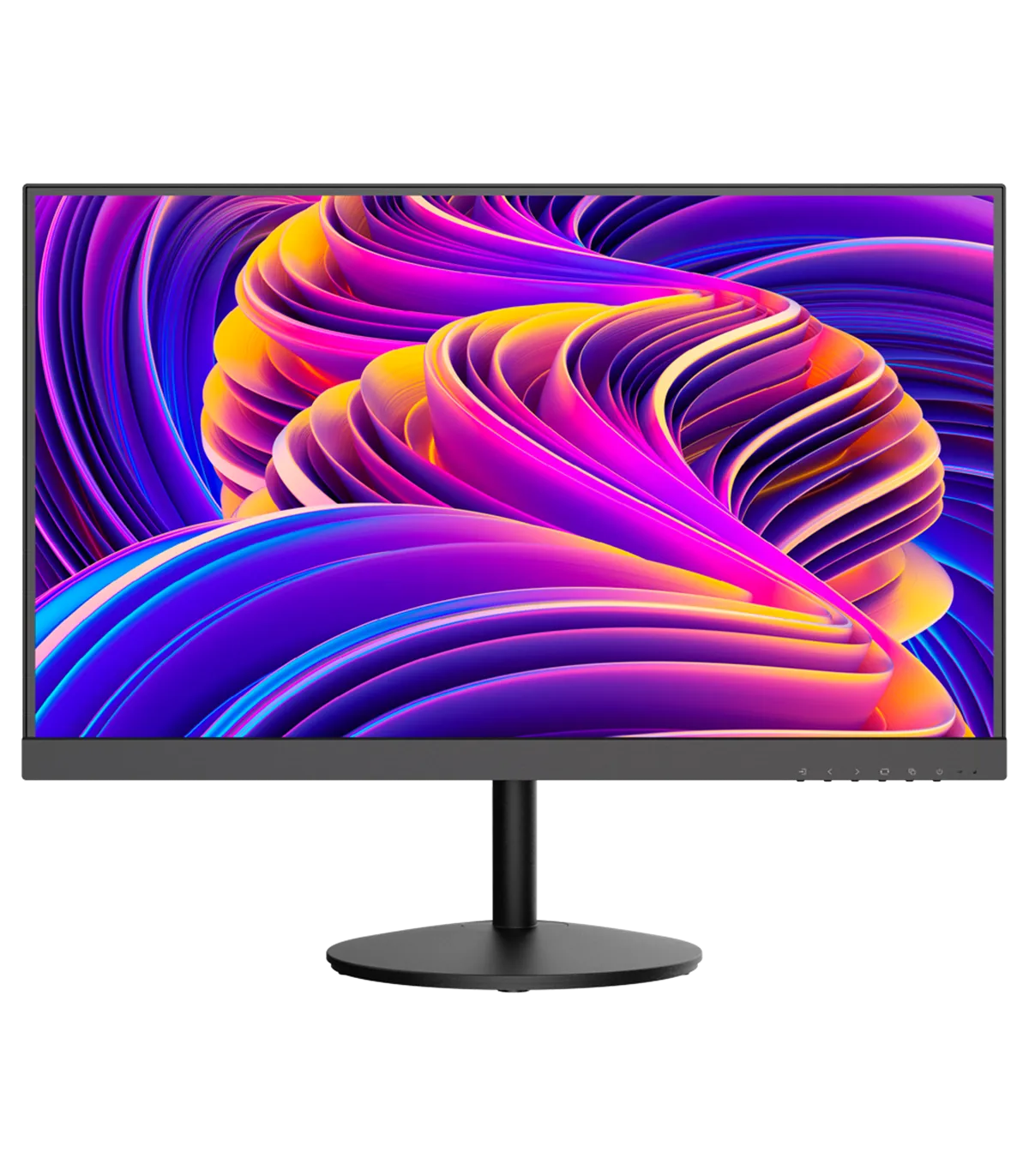

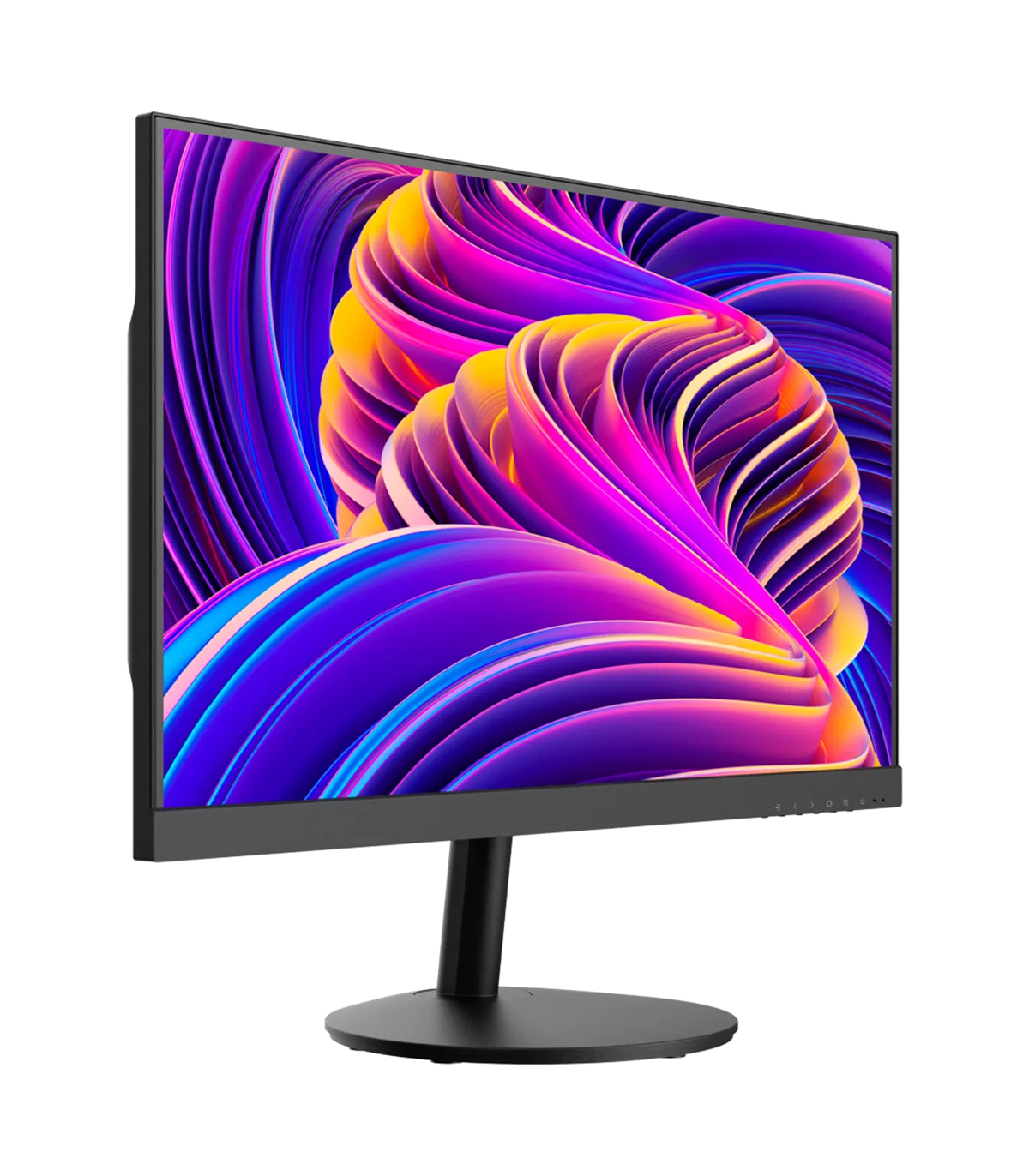

Hikvision 22-inch FHD CCTV Monitor 60/75 Hz DS-D5022FC-C
- 22" Monitor
- FHD Resolution
- Refresh Rate 60 / 75 Hz
- Contrast 3000:1
- Response Time 6.5 ms
Description & Key Features: DS-D5022FC-C
The DS-D5022FC-C is a specialized CCTV monitor designed for continuous operation in security environments. It is ideal for use in various settings such as commercial buildings, banks, airports, and homes, providing real-time monitoring of security camera feeds. This monitor ensures clear and detailed video playback, making it essential for effective surveillance and video recording systems.
CCTV monitors differ from conventional monitors as they are optimized for long-term use, offering features such as video inputs compatible with security systems, including HDMI, VGA, and BNC. Some models also incorporate technologies that enhance visibility in low-light conditions or provide black-and-white images for better detail detection.
- 22" Monitor
- FHD Resolution
- Brightness 250 cd/m2
- Contrast 3000:1
- Response Time 6.5 ms
- 24/7 Operation
- VESA 75x75 mm
Specifications: DS-D5022FC-C
| Brand | Hikvision |
| Size | 21.45" |
| Resolution | 1920x1080 |
| Refresh Rate | 60 / 75 Hz |
| Aspect Ratio | 16:9 |
| Brightness | 250 cd/m2 |
| Contrast | 3000:1 |
| Response Time | 6.5 ms |
| Viewing Angle (Horizontal / Vertical) | 178º / 178º |
| Color Depth | 8 bits, 16.7 M |
| Color Gamut | 72% NTSC |
| Operation | 24/7 |
| Inputs | HDMI 1.4 x1 VGA x1 CVBS x1 Audio (3.5 mm) x1 |
| Speakers | 2x8 W |
| VESA | 75x75 mm |
| Average Power Consumption | <25 W |
| Power Supply | AC 100 ~ 240 V @ 50 / 60 Hz |
| Dimensions | Without stand: 492.36 (W) × 289.68 (H) × 41.88 (D) mm With stand: 492.36 (W) × 403.93 (H) × 209.99 (D) mm |
| Weight | 3.15 Kg |
| Operating Conditions | Temperature: 0 ~ 40 ºC Humidity (non-condensing): 20 ~ 90 % |
| Storage Conditions | Temperature: -20 ~ 60 ºC Humidity (non-condensing): 5 ~ 90 % |
Package Contents
- Monitor
- Power Cable
- HDMI Cable
- Stand
- User Manual
Use Case
The DS-D5022FC-C monitor is an excellent choice for security professionals looking to enhance their surveillance systems. In a typical deployment scenario, this monitor can be installed in a control room of a commercial building, where it will display live feeds from multiple CCTV cameras. The high FHD resolution ensures that security personnel can easily identify details in the footage, while the 24/7 operation capability allows for uninterrupted monitoring. Additionally, the monitor's compatibility with various video inputs, such as HDMI and VGA, makes it a versatile option for integrating with existing security setups. The low response time of 6.5 ms further enhances the viewing experience, ensuring that there is minimal lag when switching between camera feeds. This monitor not only aids in real-time surveillance but also plays a crucial role in reviewing recorded footage from DVRs and NVRs, making it an indispensable tool for any security installation.
Data sheet
- Brand
- HIKVISION
- Compatible models
- TVM-1732DESK-FLEX-PCDUAL,TVM-1732DESK-FLEX-PCDUAL,TVM-1732DESK-FLEX-PCDUAL,TVM-1327DESK-FLEX-DUAL,TVM-1327DESK-FLEX-DUAL,TVM-1327DESK-FLEX,TVM-1327DESK-FLEX,LDT66-T024,LDT66-T024,LDT66-C02V,LDT66-C02V,LDT66-C024ML,LDT66-C024ML,LDT66-C024ML,LDT66-C024,LDT6
Specific References
- EAN13
- 6931847148560
