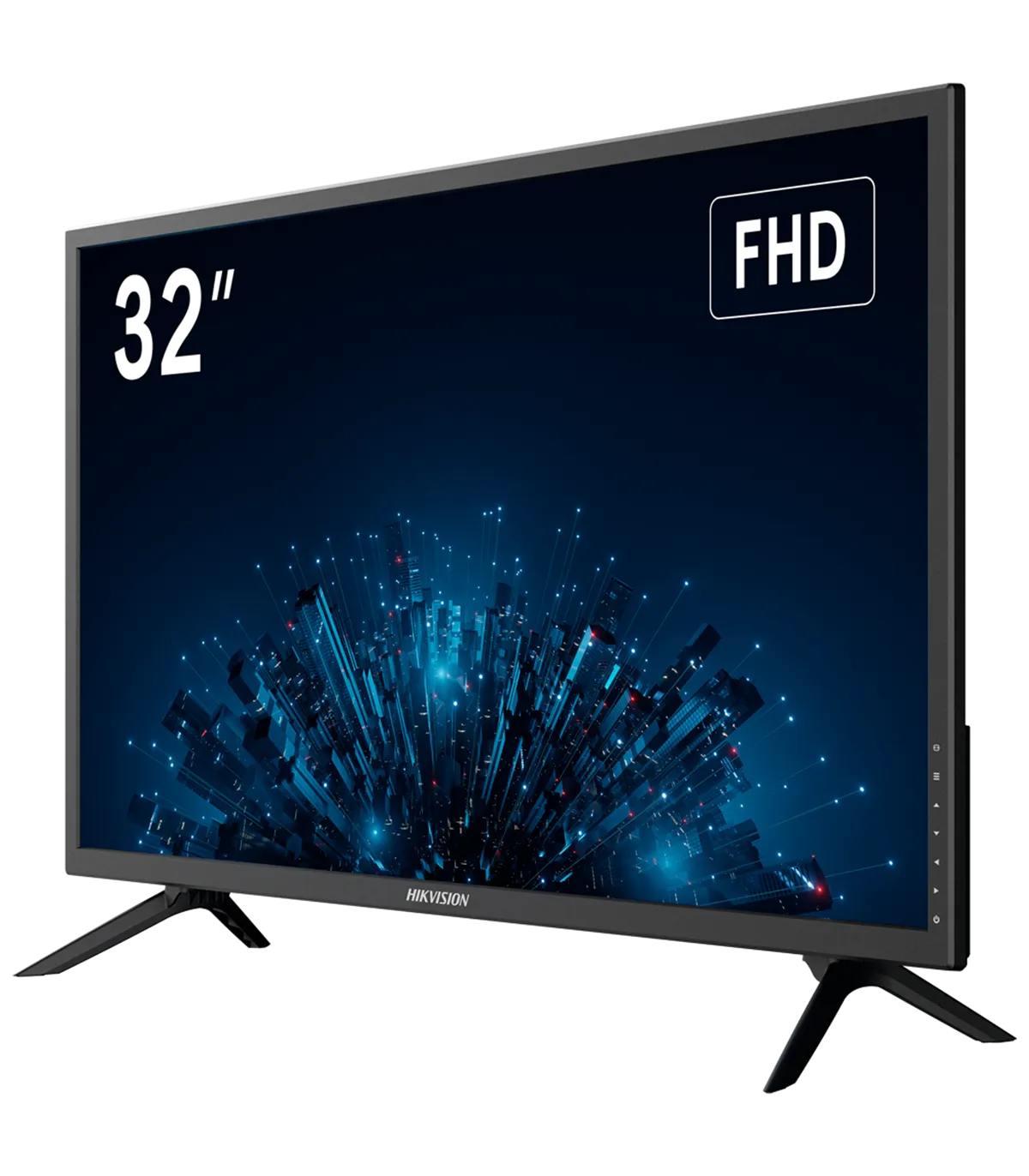

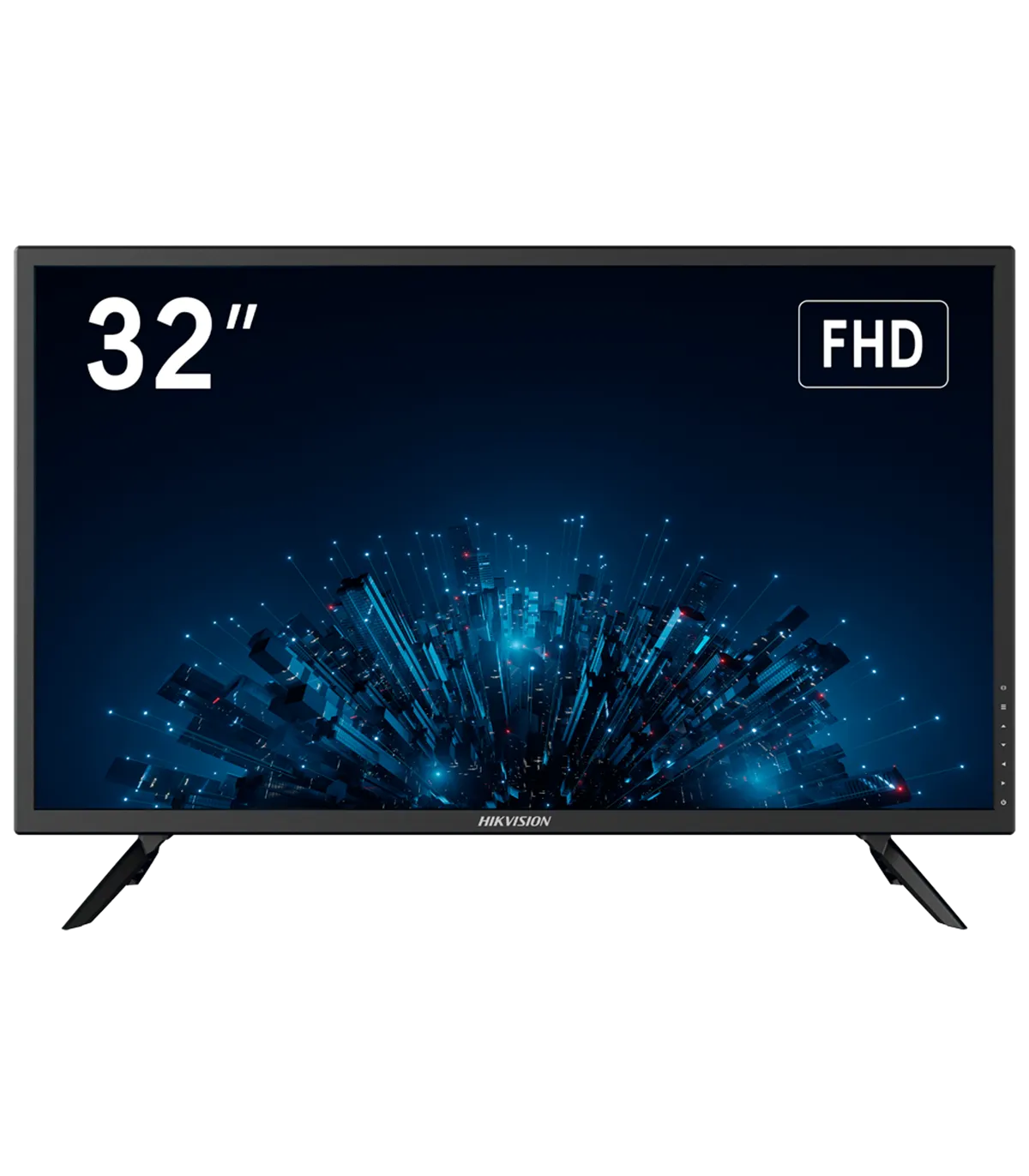

Hikvision 32-inch Full HD CCTV Monitor with 2x10 W Speakers DS-D5032F3-1V0S
- 32" Monitor
- FHD Resolution
- Refresh Rate 60 / 75 Hz
- Contrast 4000:1
- Response Time 8 ms
- Speakers 2x10 W
Description & Key Features: DS-D5032F3-1V0S
The DS-D5032F3-1V0S is a specialized CCTV monitor designed for continuous operation in security environments. It excels in providing clear and detailed video playback, making it ideal for use in commercial buildings, banks, airports, and homes. This monitor supports various video inputs such as HDMI, VGA, and BNC, ensuring compatibility with most security systems. Its features enhance visibility in low-light conditions, making it a crucial component for effective surveillance.
CCTV monitors, unlike conventional monitors, are optimized for long-term use, ensuring reliability and performance. They are essential for real-time monitoring of security camera feeds and play a vital role in reviewing recorded footage from DVRs (Digital Video Recorders) or NVRs (Network Video Recorders).
- 32" Monitor
- FHD Resolution
- Brightness 300 cd/m2
- Contrast 4000:1
- Response Time 8 ms
- 24/7 Operation

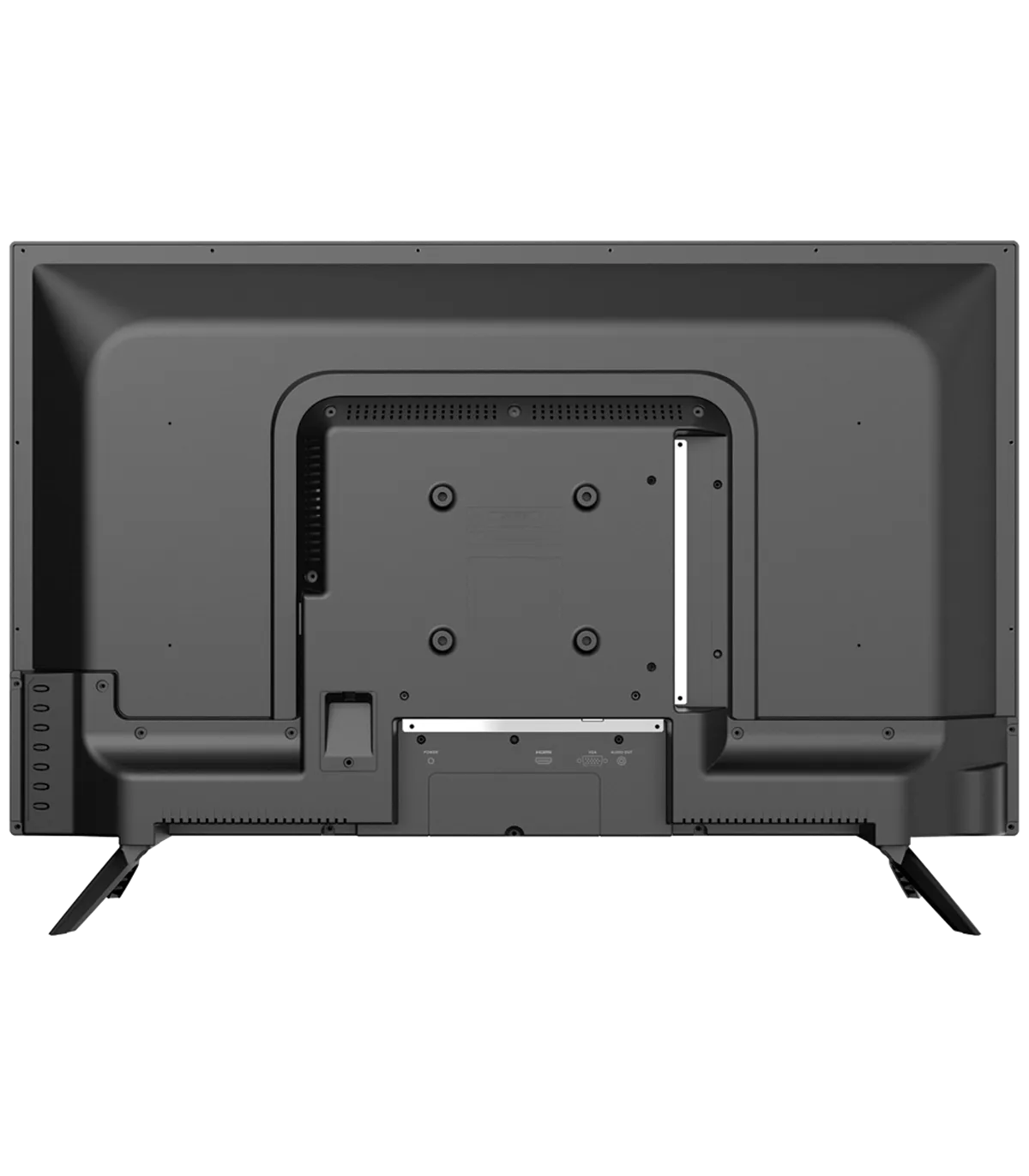

- VESA 100x100 mm
- Integrated Speakers
Specifications: DS-D5032F3-1V0S
| Brand | Hikvision |
| Size | 32" |
| Resolution | 1920x1080 |
| Refresh Rate | 60 / 75 Hz |
| Aspect Ratio | 16:9 |
| Brightness | 300 cd/m2 |
| Contrast | 4000:1 |
| Response Time | 8 ms |
| Viewing Angle (Horizontal / Vertical) | 178º / 178º |
| Color Depth | 8 bits, 16.7 M |
| Color Gamut | 72% NTSC |
| Operation | 24/7 |
| Inputs | HDMI x1 VGA x1 |
| Outputs | Audio 3.5mm x1 |
| Speakers | 2x10 W |
| VESA | 100x100 mm |
| Average Power Consumption | <48 W |
| Power Supply | AC 100 ~ 240 V, 50/60 Hz |
| Dimensions | Without stand: 735.08 (W) × 433.46 (H) × 80.19 (D) mm With stand: 735.08 (W) × 489.16 (H) × 207.95 (D) mm |
| Weight | 4.55 Kg |
| Operating Conditions | Temperature: 0 ~ 40 ºC Humidity (non-condensing): 20 ~ 90 % |
| Storage Conditions | Temperature: -20 ~ 60ºC Humidity (non-condensing): 10 ~ 90 % |
Package Contents
- 32" Monitor
- Power Cable
- HDMI Cable
- Remote Control
- Stand
- User Manual
Use Case
The DS-D5032F3-1V0S monitor is ideally suited for installation in security control rooms where real-time monitoring is critical. For instance, in a busy airport, security personnel can utilize this FHD monitor to observe multiple camera feeds simultaneously, ensuring a high level of surveillance and quick response to any incidents. The monitor's 24/7 operation capability allows for uninterrupted monitoring, which is essential in high-traffic areas. Additionally, the integrated speakers provide audio alerts, enhancing situational awareness. With its low response time of 8 ms, the monitor ensures that security staff can react swiftly to any potential threats. The VESA mount compatibility also allows for flexible installation options, making it easy to integrate into existing setups. Overall, the DS-D5032F3-1V0S is a reliable choice for enhancing security measures in various environments.
Data sheet
- Brand
- HIKVISION
- Compatible models
- TVM-1327DESK-FLEX-PCDUAL,TVM-1327DESK-FLEX-PCDUAL,TVM-1327DESK-FLEX-PCDUAL,TVM-1327DESK-FLEX-DUAL,TVM-1327DESK-FLEX-DUAL,TVM-1327DESK-FLEX,TVM-1327DESK-FLEX,LPA68-221,LPA68-221,LPA68-221,LDT66-T024,LDT66-T024,LDT66-C02V,LDT66-C02V,LDT66-C024ML,LDT66-C024M
Specific References
- EAN13
- 6942160456089
