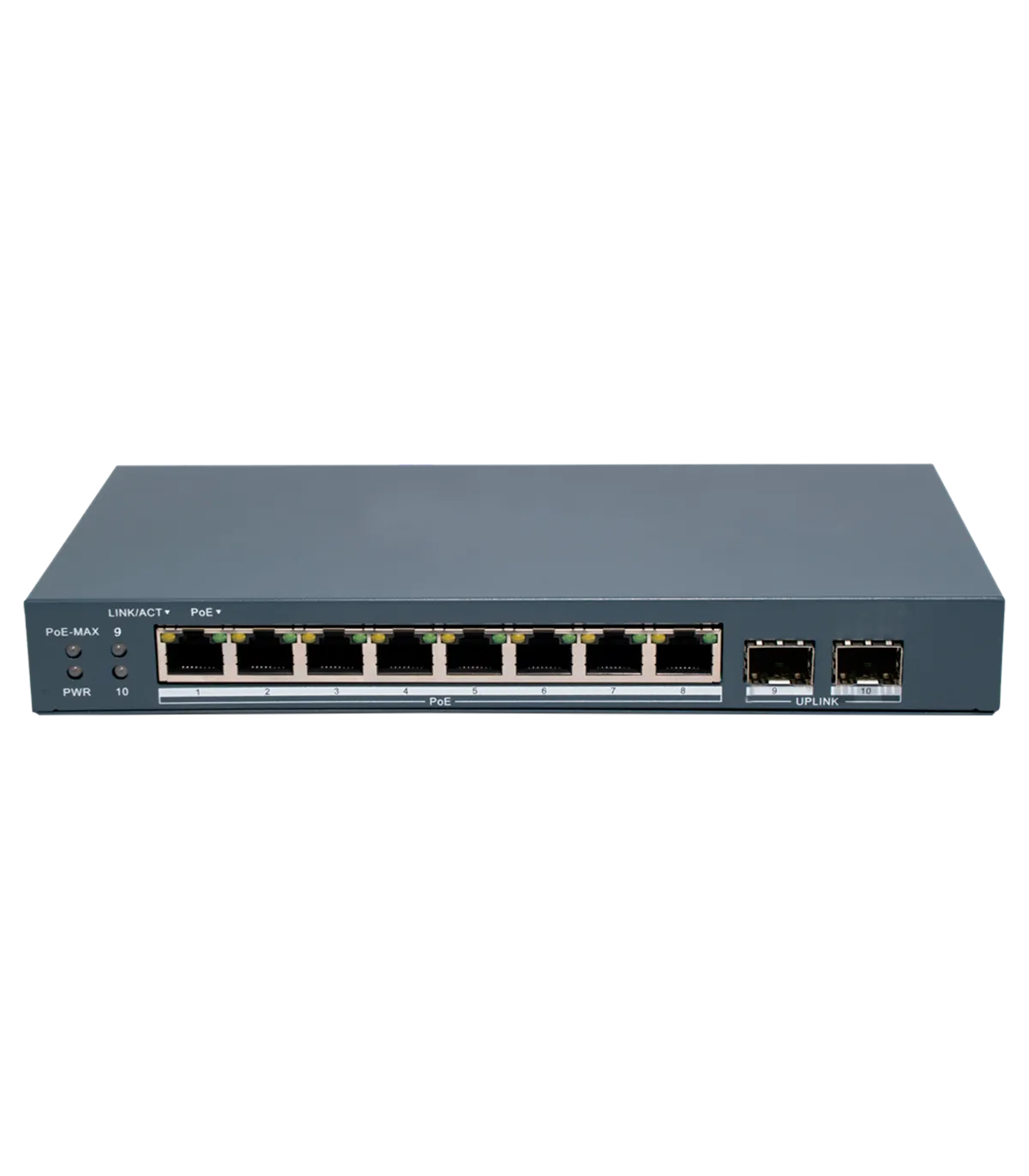

The Hikvision DS-3E1510P-EI/M-8P2F is a smart managed PoE switch designed for professional environments, particularly suited for IP video surveillance systems and small to medium-sized enterprise networks. It features 8 Gigabit Ethernet ports with PoE and 2 SFP fiber optic ports, allowing for flexible connectivity and long-distance or high-stability links. It is compliant with IEEE 802.3af/at standards, enabling direct power supply to IP cameras and other PoE devices without the need for additional power sources.
This model has a total PoE budget of up to 150 W, suitable for multiple medium to high consumption devices, and integrates intelligent features such as PoE management, VLAN, traffic prioritization, and port isolation, enhancing network security and performance. These capabilities provide greater control compared to unmanaged switches while maintaining a relatively simple configuration.
The DS-3E1510P-EI/M-8P2F comes with a robust metal housing, surge protection, and is designed for stable and continuous operation. With its combination of Gigabit PoE ports, fiber links, and intelligent functions, it is a reliable solution for video surveillance projects and professional networks, compatible with monitoring from Hik Central.
| Brand | Hikvision |
| Interface | 8 PoE+ RJ45 10/100/1000 Mbps + 2 SFP |
| RJ45 Port Speed | 8x 10/100/1000 Mbps 2x SFP |
| PoE Power Supply | PoE/PoE+ 802.3af/at port 1-8 Up to 80W total power |
| Extended PoE | Up to 300 meters (this may vary depending on the camera model or cable condition) |
| Management Protocols | Web/Hik-Partner Pro/Hik-Central Pro |
| Technologies and Protocols | Loop Detection (STP and RSTP) Up to 32 VLANs (supports trunk and access mode) Port Isolation Link Aggregation (supports static link aggregation) Supports an aggregation group PoE Watchdog LLDP/HPP SNMP v1/v2c Management IP 10.180.190.200 |
| Power Supply | External power adapter 54V/1.6A |
| Operating Temperature | 0° C ~ 40° C |
| Dimensions | 108.5 (L) x 27.6 (H) x 217.6 (W) mm |
| Weight | 1.08 kg (with package) |
In a typical deployment scenario, the Hikvision DS-3E1510P-EI/M-8P2F can be utilized in a small to medium-sized office environment where IP cameras are installed for enhanced security. The switch's PoE capabilities allow for easy installation of cameras without the need for separate power sources, simplifying the setup process. With its VLAN support, network administrators can segment traffic for improved security and performance, ensuring that video feeds are prioritized over other types of data. The robust metal housing and surge protection features make it ideal for continuous operation in various conditions. Additionally, the switch's compatibility with Hik Central allows for centralized monitoring and management, providing users with a comprehensive view of their security infrastructure. This combination of features makes the DS-3E1510P-EI/M-8P2F a reliable choice for businesses looking to enhance their surveillance capabilities.
Data sheet
