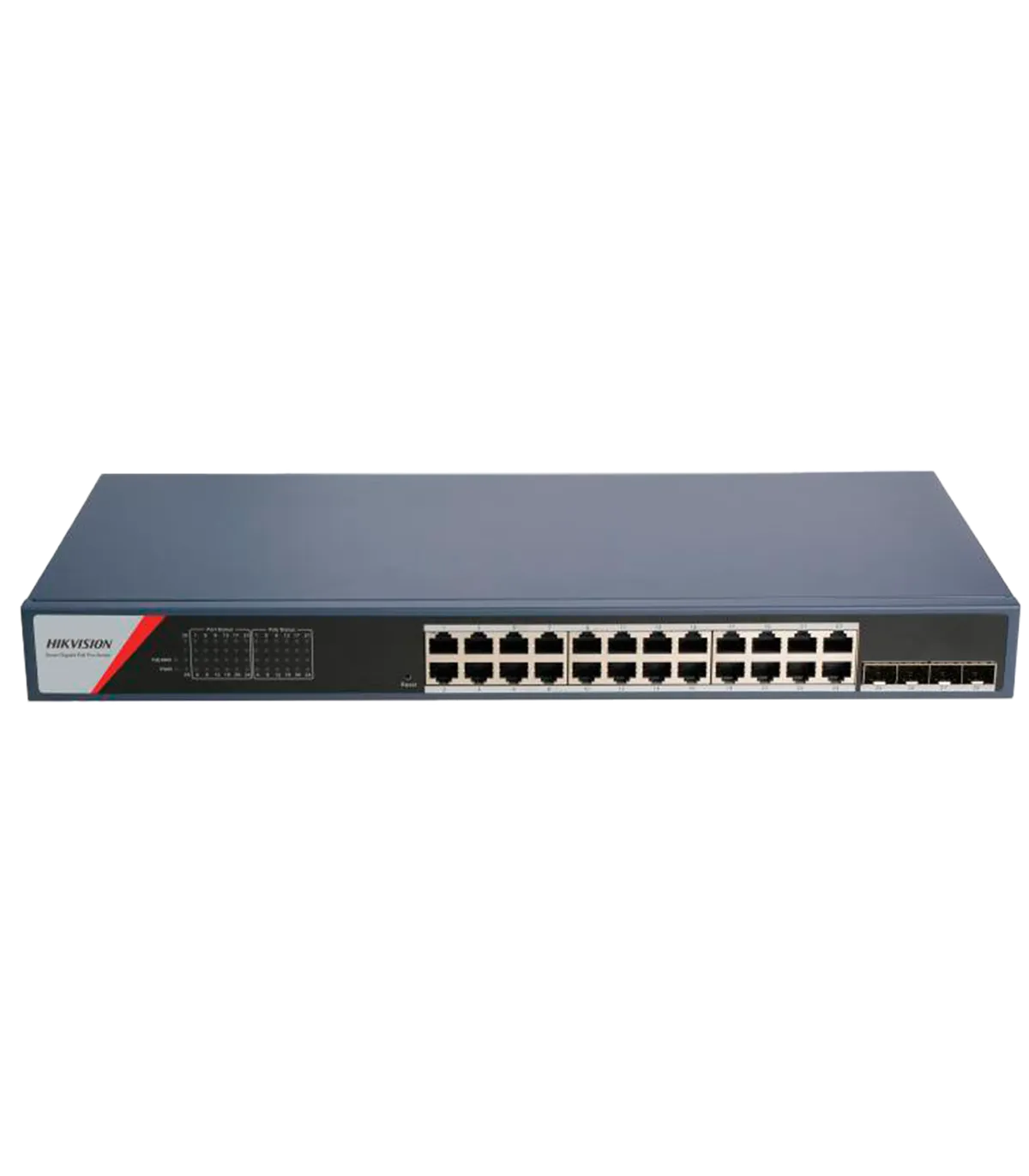

The DS-3E1528P-SI-24P4F is a professional-grade managed switch designed for seamless integration into network security systems. This device is ideal for environments requiring robust Power over Ethernet (PoE) capabilities, supporting up to 24 RJ45 ports with speeds of 10/100/1000 Mbps and 4 Gigabit SFP ports. It is particularly suited for installations where extended reach and intelligent management of PoE devices are essential.
| Interfaces | 24 PoE RJ45 10/100/1000 Mbps + 4 Gigabit SFP ports |
| PoE Features | Up to 30W on ports 1-24 802.3af/at Up to 370W total PoE power Pinout ports 1-24 1,2,7,8- / 3,6,4,5+ |
| PoE Functionalities | Extended PoE ports 1-24 up to 300 meters at 10Mbps Port Isolation for ports 1-24 PoE Watchdog for ports 1-24 resets cameras if unresponsive |
| L2 Functionalities | Static link aggregation (8 groups) Loop prevention protocols (802.1D STP and 802.1w RSTP) VLAN (Max. 4094) 802.1Q Tag 802.1ab LLDP DHCP Client Port Mirroring |
| HikPartner Pro Functionalities | Supports one-click remote management via Hik Partner Pro (Supported functions) 1. View port speed. 2. View port bandwidth utilization. 3. Display PoE power usage. 4. Show network topology information. 5. View alarm status. 6. Restart ports and devices. 7. Enable extended mode for ports. 8. Remotely update the device. |
| Management | Web management Management via Hik-Central Pro Management via Hik-Partner Pro. |
| Installation | Rack, Desktop, Wall-mounted |
| Power Supply | AC 100 ~240, 50/60Hz |
| Operating Temperature | 0º C ~ 45º C |
| Consumption | Idle 30W / With PoE 400W |
| Dimensions | 221 (D) x 44 (H) x 440 (W) mm |
| Weight | 3.53Kg |
The DS-3E1528P-SI-24P4F is an excellent choice for security system installations in commercial buildings, where reliable network connectivity is crucial. For instance, in a multi-story office, this switch can be deployed to connect various IP cameras and access control systems. With its PoE capabilities, it eliminates the need for separate power sources, simplifying installation and reducing costs. The extended PoE feature allows devices to be placed up to 300 meters away, making it ideal for large spaces. Additionally, the intelligent management features enable remote monitoring and control, ensuring that all connected devices operate efficiently. This switch not only enhances the overall security infrastructure but also provides peace of mind with its robust performance and reliability.
