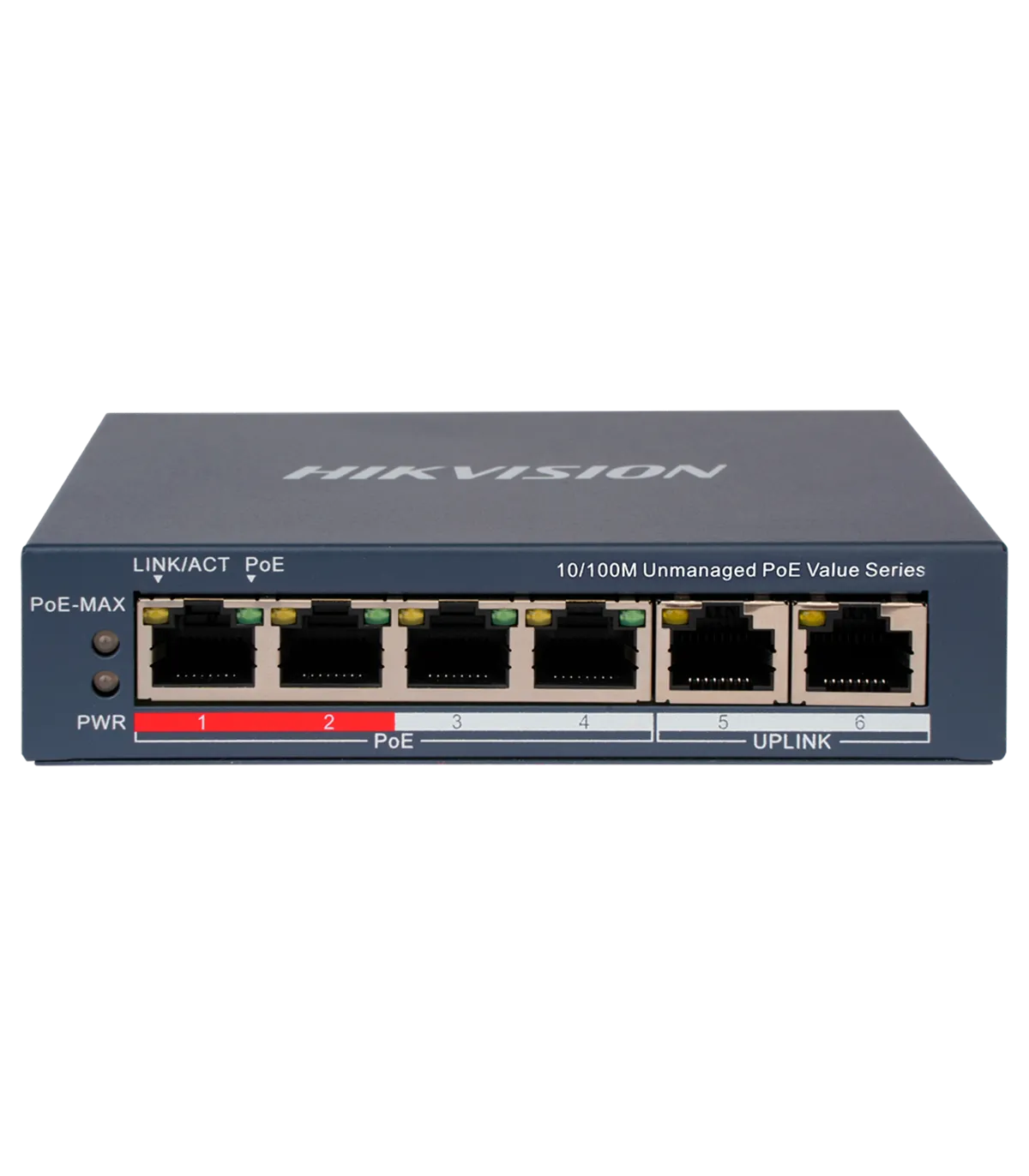

Hikvision 4-Port Desktop PoE Switch 802.3af/at Compliant DS-3E0106P-E/M(B)

Description & Key Features: DS-3E0106P-E/M(B)

The Hikvision DS-3E0106P-E/M(B) is a compact unmanaged PoE switch designed for small networks and IP video surveillance systems. It features 4 PoE ports at 10/100 Mbps and 2 additional 10/100 Mbps Ethernet ports, allowing for easy connection of IP cameras or other network devices. As a plug-and-play device, it requires no configuration, facilitating quick and straightforward installation.

This model is compliant with IEEE 802.3af/at standards and offers a total PoE budget of approximately 45 W, with up to 30 W per port, sufficient to power multiple low-consumption cameras without the need for external injectors. Additionally, it supports long-range PoE transmission of up to 300 m under specific conditions and features 6 kV surge protection, enhancing reliability in basic installations.

The DS-3E0106P-E/M(B) incorporates a robust metal housing, silent fanless operation, and options for wall or desktop mounting. With its simple design, compact size, and reliability, it is a practical and cost-effective solution for small projects requiring PoE power and stable connectivity without management features.

Specifications: DS-3E0106P-E/M(B)

Package Contents

• PoE Switch
• AC/DC Adapter
• User Manual

Use Case

The Hikvision DS-3E0106P-E/M(B) is ideally suited for small-scale installations, such as in retail stores or small offices, where reliable network connectivity and PoE power are essential. For instance, an installer can deploy this switch to connect multiple IP cameras for surveillance, ensuring that each camera receives adequate power without the need for additional injectors. The plug-and-play functionality allows for rapid deployment, enabling businesses to enhance their security systems quickly. Furthermore, the long-range PoE capability of up to 300 m allows for flexible camera placement, accommodating various layouts without compromising performance. The robust metal housing and 6 kV surge protection ensure durability and reliability, making it an excellent choice for environments where equipment may be exposed to electrical surges. Overall, the DS-3E0106P-E/M(B) provides a cost-effective solution for users seeking a straightforward and efficient way to implement IP surveillance systems.
