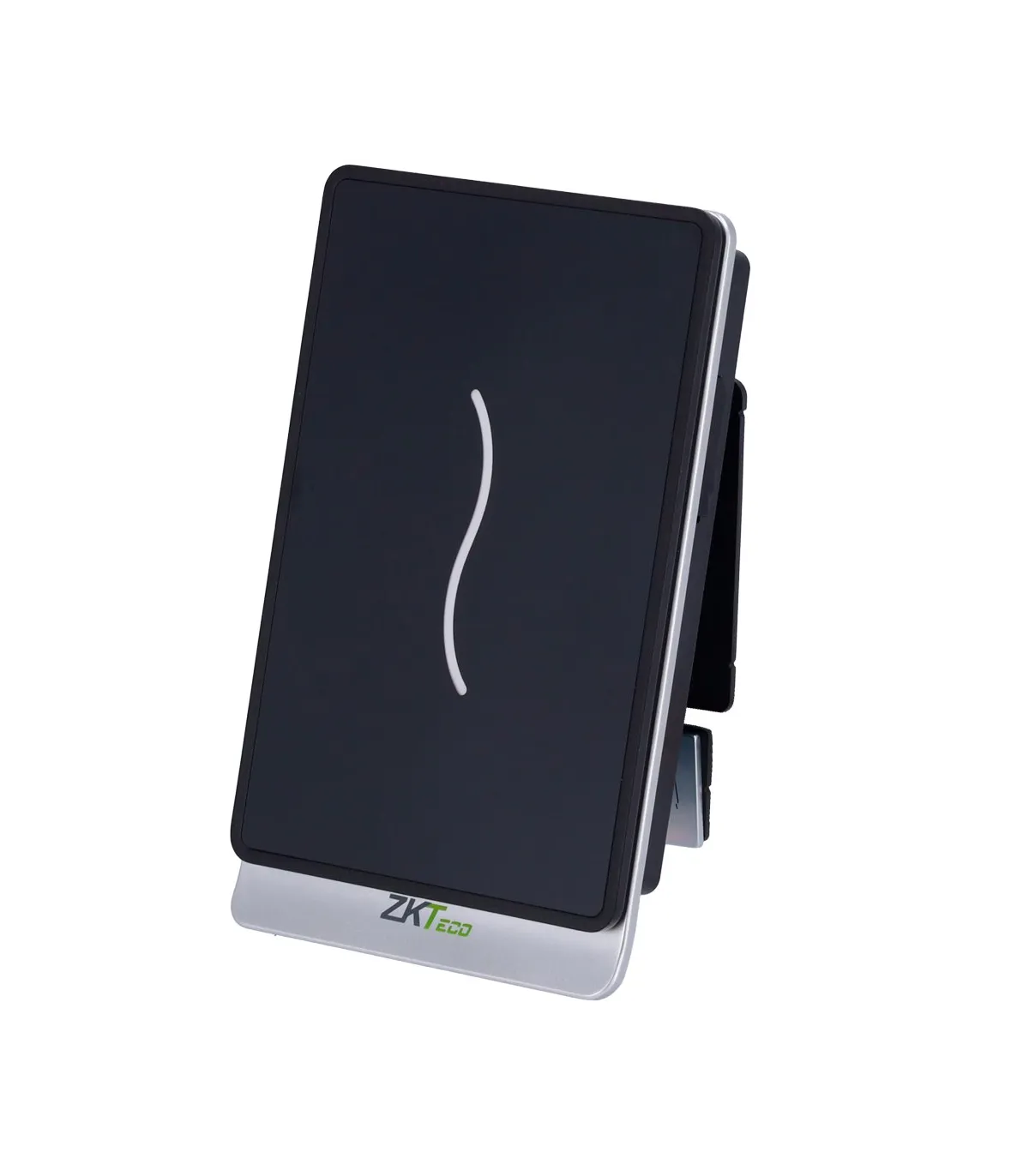

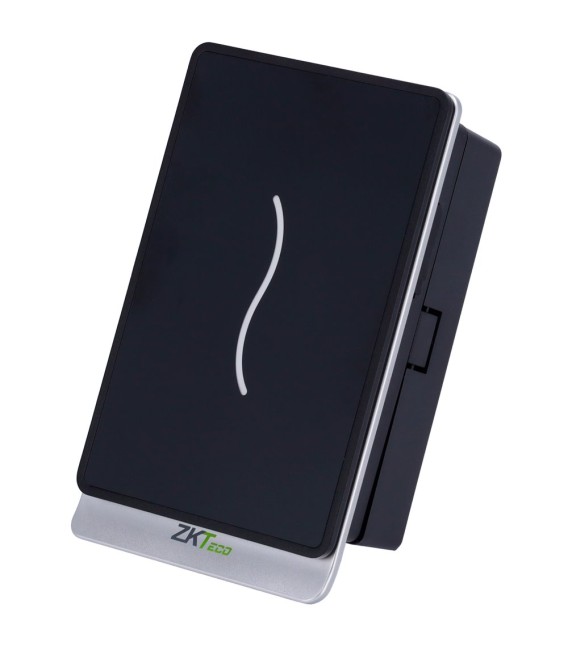

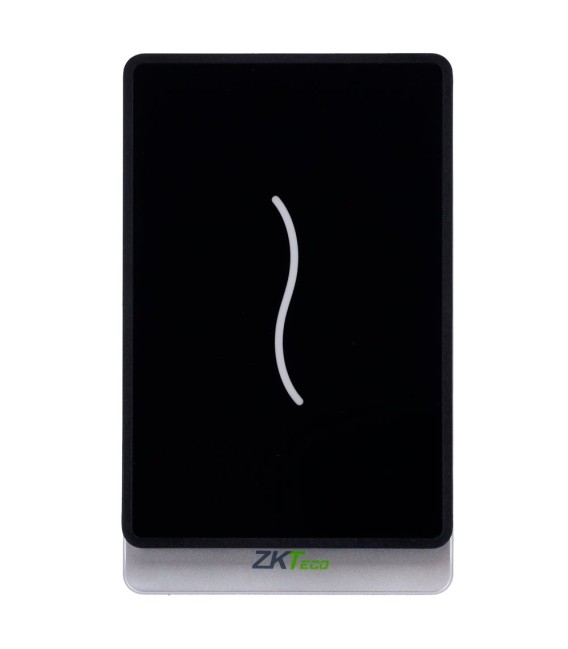

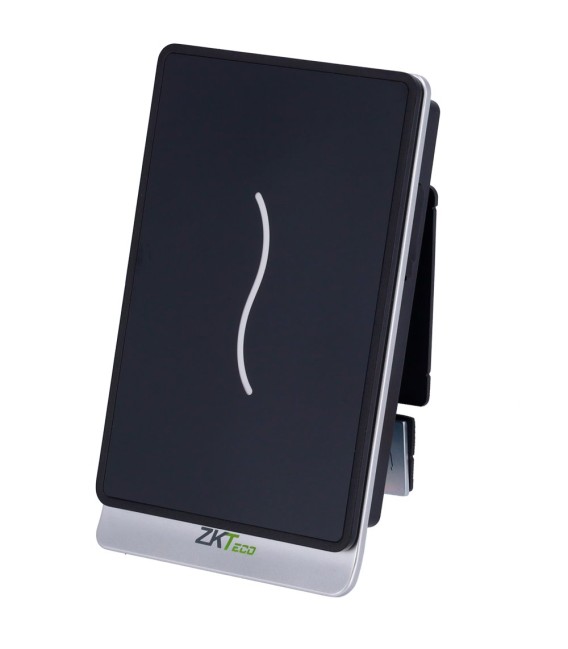

ZKTeco ZK-PRORF-EM IP67 Standalone Access Reader
- ZKTeco
- Standalone access reader
- EM card identification
- LED indicator for signaling and audible alerts
- Capacity of 60,000 cards and 600,000 records
- TCP/IP, RS485, and Wiegand communication
- Integrated controller (door sensor, push button, auxiliary input, and relay)
- Anti-passback function
- Compatible with Wiegand or RS485 slave readers - Compatible with ZKBio CVSecurity project software
- IP67 rated for outdoor use
Technical Specifications
| Brand | ZKTeco |
| Model | GL-PRORF-1 |
| CPU | 1 GHz High Speed CPU / 64 MB RAM / 128 MB ROM |
| Capacity | Up to 60,000 cards |
| Records | 600,000 records |
| Identification Modes | Card |
| Proximity Card | RFID EM 125 kHz |
| Communication | TCP/IP, RS485, RS232, and Wiegand |
| Outputs | Wiegand OUT, relay, and alarm |
| Inputs | Wiegand IN, door sensor, push button, and alarm |
| Software | Access Software: ZKBioCVSecurity |
| Power | DC 12V / 500mA max |
| Operating Temperature | -20°C to +65°C |
| Dimensions | 80mm (W) x 131mm (H) x 20.6mm (D) |
| Protection Rating | IP67 |
Content
- ZKTeco access device
- Mounting material
- User instructions
