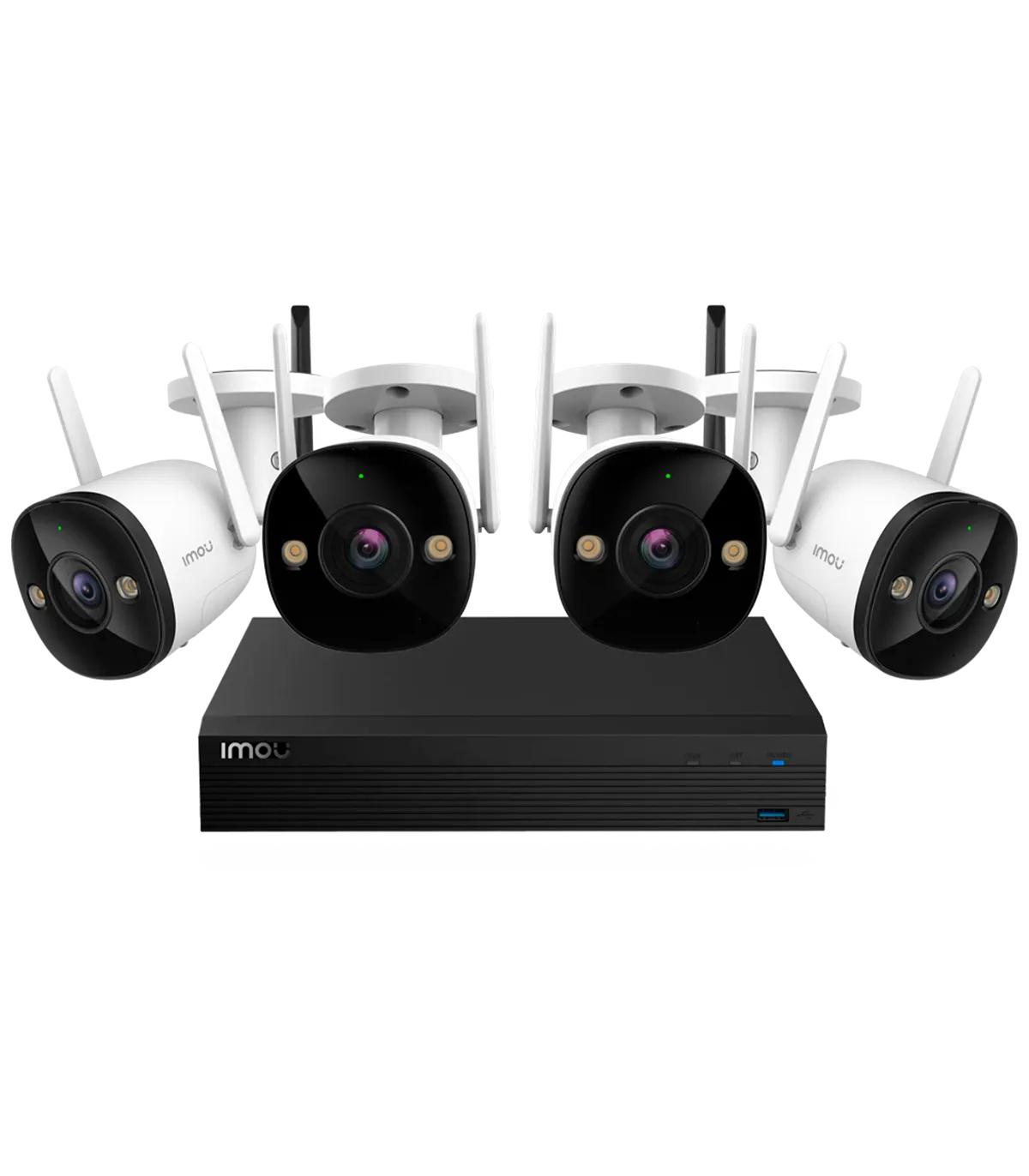

This Imou kit provides continuous, professional-grade video surveillance for your home or business with high‑definition images and full‑color night visibility, without the complexity of video cabling. The Wi‑Fi recorder and four outdoor IP bullet cameras automatically pair, enabling a true plug‑and‑play “do‑it‑yourself” installation in minutes. You receive instant mobile alerts when people are detected, can listen and speak through the integrated two‑way audio, and deter intruders with an embedded 110 dB siren and white‑light strobe. All footage is recorded on the included 1 TB hard disk and is securely accessible from the Imou Life app from any location.
| CAMERA | |
| Brand | Imou Established manufacturer in consumer and professional surveillance solutions. |
| Model | IPC‑F22FEP‑0280B‑IMOU / Bullet 2 2MP Outdoor bullet camera designed for reliable perimeter monitoring. |
| Image sensor | 1/2.8” Progressive Scan CMOS Progressive scan sensor improves motion clarity and low‑light performance for sharper moving subjects. |
| Main stream encoding | 1920 x 1080 30fps (2MP) Full HD at 30 fps ensures smooth, detailed footage suitable for identification and evidence. |
| Lens | 2.8 mm; 108°(H), 56°(V), 128°(D) Wide horizontal and diagonal field of view covers broad areas with fewer cameras, reducing blind spots. |
| Infrared illumination | 0 lux IR LEDs (30 m) Zero‑lux capability with IR up to 30 m provides clear monochrome imaging in total darkness when color mode is not active. |
| Color illumination | Color Night Vision / Deterrent flash Maintains color detail at night using white light; flash mode serves as an active deterrent and improves identification. |
| Audio | Integrated microphone and speaker 110 dB siren Two‑way audio enables verification and remote communication; the loud siren provides immediate audible deterrence. |
| Detection types | Video motion detection Smart human detection Combines basic motion sensing with AI‑based human detection to prioritize relevant alerts and reduce false positives. |
| Internal storage | Supports microSD card (max. 256GB) Local card option for redundant storage at the camera level or edge backup when network interruptions occur. |
| External storage | Imou or Dahua NVR (private protocol) Third‑party NVRs via ONVIF Imou Protect cloud recording (subscription) Flexible recording: local NVR for centralized storage, ONVIF compatibility for integration, or cloud for offsite retention and access. |
| Network interface | Wi‑Fi 2.4 GHz IEEE 802.11 b/g/n Wi‑Fi 5 GHz IEEE 802.11 b/g/n Ethernet 10/100 Base‑T (RJ45) Multiple connectivity options improve installation flexibility: 2.4 GHz for range and recorder pairing, 5 GHz for reduced interference, and wired Ethernet for stable backhaul. |
| Remote access | Smartphone app: Imou Life PC software: Imou PC No web browser access Dedicated mobile and desktop applications provide secure remote live view, playback and configuration; absence of web access reduces attack surface. |
| Power | DC 12 V / 1000 mA Standard DC power ensures compatibility with common power supplies and simplifies deployment. |
| Ingress protection | IP67 waterproof Fully weather‑resistant housing for reliable outdoor operation in rain, dust and harsh environments. |
| Operating temperature | -30º C ~ +60º C Wide operating range ensures performance in extreme cold and heat conditions. |
| Dimensions | 147.7 mm x 74.2 mm x 74.2 mm Compact form factor that simplifies discreet mounting and placement. |
| Weight | 357 g Lightweight design for easy installation on typical mounting surfaces. |
| RECORDER | |
| Brand | Imou Compact 4‑channel recorder tuned for the bundled cameras. |
| Channels | 4 Channels Supports the included four cameras with headroom for local channel management. |
| Resolution | 1080P / 720P Main supported playback and display resolutions; ensures compatibility with common monitors and streaming conditions. |
| Maximum decoding | 1 channel at 8 MP / 2 channels at 4 MP / 4 channels at 1080P / 8 channels at 720P Decoding capability indicates how many streams the recorder can display or export simultaneously at different resolutions, relevant for multi‑screen monitoring. |
| Compression | H.265+ / H.265 / H.264+ / H.264 Efficient video codecs reduce storage and bandwidth use while preserving image quality for long‑term retention. |
| Audio compression | G.711A / G.711U / PCM / G726 Standard audio codecs ensure interoperability and clear voice transmission when reviewing events. |
| Recording mode | Manual / Alarm / Motion detection / Scheduled ("Call notification") Flexible recording rules let you prioritize storage for alarms and events while conserving disk space during idle periods. |
| Maximum wired input | 40 Mbit/s Maximum aggregate bitrate allowed from wired sources—important for planning storage and network capacity. |
| Wireless input | 16 Mbit Maximum bitrate for wireless camera streams; factor into Wi‑Fi planning to maintain stable recording. |
| Video outputs | 1 HDMI / 1 VGA Multiple local display outputs for direct monitoring or integration with existing security consoles. |
| Cloud service | Yes, subscription required Optional offsite cloud storage for redundancy, remote evidence preservation and simplified remote access. |
| Storage | Up to 8 TB HDD 1 TB HDD (included) Large local capacity supports prolonged retention; included 1 TB provides immediate usable storage out of the box. |
| Communication | Wi‑Fi connection (2.4 GHz) Recorder communicates with cameras and network via 2.4 GHz Wi‑Fi for simplified wiring; Ethernet remains available for backbone connectivity. |
| Dimensions | 240 x 690 x 25 mm Slim recorder profile suitable for shelf or rack placement in small installations. |
| Weight | 1.57 Kg Compact and portable chassis for easy deployment and servicing. |
