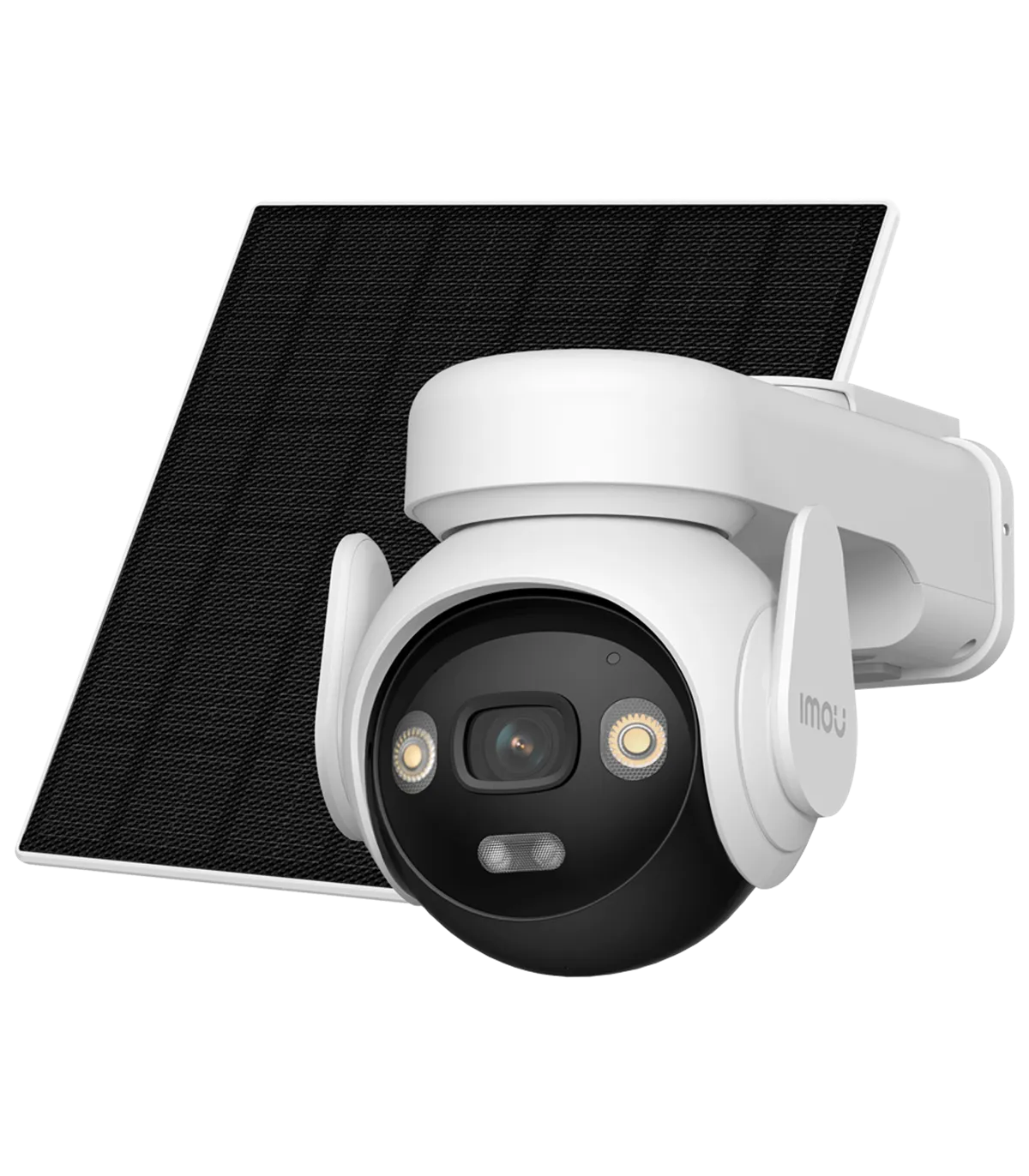

Installing the Imou PT camera kit provides continuous, professional-grade surveillance for homes, commercial premises or remote properties—even where fixed power or wired Internet are unavailable. Dual connectivity (4G LTE and WiFi 2.4 GHz), a high-capacity 10,000 mAh battery and the included 5W solar panel deliver reliable, autonomous operation that minimizes maintenance and eliminates dependence on mains power. Capture crisp 5MP video with color night vision and automatic motion tracking; receive only relevant alerts on your smartphone and respond immediately via two-way audio. Designed for straightforward DIY installation and managed through the Imou Life app (or Imou PC software), this kit offers enterprise-level features with consumer-friendly deployment.
| Brand | Imou |
| Model | IPC-B7ED-5M0TEAEU/FSP14-IMOU | AOV PT KIT |
| Network interface | WiFi 2.4GHz IEEE 802.11 b/g/n 4G LTE |
| Image sensor | 1/3” Progressive CMOS |
| Main stream encoding | 5MP (2880x1620) — High-resolution video for clearer identification and forensic detail. |
| Lens | 3.6 mm (Diagonal field of view 91°) — Balanced coverage for medium-range monitoring. |
| Remote Pan/Tilt movement | Horizontal: 340°, Vertical: 0~90° — Mechanical range that enables wide-area surveillance with fewer units. |
| Tracking modes | Motion-tracking (movement) — Automatically follows detected targets to capture continuous evidence. |
| Infrared illumination | 0 lux IR LEDs (20 m) — Thermal/IR support for clear monochrome imaging in total darkness up to 20 m. |
| Color illumination | Color Night Vision / Deterrent flash — Provides full-color detail at night and an active visual deterrent to intruders. |
| Audio | Two-way audio (microphone and speaker) / Built-in siren — Enables live communication and audible deterrence from the app. |
| Detection types | AI motion detection Intelligent human detection Area detection — Flexible detection rules reduce false alarms and focus monitoring on critical zones. |
| Local storage | Supports microSD card (max. 512GB) — Large local capacity for extended recording retention without network upload. |
| Remote access | Smartphone app: Imou Life Software: Imou PC No browser access available — Full-featured mobile and PC clients for live view, playback and configuration; note that web-browser access is not supported. |
| Battery | 10,000 mAh — High-capacity battery to sustain prolonged operation between charges or solar recharging cycles. |
| Power supply | DC 5 V / 2000 mA Solar panel 5W (included) — Low-voltage supply for safe outdoor installation; solar input extends autonomy and reduces maintenance. |
| Protection rating | Waterproof IP66 — Weather-resistant construction suitable for exposed outdoor environments. |
| Operating temperature | -20º C ~ +50º C — Wide operational range for varied climates. |
| Camera dimensions | 177 mm x 110 mm x 142 mm |
| Camera weight | 1000 g |
| Solar panel dimensions | 170 mm x 120 mm x 15 mm |
| Solar panel weight | 260 g |
