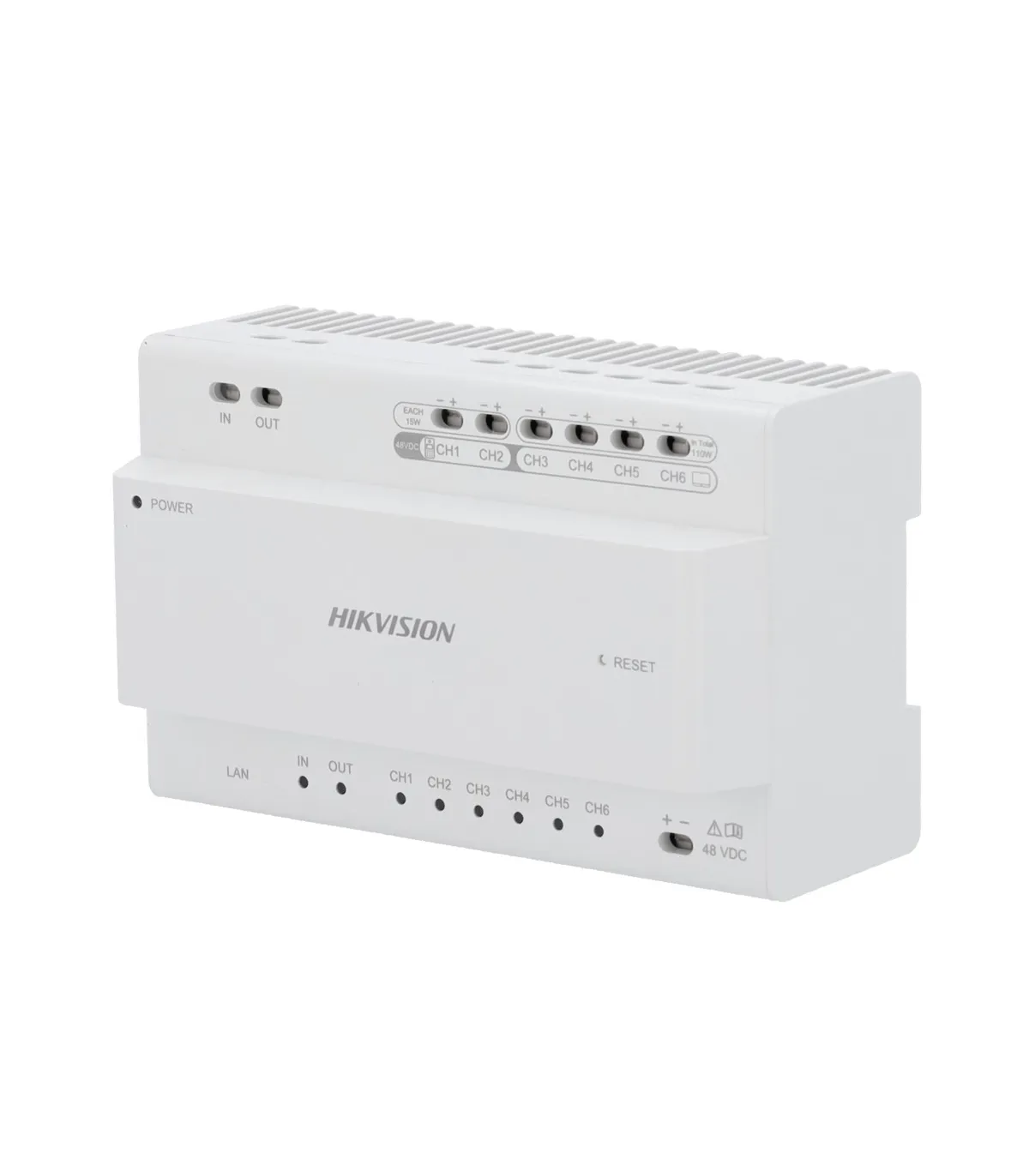

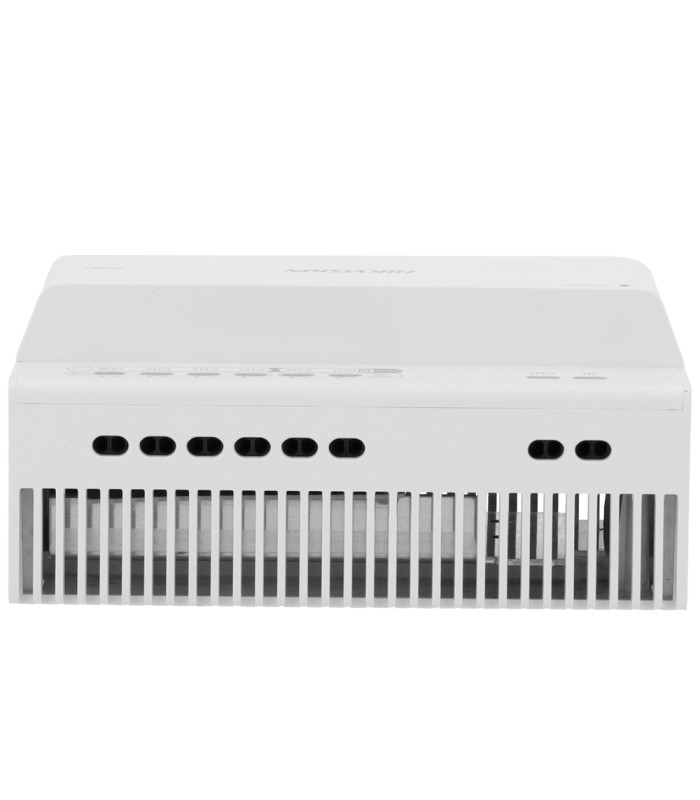

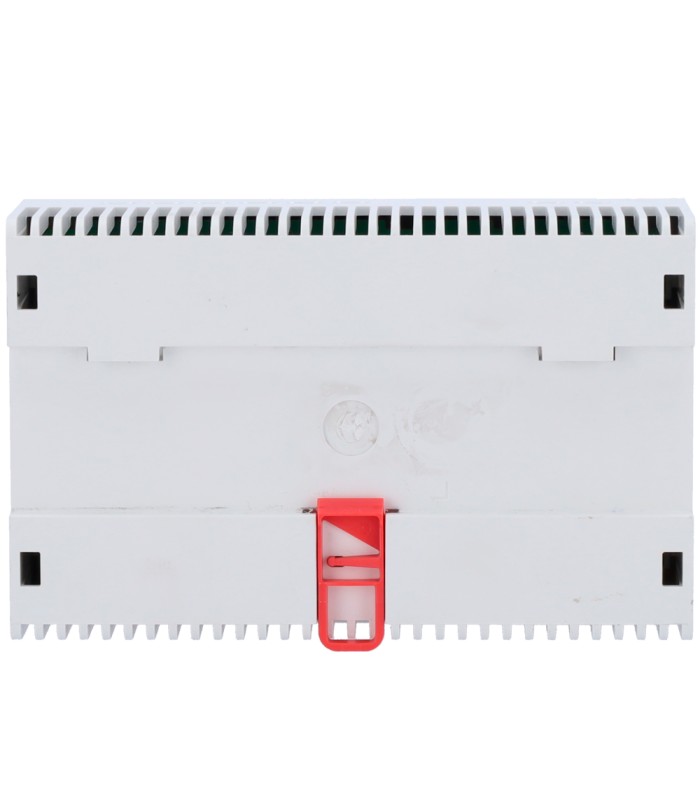

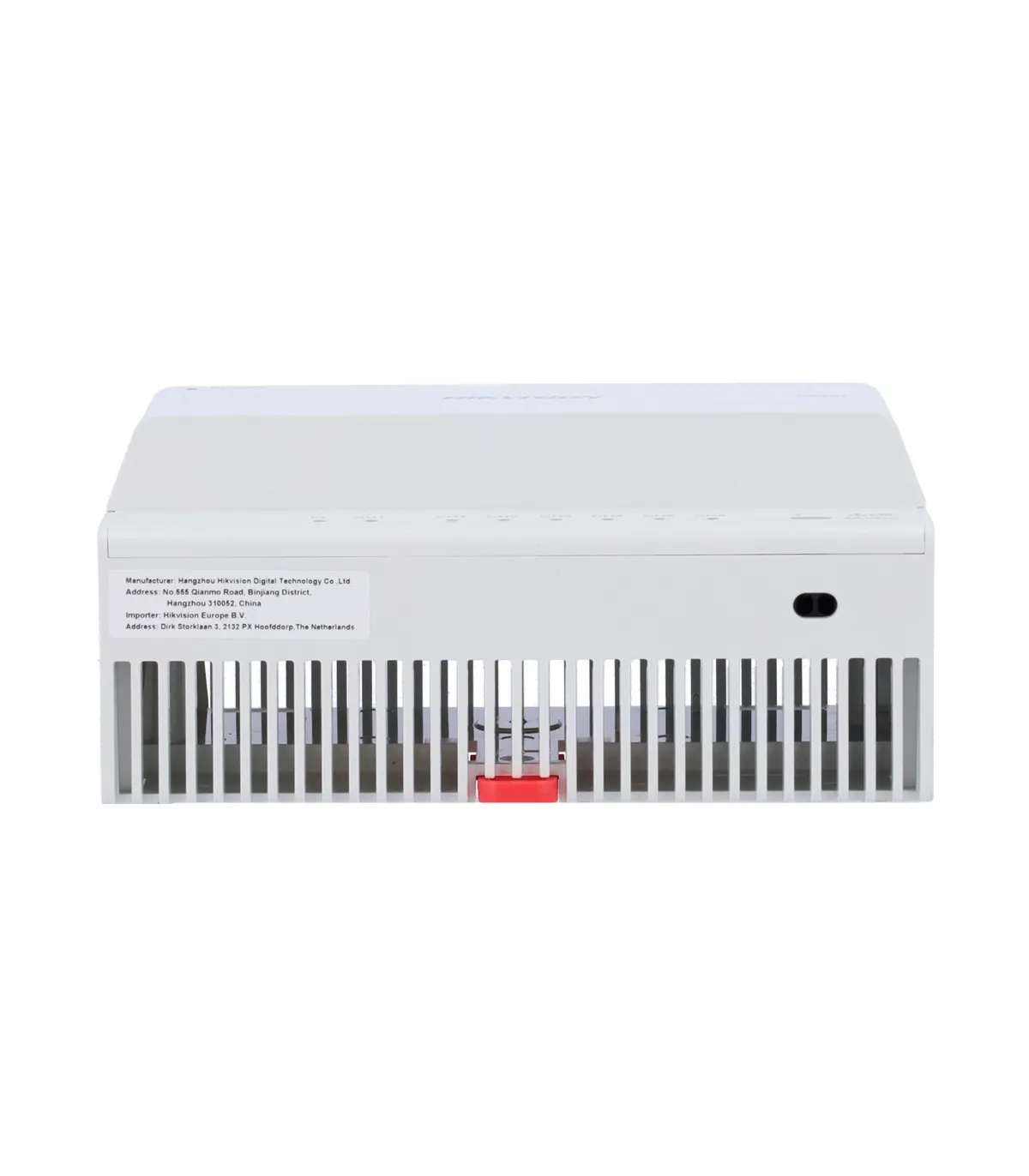

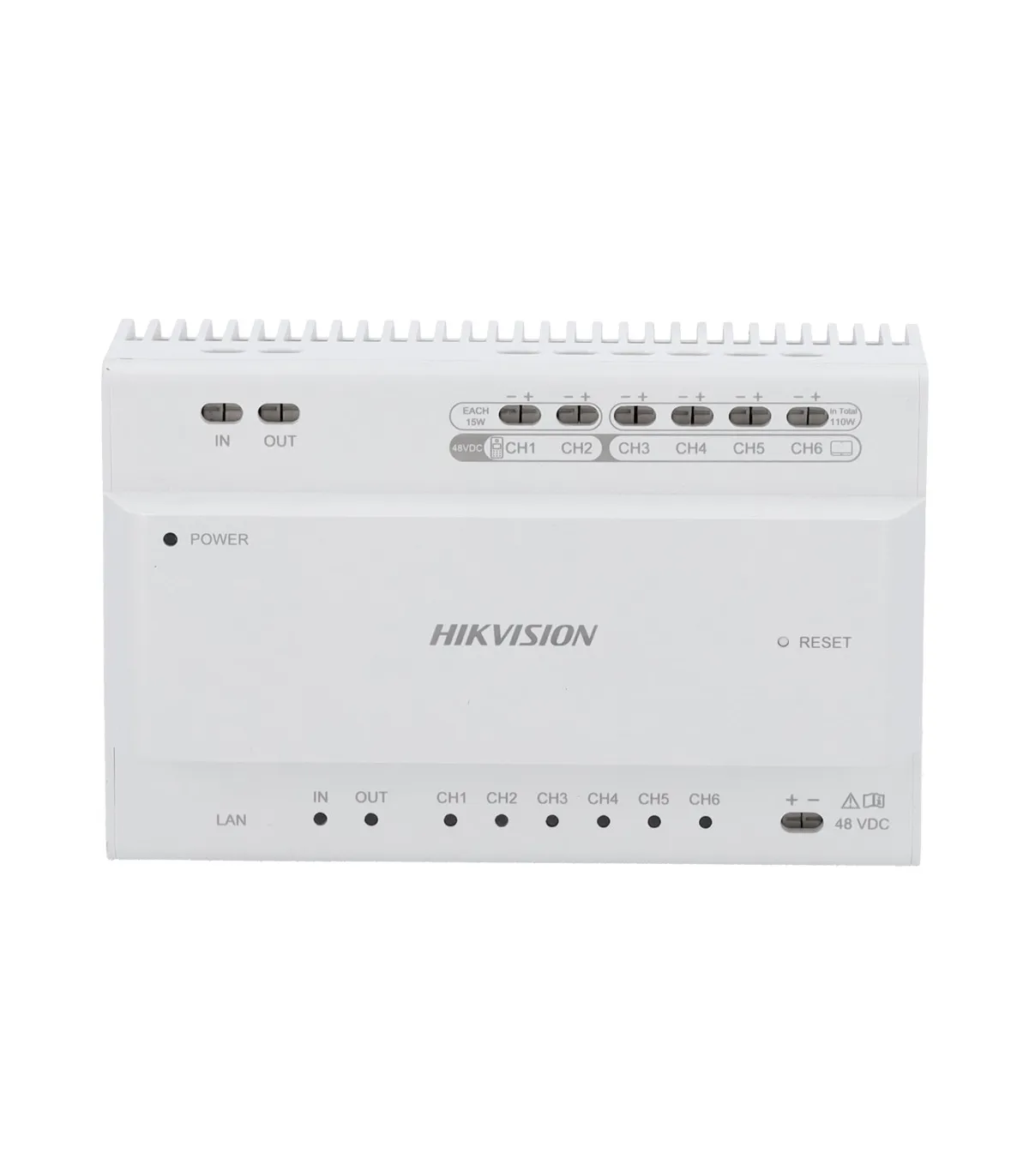

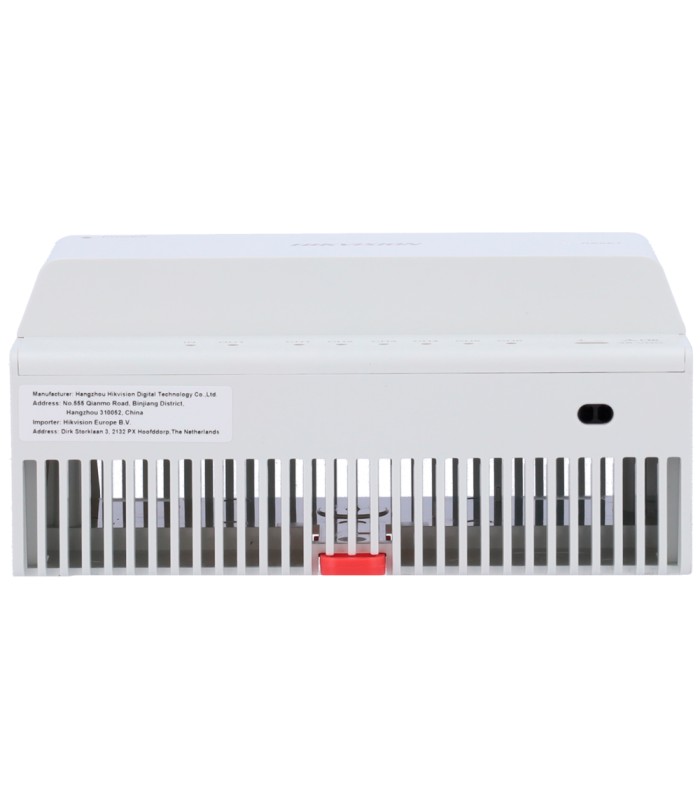

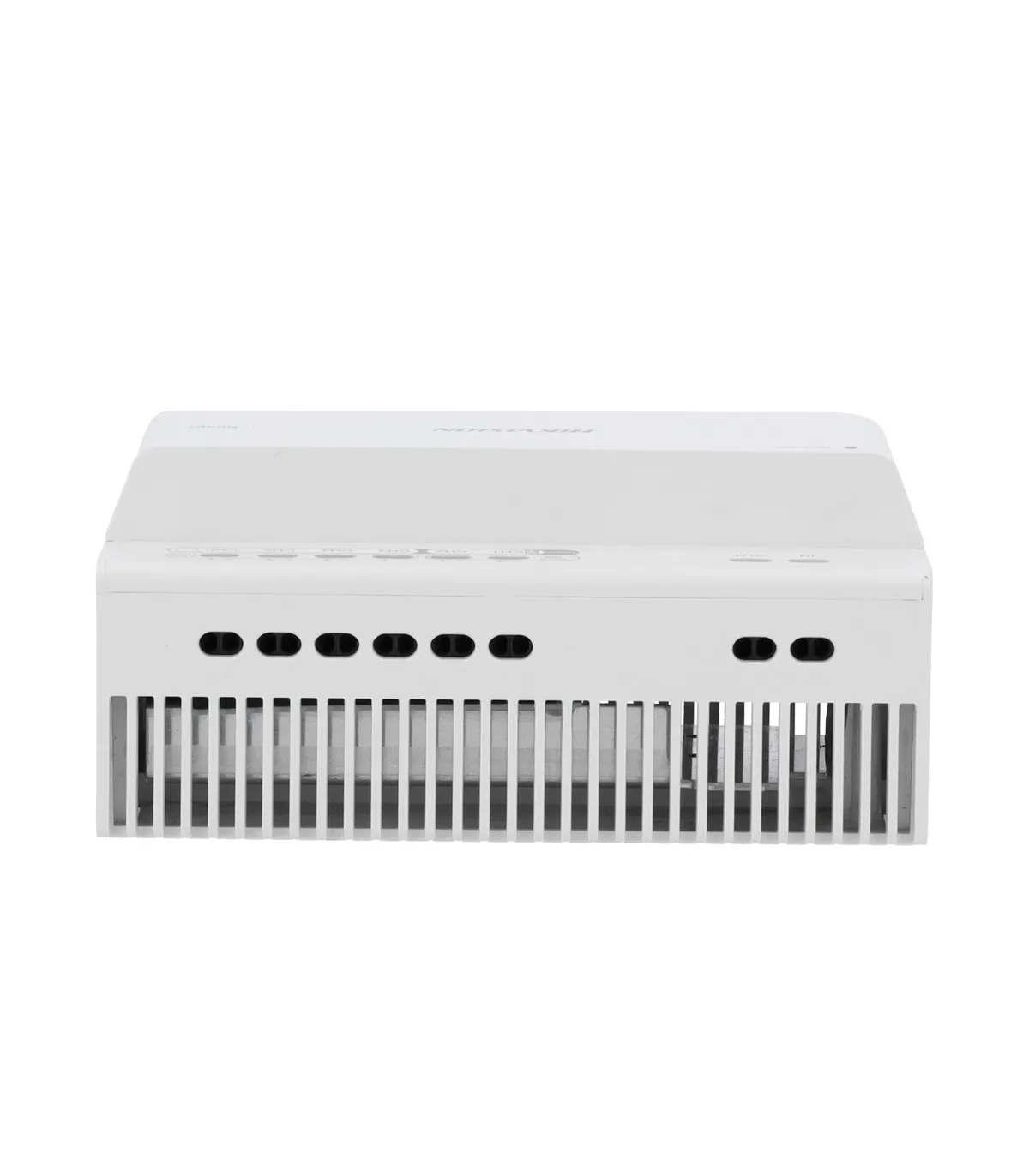

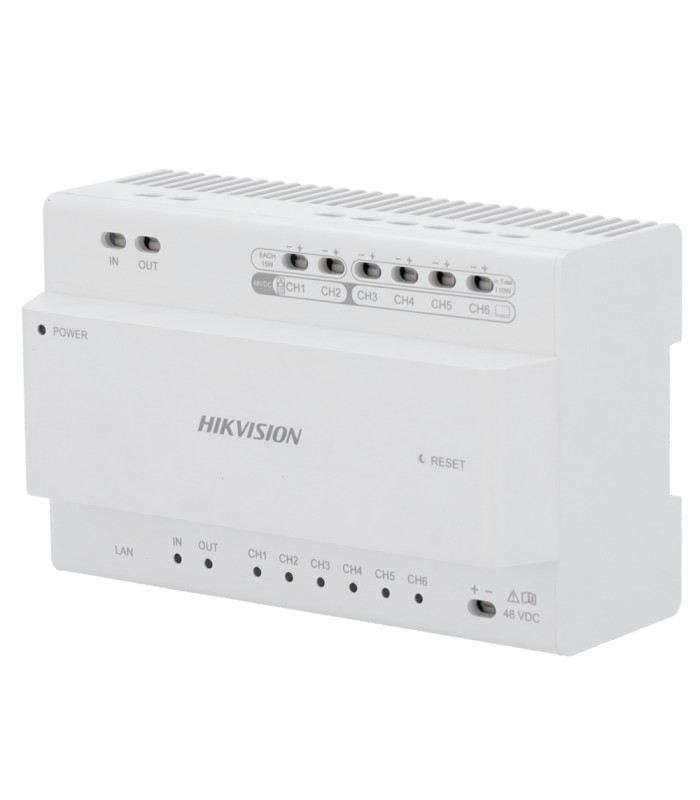

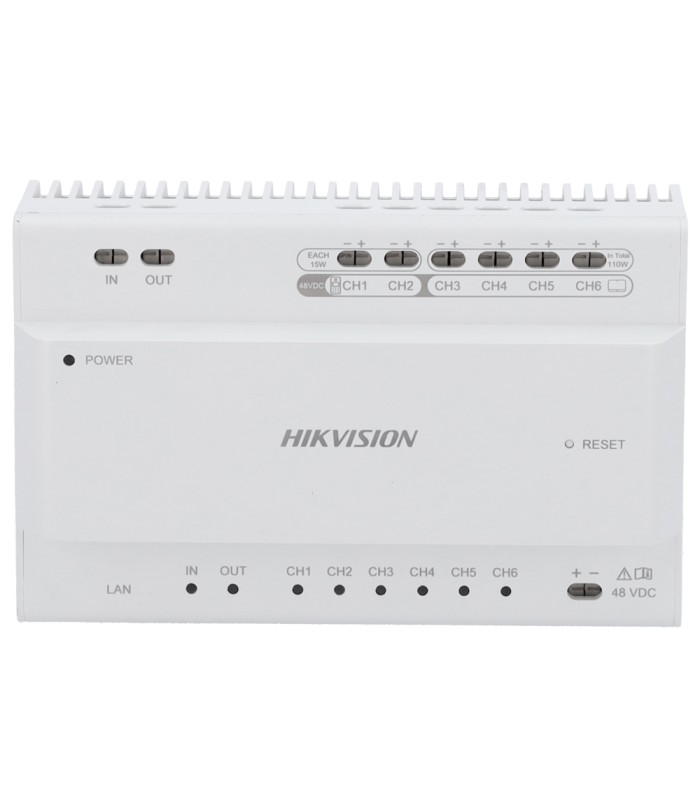

Hikvision DS-KAD7060EY building distributor
Brand: HIKVISION INTERCOM
- Distributor for buildings
- 2-wire HD
- 6 groups of 2-wire HD
- Power devices with 2-wire HD

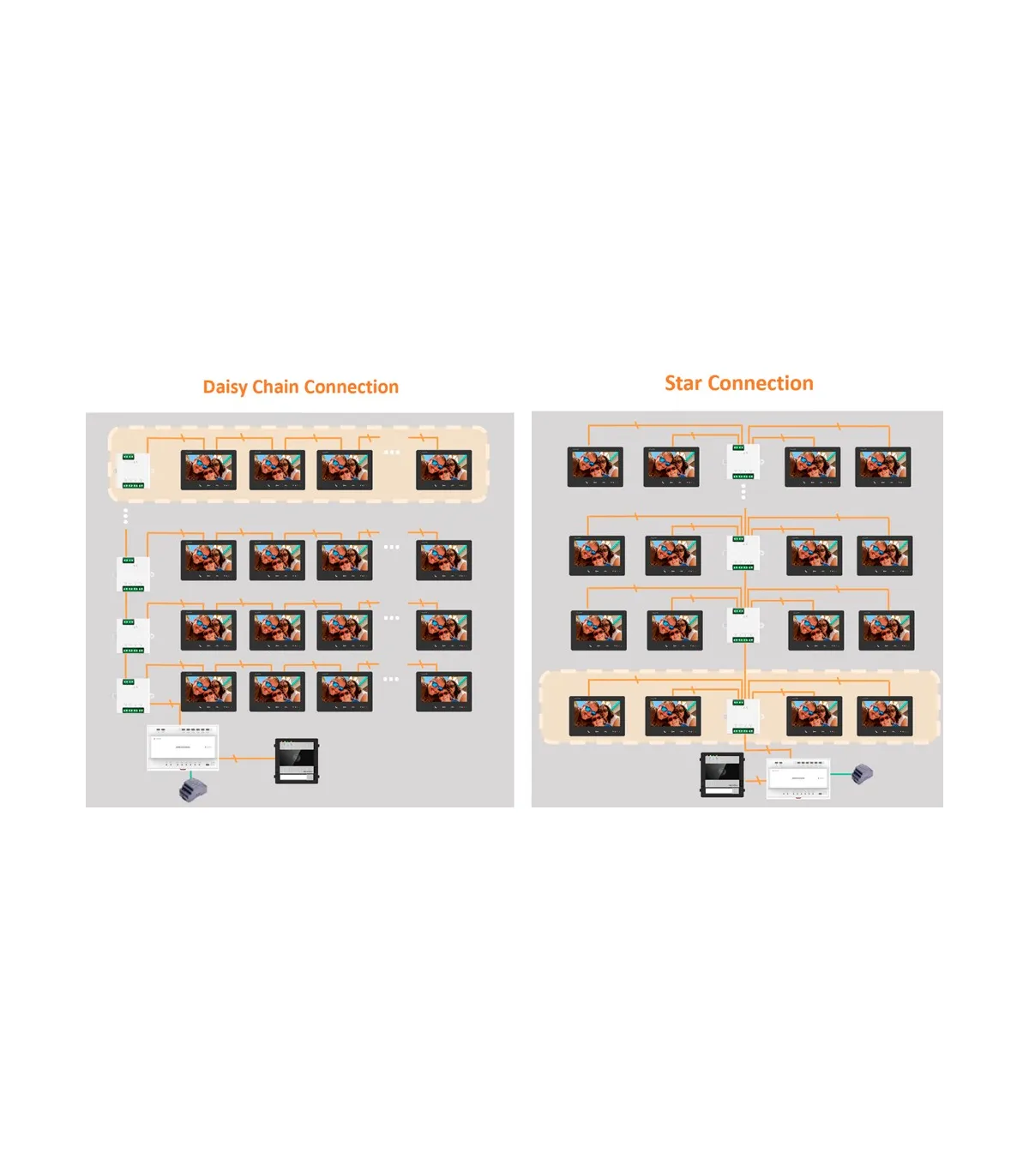

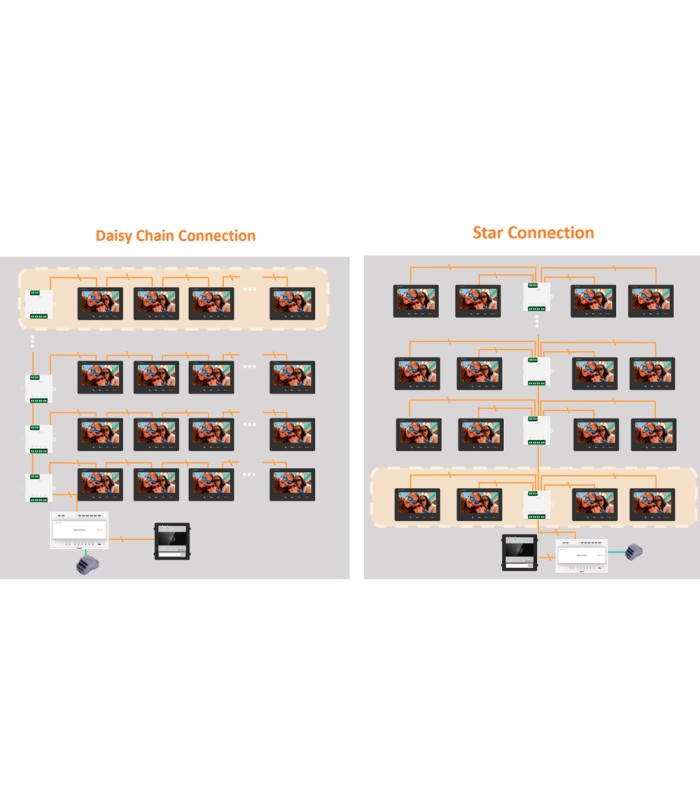

- Cascading hub connections

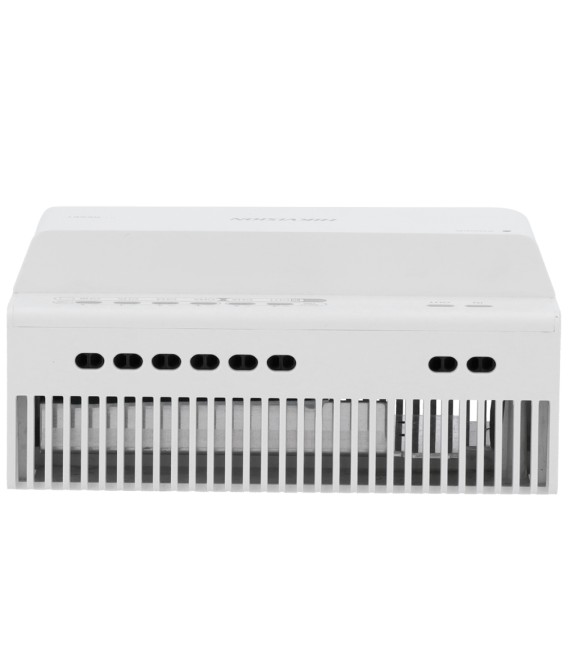

Hikvision DS-KAD7060EY building distributor
- Hikvision
- 2-wire HD distributor
- Suitable for powering 2-wire HD devices
- 2 channels of 2-wire HD with 15 W each
- 4 channels of 2-wire HD with 110 W each total
- Status indicators
- 2 channels for cascade hubs
- Accessory for board and monitor

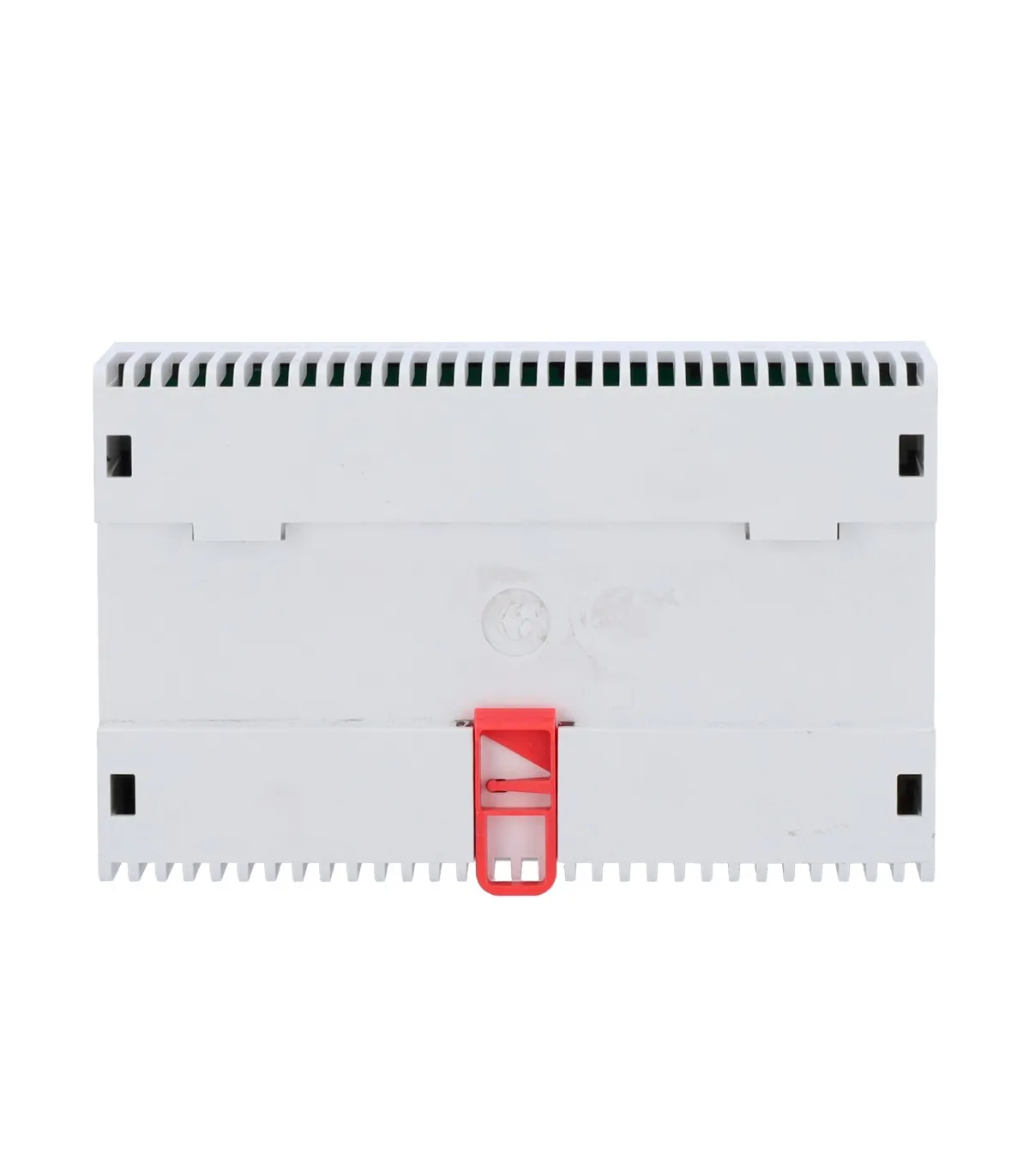

- Surface or rail mounting
Technical specifications
| Brand | Hikvision |
| Model | DS-KAD7060EY |
| Operation mode | Power, video and audio through 2-wire HD technology |
| Outputs | 2 channels of 2-wire HD with 15 W max. of power each 4 2-wire HD channels with 110 W max. of power between the four |
| Cascade | 2 channels for cascade connection of DS-KAD7060EY |
| Communication | 2-wire HD technology (up to 6 devices) |
| Power | DC 48 V / 3.2 A max. |
| Temp. operation | -10º C ~ +55º C |
| Dimensions | 144 (W) x 92 (H) x 66 (D) mm |
| Weight | 250 g |
Contents
- 2-wire HD hub for Hikvision video intercoms
- Instructions for use
