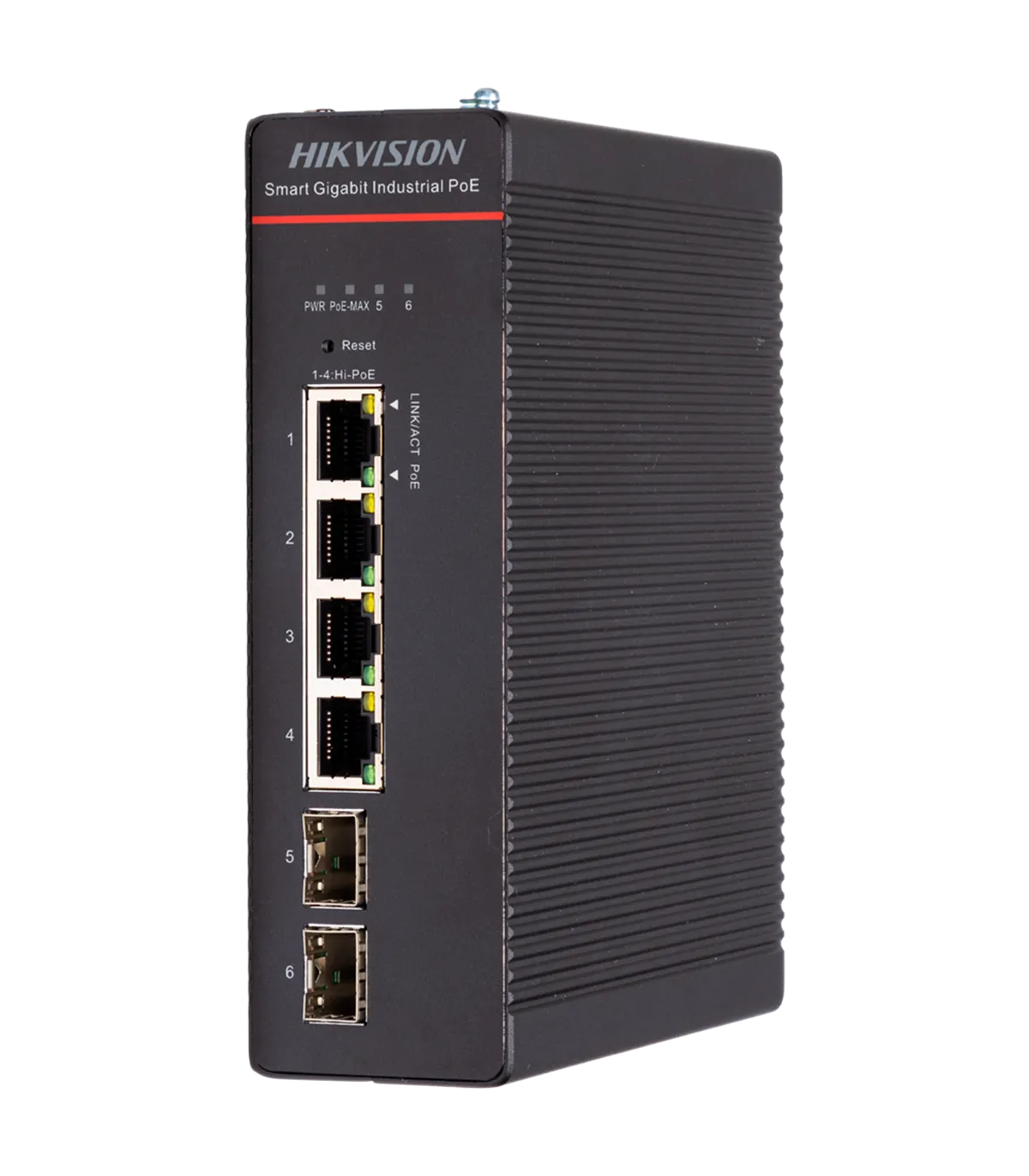

Hikvision Industrial 4-Port Gigabit PoE Switch 300W with 2 Gigabit SFP Ports DS-3T1506HP-SI-4P2F

Description & Key Features: DS-3T1506HP-SI-4P2F

The Hikvision DS‑3T1506HP‑SI‑4P2F is a Smart Managed PoE industrial switch designed for demanding environments and video surveillance applications that require more advanced connectivity than a typical unmanaged switch. It features 4 Gigabit RJ45 ports with Hi-PoE and 2 Gigabit SFP ports for fiber optics, facilitating the connection of network devices over long distances or in mixed copper and fiber topologies.

This model supports the IEEE 802.3bt Hi-PoE standard, providing up to 90 W per port (ports 1–4) and a total PoE budget of approximately 300 W, allowing for the direct powering of cameras or other high-consumption equipment from the switch without external power sources. Additionally, it integrates advanced software functions such as VLAN 802.1Q, QoS, loop prevention (STP/RSTP/ERPS), port isolation, and PoE Watchdog for automatic rebooting of unresponsive devices, enhancing network stability and security.

The unit is built with a robust metal housing (IP40) and designed for a wide temperature range (-40 °C to 75 °C), making it suitable for industrial or protected outdoor installations. It also offers 6 kV surge protection and long-range PoE transmission mode (up to 300 m) on selected ports, providing greater flexibility in deploying cameras or devices physically distant from the network core.

Specifications: DS-3T1506HP-SI-4P2F

Package Contents

• Switch
• User manual
• Wall mounting brackets

Use Case

In a typical deployment scenario, the Hikvision DS‑3T1506HP‑SI‑4P2F switch can be utilized in a large industrial facility where multiple surveillance cameras are installed across various locations. The switch's ability to provide high-power PoE directly to the cameras eliminates the need for separate power sources, simplifying installation and reducing costs. With its long-range PoE transmission capability, installers can position cameras up to 300 meters away from the switch, ensuring comprehensive coverage of the facility.

Furthermore, the switch's advanced features such as VLAN support and QoS enhance network performance and security, making it ideal for environments where data integrity is critical. The robust metal housing and wide operating temperature range ensure that the switch can withstand harsh conditions, making it suitable for both indoor and outdoor installations. Overall, the DS‑3T1506HP‑SI‑4P2F provides a reliable and efficient solution for modern surveillance needs.
