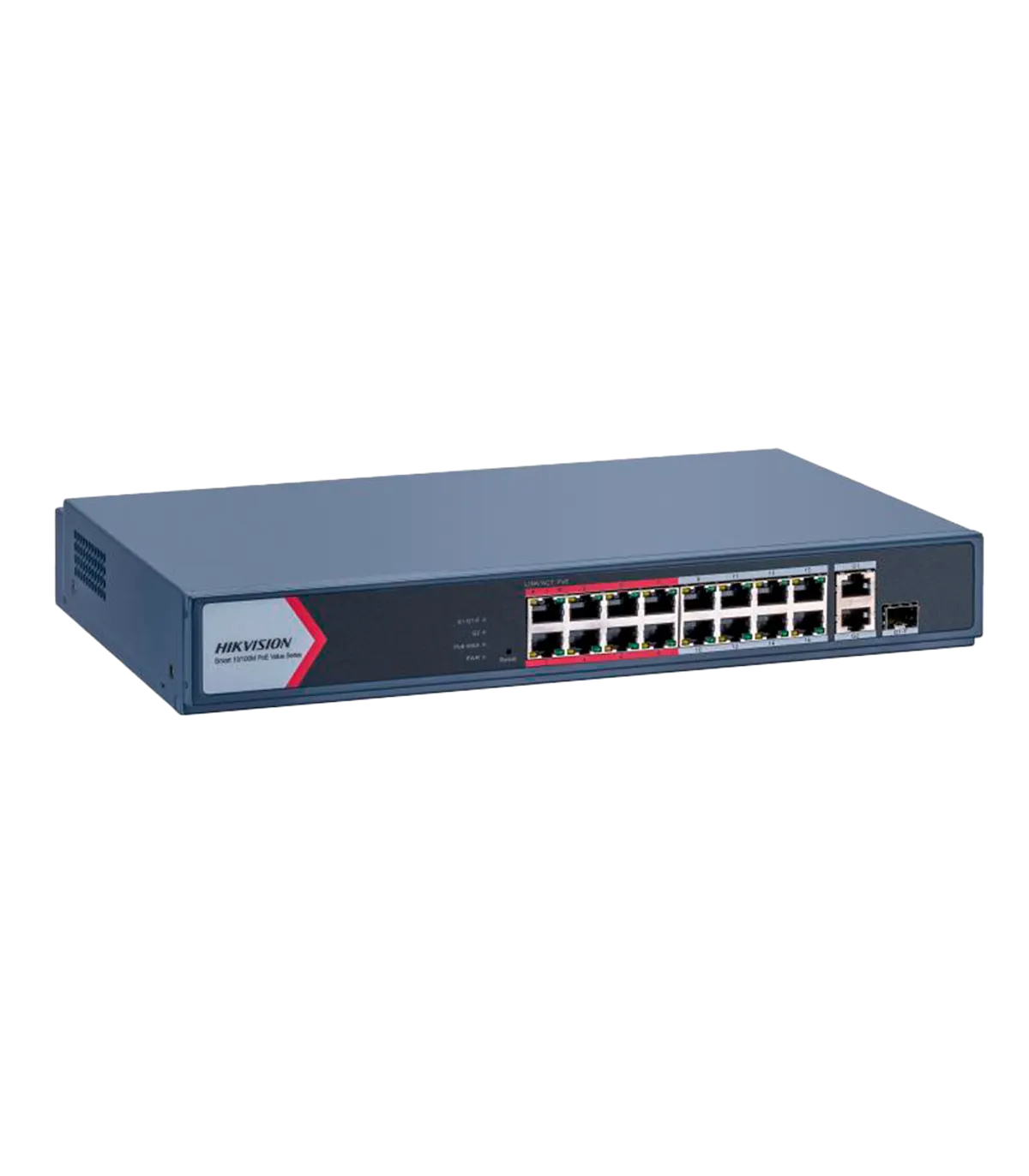

The DS-3E1318P-EI/M is a sophisticated managed switch designed for efficient network management and power delivery. Ideal for IP surveillance systems and other networked devices, this switch features 16 PoE ports, allowing for seamless connectivity and power supply to devices such as cameras and access points. With advanced PoE management capabilities and a robust design, it is well-suited for both small and medium-sized installations.
| Interfaces | 16 PoE RJ45 Fast Ethernet ports + 1 Gigabit RJ45 port + 1 Gigabit combo RJ45/SFP port |
| PoE Features | Up to 30W on ports 1-16 802.3af/at Up to 130W total PoE power Pinout for ports 1-16 1,2,7,8- / 3,6,4,5+ |
| PoE Functionalities | Extended PoE on ports 1-16 up to 300 meters at 10Mbps Port Isolation for ports 1-16 PoE Watchdog for ports 1-16 resets cameras if they are unresponsive VIP ports 1-8 prioritize these ports when bandwidth is insufficient |
| L2 Functionalities | Static link aggregation (1 group) Loop prevention protocols (802.1D STP and 802.1w RSTP) VLAN (Max. 4094) 802.1Q Tag 802.1ab LLDP DHCP Client Port Mirroring |
| HikPartner Pro Functionalities | Supports one-click remote management via Hik Partner Pro (Supported functions) 1. View port speed. 2. View port bandwidth utilization. 3. Display PoE power usage. 4. Show network topology information. 5. View alarm status. 6. Restart ports and devices. 7. Enable extended mode for ports. 8. Remotely update the device. |
| Management | Web management Management via Hik-Central Pro Management via Hik-Partner Pro. |
| MAC Table | 16K |
| Bandwidth | 9.2Gbps |
| Forwarding Rate | 6.84Mbps |
| Internal Cache | 4 Mbits |
| Installation | Rack, Desktop, Wall-mounted |
| Surge Protection | 6kV |
| Power Supply | AC 100 ~240, 50/60Hz, Max 4A |
| Operating Temperature | 0º C ~ 45º C |
| Dimensions | 220.8 (L) x 44 (H) x 440 (W) mm |
| Weight | 3 Kg |
The DS-3E1318P-EI/M is an excellent choice for installers looking to deploy a reliable network solution in a commercial setting. For instance, in a medium-sized office, this managed switch can connect multiple IP cameras and access points, ensuring that all devices receive adequate power through its 16 PoE ports. The PoE Watchdog feature enhances reliability by automatically resetting unresponsive cameras, minimizing downtime. Additionally, the switch's remote management capabilities via Hik Partner Pro allow for easy monitoring and configuration adjustments from anywhere. With a total PoE power of up to 130W, it can support high-demand devices, making it ideal for security applications. Furthermore, the extended PoE functionality enables connections up to 300 meters, providing flexibility in device placement without compromising performance.
