€26.10
Transformador AC/ACEntrada AC 230 VSalida AC 24 V 5 ALongitud de cables 1 m102 (Al) x 120 (An) x 80 (Fo) mm2800 g
PFM344D-4CH Switching Power Supply
- Fuente de alimentación conmutada
- Entrada AC 185-240V - 50/60Hz 1.5A
- Potencia total 30W
- 4 salidas
- Voltaje de salida Ajustable a 3 niveles
- Salida DC 12 V / 12 W
€7.83
Reference:
PFM344D-4CH
Brand:
Love0
Add to compare0
Add to wishlist

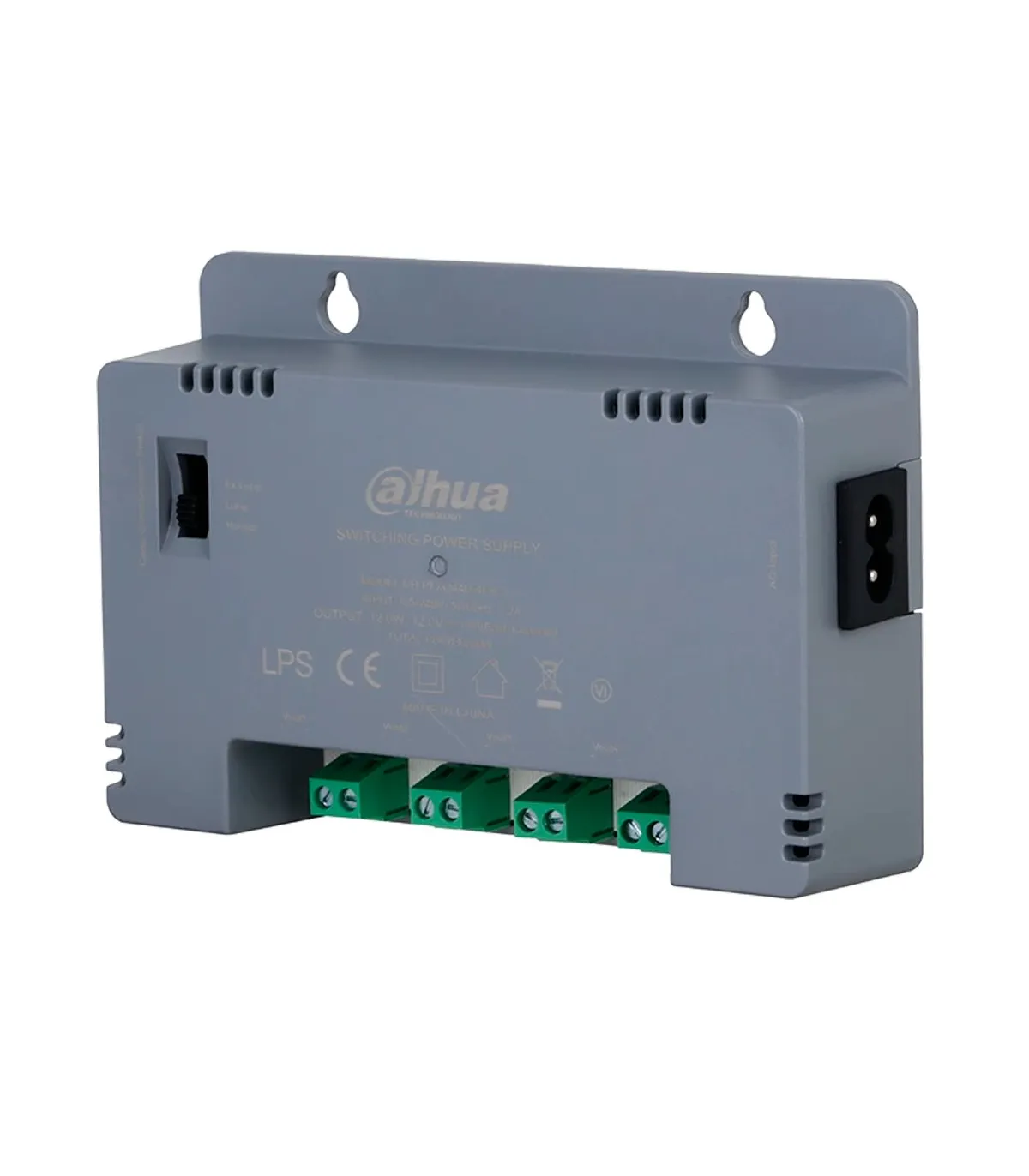

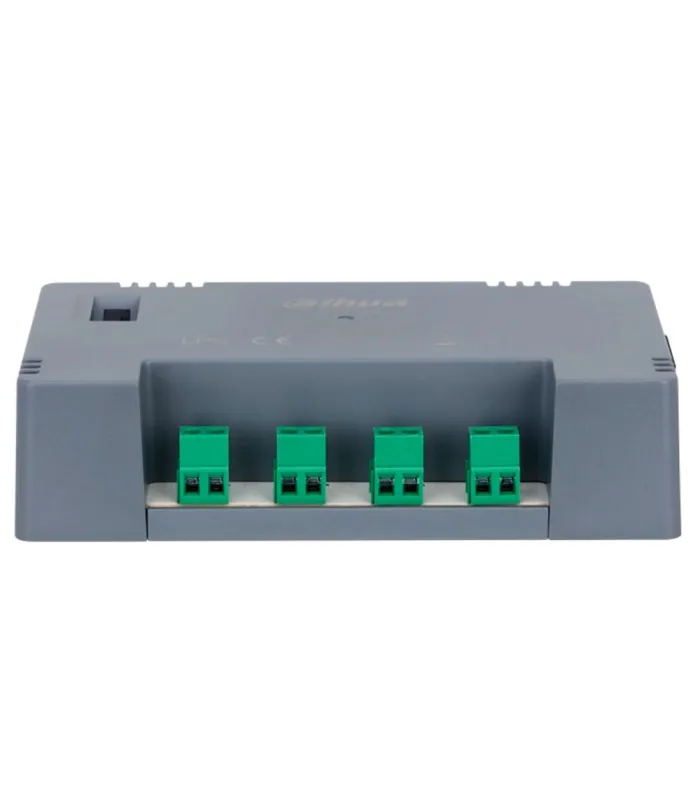

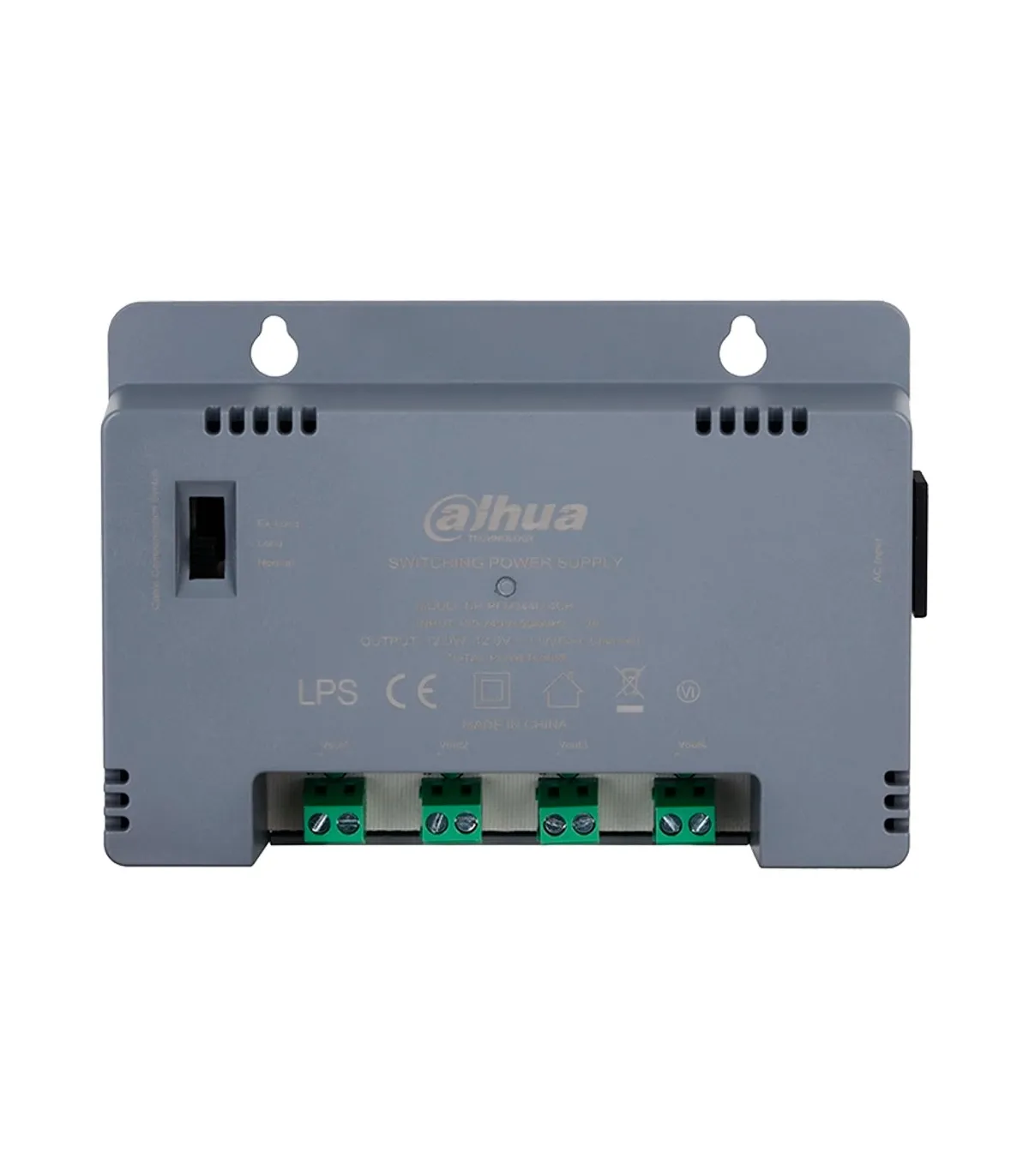

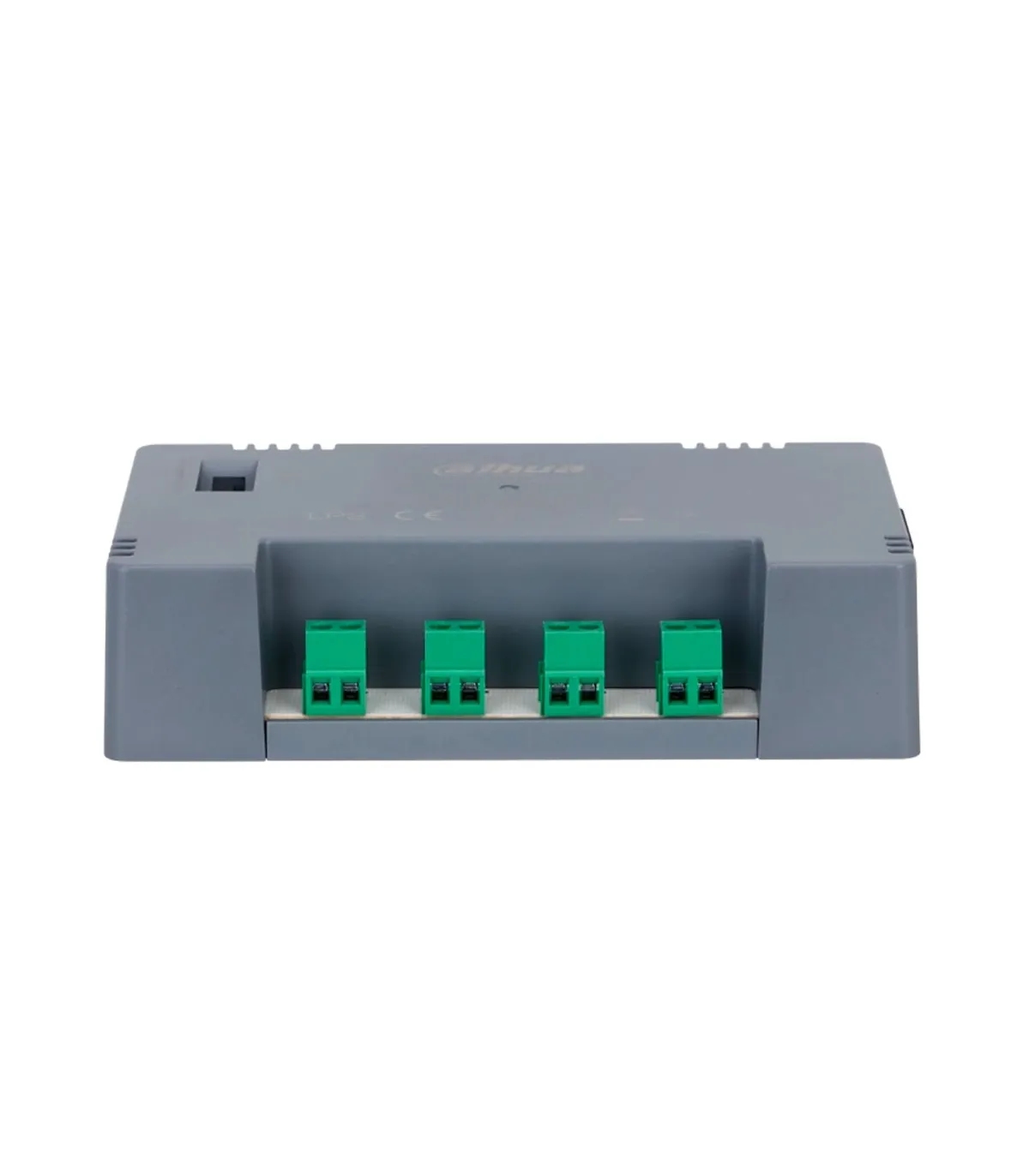

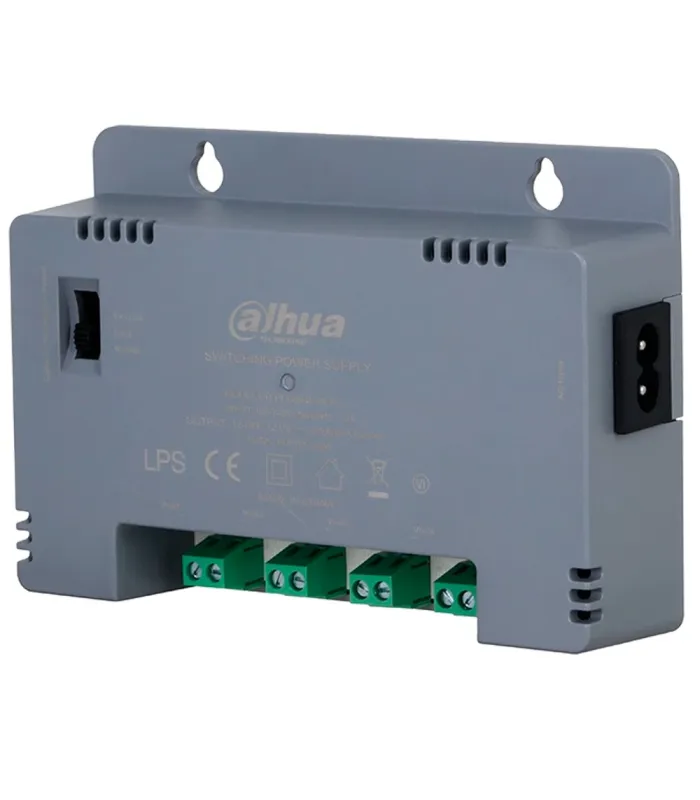

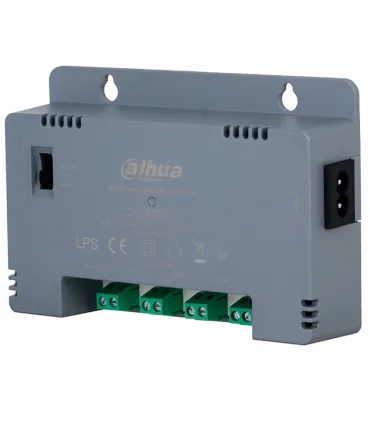

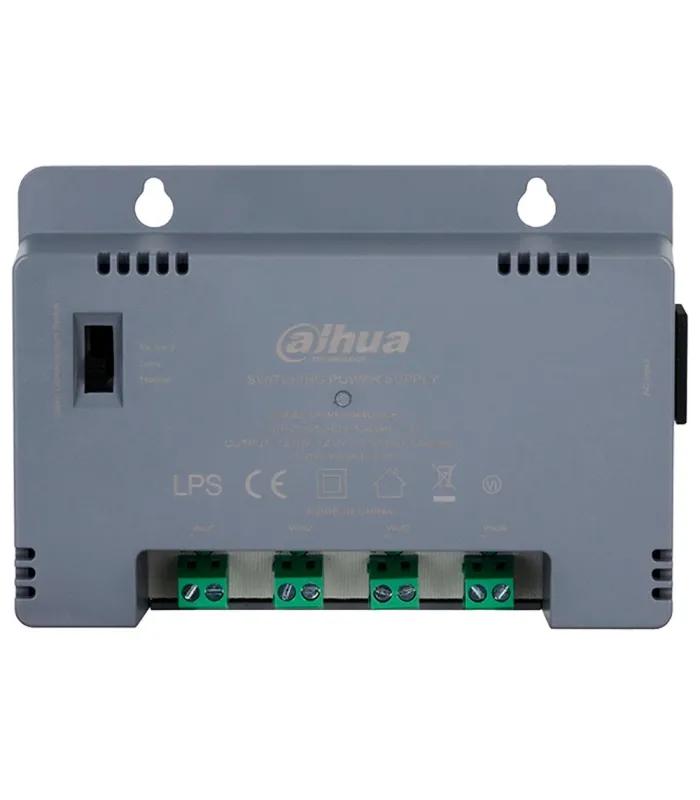

Switched Mode Power Supply PFM344D-4CH
- Switched mode power supply
- AC input 185-240V - 50/60Hz 1.5A
- Total power 30W
- 4 outputs
- Output voltage Adjustable to 3 levels
- DC output 12V / 12W
Technical Specifications
| Input power | AC 185-240V - 50/60Hz 1.5A |
| Output power | 8 outputs |
| Output voltage | DC 12V - 1A / 12W, 3 levels (Normal:12VDC, Long: 13.2VDc, and Ex-Long:15VDC) |
| Output ripple | 150 mV |
| Total power | 30W |
| Consumption | ≤ 0.1W |
| Transformation efficiency | ≥ 87% |
| Protection | Overcurrent, short circuit, and overvoltage |
| Overvoltage protection | Common mode: ±4 kV, differential mode: ±2 kV. |
| Operating temperature | 0º C ~ +40º C |
| Dimensions | 140.1 (W) x 94.5(H) x 34.2 (D) mm |
| Weight |
Contents
- 4-channel switched mode power supply
- Power cable
