Hikvision 48V DC 75W DIN Rail Mount Switching Power Supply DRL-48V75W1AZ
- Switched power supply
- DC output 48 V / 1.57 A / 75 W
€28.52
Reference:
DRL-48V75W1AZ
Brand:
Add to wishlist
Description & Key Features: DRL-48V75W1AZ
The DRL-48V75W1AZ is a switched power supply designed for reliable operation in various electronic security applications. With an output of 48 V and a maximum power of 75 W, it is ideal for powering devices that require stable voltage and current. This power supply is best suited for installations in DIN rail systems, ensuring a neat and organized setup. Its wide input voltage range of 85-264 Vac makes it versatile for different environments, while its high efficiency of 90% ensures minimal energy loss during operation.
- Switched power supply
- Output 48 V / 1.57 A / 75 W
- Voltage range 43.2~52.8 V

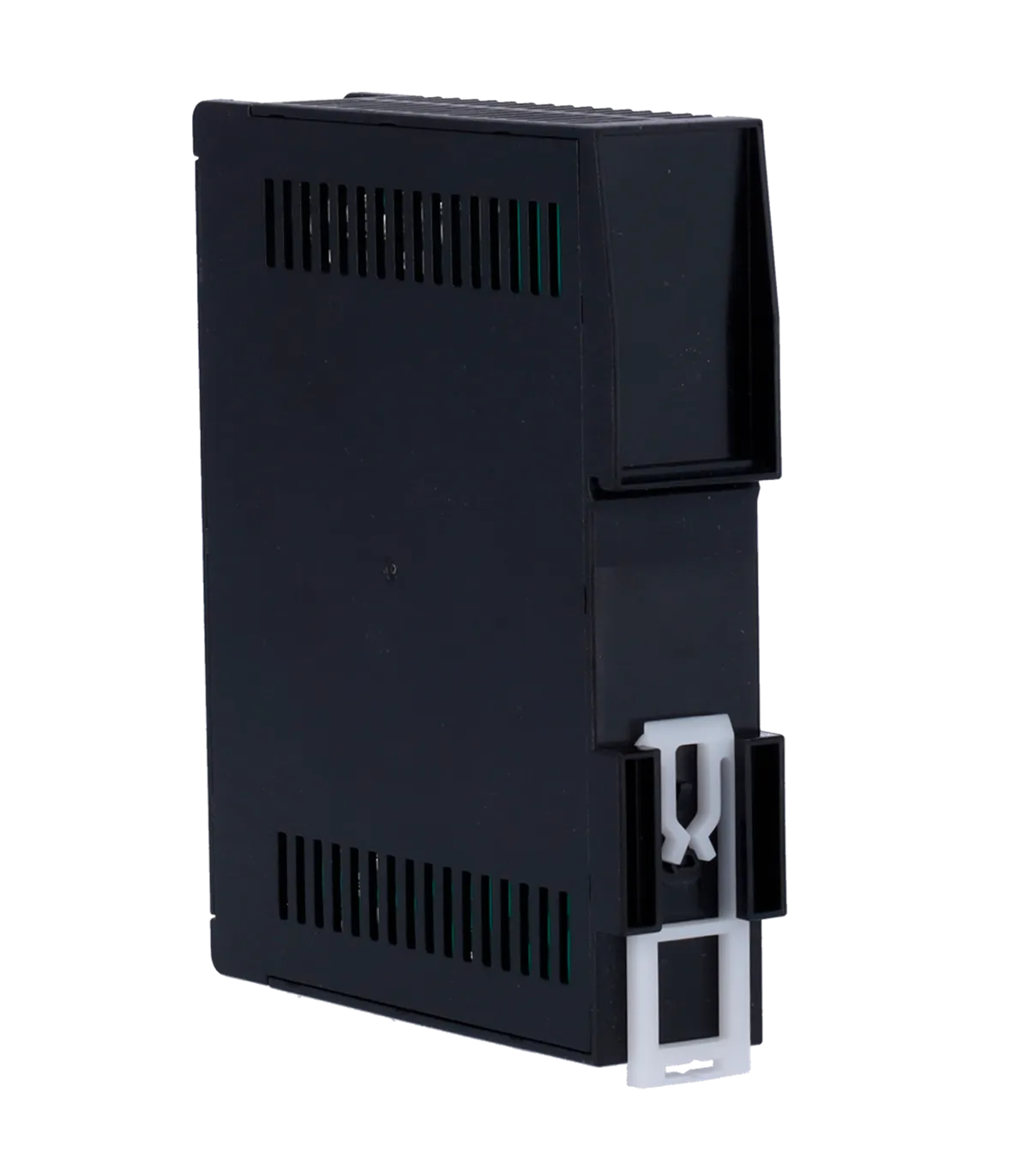

- DIN rail mounting
Specifications: DRL-48V75W1AZ
| Output Power | 48V DC |
| Output Voltage Range | 43.2 ~ 52.8V DC |
| Input Voltage Range | 85-264 Vac |
| Input Frequency | 50/60 Hz |
| Output Current | 1.57A |
| Maximum Output Power | 75W |
| Efficiency at Full Load | 90% |
| Storage Temperature | -40 ºC ~ +85 ºC |
| Ripple and Noise | < 240mVpp @ > -10°C to +70°C < 480mVpp @ ≤ -10°C to -30°C |
| Hold-up Time | 16ms @ 115Vac (100% load) 60ms @ 230Vac (100% load) |
| Operating Humidity | 5 to 95% |
| Dimensions | 123.6 x 27 x 102 mm |
| Weight | 220 g |
| Mounting | DIN rail |
| Input Wiring | AWG 18-12 |
| Output Wiring | AWG 22-12 |
Package Contents
- Power supply
Use Case
The DRL-48V75W1AZ power supply is an excellent choice for installers working on electronic security systems, such as surveillance cameras and alarm systems. Its DIN rail mounting feature allows for easy integration into existing electrical panels, providing a clean and organized installation. With an output of 48 V and a current of 1.57 A, this power supply can efficiently power multiple devices simultaneously, making it ideal for commercial security applications. The wide input voltage range ensures compatibility with various power sources, while the high efficiency of 90% minimizes energy costs. Additionally, the device's robust design allows it to operate in extreme temperatures, ensuring reliability in diverse environments. This makes the DRL-48V75W1AZ a dependable choice for both installers and end users seeking a reliable power solution for their security needs.
