Junction box DS-2780ZJ-X(OS)/316L
- Explosion-Proof Junction Box
- For wiring connections
- 316L stainless steel
- 272×272×96.8 mm / 6.4 kg
- IP68 protection rating
€906.98
Reference:
DS-2780ZJ-X(OS)/316L
Brand:
Love0
Add to compare0
Add to wishlist

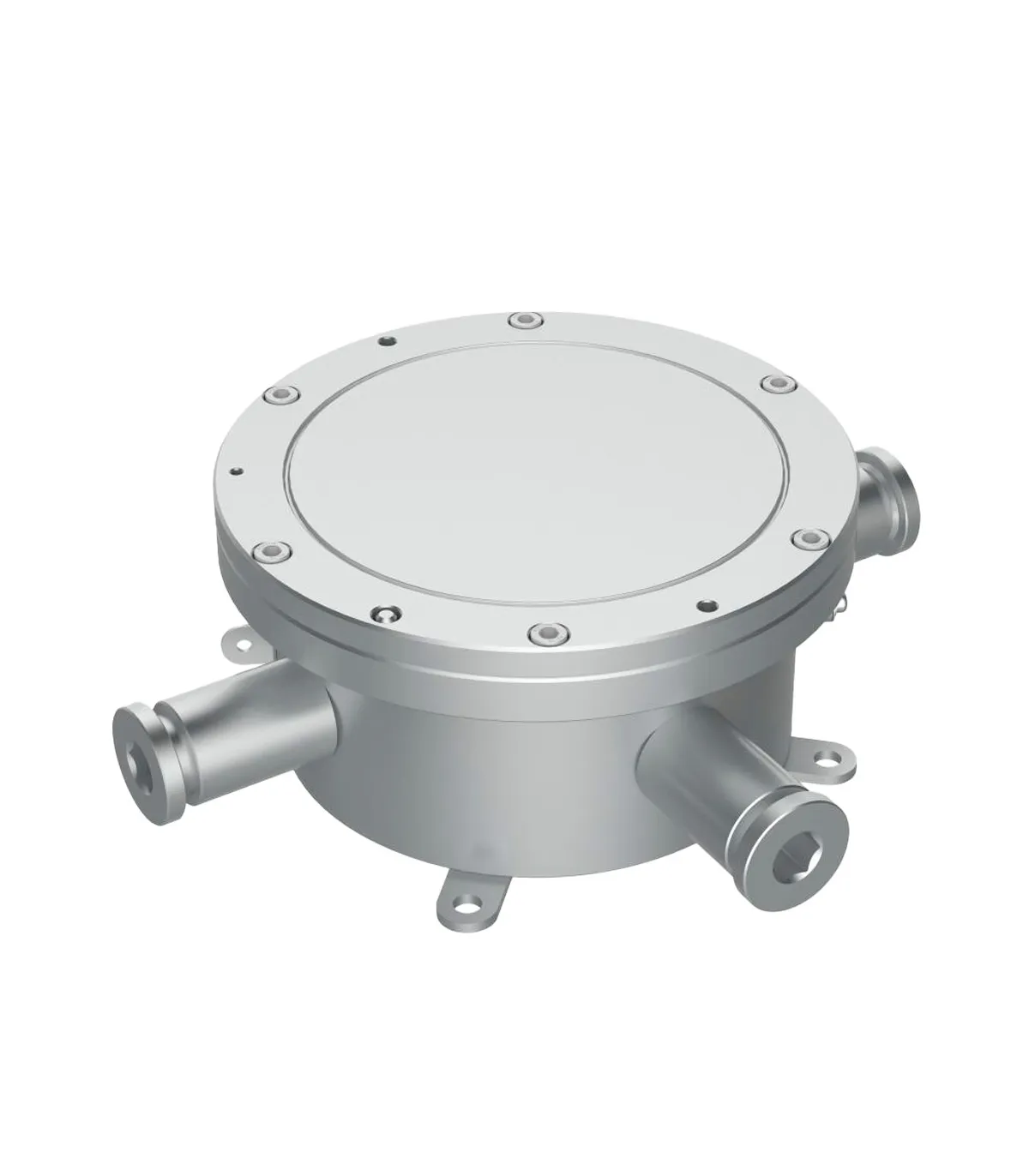

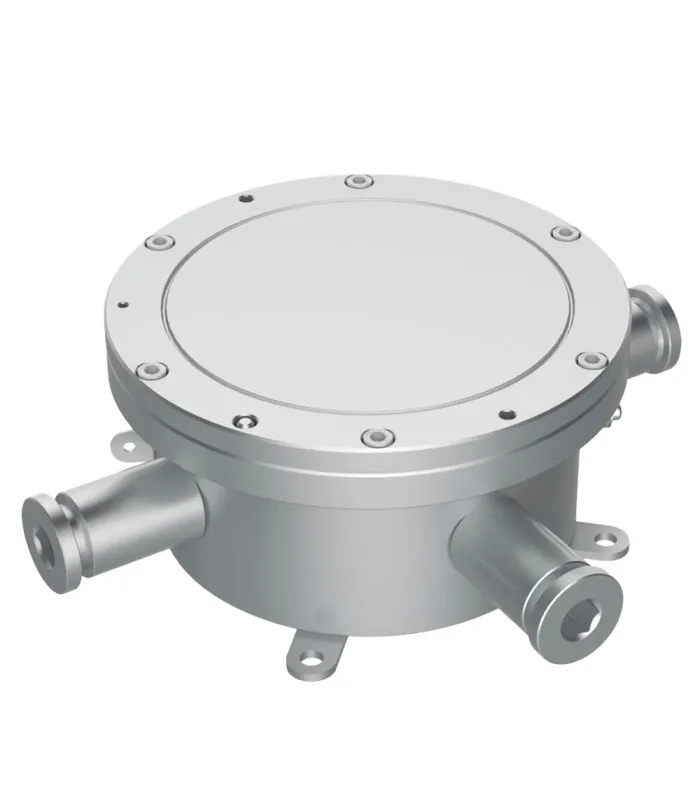

Junction box DS-2780ZJ-X(OS)/316L
- Hikvision
- Explosion-Proof junction box
- 316L stainless steel -With anti-corrosion surface spray treatment
- 4 M25 × 1.5 cable outlets
- Proof performance explosions certified by ATEX and IECEx
- Protection grade IP68
- Dimensions 272×272×96.8 mm
- Weight 6.4 kg
Technical specifications
| Certified | ATEX and IECEx |
| Material | 316L stainless steel |
| Thread hole for cable | 4x G3/4 |
| Interface | AC 110V ~ 240V,24 VAC/8 to 36 VDC/POE |
| Ambient Temperature | -40ºC ~ 60ºC |
| Air Pressure | 80Kpa - 106Kpa |
| Degree of Protection | IP68 |
| Dimensions | 272×272×96.8 mm |
| Weight | 6.4Kg |
Contents
- Connection box
- 4 plugs and 4 screws for mounting
- 3 screws for fixing the camera
DS-2780ZJ-X(OS)/316L
Data sheet
- Brand
- Hikvision
Specific References
- EAN13
- 6931847139926
