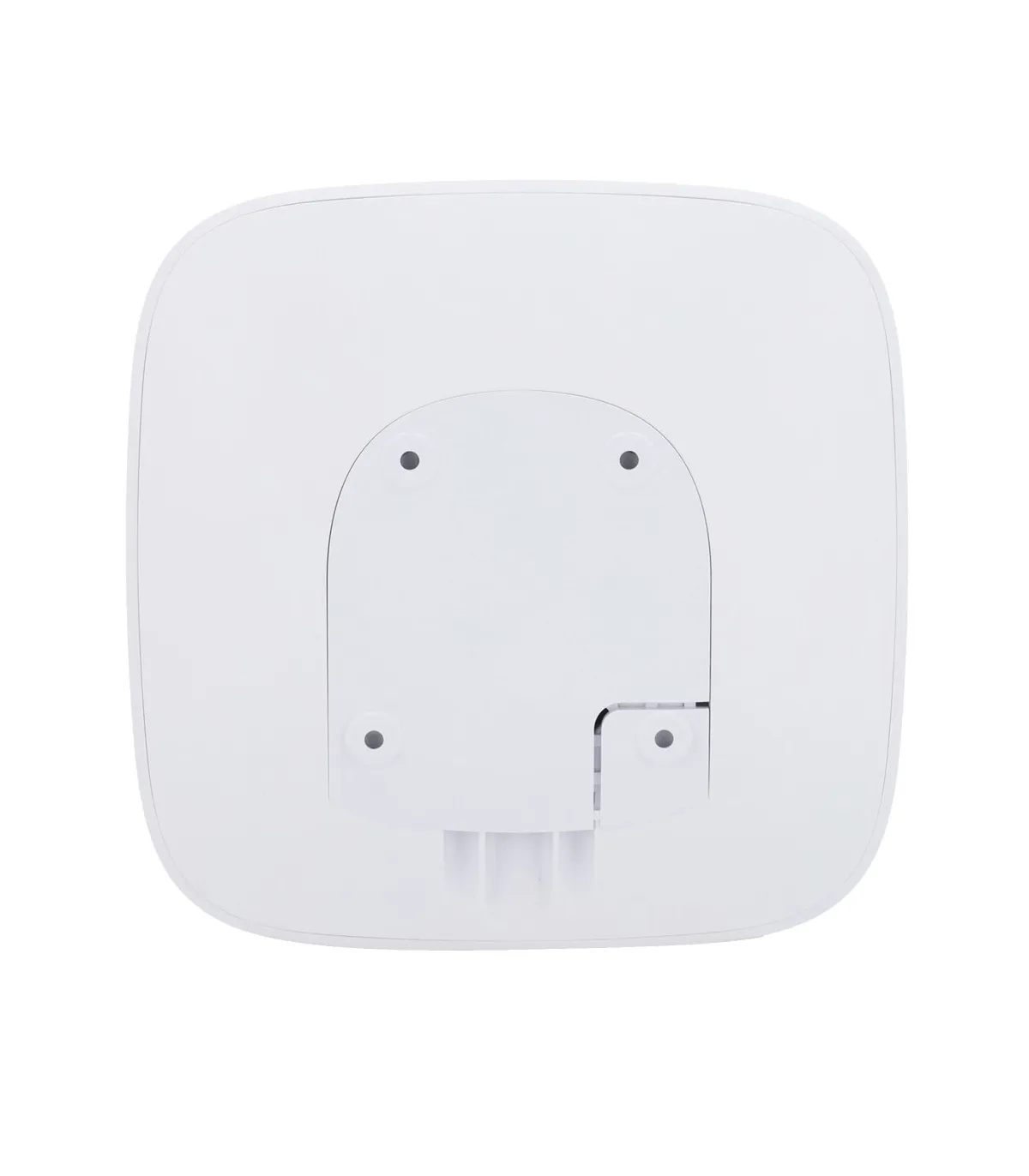

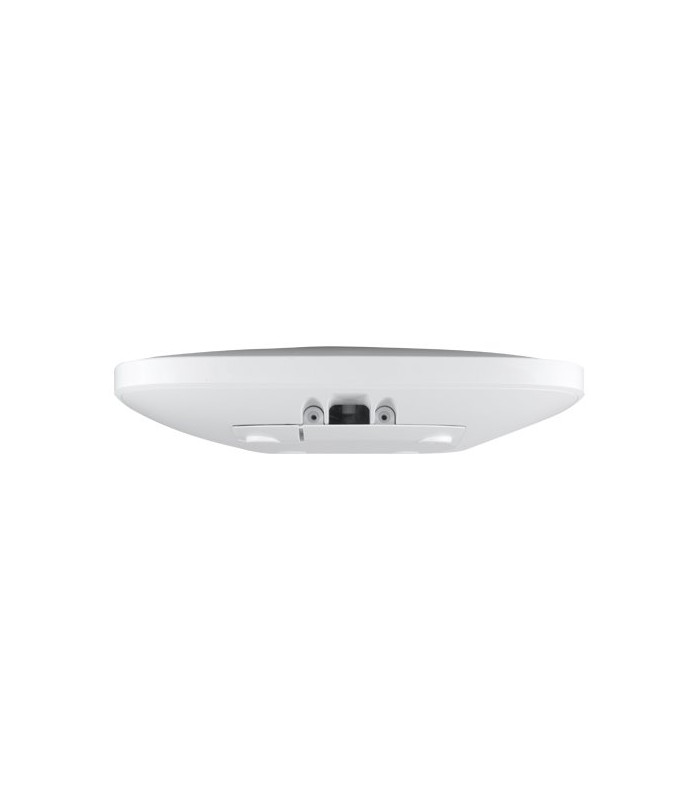

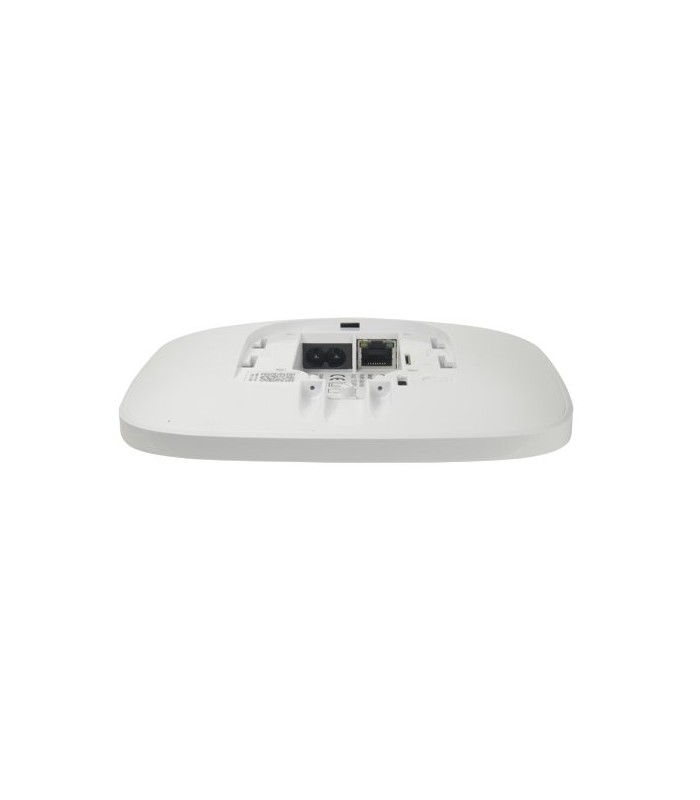

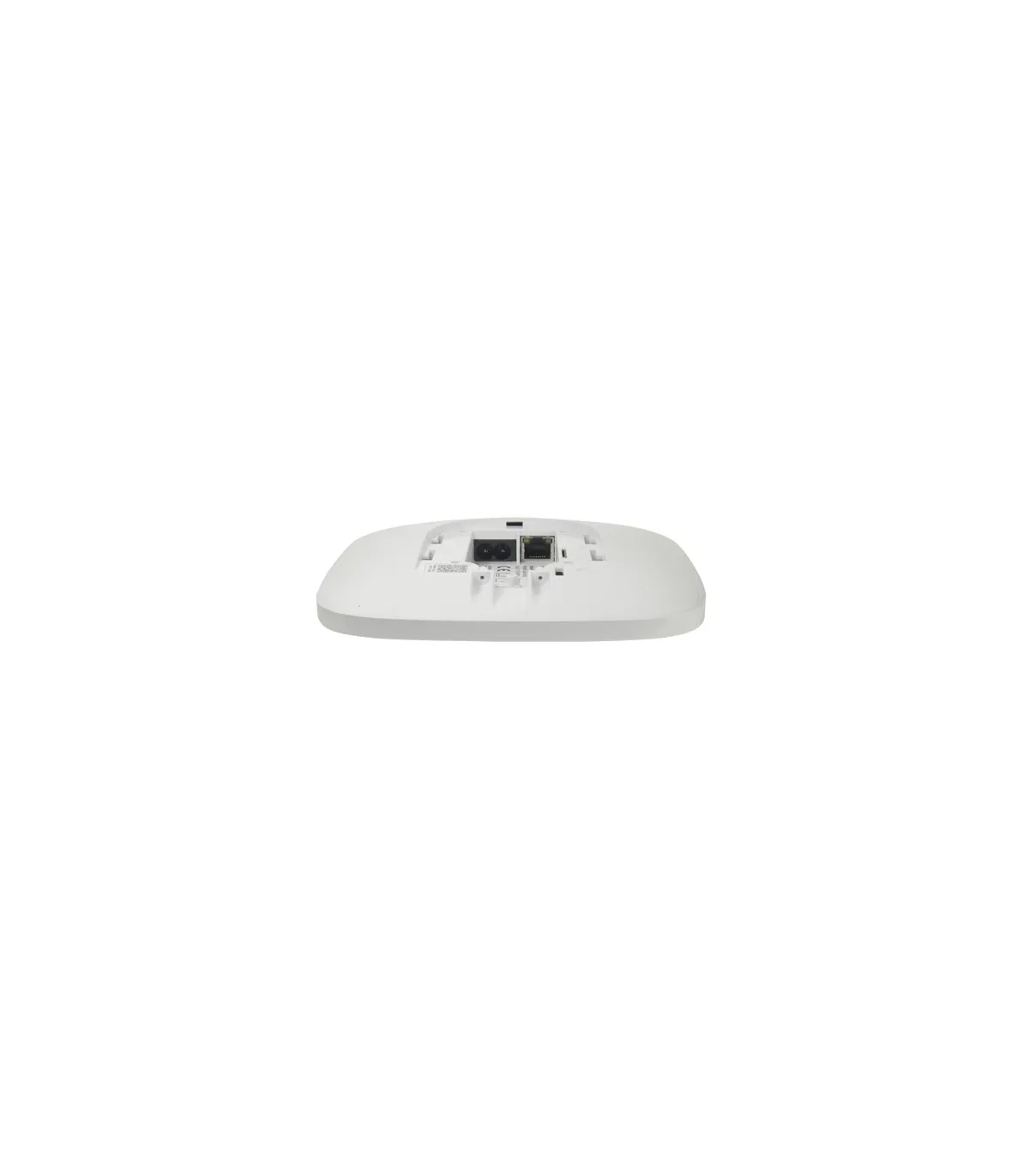

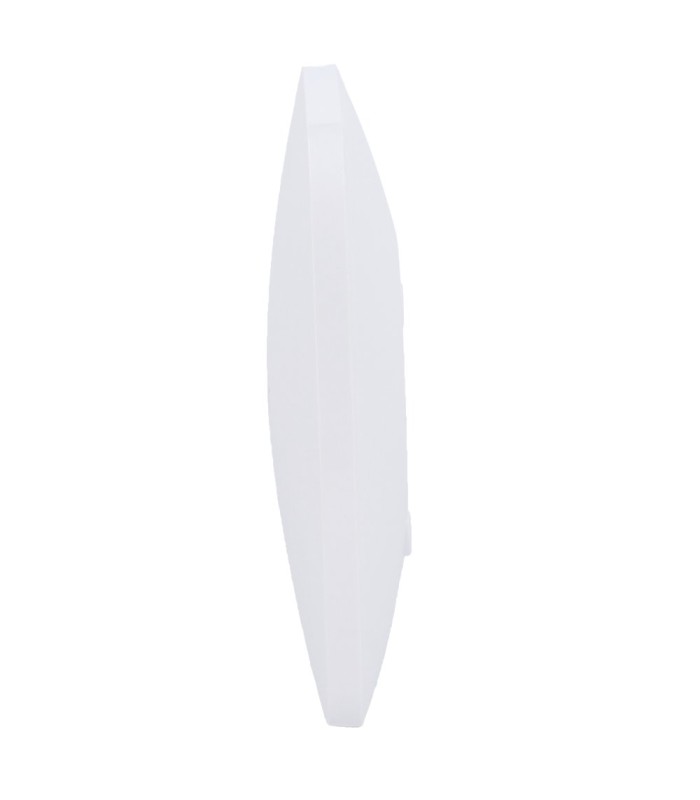

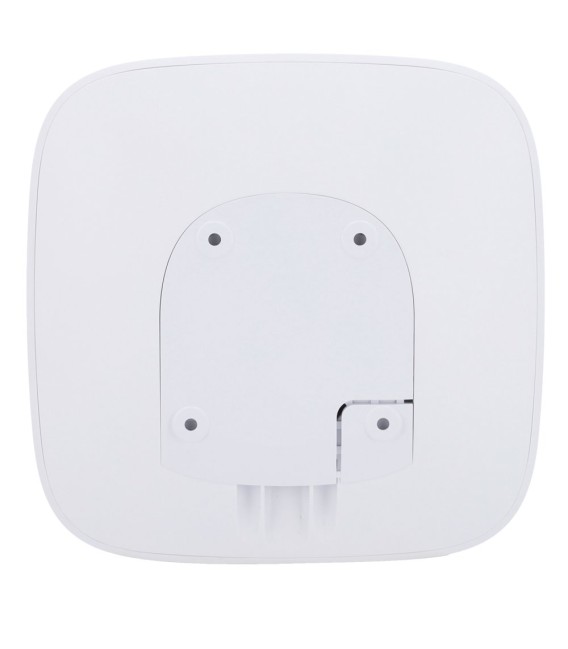

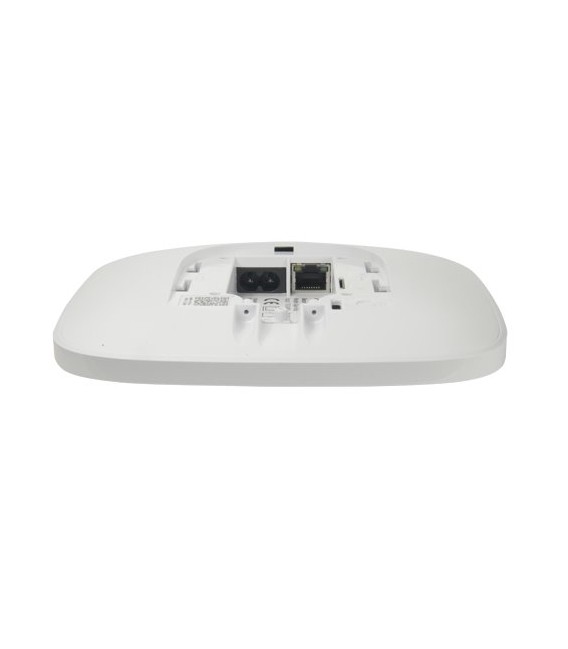

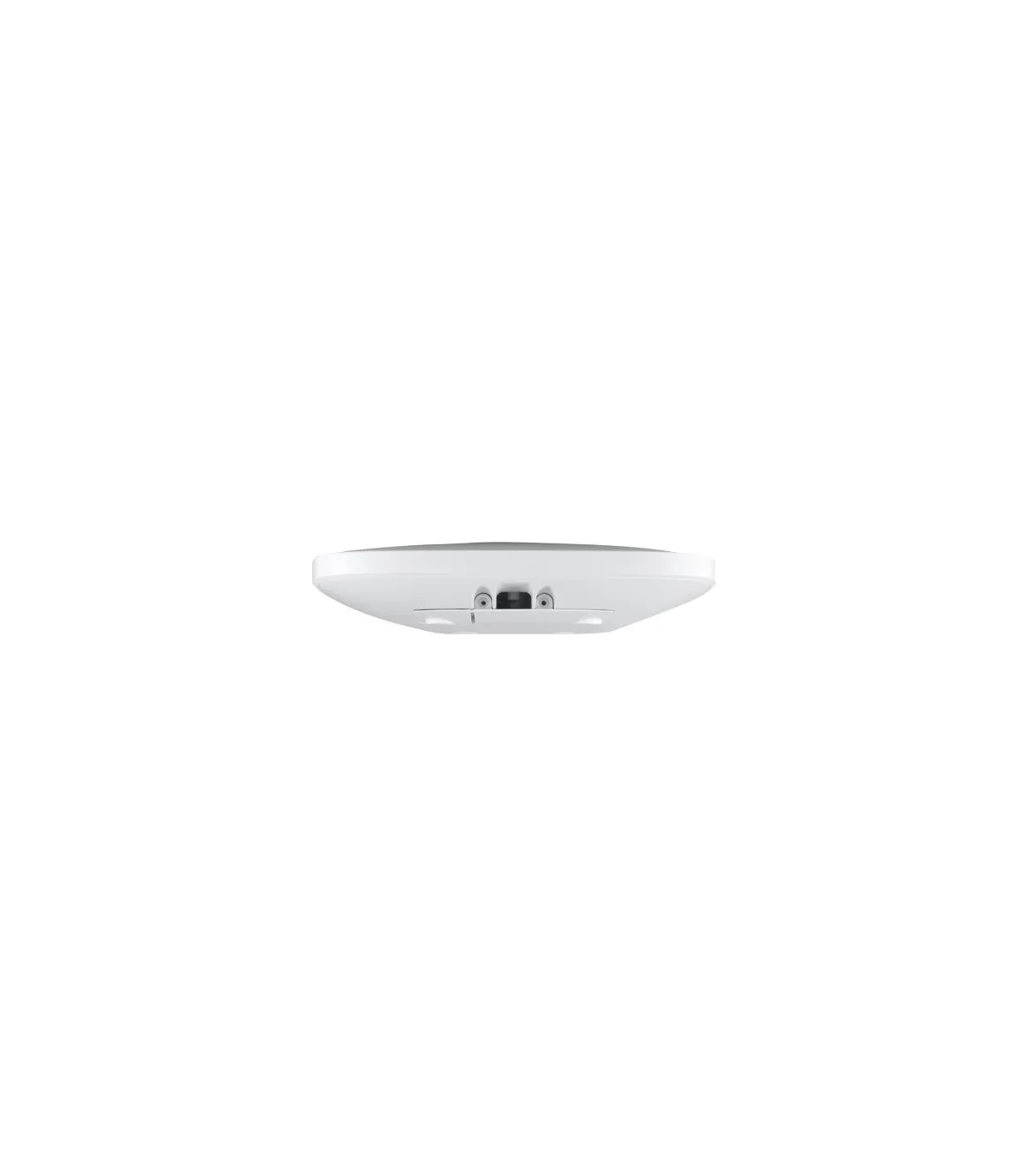

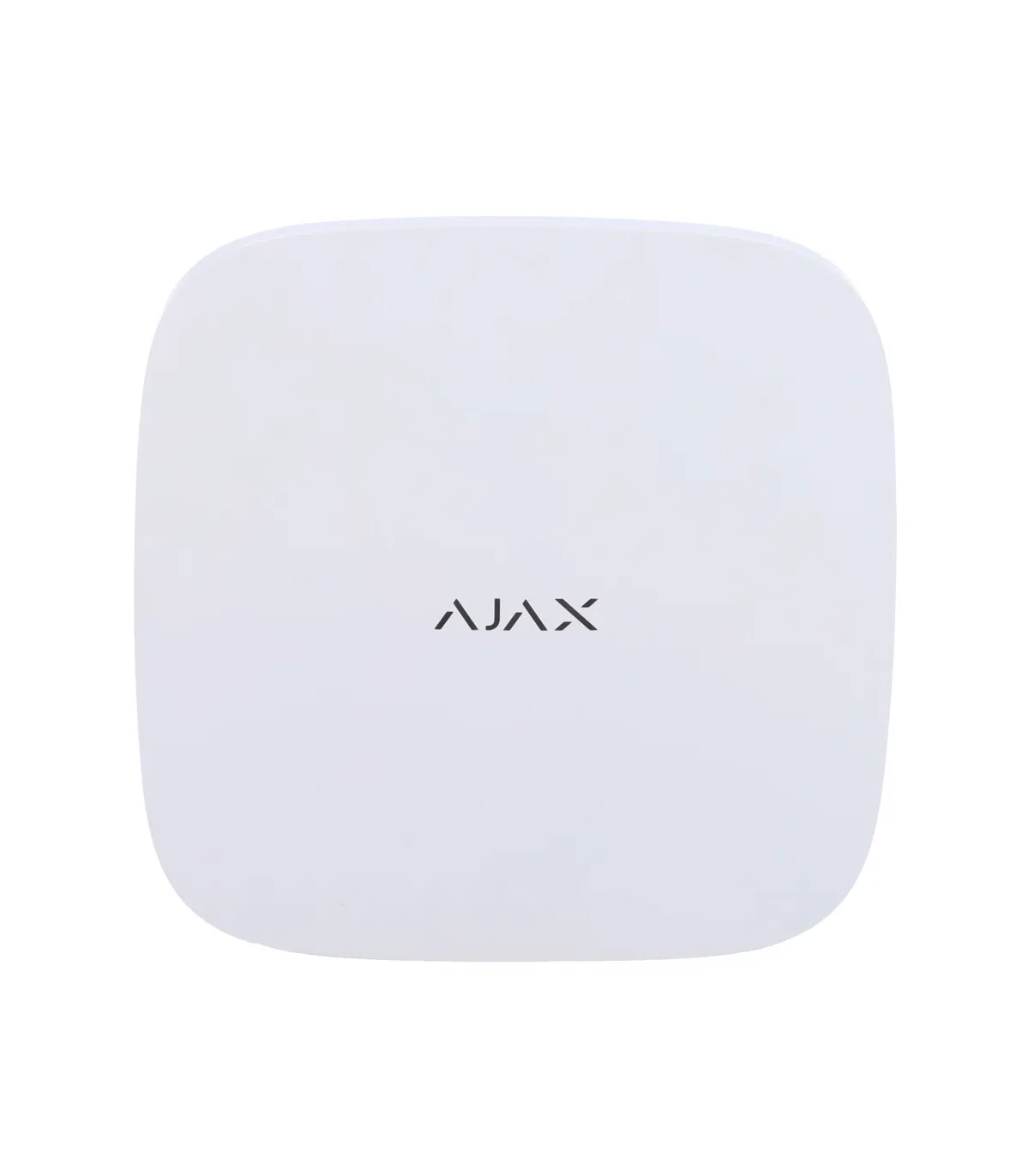

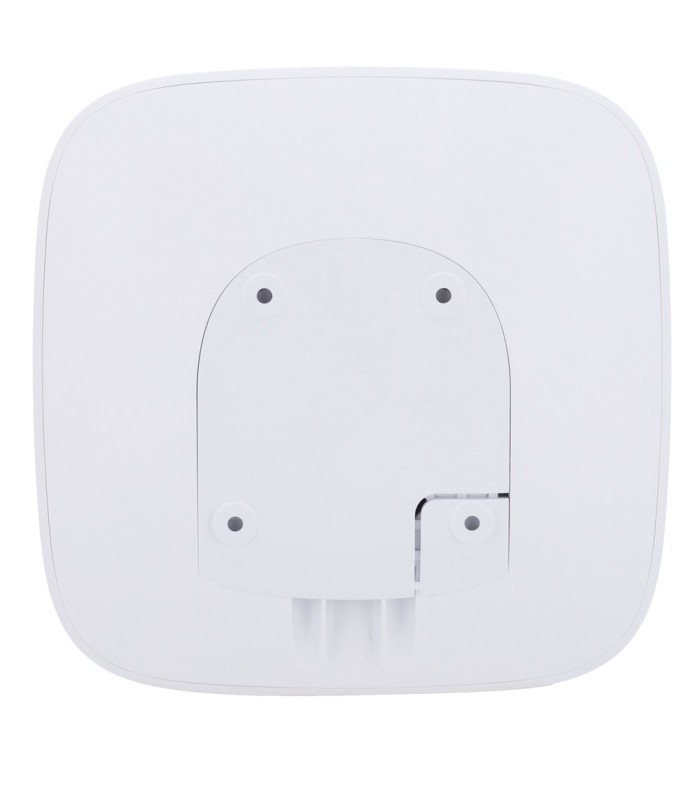

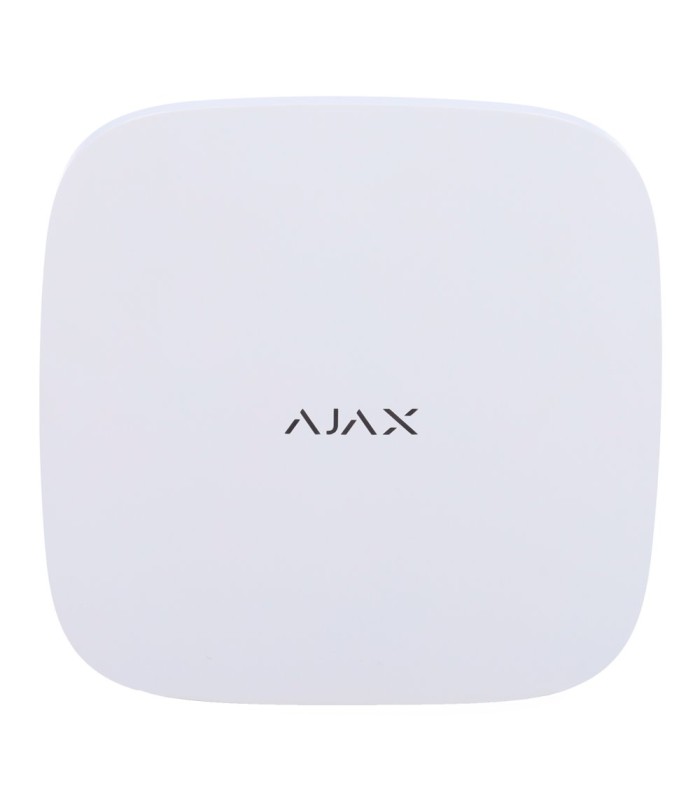

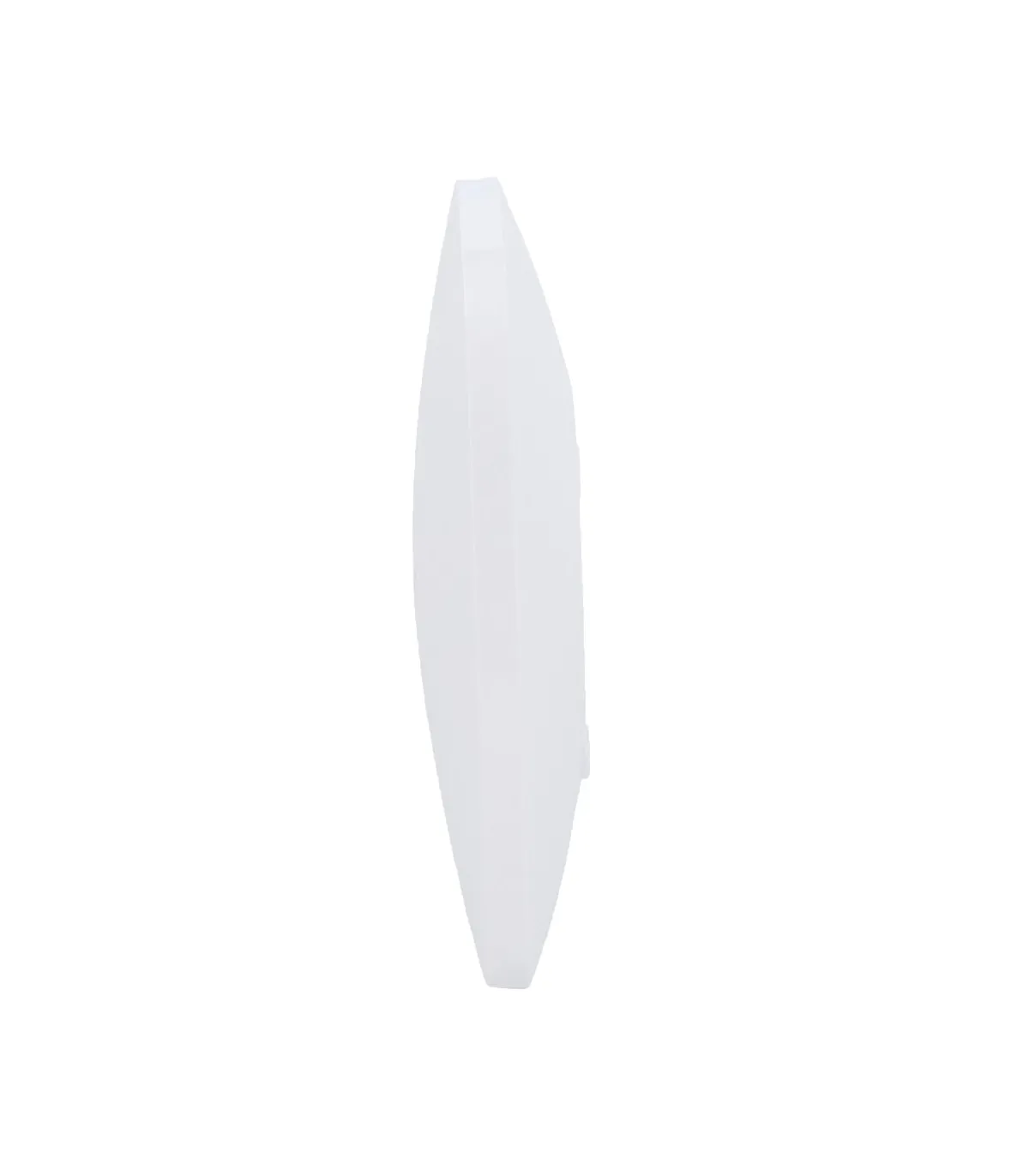

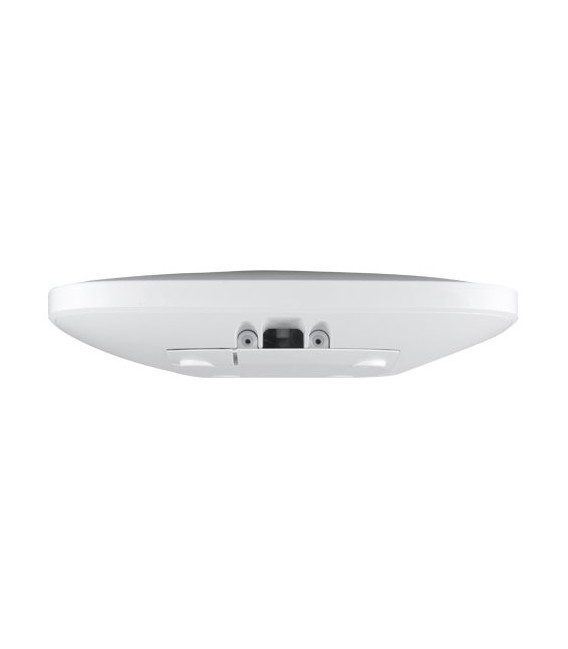

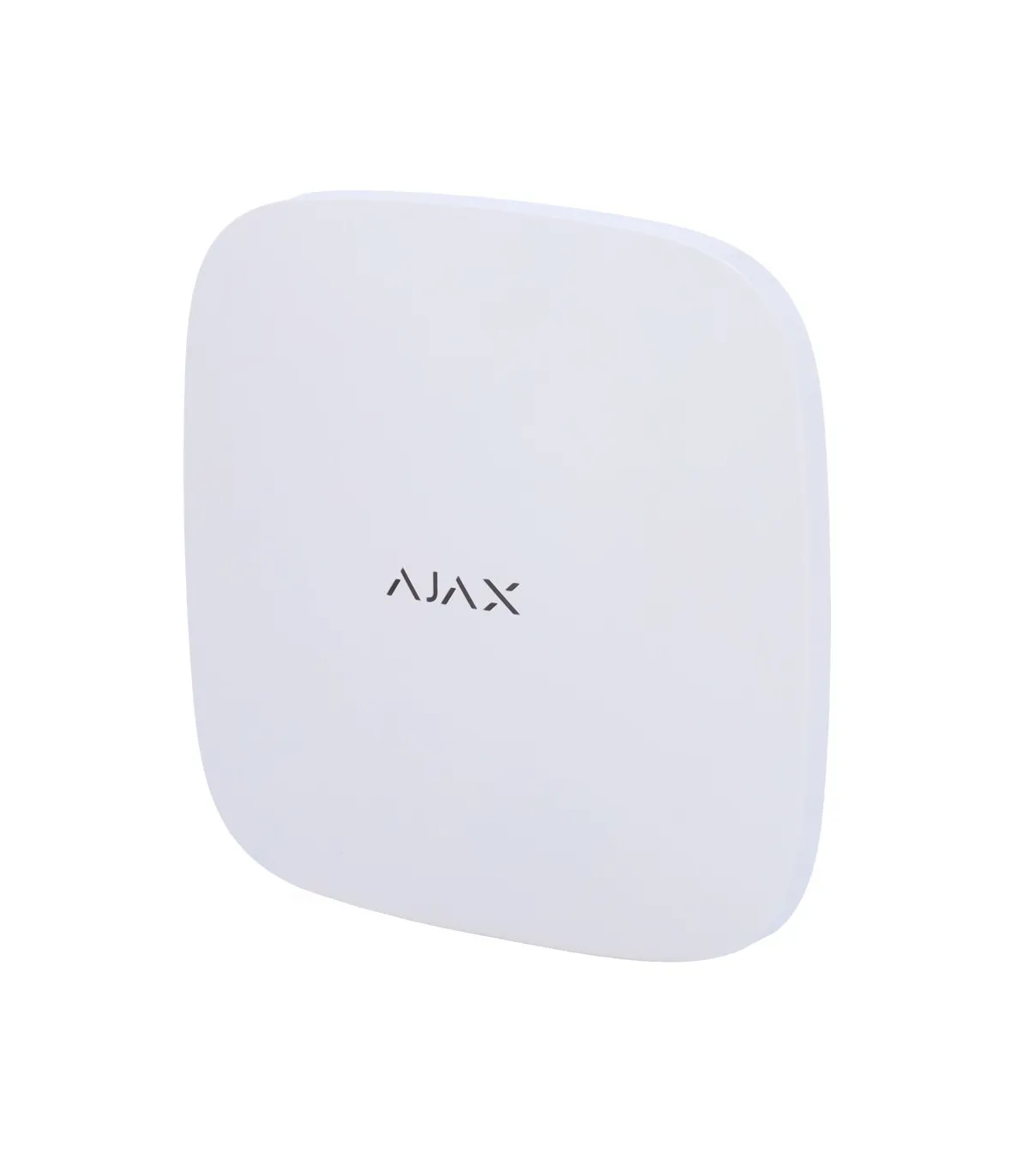

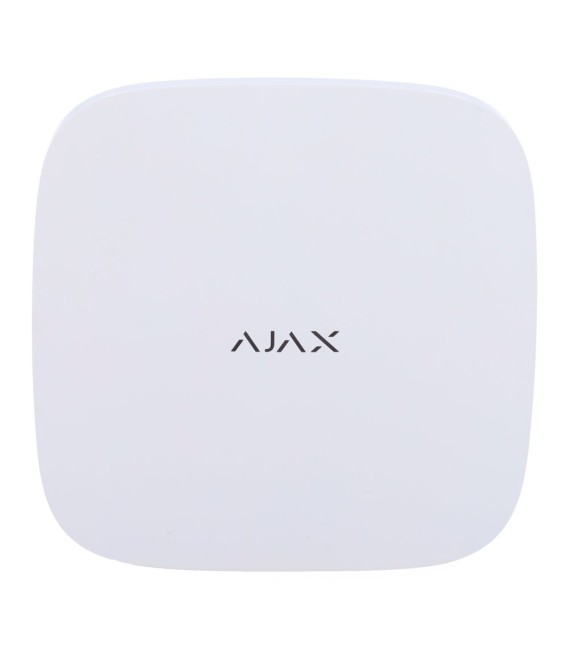

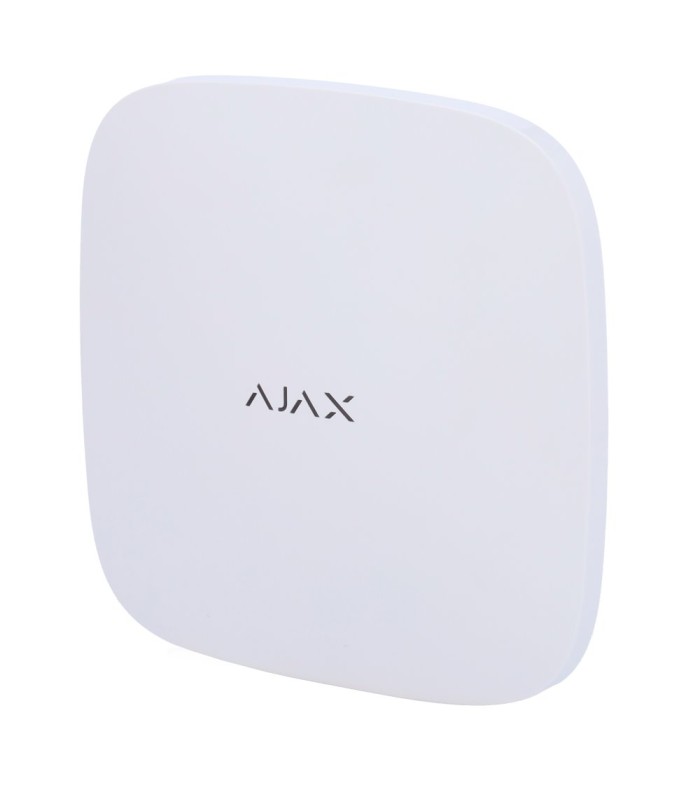

Professional alarm center Grade 2 Ajax AJ-HUB2PLUS-W

Ajax AJ-HUB2PLUS-W Professional Grade 2 Alarm Hub

The Ajax AJ-HUB2PLUS-W Professional Grade 2 Alarm Hub is the perfect solution for efficiently and reliably protecting your home or business. With this alarm hub, you can rest easy knowing that your property is secure at all times.

Featuring advanced capabilities such as intruder detection, real-time notifications through the mobile app, and compatibility with a wide range of sensors and devices, the Ajax AJ-HUB2PLUS-W Professional Grade 2 Alarm Hub provides the peace of mind you need. Additionally, its sleek and user-friendly design makes it the ideal choice for any type of installation.

General Features

Wireless alarm hub for professional installations in both residential and commercial settings. Communication is done via Wi-Fi, Ethernet, and/or 4G with Dual SIM. The bidirectional supervised link of detectors and accessories is done via radio frequency using its own Jeweller protocol in the 868 MHz band, achieving Grade 2 certification.

The wireless link achieves great reliability thanks to its advanced Jeweller protocol with high-security AES encryption. The unique instant and intelligent supervision system detects signal inhibition by identifying a specific period of inactivity and also helps reduce maintenance costs by significantly extending the life of detector batteries without compromising security. The wireless signal can cover distances of up to 2 km in open space. It also includes features to facilitate installation, such as Smart-Bracket support and easy linking of detectors to the alarm system.

It allows for up to 200 wireless zones, with the possibility of grouping these devices into up to 25 different groups, on which different actions such as arming, partial arming, and disarming can be performed. These Ajax wireless devices have various possible configurations such as 24-hour zone, zone with entry or exit delay...

The AJ-HUB2PLUS-W panel has an AC 110-250 V power input and also a rechargeable backup battery with a duration of up to 15 hours.

The quadruple communication via Wi-Fi, Ethernet, and dual SIM 4G is its main advantage for remote access, both for the user and the installer, as it allows connection through the AJAX PRO Desktop software for PC and the mobile applications for iOS and Android Ajax Security Systems (end user) and AJAX PRO: Tool for Engineers (professionals). Through these applications, it is possible to configure the entire system, manage users and their permissions, add devices, group them in rooms, and modify their settings. Cloud usage is compatible with dynamic IP without the need to open ports.

Ajax users will enjoy multiple benefits, as they can receive reliable and instant notifications on both the desktop software and mobile applications.

As an additional complement to the Ajax alarm system, up to 100 IP cameras or video recorder channels can be added from the mobile app to view live video streams.

Technical Specifications

Package Contents

• Control panel
• Power cable
• Ethernet cable
• User manual
