Professional alarm center Grade 2 Ajax AJ-HUB2-4G-DC6V-W

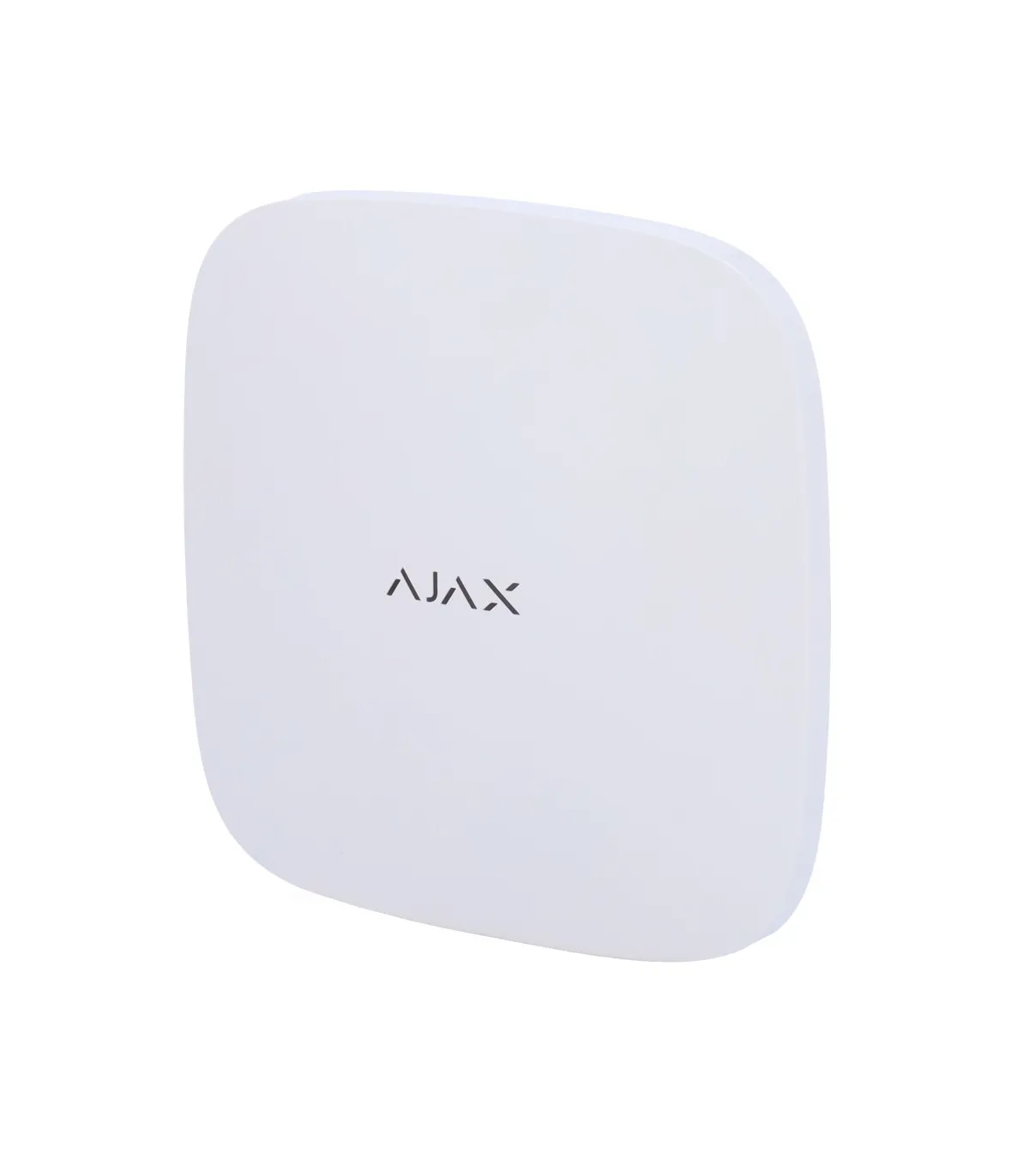

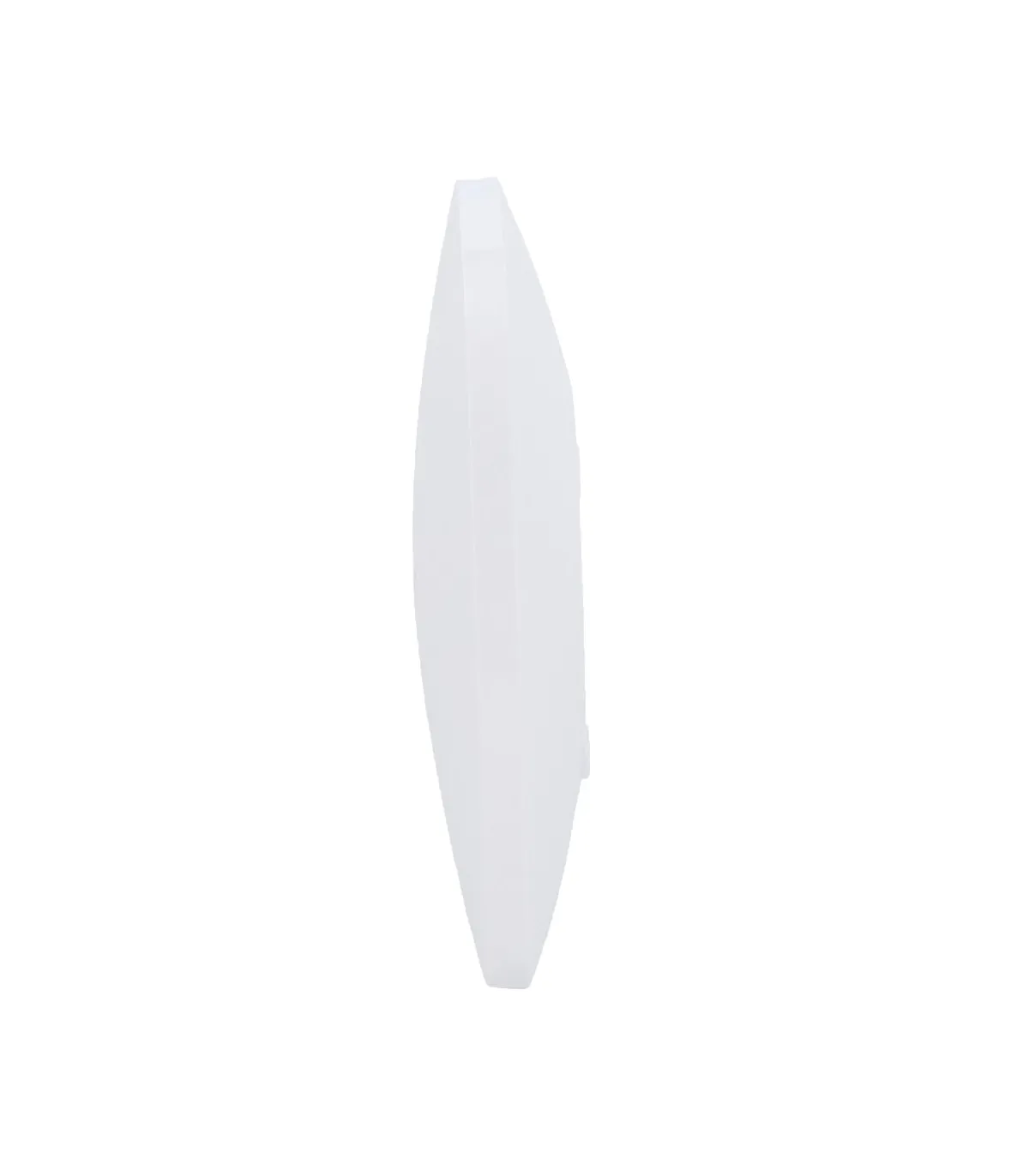

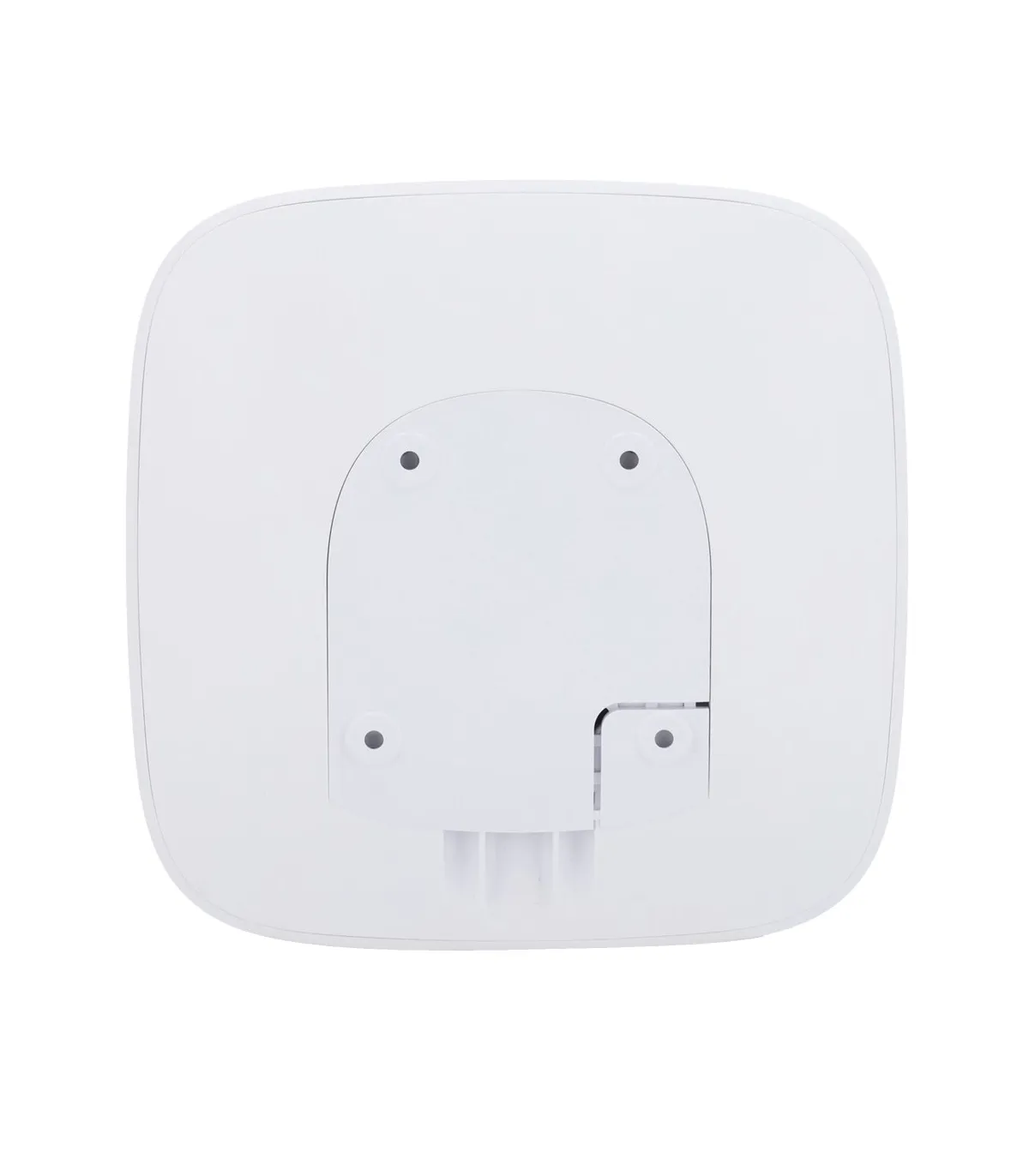

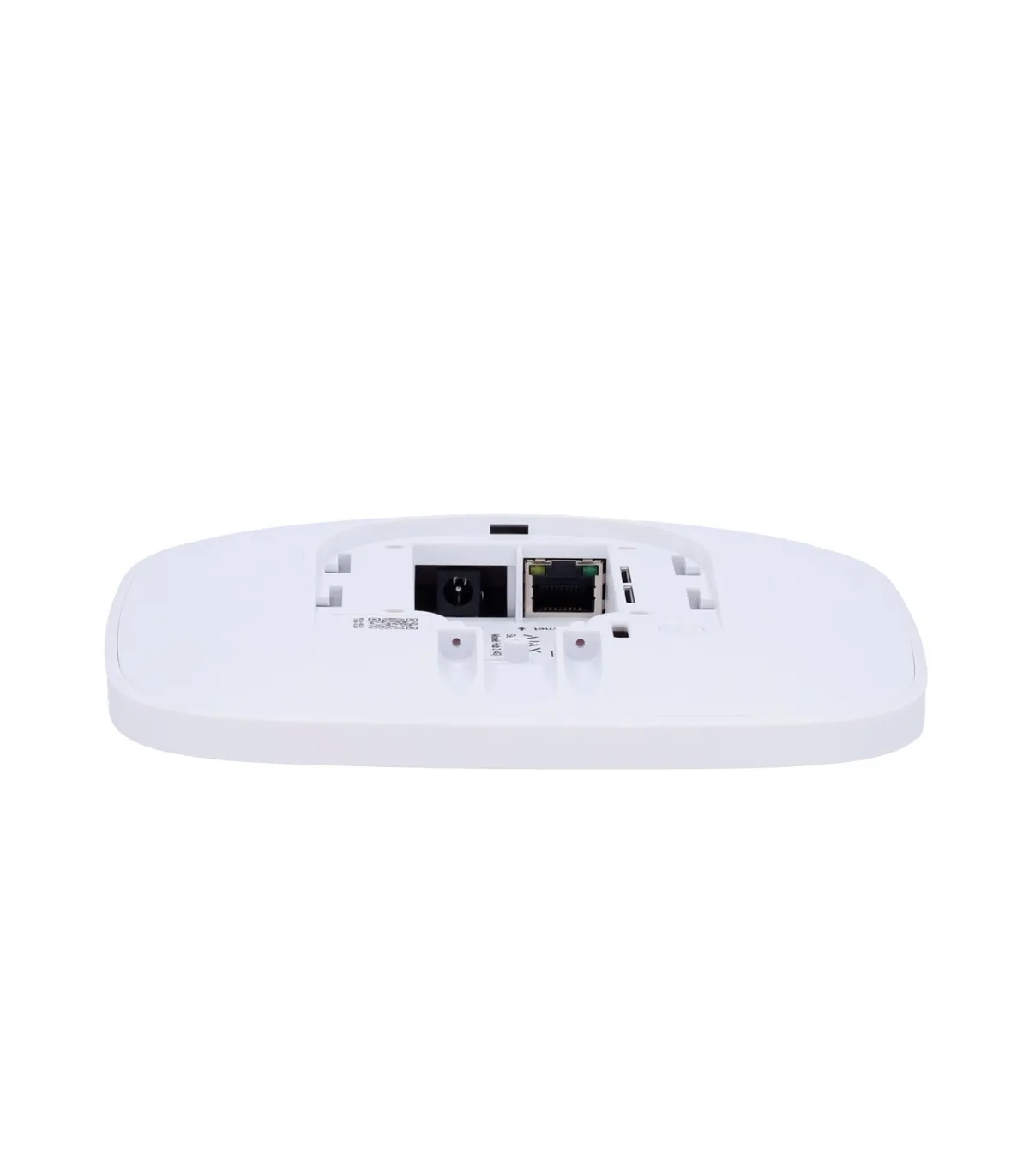

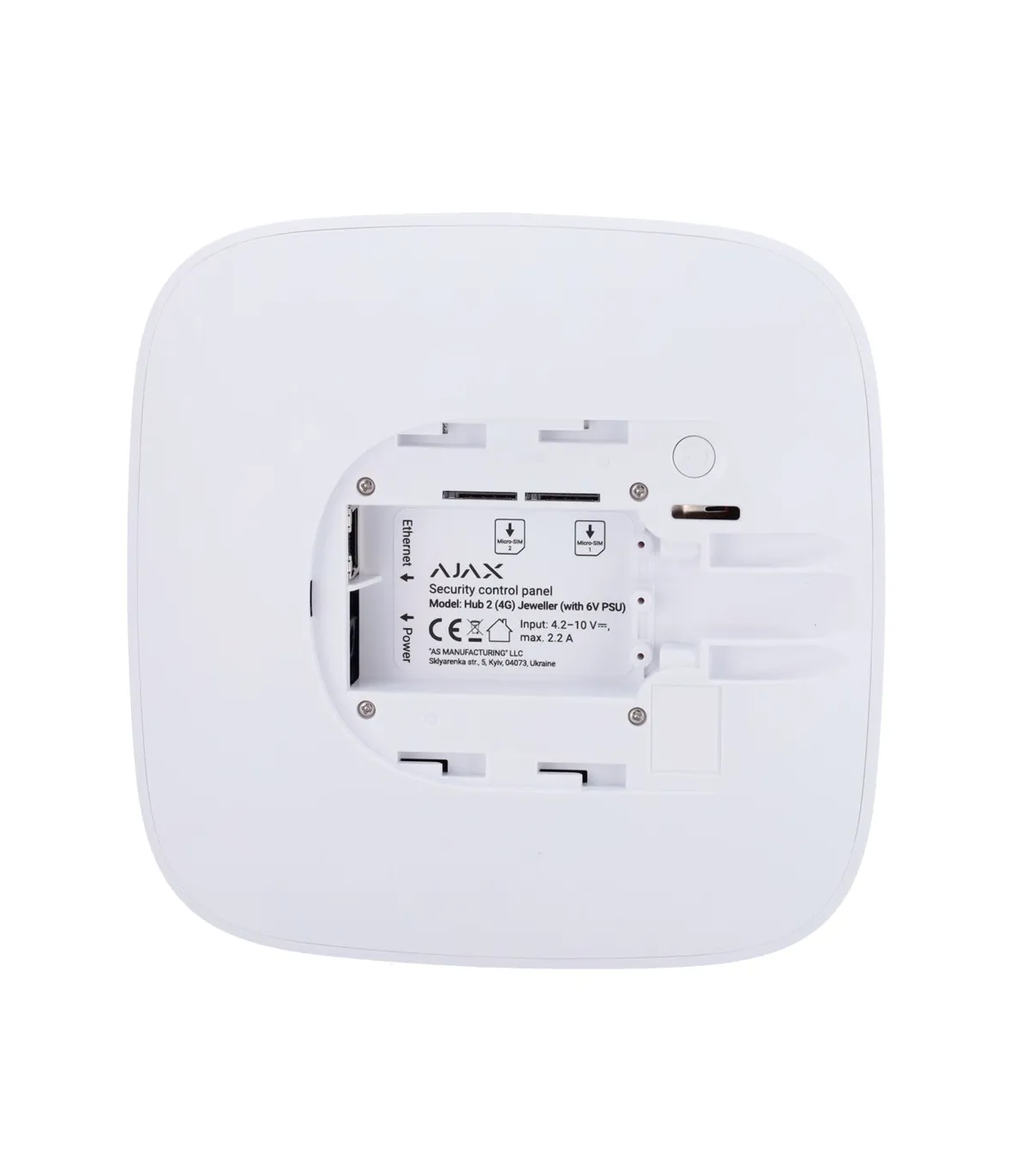

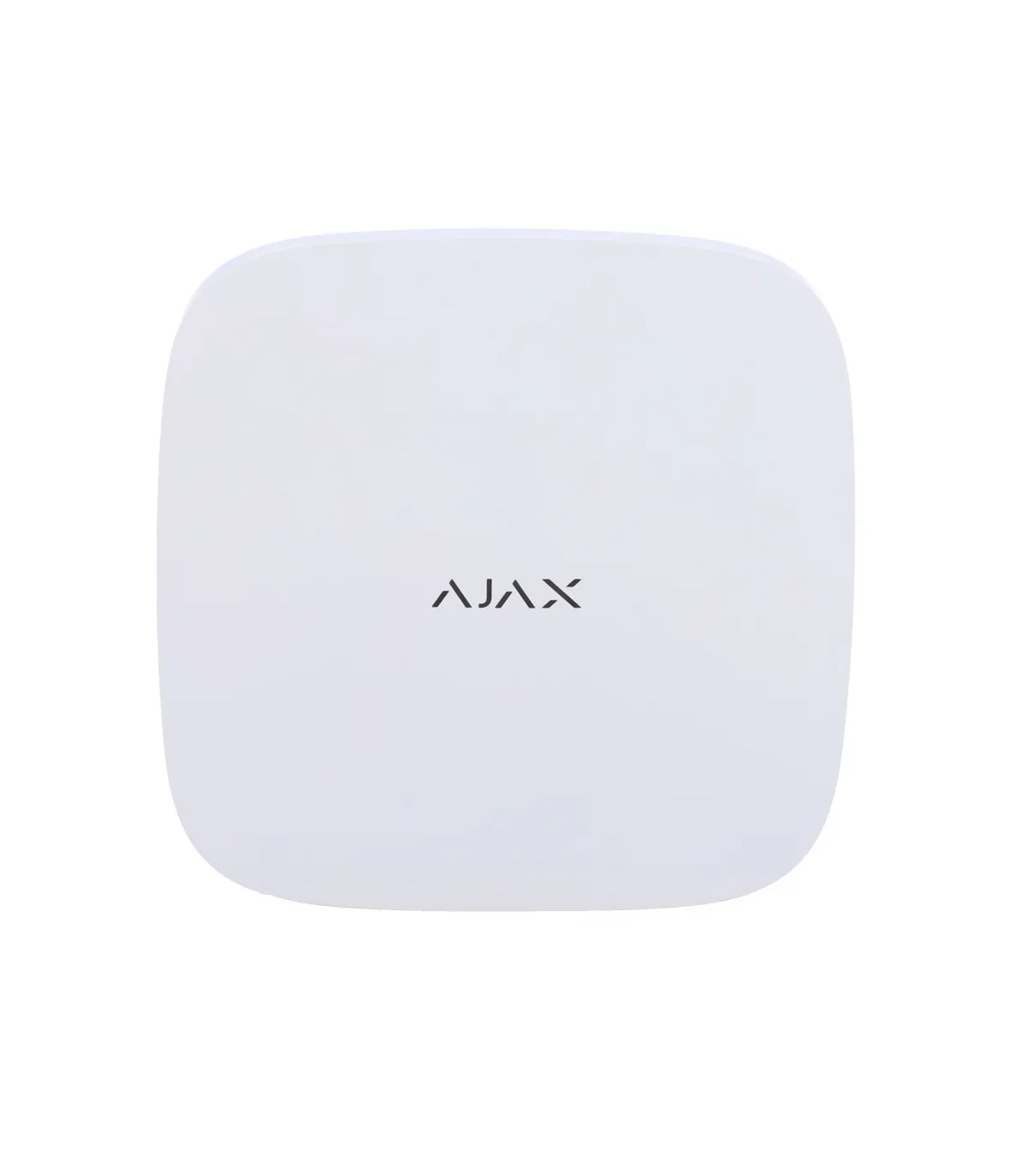

Professional Grade 2 Alarm Hub Ajax AJ-HUB2-4G-DC6V-W

The Professional Grade 2 Alarm Hub Ajax AJ-HUB2-4G-DC6V-W is the ideal solution to efficiently and securely protect your home or business. With this alarm hub, you can have peace of mind knowing that your property is protected 24 hours a day.

Its advanced features include 4G connectivity for fast and reliable communication, as well as a 6V power source for continuous operation. Additionally, its Grade 2 design ensures optimal protection against intrusions.

Don't wait any longer and get the Professional Grade 2 Alarm Hub Ajax AJ-HUB2-4G-DC6V-W to enjoy maximum security and peace of mind at all times.

General Features

The wireless alarm hub for professional installations does not require power from the electrical grid, ensuring autonomous operation powered by 6V DC. Communication is done via Ethernet and/or 4G with Dual SIM. The supervised bidirectional link of detectors and accessories is done via radio frequency following its own protocol, Jeweller, in the 868 MHz band, obtaining Grade 2 certification.

The wireless link achieves great reliability thanks to its advanced Jeweller protocol with high-security AES encryption. The unique instant and intelligent supervision system detects signal inhibition by identifying a certain period of inactivity and also helps reduce maintenance costs by significantly extending the life of detector batteries without compromising security. The wireless signal can cover distances of up to 2 km in open space. It also includes functions to facilitate installation, such as the Smart-Bracket support or the easy linking of detectors to the alarm system.

It allows up to 100 wireless zones, providing the possibility of grouping these devices into 9 different groups, on which different actions such as arming, partial arming, disarming can be performed. These wireless Ajax devices have different possible configurations such as 24-hour zone, zone with entry or exit delay...

The AJ-HUB2-4G-DC6V-W panel has a 6V DC power input and also a rechargeable backup battery with a duration of up to 16 hours.

The triple Ethernet communication and dual SIM 4G GPRS is its main advantage for remote access, both for the user and the installer, as it allows connection through the software for PC AJAX PRO Desktop and the mobile applications for iOS and Android Ajax Security Systems (end user) and AJAX PRO: Tool for Engineers (professionals). Through these applications, it is possible to configure the entire system, manage users and their permissions, add devices, group them in rooms, and modify their settings. Cloud usage is compatible with dynamic IP without the need to open ports.

Ajax users will enjoy multiple benefits, as they will receive reliable and instant notifications both in the desktop software and in the mobile applications.

As an additional complement to the Ajax alarm system, up to 25 IP cameras or video recorder channels can be added from the mobile application to be able to verify the live video stream.

Technical Specifications

Package Contents

• Control Panel
• CON280 Connector
• User Manual
