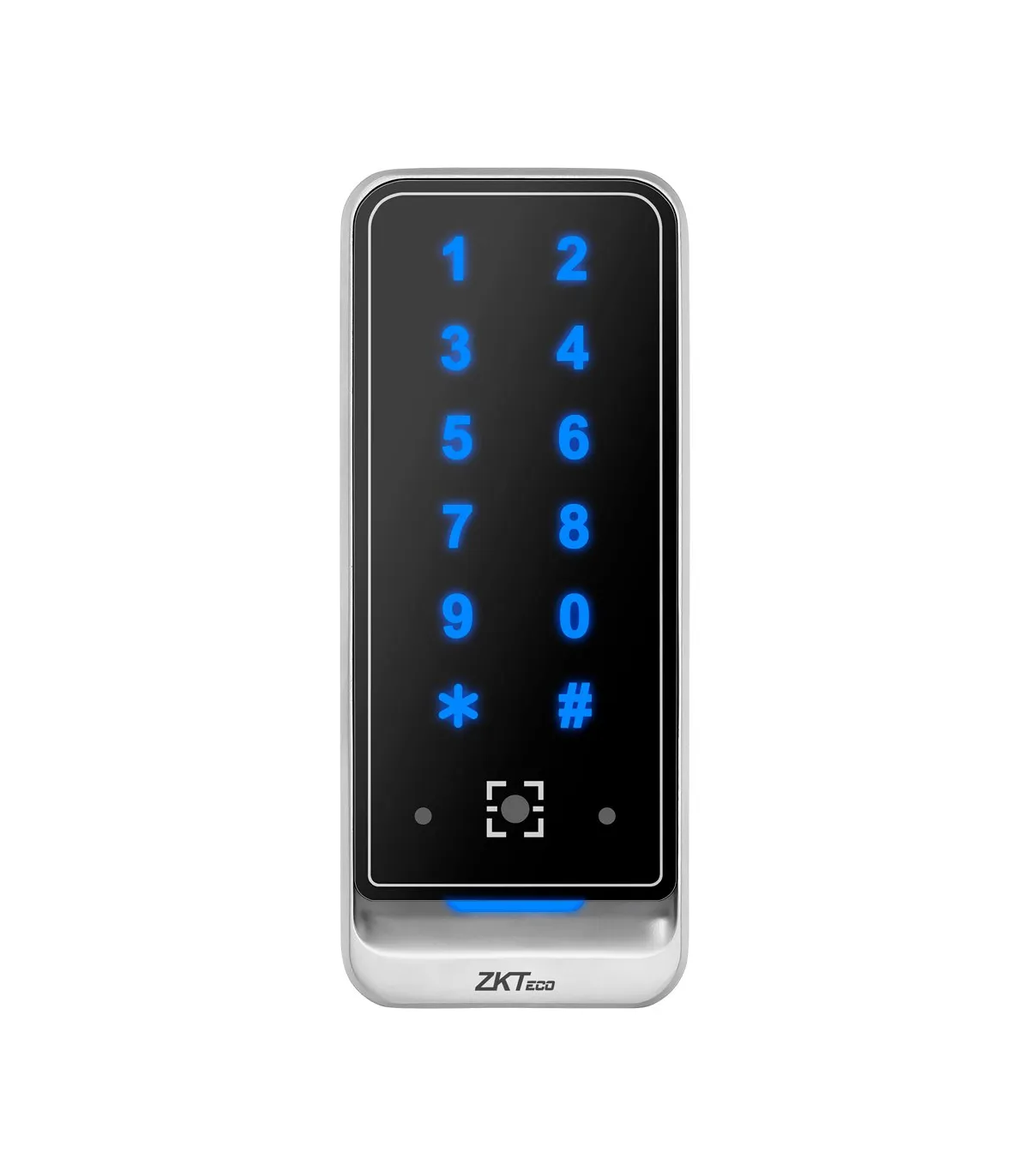

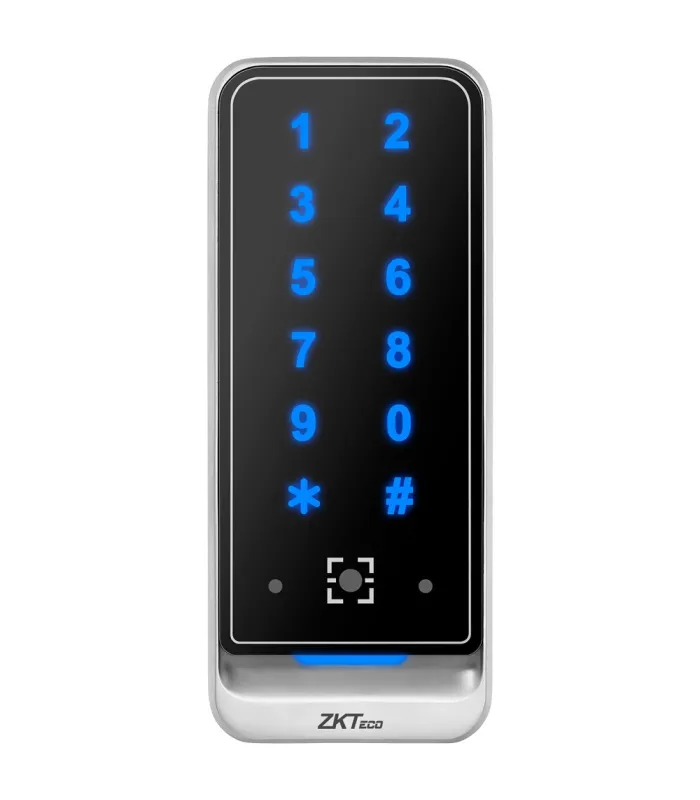

ZKTeco ZK-QR600-VK-MF Access Reader
- ZKTeco
- Access reader for controller
- Access via QR code, MF card, and password
- Supports dynamic QR codes
- LED indicator for signaling and audible alerts
- RS485 and Wiegand communication
- Configuration through software
- Surface installation
- IP65 weatherproof rating for outdoor use
- Compatible with ZK-C3, ZK-INBIO, and ATLAS Series controllers
Technical Specifications
| Brand | ZKTeco |
| Model | ACC-ER-QR600-VK-2 |
| Identification Modes | QR code, card (MF 13.56 MHz), and PIN |
| Special Functions | Compatible with dynamic QR codes Supported by RS485 on ZK-INBIOx60PRO controllers Supported by Wiegand on ZK-ATLAS-x60 controllers |
| Sensor | QR, Data Matrix, PDF417, GS1 Databar, Code 128 / EAN128, UPC / EAN, Codabar, Code 39 |
| Reading Distance | Cards: ≤ 4 cm QR: ≤ 5 cm |
| Outputs | RS485, Wiegand 26/32/34/66 |
| Compatibility | ZKTeco ZK-C3, ZK-INBIO, and ATLAS Series controllers |
| Special Functions | Configuration via DEMO software Connects to PC via USB |
| Power | DC 12 V |
| Protection Rating | IP65 weatherproof |
| Material | Metal |
| Operating Temperature | -20º C ~ +60º C |
| Dimensions | 58 (W) x 138 (H) x 16 (D) mm |
Content
- ZKTeco Access Reader
- User Manual
- Mounting Hardware
