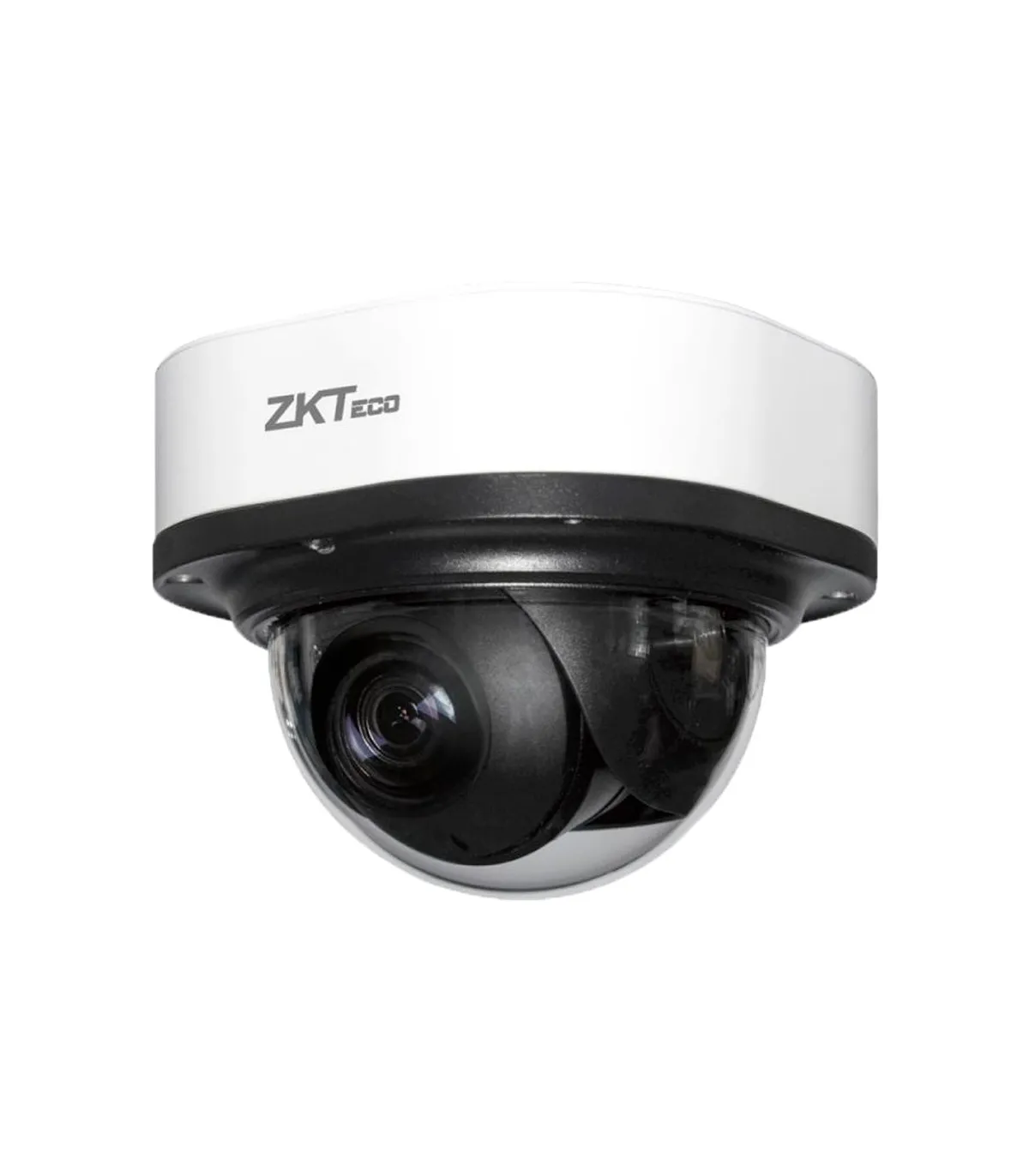

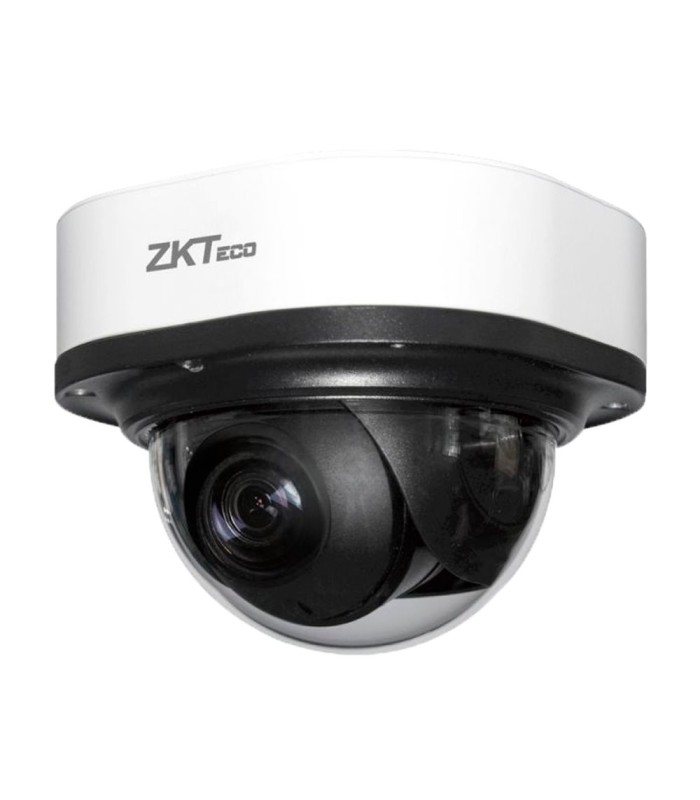

ZKTeco ZK-IPC-AI-DL-852Q28B-LP 2MP LPR Dome IP Camera
- ZKTeco
- IP dome camera with license plate recognition
- 1/2.8” Sony STAVIS CMOS
- 2 Megapixel (1920x1080)
- Motorized varifocal lens 3.35~10.05 mm
- WDR (120 dB)
- 0 Lux
- IR range 50 m
- License plate capture on vehicles up to 20 km/h
- Entrance and exit monitoring (1 lane only)
- Compression H.265+/H.265/H.264
- RJ-45 10/100 Mbps BaseT
- RS485
- Alarms
- Configurable lists and actions through links
- PoE IEEE802.3at
- IP67 waterproof
- IR CUT
- License plate recording and storage on SD card
- ONVIF compatible
- Embedded management and monitoring software in the camera
- Compatible with ZKBio CVSecurity project software and ZKTeco AntarView Pro mobile application
Technical Specifications
| Brand | ZKTeco |
| Model | IPC-AI-DL-852Q28B-LP |
| Image Sensor | 1/2.8” Sony STAVIS CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Resolution | 1080p (1920x1080) / 1.3 Mpx (1280x960) / 720p (1280x720) / Q720p (640x360) / CIF (352x288) |
| Main Stream Rate | 1080p (25 FPS) |
| Extra Stream Rate | Q720p (25 FPS) |
| Compression | H.265+ / H265 / H264 |
| Bitrate | 1536 Kbps ~ 9 Mbps |
| Lens | Motorized 3.35~10.05 mm |
| FOV | H: 107° - 38° |
| Minimum Illumination | 0.001 Lux @ (F1.7, AGC ON) |
| Infrared Illumination | 0 Lux / IR LEDs (50 m range) |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), HLC, 3D DNR, AWB, Privacy Mask, ROI, Mirror, Smart IR |
| LPR Function | License plate recognition up to 20 km/h Vehicle detection at entrances and exits (1 lane only) Supports RS485 protocol for connection with ZKTeco controllers |
| Advanced Functions | Motion detection, ANR |
| Internal Storage | MicroSD card, up to 64 GB (included, required for LPR function) |
| Alarms | 2 inputs / 1 output |
| Audio | 1 input / 1 output |
| Communication Interface | Ethernet 10/100M BaseT | RS485 |
| Remote Access/Management | Embedded LPR software (via web browser) ZKBioCVSecurity software ZKTeco AntarView Pro mobile application |
| Interoperability | ONVIF |
| Power | DC 12 V / 250 mA, max. 3 W | PoE (IEEE802.3at) Max. 15W |
| Protection Rating | IP67 waterproof |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 133 (W) x 133 (H) x 102 (D) mm |
| Weight | 500 g |
Content
- ZKTeco LPR Dome IP Camera
- Installation materials
- User manual
