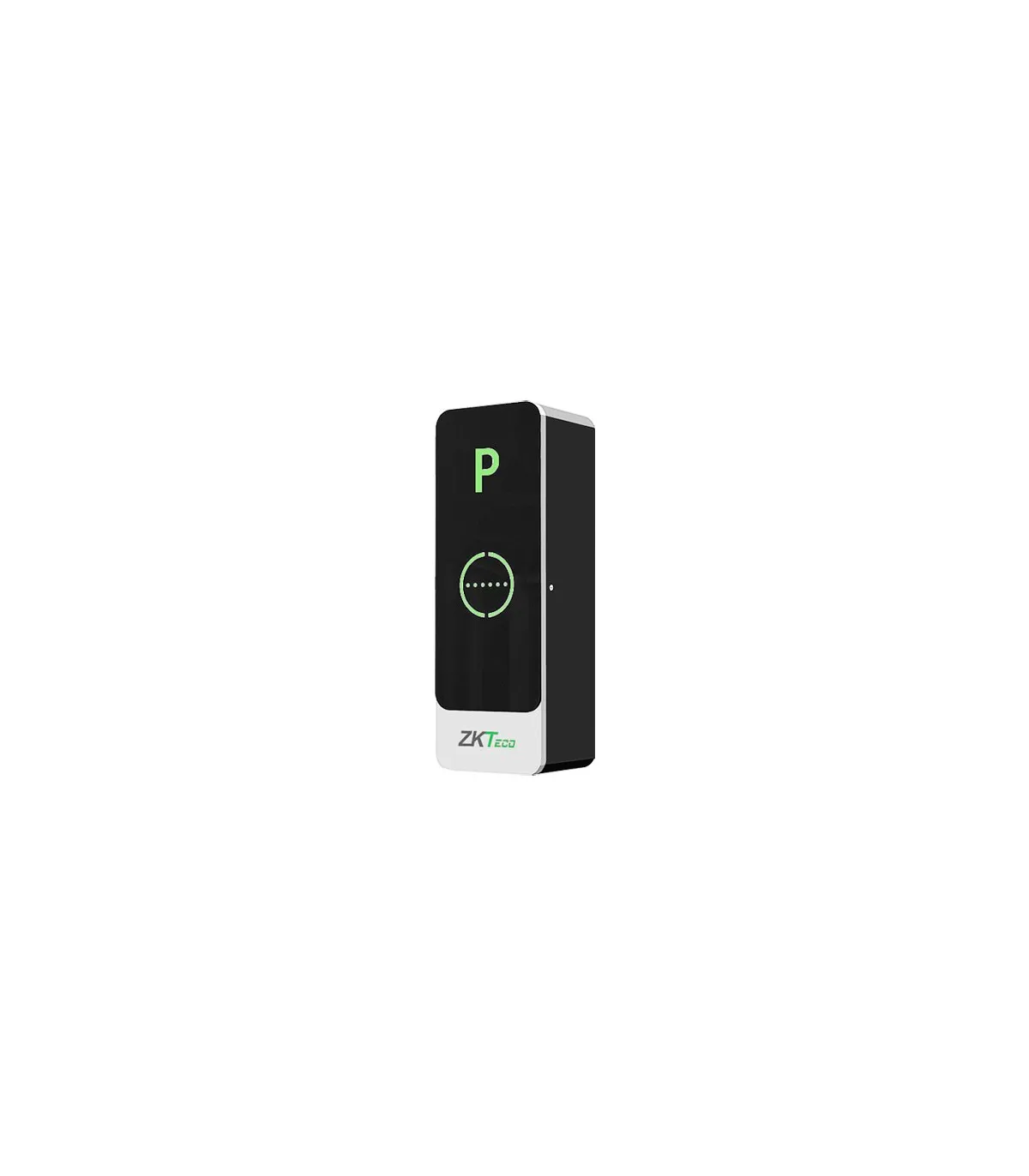

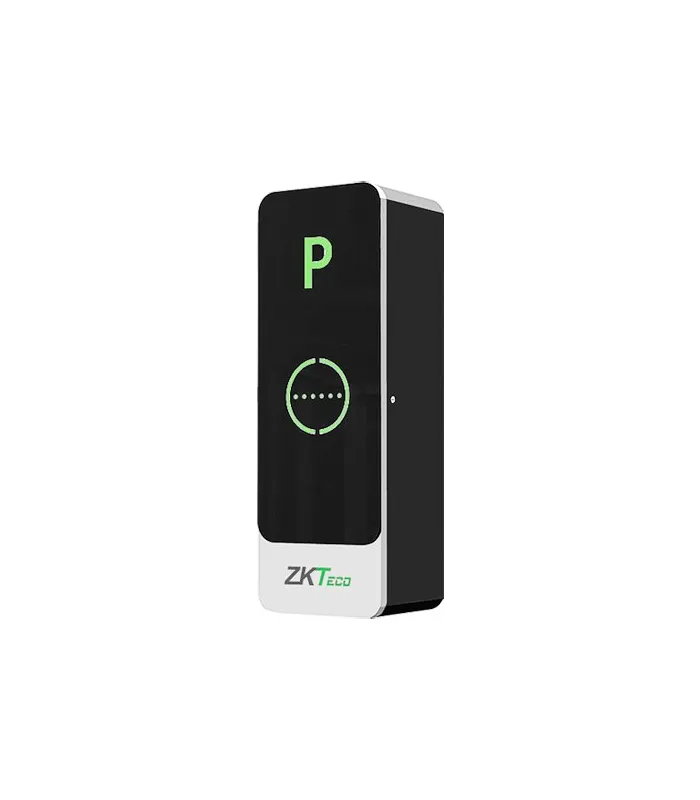

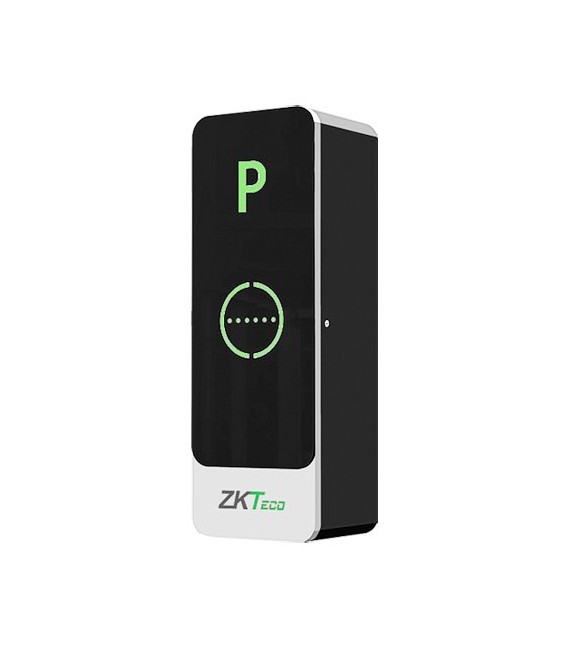

ZKTeco ZK-BG1000R parking barrier
- Parking barrier
- Arm not included | Straight arm (up to 4.5 m)
- Opening to the right | 3,000,000 cycles
- LED indicators | Emergency mode
- Possibility of backup battery
- Suitable for indoor use
€1,197.99
Reference:
ZK-BG1000R
Brand:
ZKTeco ZK-BG1000R Parking Barrier
- ZKTeco
- Parking barrier
- Armless (suitable for arm up to 4.5 meters long)
- Right-hand opening
- LED indicators
- Brushless motor
- Adjustable operating speed
- Emergency opening
- Collision recognition
- Adjustable vehicle passage
- Supports backup battery
- Low energy consumption
- Wide operating temperature range
- Arm installation required for barrier to function
- Includes two remote controls for remote operation
- Do not connect ZK-VR10 radar and arm LEDs simultaneously to barrier board
Technical Specifications
| Brand | ZKTeco |
| Model | PB-BG1000R |
| LED Indicators | Barrier status LED indicators |
| Barrier Movement | Up and down |
| Emergency Mode | Manual barrier opening for emergencies |
| Safety | Barrier stop and/or return in case of blockage |
| Motor Type | Brushless motor |
| Reliability | 3,000,000 cycles |
| Power | AC 110/220 V / DC 24 V Battery |
| Remote Control Distance | >= 30 m |
| Operating Temp. | -35º C ~ +70º C |
| Arm Type | Armless (suitable for arm up to 4.5 meters long) |
| Max Operating Speed | 1.5 s (3-meter arm) 2.5 s (4.5-meter arm) |
| Dimensions | 1020 (H) x 350 (W) x 300 (D) mm |
| Weight | 45 kg |
| Protection | Suitable for indoor use |
Content
- ZKTeco Parking Barrier
- Mounting material
- User manual
- 2 x remote control
ZK-BG1000R
Data sheet
- Brand
- ZKTeco
- Use
- Indoor
Specific References
- EAN13
- 8435452811331
