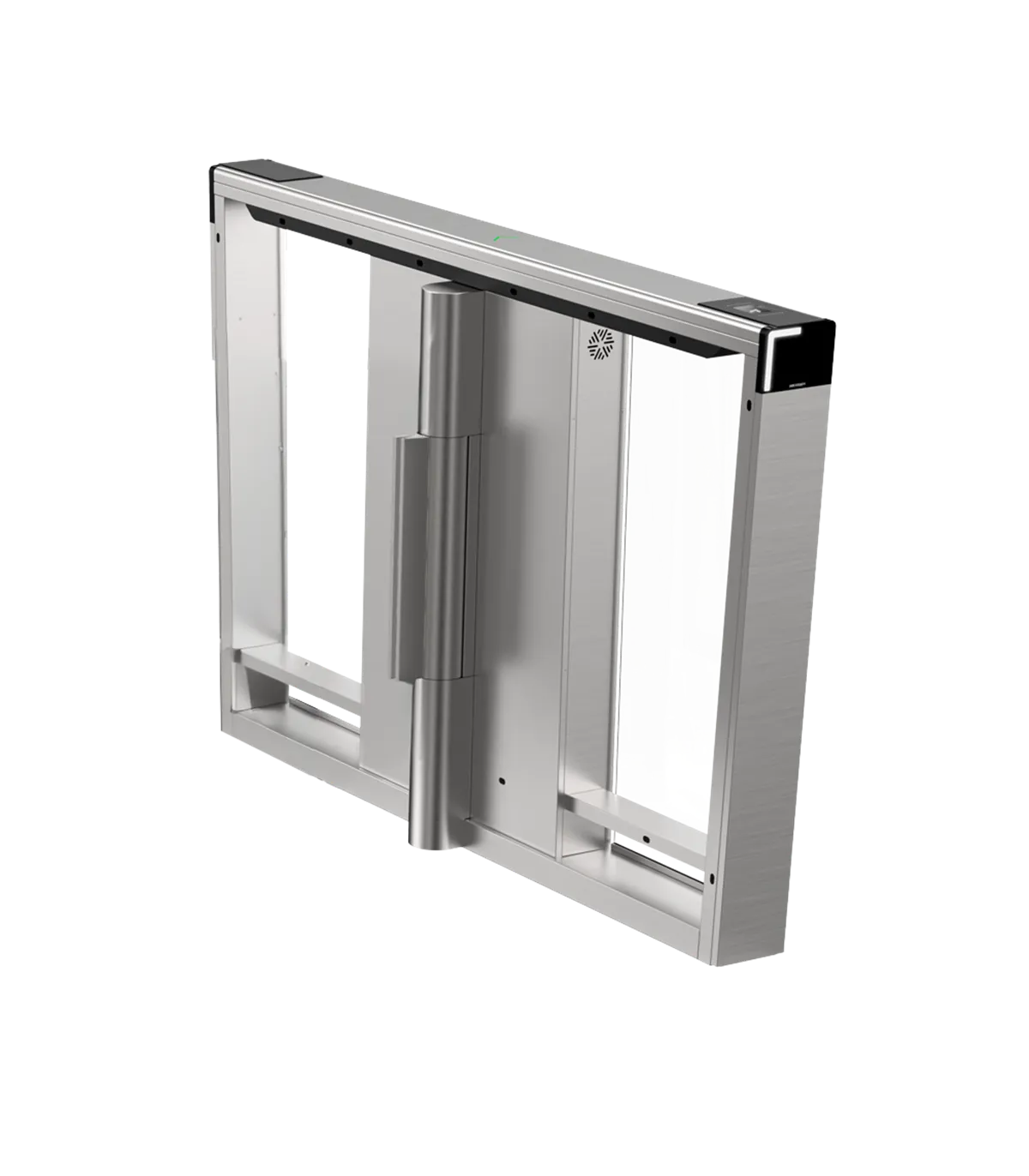

Hikvision bidirectional motorized gate access turnstile DS-K3B530X-R/M

  • Master cabinet for bidirectional access control
  • Motorized turnstile | 12,000,000 cycles
  • Timing, alarms, and opening modes
  • No doors | Customizable with DS-KSD55-x
  • Manufactured in stainless steel SUS304
  • Right master cabinet
Read moreShow less
€2,810.00
Reference:
DS-K3B530X-R/M
Add to wishlist
Description
  • Hikvision
  • Motorized turnstile with single bi-directional access
  • Automatic movement of the acrylic barrier in the direction of travel
  • ULTRA Motor: 12,000,000 cycles
  • Accelerated initial door movement and decelerated final movement
  • Customizable passage width
  • Compatible with DS-KSD55-x doors
  • LED status indicator
  • Emergency mode: opens upon fire signal or power outage
  • Main configuration board for the turnstile (opening times, counter, relay inputs) with display
  • Secondary connection board to main board
  • Manufactured from SUS304 stainless steel and acrylic barriers
  • Configuration modes: one or two directions, free passage in one or two directions
  • Compatible with third-party Plug & Play access control systems
  • Ergonomic design
  • Universal covers for card readers
  • Requires a DS-K3B530X-L/M for complete installation
  • Master board included

Specifications: DS-K3B530X-R/M

BrandHikvision
ModelDS-K3B530X-R/M
ControllerTurnstile control board with display compatible with any Access Control system
LED IndicatorTurnstile status LED indicator
Barrier MovementAngular opening of the acrylic barrier (not included) in the direction of travel (entry or exit)
Emergency ModeBarrier opening for emergencies with fire signal
Automatic barrier opening upon power outage (with additional backup battery not included)
SecurityUnauthorized access with sound and closure
Configurable anti-tailgating with sound and closure
CompatibilityIntegrable with any third-party Plug & Play Access Control / Universal covers for RFID readers
Configuration ModesOne or two directions / Free passage in one direction and Access Control in the opposite direction
Manufacturing Material1.5 mm thick SUS304 stainless steel and PC covers
Passage Speed50-60 persons/minute
ReliabilityServomotor
12,000,000 cycles
Infrared Sensors14 pairs of infrared sensors
Power SupplyAC 110/220 V / 100 W max.
Operating Temperature-20 ºC ~ +65 ºC
Line DimensionsCustomizable by adding DS-KSD55-x doors
Passage DimensionsCustomizable (Width) x 1500 (Depth) mm (suitable for persons with reduced mobility)
Dimensions1000 (Height) x 202 (Width) x 1500 (Depth) mm
Weight65 kg
ProtectionInterior IP34

Package Contents

  • Right turnstile without door Hikvision
  • Mounting materials
  • User instructions
  • Security keys
Read moreShow less
Product Details
DS-K3B530X-R/M

Data sheet

Brand
HIKVISION
Compatible models
DS-KAB6-ZU1,DS-KAB6-ZU1

Specific References

EAN13
6942160481036
