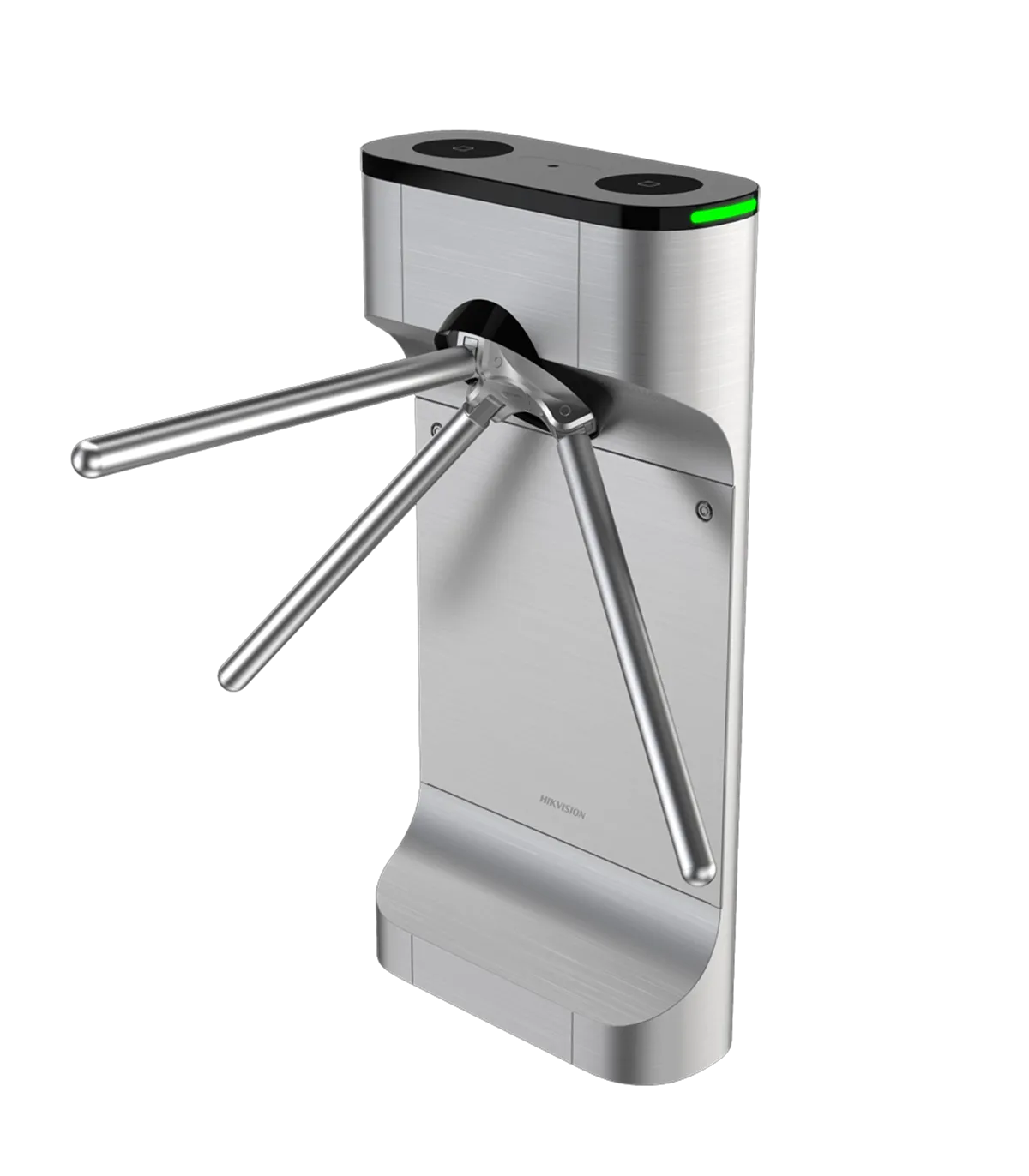

Hikvision bidirectional access turnstile 3 arms passage 550 mm DS-K3G411CLX-R/Dm55
- Bi-directional access turnstile
- 3 rotating arms
- Timing, alarms, and opening modes
- Passage dimensions 550 mm
- 1.2 mm SUS304 stainless steel
- Compatible with third-party systems
€935.74
Reference:
DS-K3G411CLX-R/Dm55
Brand:
Add to wishlist
- Hikvision
- Bidirectional single access tripod turnstile
- Semi-automatic rotary movement of the arms
- Pass width of 550 mm
- LED indicator
- Emergency mode
- Main configuration board of the turnstile (opening times, counter, relay inputs) with display
- Manufactured from stainless steel SUS304
- Configuration modes: one or two directions with Access Control, free passage in one or two directions
- Compatible with third-party Plug & Play access control systems
- Universal covers for card readers
Specifications: DS-K3G411CLX-R/Dm55
| Brand | Hikvision |
| Model | DS-K3G411CLX-R/Dm55 |
| Controller | Turnstile control board with display compatible with any Access Control system |
| LED Indicator | Turnstile status LED indicator |
| Arm Movement | Mechanical rotation of the arms (pushed by the user) |
| Emergency Mode | Arm folding for emergency in case of power loss |
| Security | 3 arms / Anti-tailgating security |
| Compatibility | Integrable with any third-party Plug & Play Access Control / Universal covers for RFID readers |
| Configuration Modes | One or two directions / Free passage in one direction and Access Control in the opposite direction configured mechanically |
| Manufacturing Material | 1.2 mm thick SUS304 stainless steel and PC covers |
| Pass Speed | 30-35 persons/minute |
| Reliability | 3,000,000 cycles |
| Power Supply | AC 110/220 V / 45 W max. |
| Operating Temperature | -20º C ~ +65º C |
| Line Dimensions | 550 mm |
| Pass Dimensions | 550 (W) x 502 (D) mm |
| Overall Dimensions | 1010 (H) x 202 (W) x 502 (D) mm |
| Weight | 27 kg |
| Protection | Indoor |
Package Contents
- Hikvision tripod turnstile
- Mounting materials
- User instructions
- Security keys
DS-K3G411CLX-R/Dm55
Data sheet
- Brand
- HIKVISION
- Compatible models
- DS-KAB6-ZU1,DS-KAB6-ZU1,TS-BRACKET01,WBK-400RC,WBK-400RC,ZK-KJZ-03,ZK-KJZ-03
Specific References
- EAN13
- 6936422176860
