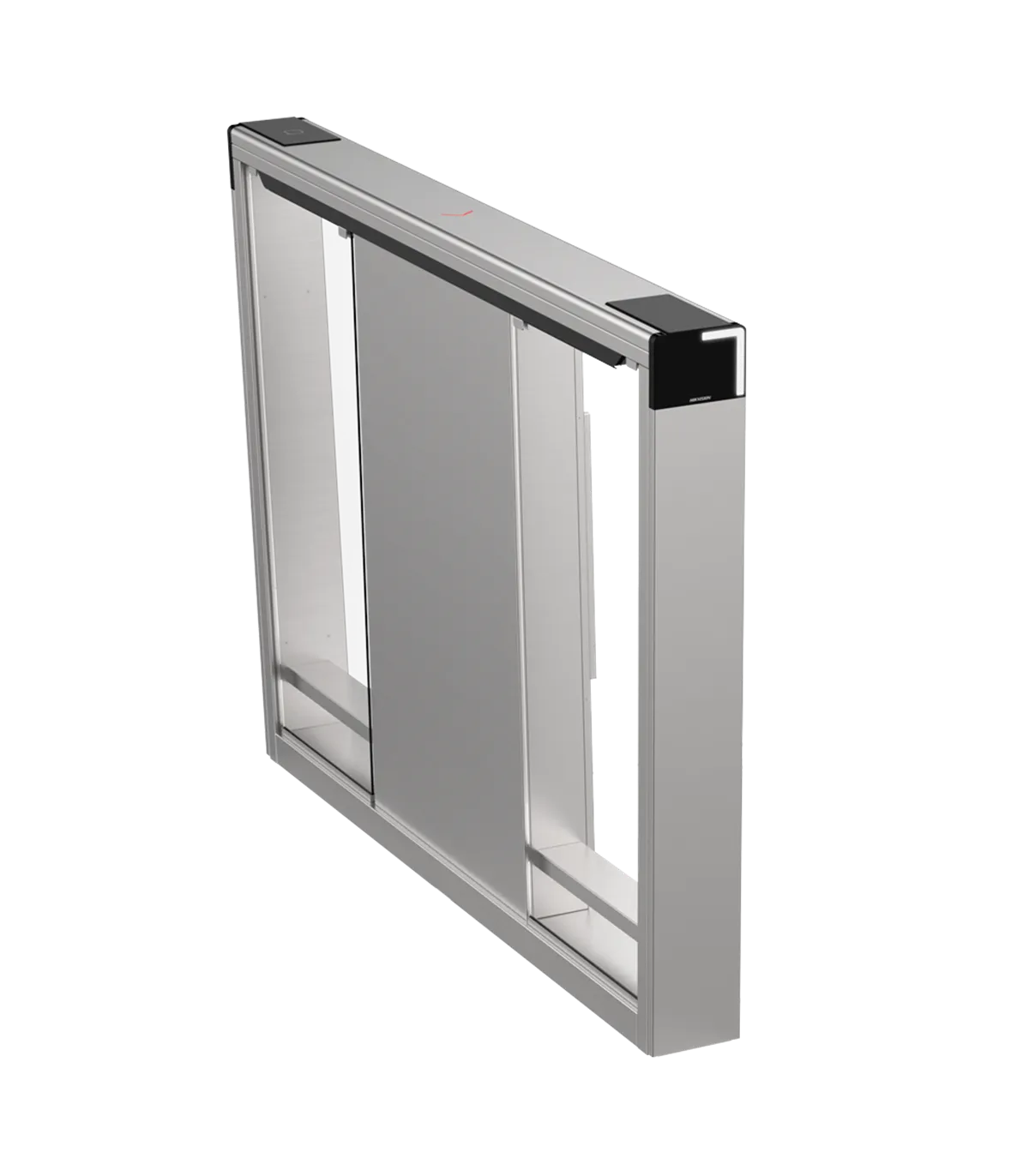

| Brand | Hikvision |
| Model | DS-K3B530X-L/M |
| Controller | Slave board for connection to DS-K3B530X-R/M |
| LED Indicator | Turnstile status LED indicator |
| Barrier Movement | Angular opening of the acrylic barrier (not included) in the direction of travel (entry or exit) |
| Emergency Mode | Barrier opening for emergencies with fire signal Automatic barrier opening upon power outage (with additional backup battery not included) |
| Security | Unauthorized access with sound and closure Configurable anti-tailgating with sound and closure |
| Compatibility | Integrable with any third-party Plug & Play Access Control / Universal covers for RFID readers |
| Configuration Modes | One or two directions / Free passage in one direction and Access Control in the opposite direction |
| Manufacturing Material | 1.5 mm thick SUS304 stainless steel and PC covers |
| Passage Speed | 50-60 persons/minute |
| Reliability | Servomotor 12,000,000 cycles |
| Infrared Sensors | 14 pairs of infrared sensors |
| Power Supply | AC 110/220 V / 100 W max. |
| Operating Temperature | -20º C ~ +65º C |
| Line Dimensions | Customizable by adding DS-KSD55-x doors |
| Passage Dimensions | Customizable (Width) x 1500 (Depth) mm (suitable for persons with reduced mobility) |
| Dimensions | 1000 (Height) x 202 (Width) x 1500 (Depth) mm |
| Weight | 63 kg |
| Protection | Interior IP34 |
