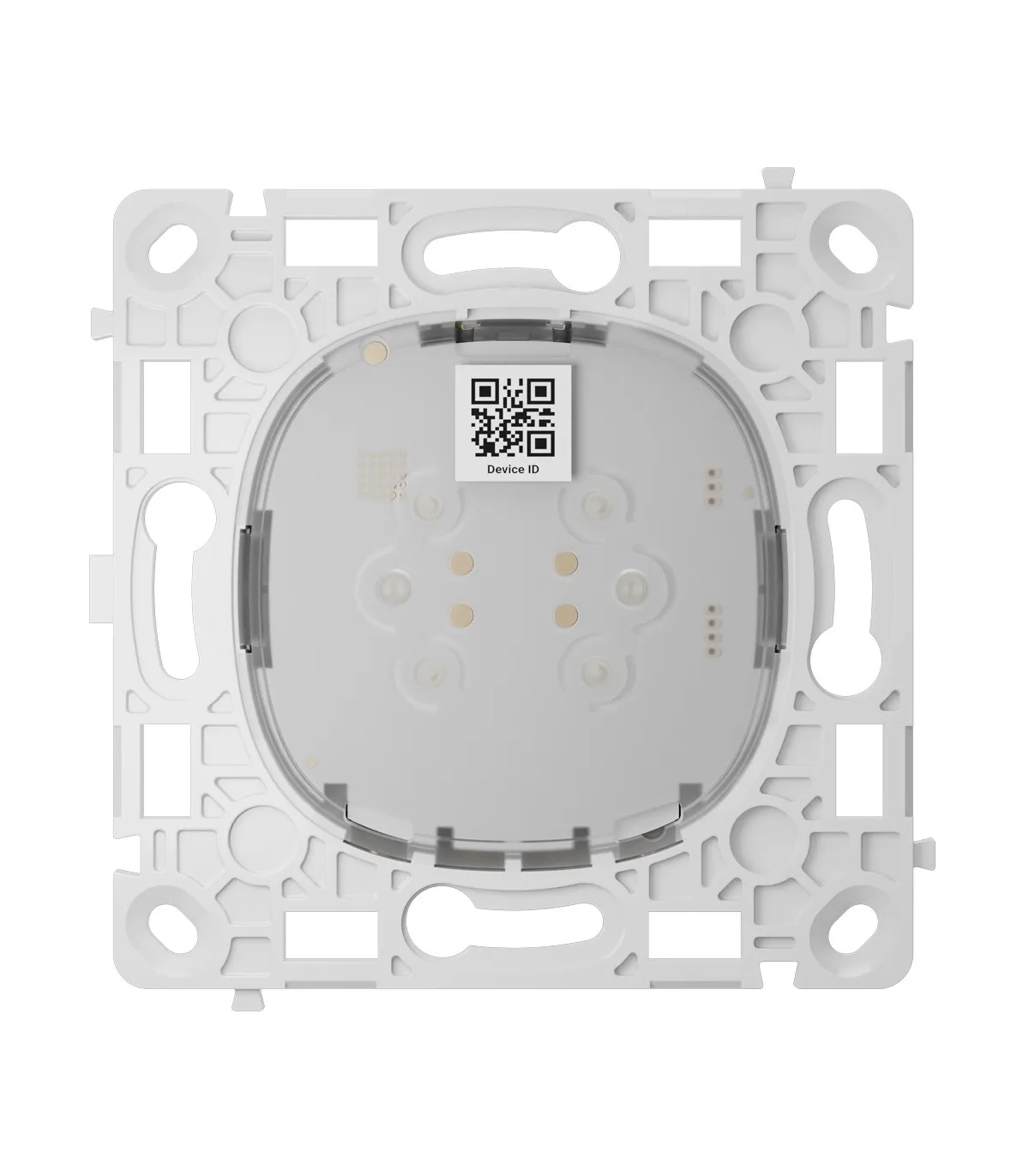

Ajax AJ-LIGHTCORE-CROSS-VERT Vertical Cross Light Switch Relay
The Ajax AJ-LIGHTCORE-CROSS-VERT Vertical Cross Light Switch Relay is the perfect solution for efficiently and safely controlling lighting. With this device, you can easily and practically automate the on/off function of vertical cross lights.
Its advanced technology allows you to schedule specific times for the lights to turn on, providing you with greater convenience and security in your home or office. Additionally, its compact design and easy installation make it an ideal choice for any environment.
General Features
- Ajax
- Vertical cross light smart switch relay
- Bidirectional
- Wireless 868 MHz Jeweller
- Radio communication range of 1100 m
- Power supply 230 V AC
- No neutral wire required for operation
- Activated by hand approaching within 15 mm of the touch panel
Technical Specifications
| Brand | Ajax - LightSwitch LightCore Vertical (Crossover) |
| Function | Vertical cross light smart switch relay |
| Transmission distance | Up to 1100 m in open space |
| Frequency | 868 MHz Jeweller |
| Power input | AC 230 V / 50 Hz |
| Average consumption | 200 mW |
| Switched device power | From 5W to 600 W |
| Current and temperature protection | 2.6 A / +60ºC |
| Compatibility | Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2, and Hub Hybrid |
| Usage | Indoor |
| Operating temperature | -10º C ~ 40º C |
| Dimensions | 77.5 (H) x 72.6 (W) x 31.7 (D) mm |
| Weight | 60 g |

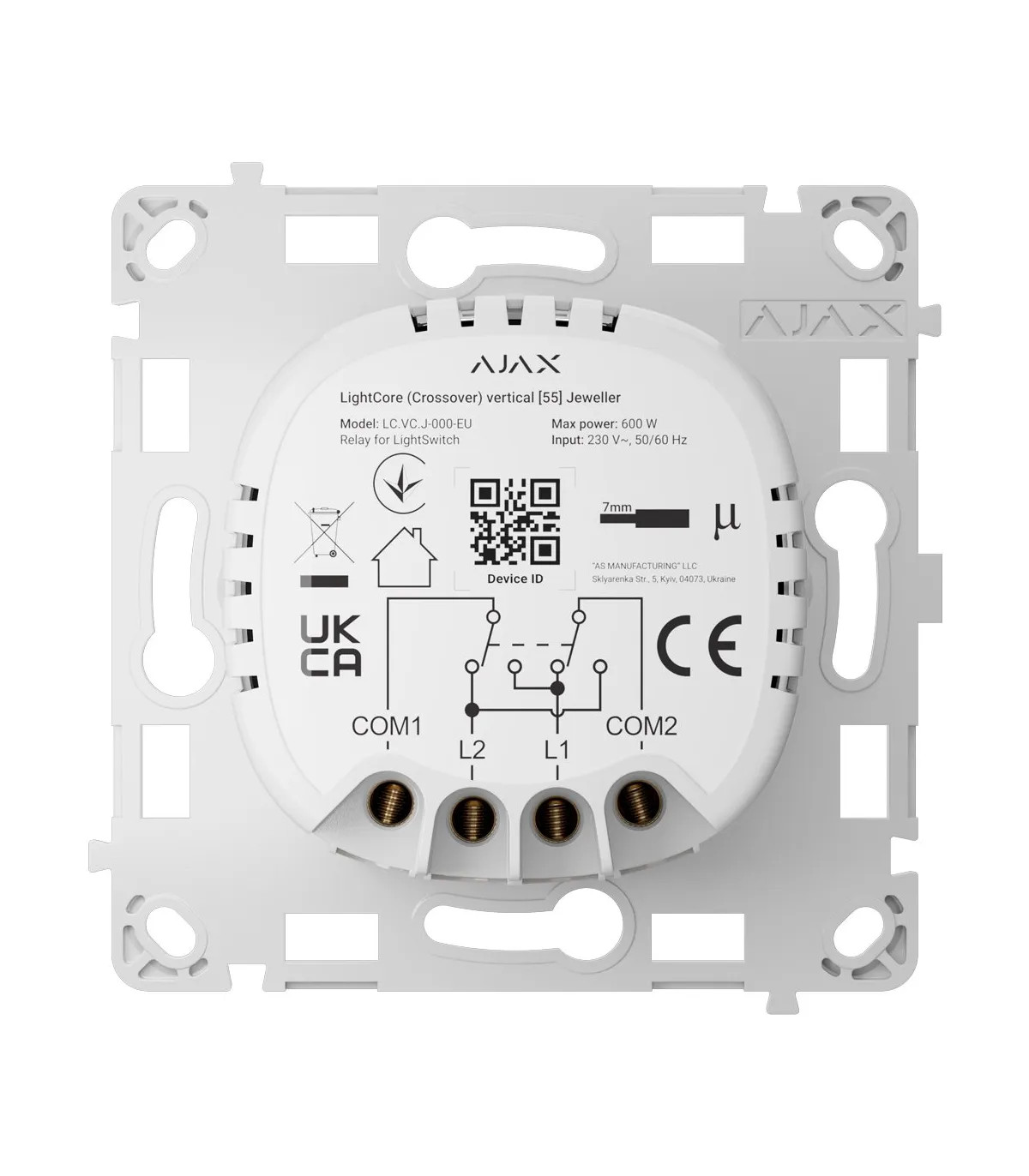

| Terminals | 2 phase terminals and 2 common terminals (no neutral wire) |
Package Contents
- Vertical switchable smart light relay
- Installation kit (includes a capacitor)
- User manual
