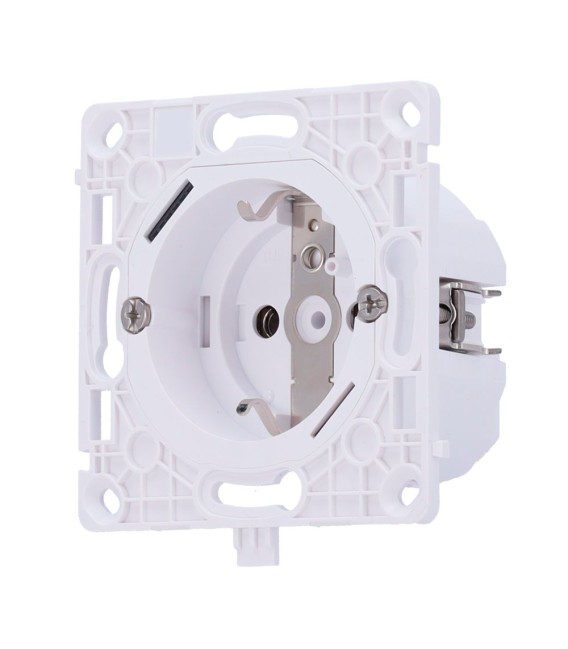

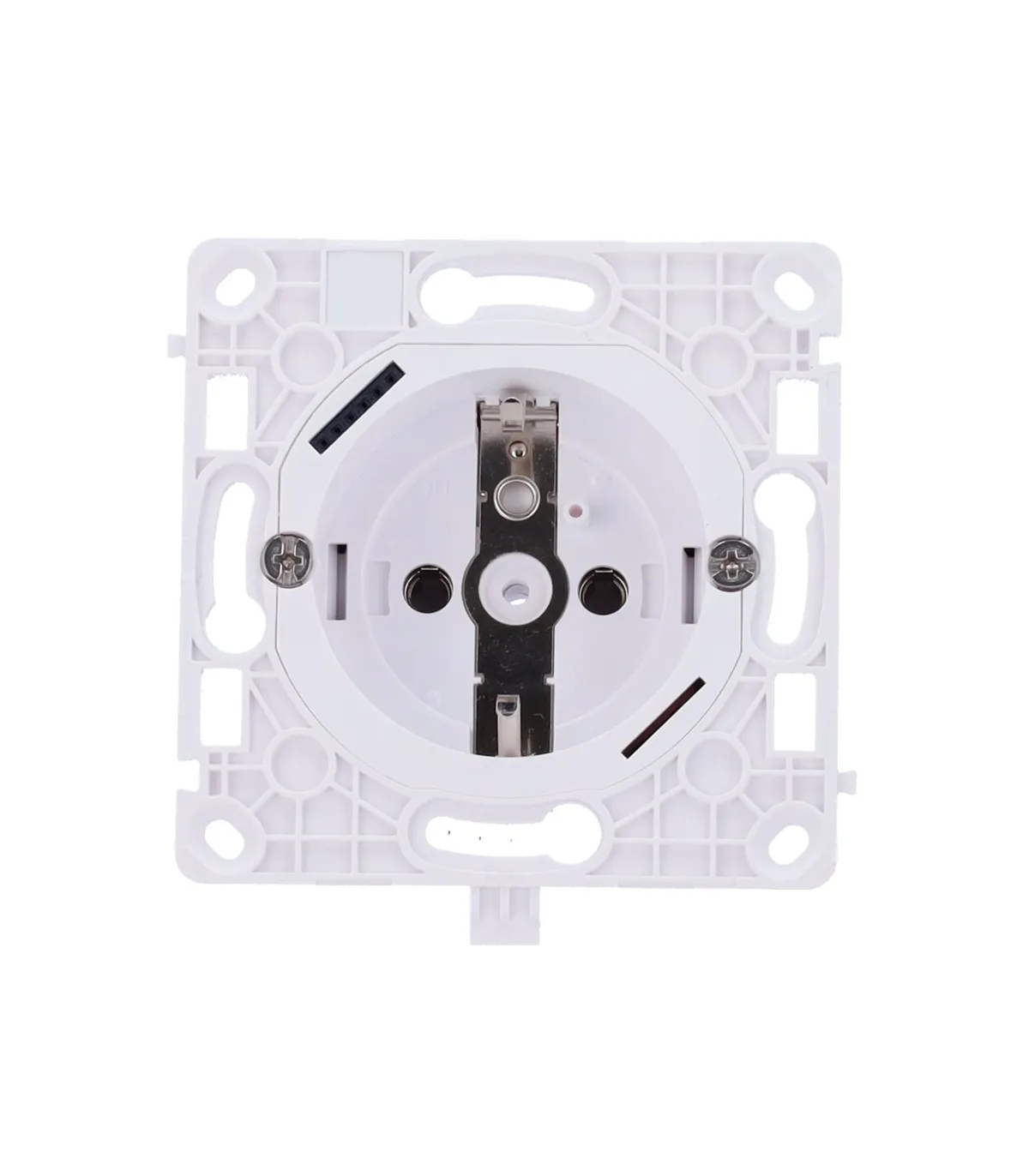

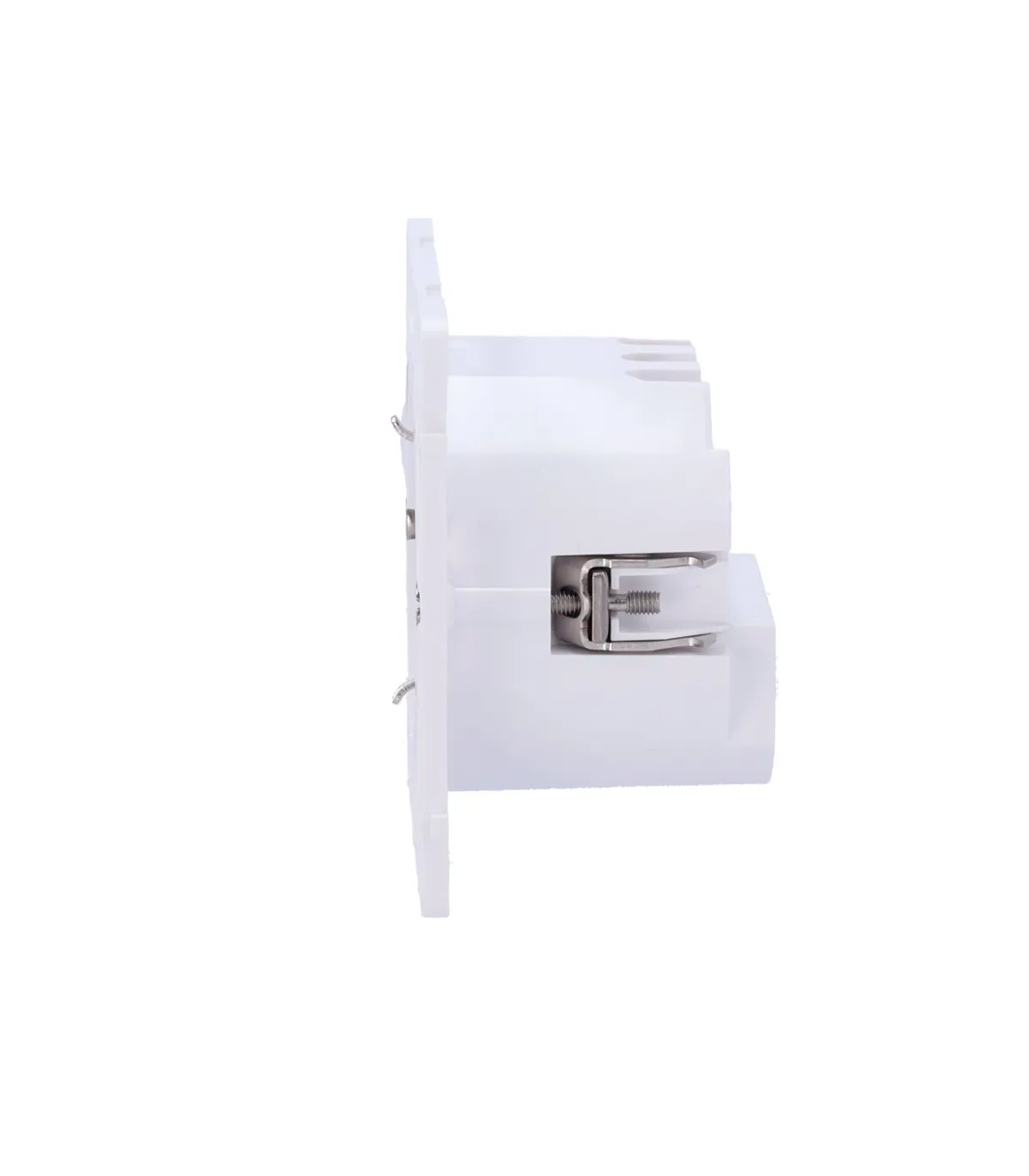

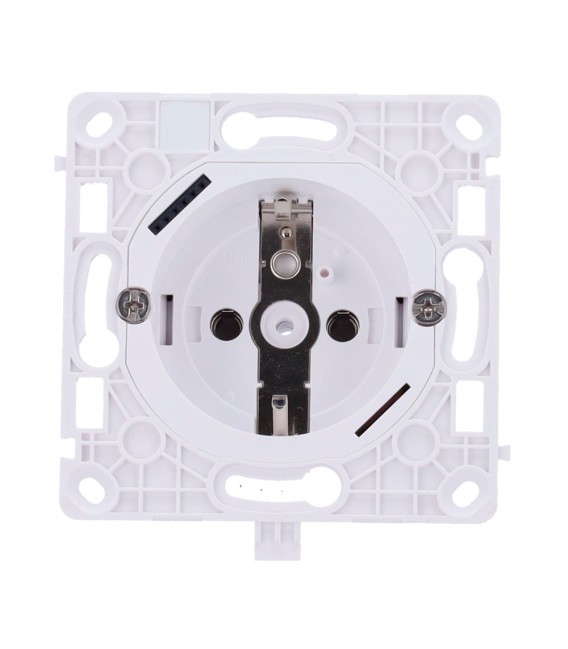

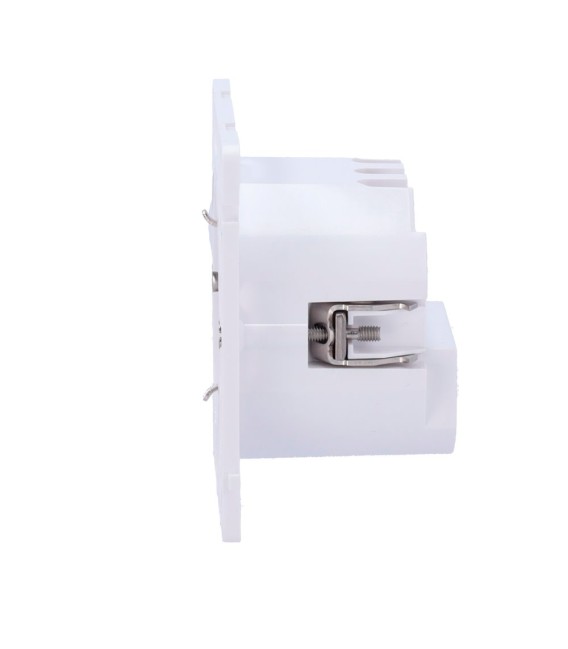

Ajax AJ-OUTLETCORE-SMART Type F Smart Plug Relay
The Ajax AJ-OUTLETCORE-SMART Type F Smart Plug Relay is the perfect solution for remotely and automatically controlling your electrical devices. With this device, you can turn on and off your appliances from your smartphone or tablet, even when you are not at home.
Its compact design and easy installation make it an ideal choice for any home or office. Additionally, it features advanced functions such as scheduling, timers, and the ability to create custom scenes to suit your specific needs.
Stop wasting time looking for switches or worrying if you left any device on. With the Ajax AJ-OUTLETCORE-SMART Type F Smart Plug Relay, you will have total control of your electrical devices in a simple and efficient way.
General Features
- Ajax
- Type F Smart Plug Relay
- Bidirectional
- Wireless 868 MHz Jeweller
- Radio communication range 1100 m
- Power supply 230 V AC
- Compatible with automation scenarios
- Monitors power consumption
- Control via mobile phone
- Has a touch button for manual control
- Adjustable shutdown timer
- Protection against surges and overheating
- Remote configuration
Technical Specifications
| Brand | Ajax |
| Function | Type F Smart Plug Relay |
| Plug Type | Type F |
| Transmission Distance | Up to 1100 m in open space |
| Frequency | 868 MHz Jeweller |
| Central Panel Compatibility | Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, ReX, ReX 2, and Hub Hybrid (2G and 4G) |

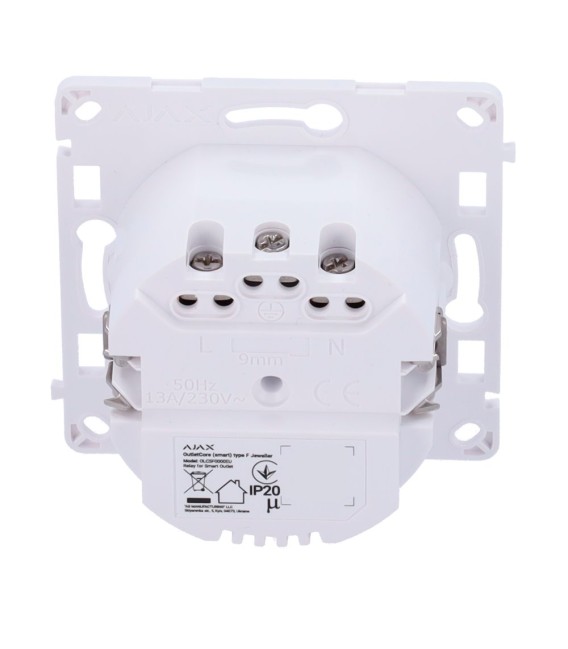

| Terminals | Terminal for power phase cable, terminal for power neutral cable, and terminal for ground cable |
| Control | Through a mobile phone and manually via a touch button |
| Power Consumption Monitor | Monitors current, voltage, power consumption, and consumed electrical energy |
| Shutdown Timer | Adjustable between 10 seconds to 2 hours |
| Operating Modes | Pulse and bistable |
| Power Input | AC 230 V / 50 Hz |
| Average Consumption | Up to 1.5 W |
| Output Power | Up to 3 kW (resistive load at 230 V) |
| Current Protection | 1 A–16 A |
| Voltage Protection | min.184 V~ and max. 253 V~ |
| Temperature Protection | +95 °C |
| Electric Discharge Protection Rating | Class I (with ground connection terminal) |
| Operating Temperature | 0º C ~ 40º C |
| Dimensions | 76 (H) x 72.5 (W) x 44.4 (D) mm |
| Weight | 75 g |
| Usage | Indoor |
Package Contents
- Smart Plug Base Relay
- Installation kit (includes a capacitor)
- User manual
