- Relay for crossover light switch
- Wireless 868 MHz Jeweller
- Communication range up to 1100 m
- Power supply 230 V AC 50 Hz
- No need for neutral wire
- Ajax - LightSwitch LightCore (Crossover)

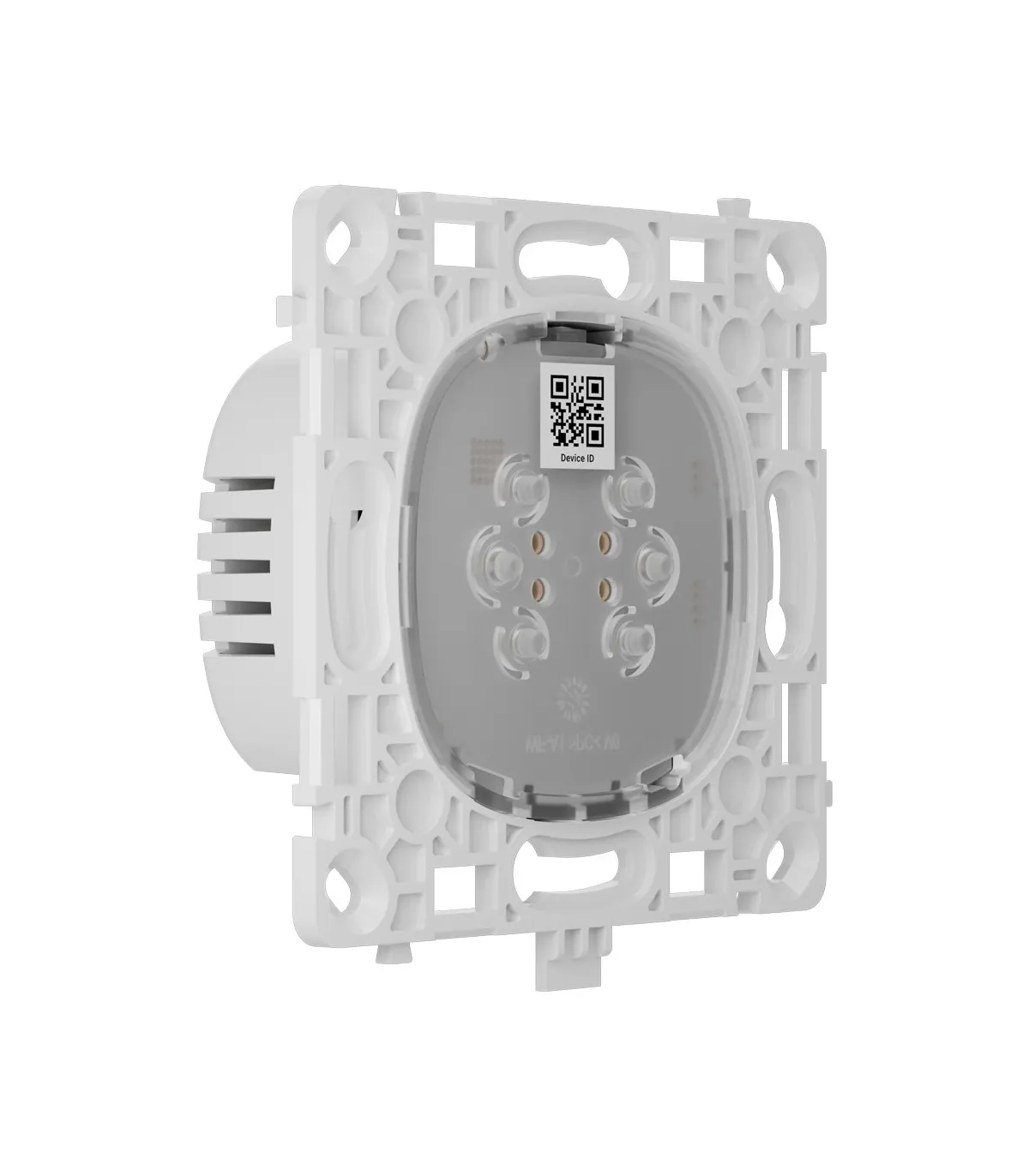

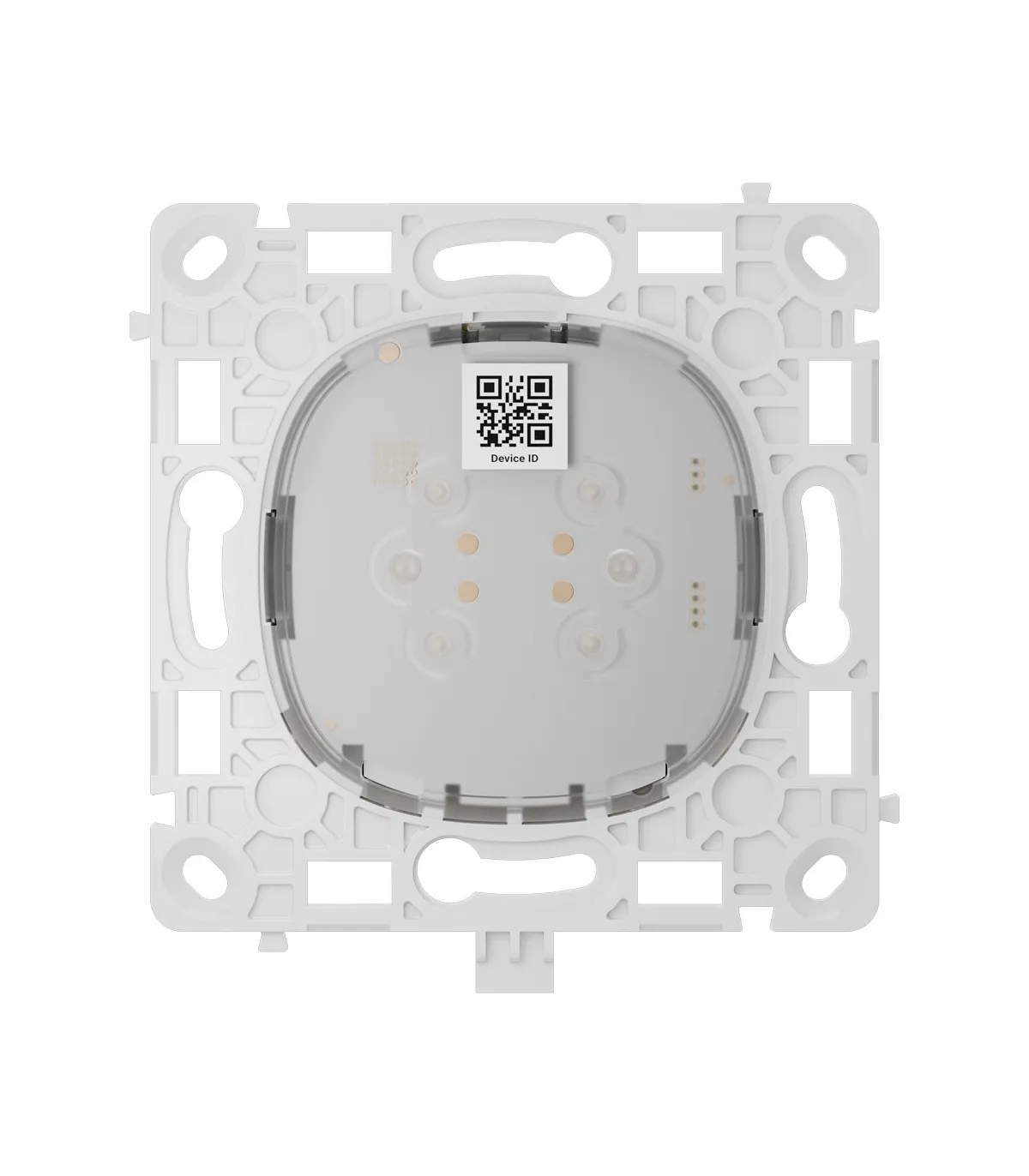

Ajax AJ-LIGHTCORE-CROSS Light Switch Relay
The Ajax AJ-LIGHTCORE-CROSS Light Switch Relay is the perfect solution for efficiently controlling the lighting in your home. With this device, you can program the automatic on and off of the cross lights, providing you with convenience and security at all times.
Its advanced technology allows you to adjust the light intensity, create custom schedules, and control the device remotely through your smartphone. Additionally, its installation is simple and quick, without the need for complicated configurations.
With the Ajax AJ-LIGHTCORE-CROSS Light Switch Relay, you can enjoy a smarter and more efficient home, tailored to your needs and preferences. Don't wait any longer and get yours today!
General Features
- Ajax
- Smart cross light switch relay
- Bidirectional
- Wireless 868 MHz Jeweller
- Radio communication range 1100 m
- Power supply 230 V AC
- No neutral wire needed to operate
- Activated by hand approaching within 15 mm of the touch panel
Technical Specifications
| Brand | Ajax - LightSwitch LightCore (Crossover) |
| Function | Smart cross light switch relay |
| Transmission distance | Up to 1100 m in open space |
| Frequency | 868 MHz Jeweller |
| Power input | AC 230 V / 50 Hz |
| Average consumption | 200 mW |
| Switched device power | 5W to 600 W |
| Current and temperature protection | 2.6 A / +60ºC |
| Compatibility | Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2, and Hub Hybrid |
| Usage | Indoor |
| Operating temp. | -10º C ~ 40º C |
| Dimensions | 77.5 (H) x 72.6 (W) x 31.7 (D) mm |
| Weight | 60 g |

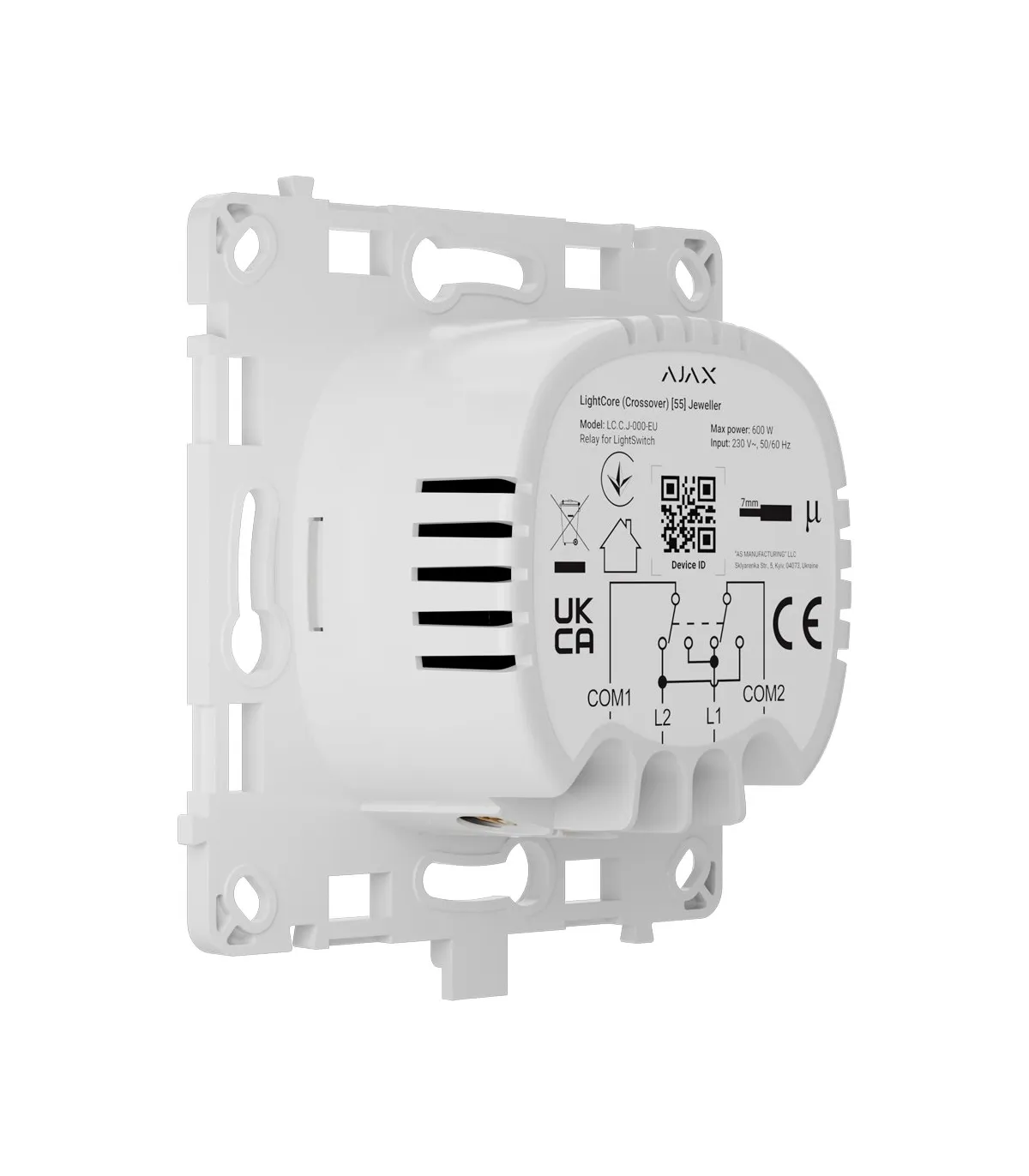

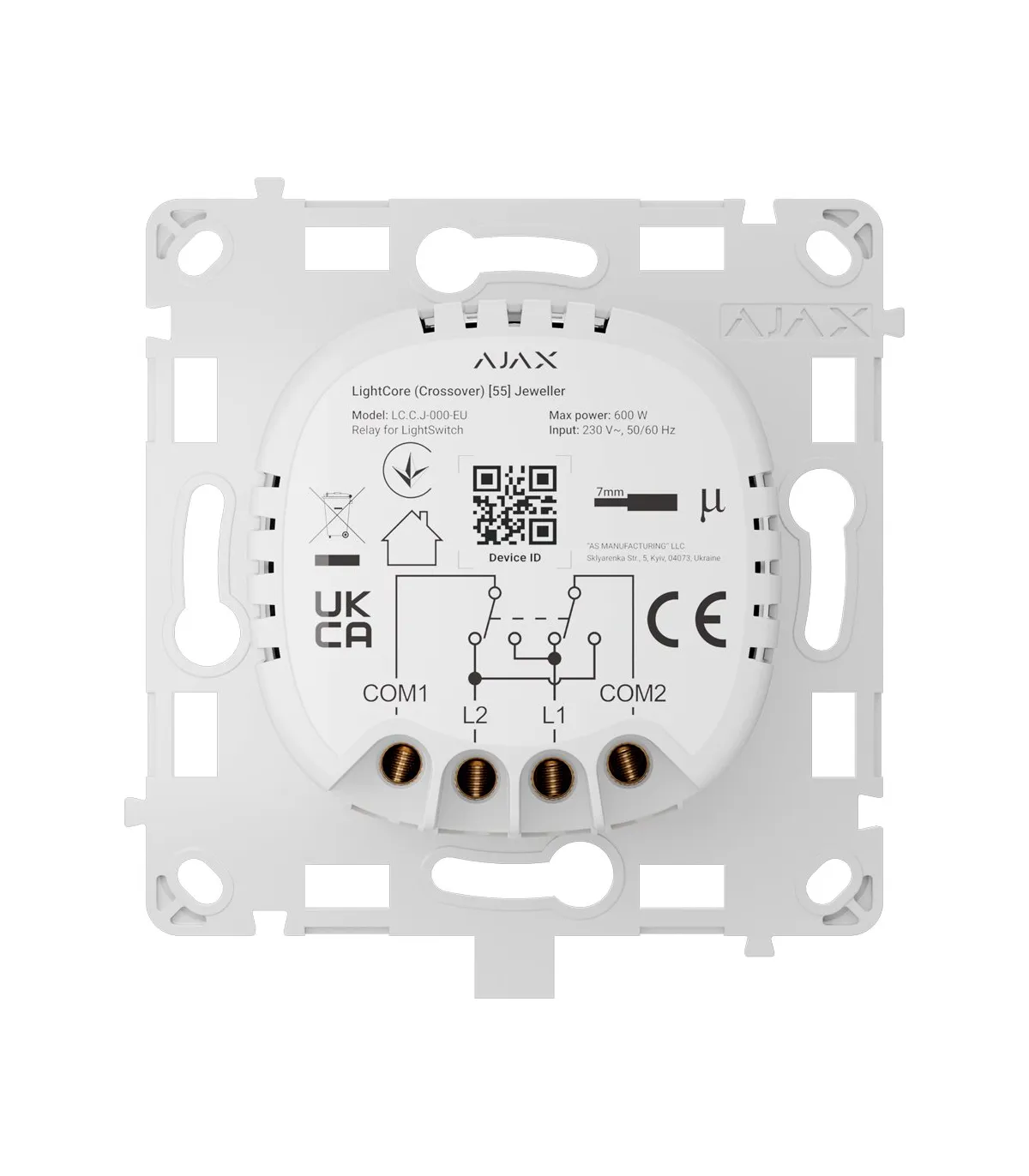

| Terminals | 2 phase terminals and 2 common terminals (no neutral wire) |
Package Contents
- Smart switchable light relay
- Installation kit (includes a capacitor)
- User manual
