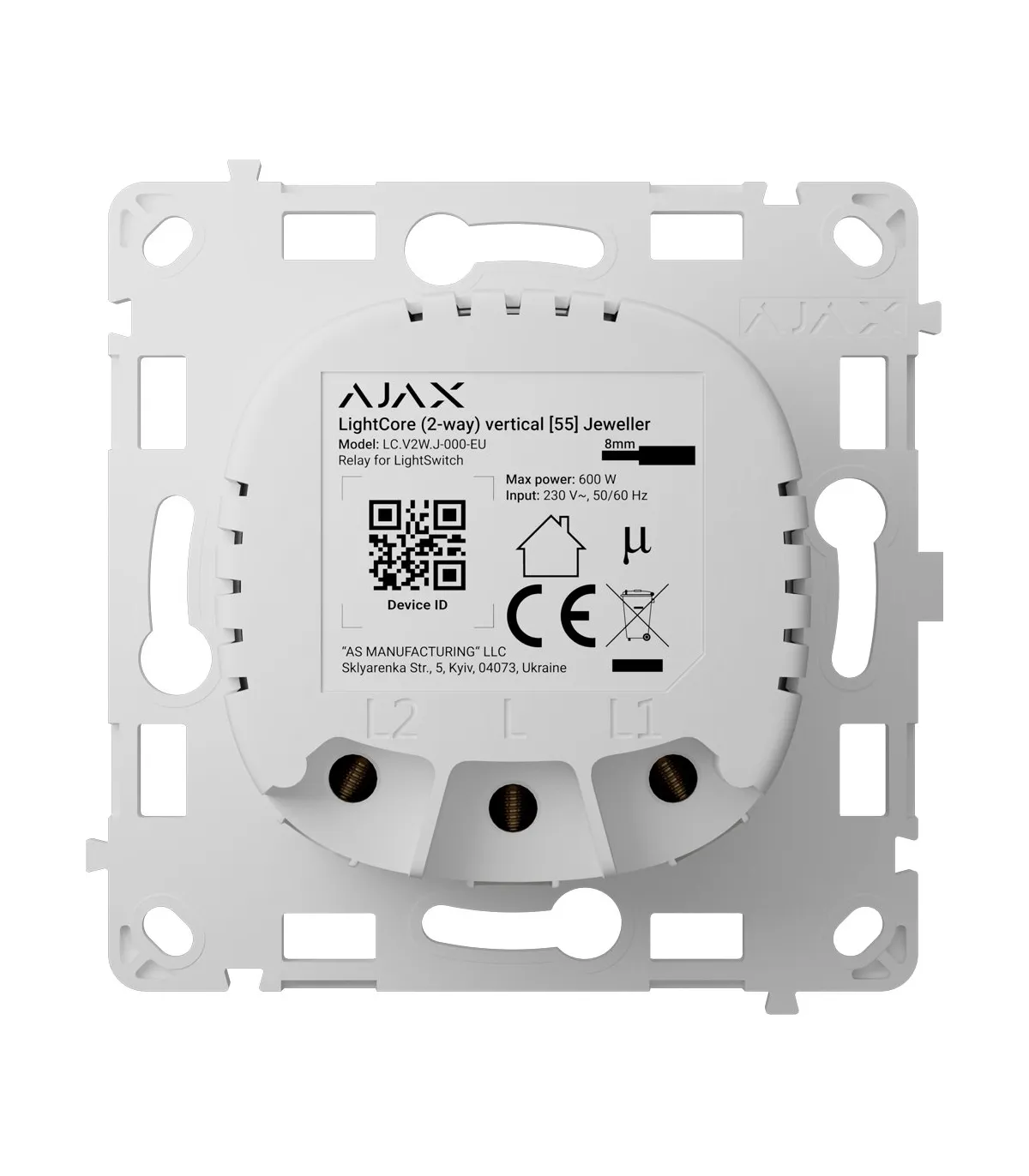

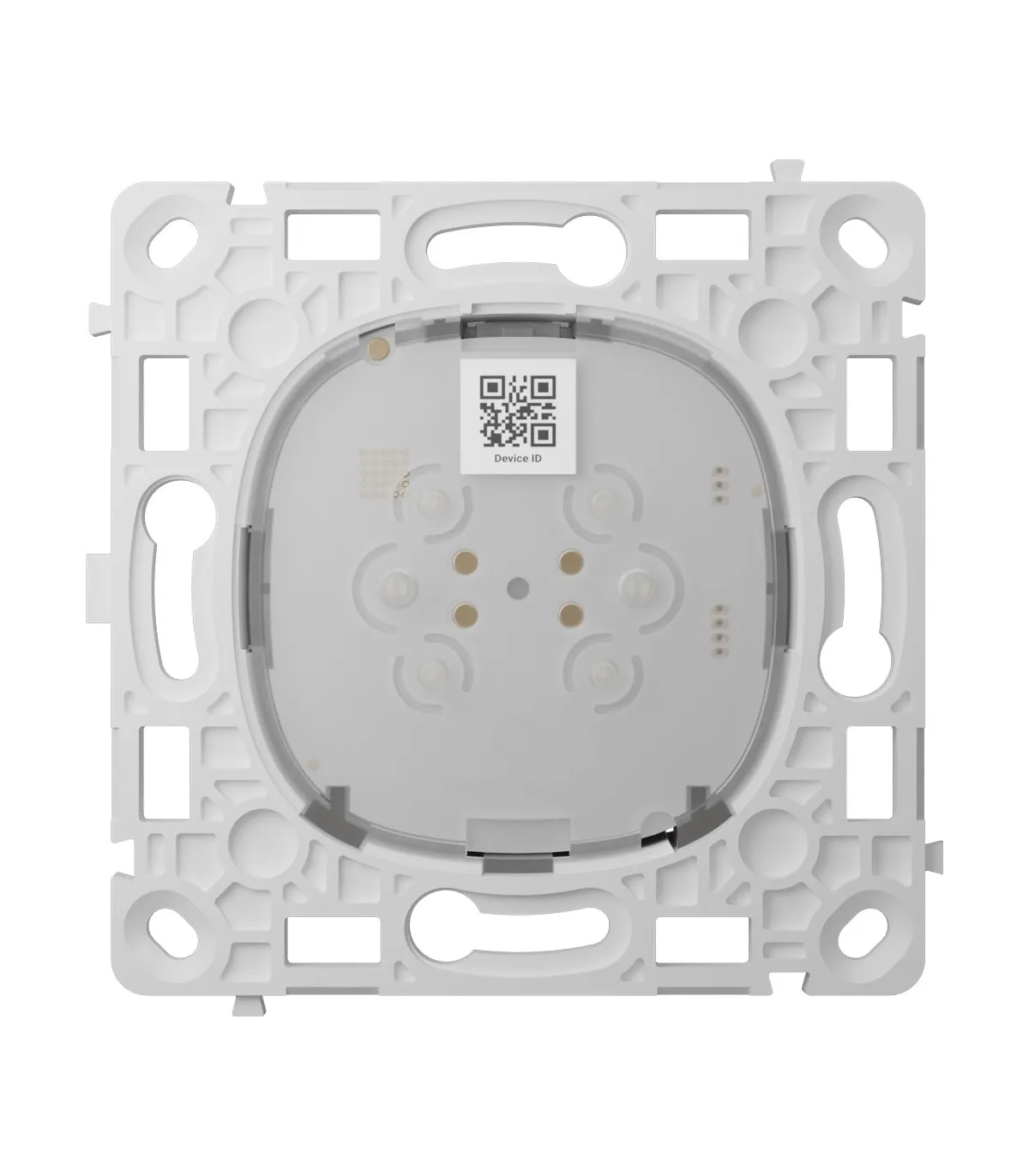

Ajax AJ-LIGHTCORE-2W-VERT Vertical Switchable Light Switch Relay
The Ajax AJ-LIGHTCORE-2W-VERT Vertical Switchable Light Switch Relay is the perfect solution for remotely controlling the lighting in your home or office. With this device, you can turn the lights on and off from your smartphone or tablet, even when you're not at home.
This relay features advanced technology that ensures safe and reliable operation. Additionally, its vertical design makes it ideal for installations in tight spaces. With the Ajax AJ-LIGHTCORE-2W-VERT Vertical Switchable Light Switch Relay, you can enjoy the convenience and security that home automation provides.
General Features
- Ajax
- Vertical Switchable Smart Light Switch Relay (2-way)
- Bidirectional
- 868 MHz Jeweller Wireless
- Radio communication range of 1100 m
- 230 V AC Power Supply
- No neutral wire needed to operate
- Activates when hand is within 15 mm of touch panel
Technical Specifications
| Brand |
Ajax - LightSwitch LightCore Vertical (2 Way) |
| Function |
Vertical Switchable Smart Light Switch Relay (2-way) |
| Transmission Distance |
Up to 1100 m in open space |
| Frequency |
868 MHz Jeweller |
| Power Input |
AC 230 V / 50 Hz |
| Average Consumption |
200 mW |
| Switched Device Power |
From 5W to 600 W |
| Current and Temperature Protection |
2.6 A / +60ºC |
| Compatibility |
Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2, and Hub Hybrid |
| Usage |
Indoor |
| Operating Temperature |
-10º C ~ 40º C |
| Dimensions |
76.3 (H) x 72.3 (W) x 29.2 (D) mm |
| Weight |
48.34 g |
| Terminals |
1 terminal for power phase cable and 2 terminals for two lighting devices or other load power cables (no neutral wire) |
Package Contents
- Vertical Switchable Smart Light Switch Relay
- Installation Kit (includes a capacitor)
- User Manual
