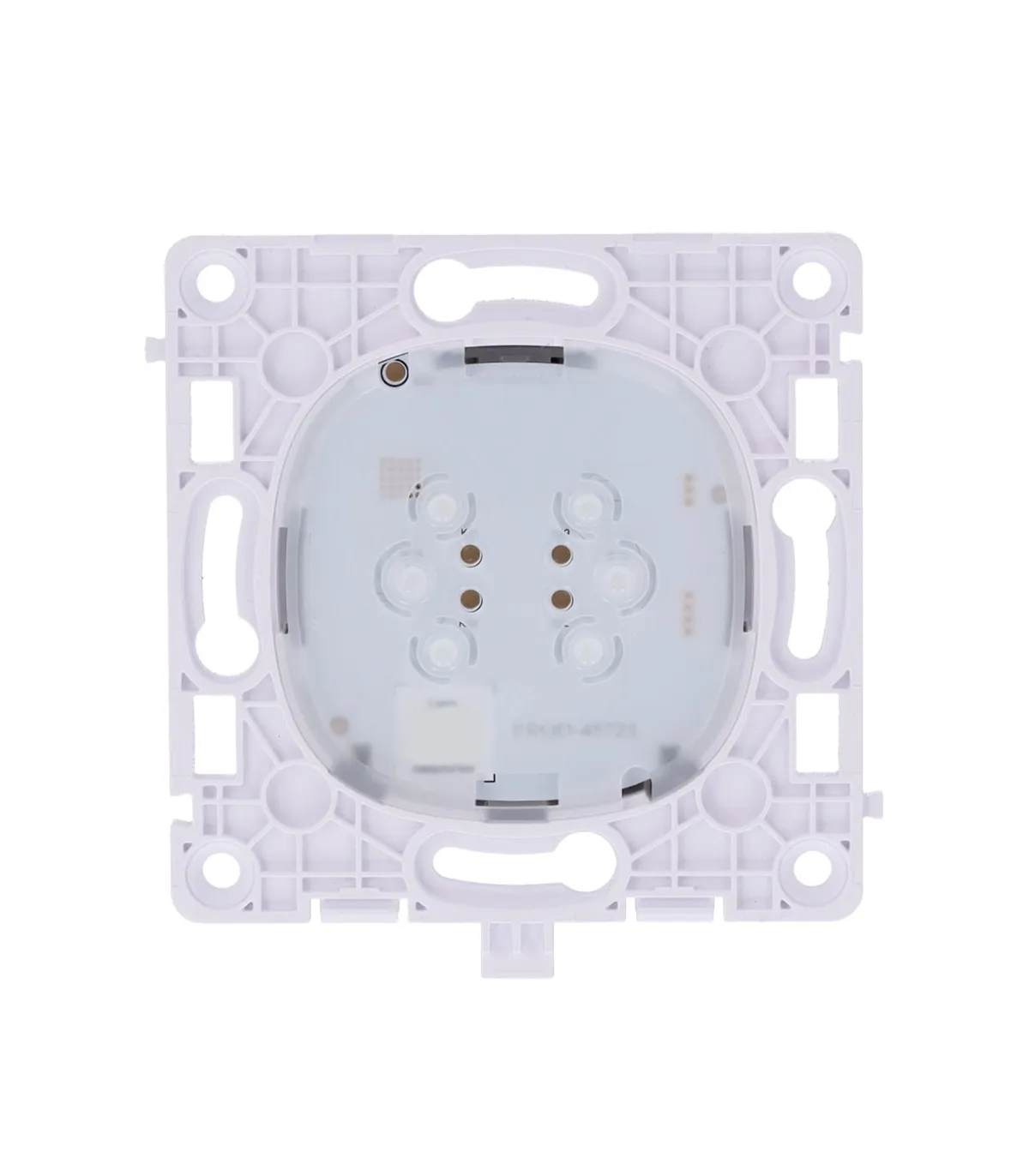

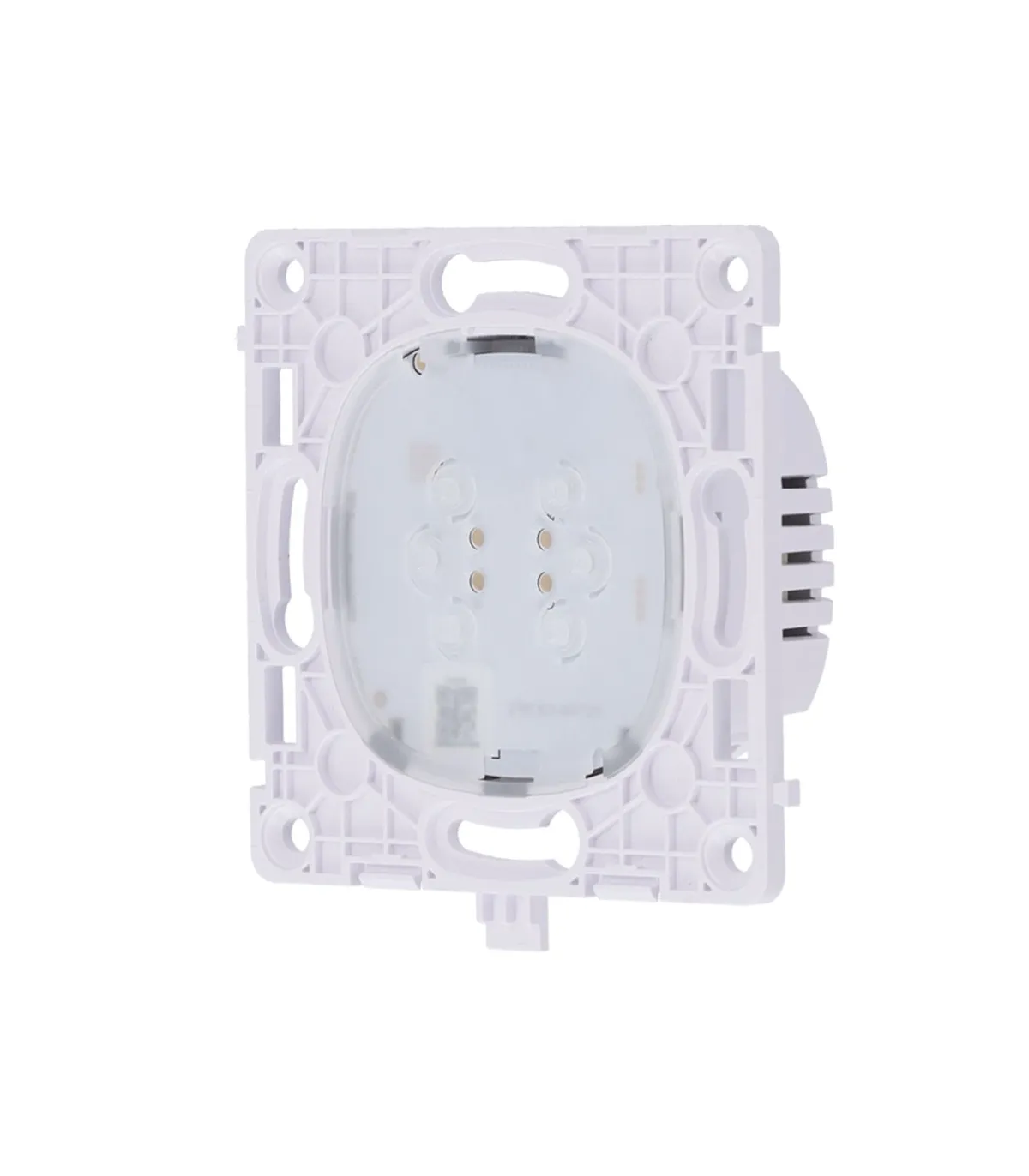

Ajax AJ-LIGHTCORE-2G Double Smart Light Switch Relay
The Ajax AJ-LIGHTCORE-2G Double Smart Light Switch Relay is the perfect solution for intelligently controlling the lighting in your home or office. With this device, you can schedule on and off times, as well as remotely control the light intensity through your smartphone or tablet.
Additionally, the Ajax AJ-LIGHTCORE-2G Double Smart Light Switch Relay is compatible with Ajax technology, ensuring a stable and secure connection. Its installation is simple and does not require advanced technical knowledge. With this device, you can enjoy a smarter and more energy-efficient home.
General Features
- Ajax
- Double Smart Light Switch Relay
- Bidirectional
- Wireless 868 MHz Jeweller
- Radio communication range 1100 m
- Power supply 230 V AC
- No neutral wire needed to operate
- Activated by hand approaching within 15 mm of the touch panel
Technical Specifications
| Brand |
Ajax - LightSwitch LightCore (2 Gang) |
| Function |
Double Smart Light Switch Relay |
| Transmission distance |
Up to 1100 m in open space |
| Frequency |
868 MHz Jeweller |
| Power input |
AC 230 V / 50 Hz |
| Average consumption |
200 mW |
| Switched device power |
From 5W to 600 W (up to 300W per segment) |
| Current and temperature protection |
2.6 A / +60ºC |
| Compatibility |
Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2, and Hub Hybrid |
| Usage |
Indoor |
| Operating temperature |
-10º C ~ 40º C |
| Dimensions |
76.3 (H) x 72.3 (W) x 29.2 (D) mm |
| Weight |
48.34 g |

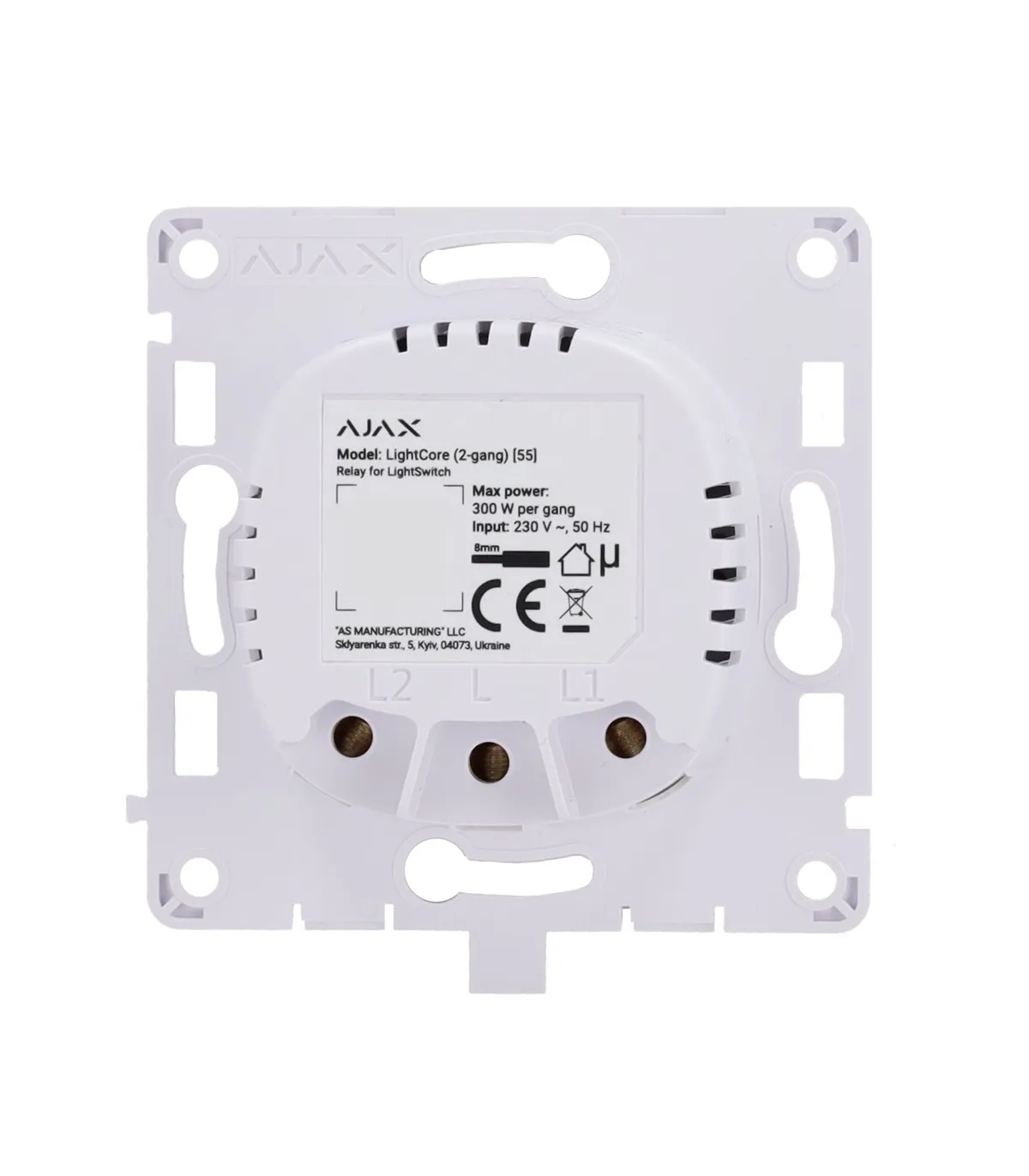

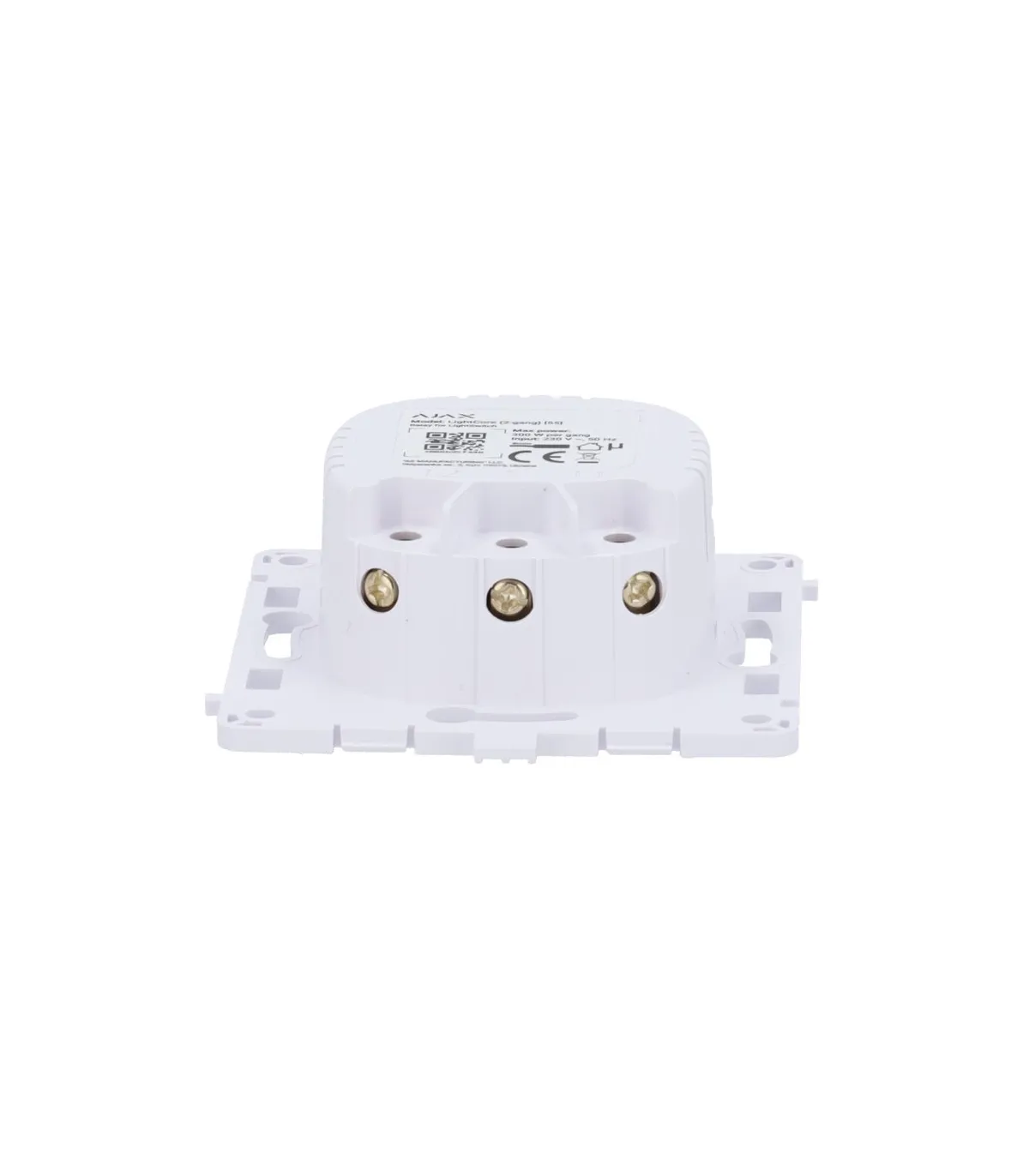

| Terminals |
1 terminal for power phase cable and 2 terminals for lighting device power cable or other load (no neutral wire) |
Package Contents
- Double Smart Light Switch Relay
- Installation kit (includes a capacitor)
- User manual
