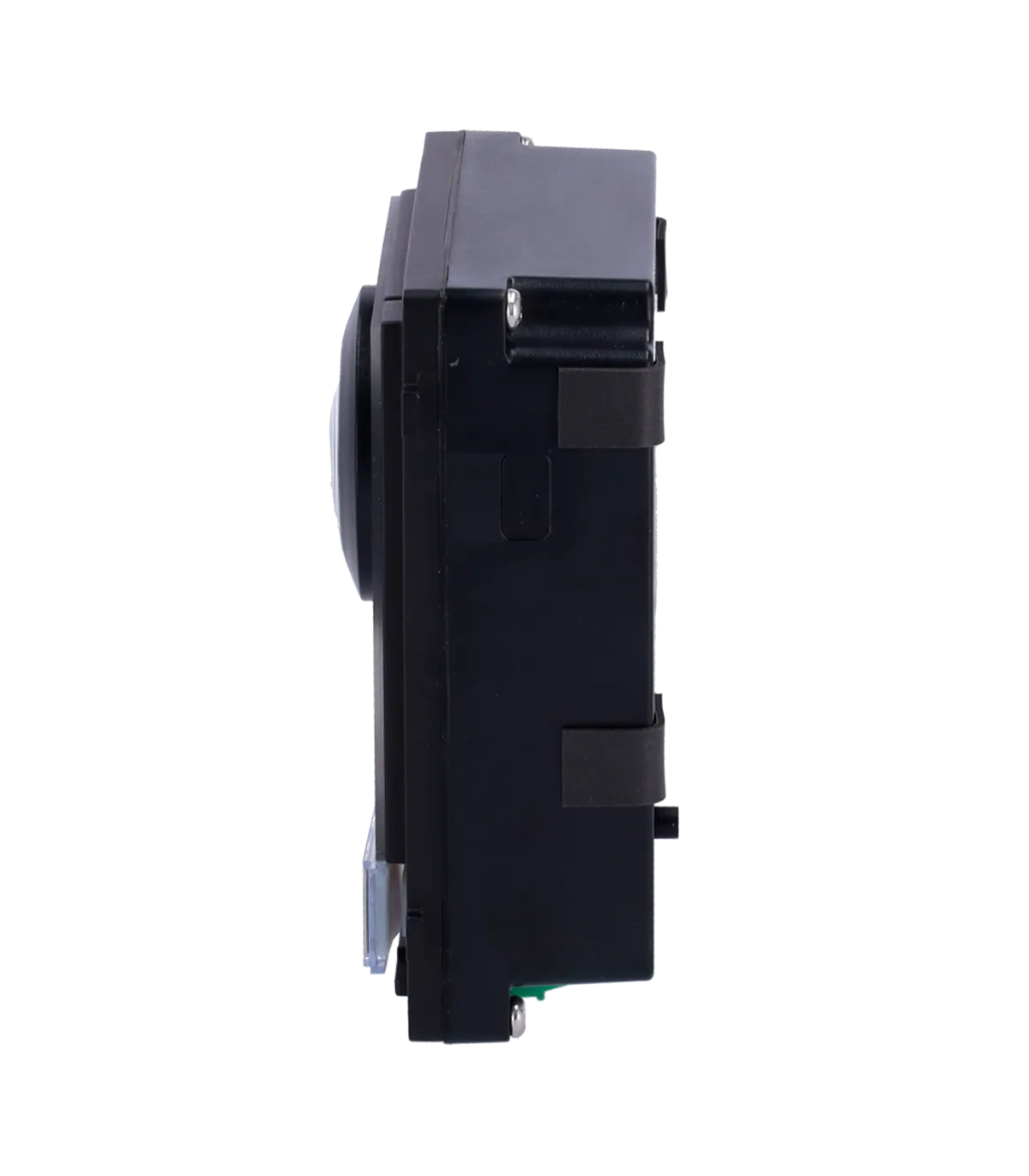

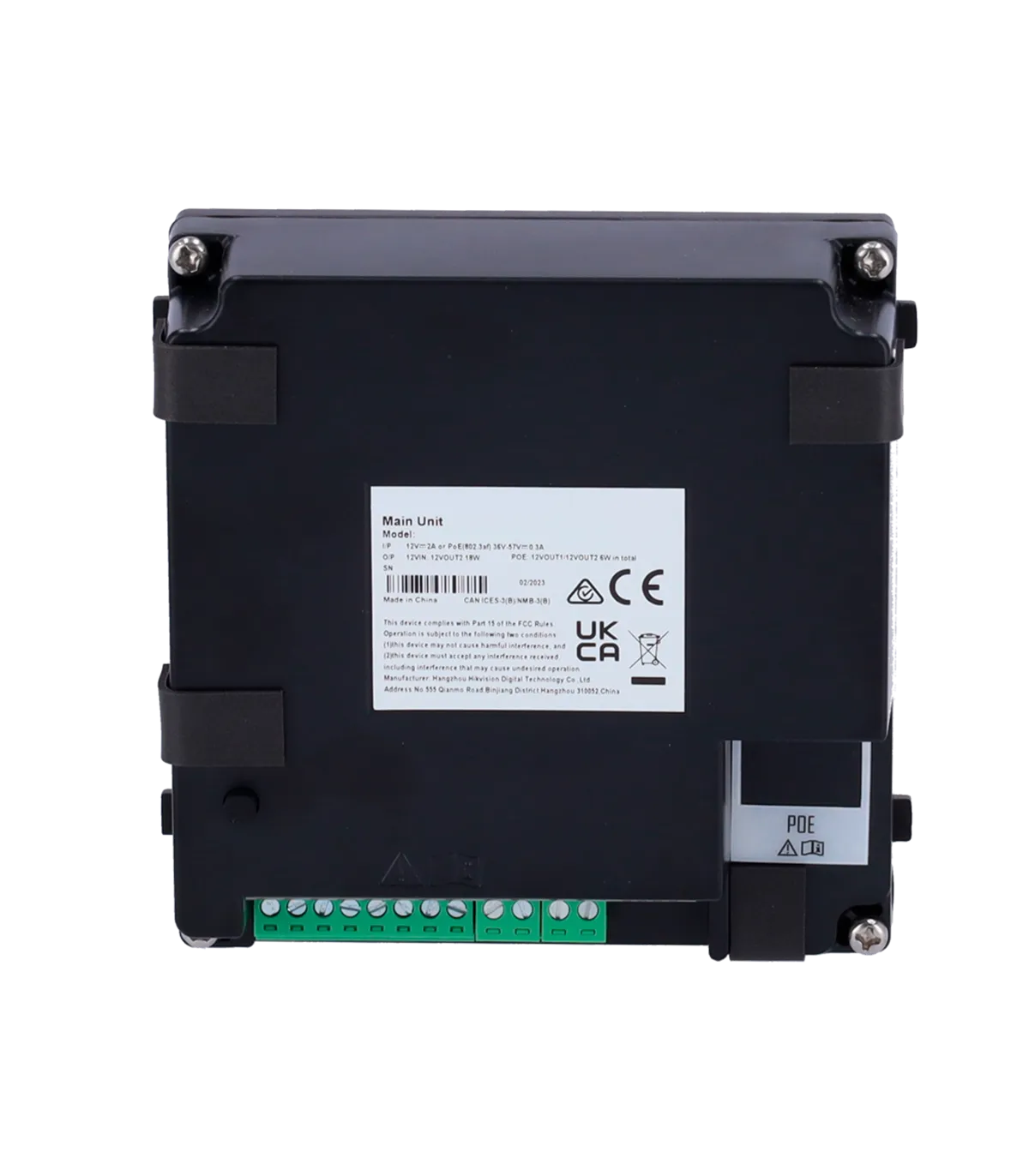

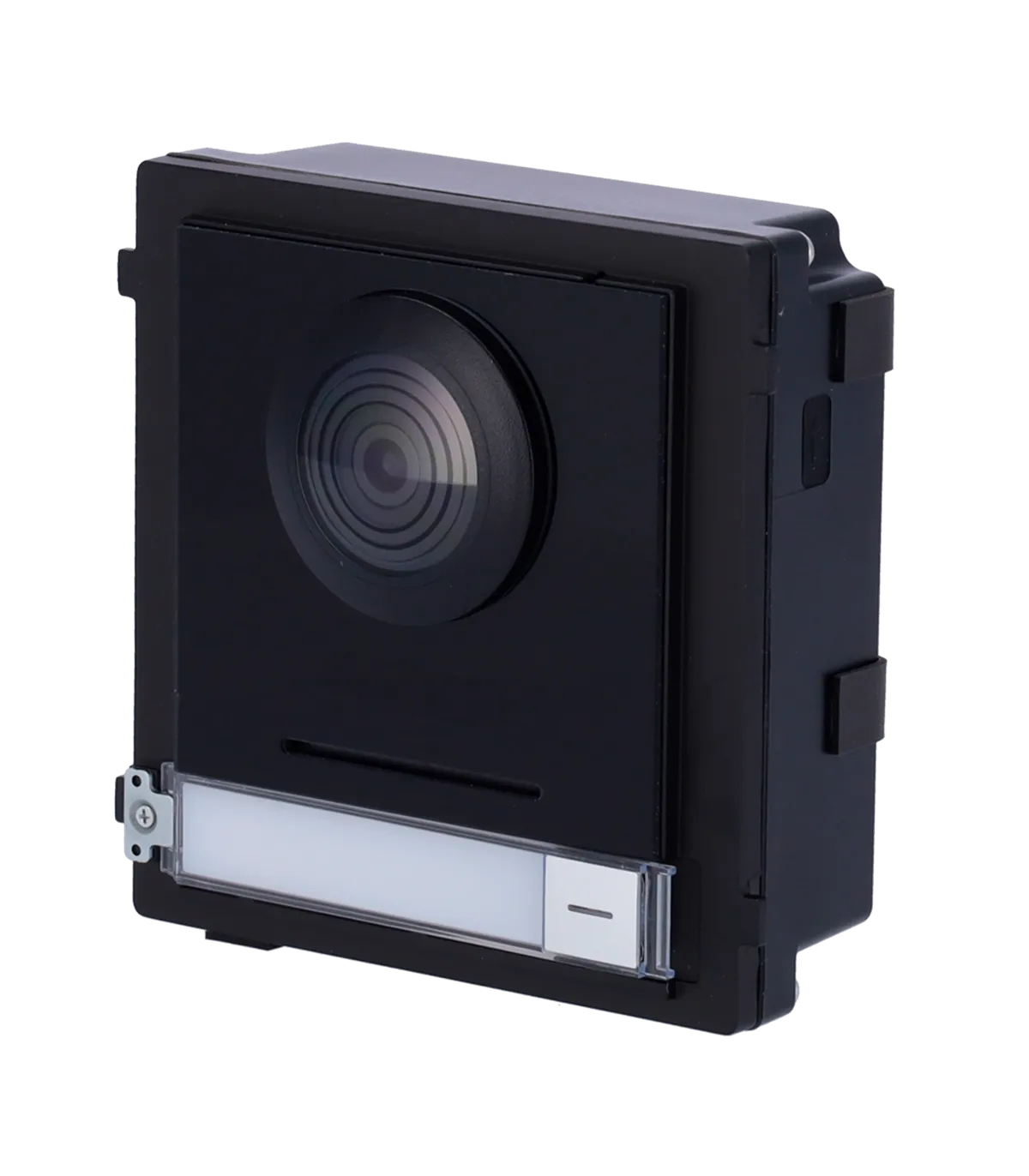

Hikvision IP Video Intercom 2MP IP65 PoE DS-KD8003-IME1(B)-NEUTRAL
- IP Video Doorphone
- 2 MP Camera
- Two-Way Audio
- Mobile App via Monitor
- Outdoor Rated IP65
- Modular Mounting | PoE
€131.81
Reference:
DS-KD8003-IME1(B)-NEUTRAL
Brand:
Add to wishlist
The video intercom panel is the element that is placed outside the premises, also known as the outdoor unit, and allows visitors to call the building staff.
These devices also have the capability to open the door through their relay outputs. This model features 2 relay outputs to manage up to 2 doors simultaneously, with a 12 VDC output (allowing direct power to the electronic lock without the need for an additional power source, as the device is powered by standard PoE).
IP devices communicate and are powered via Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its physical button panel allows users to call easily.
With an IP65 exterior rating, it can be installed outdoors.
The iVMS-4200 software facilitates the linking of panels and monitors to make and receive calls, create contacts, send informational messages to monitors, or review call logs.
With the Hik-Connect mobile application for end users, calls can be received, doors can be opened, or the camera feed from the panel can be viewed live, all from anywhere.
- Hikvision
- IP video intercom with 2 MP camera
- Wide-angle lens
- Integrated speaker and microphone
- Night vision
- TCP/IP connection
- Can be powered with standard PoE
- Remote monitoring via iVMS-4200 software, Hik-Connect mobile app (through monitor), or indoor monitor
- Remote door unlocking
- Surface mount or recessed mount with bracket (not included)
- Customizable label with LED
- Outdoor suitable IP65
- Integrable with Hikvision modules
Specifications: DS-KD8003-IME1(B)-NEUTRAL
| Brand | Hikvision |
| Model | DS-KD8003-IME1(B)-NEUTRAL |
| Operating System | Linux |
| Image Sensor | Low Illumination 2 MP IR |
| Image Functions | BLC / WDR / DNR |
| Viewing Angle | H: 146º, V: 82º, D: 180º |
| Audio | Two-way audio with microphone and speaker |
| Keyboard | Mechanical call button with customizable LED label |

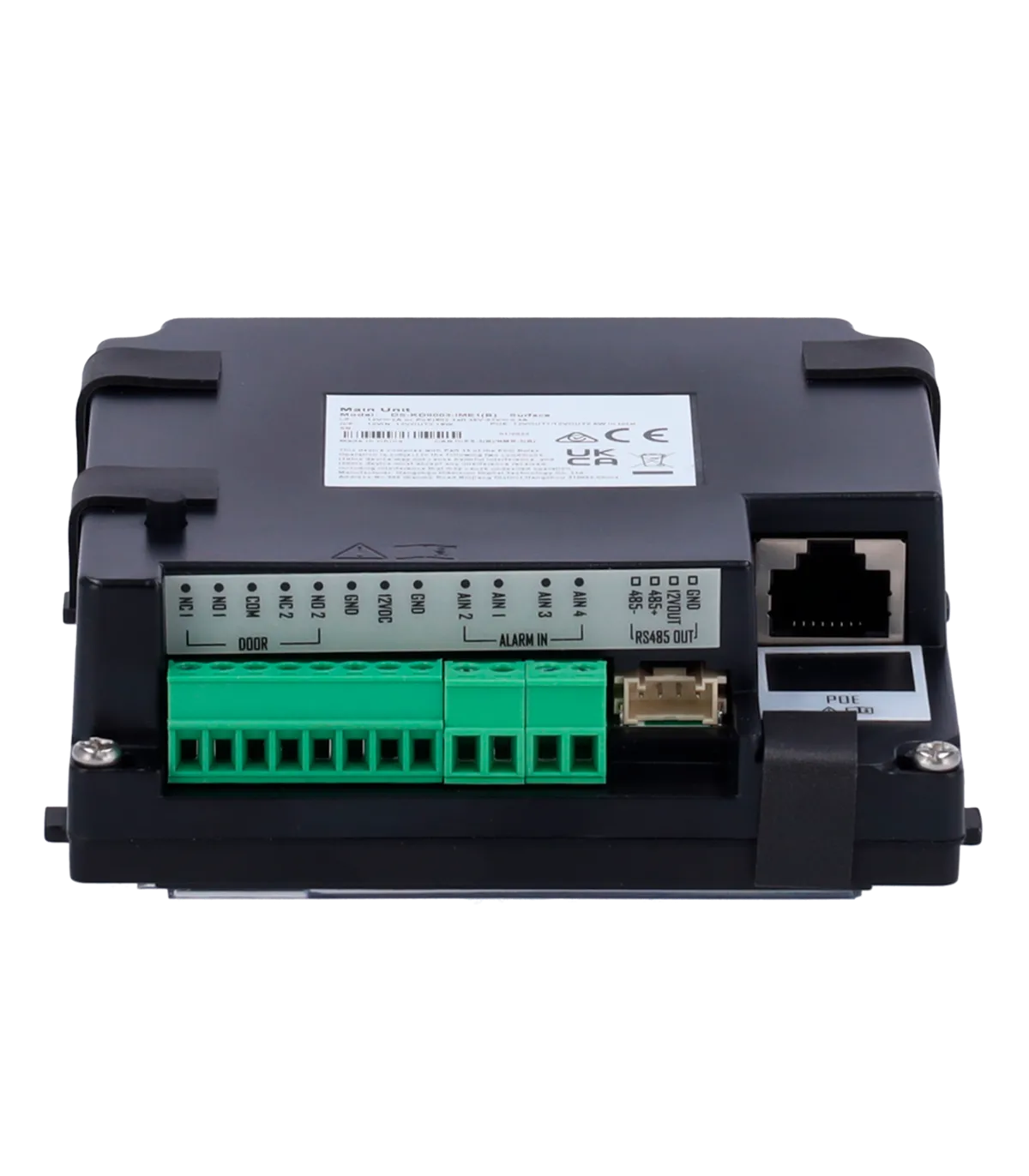

| Outputs | 2 x relay for lock, 1 x module output, 1 x DC 12 V / 500 mA max. |
| Inputs | 4 x auxiliary inputs (exit button, feedback, door sensor), 1 x tamper |
| Remote Access | iVMS-4200 Software Hik-Connect Mobile Application |
| Network Interface | Ethernet 10/100 BaseT / SIP Protocol 2.0 |
| Modular | Compatible with Hikvision modular panels |
| Power Supply | DC 12 V / 850 mA max. / PoE (IEEE 802.3af) |
| Protection Rating | Outdoor suitable IP65 |
| Material | Plastic |
| Operating Temperature | -40 ºC ~ +60 ºC |
| Dimensions | 98 (H) x 100 (W) x 42 (D) mm |
| Weight | 360 g |
Package Contents
- Hikvision outdoor video intercom panel
- Mounting materials
- User instructions
DS-KD8003-IME1(B)-NEUTRAL
Data sheet
- Brand
- HIKVISION
- Compatible models
- DS-KD-TDE,DS-KD-TDE,DS-KD-KP,DS-KD-KP,DS-KD-K12,DS-KD-K12,DS-KD-INFO,DS-KD-INFO,DR-54NDF/M,DR-54NDF/M
