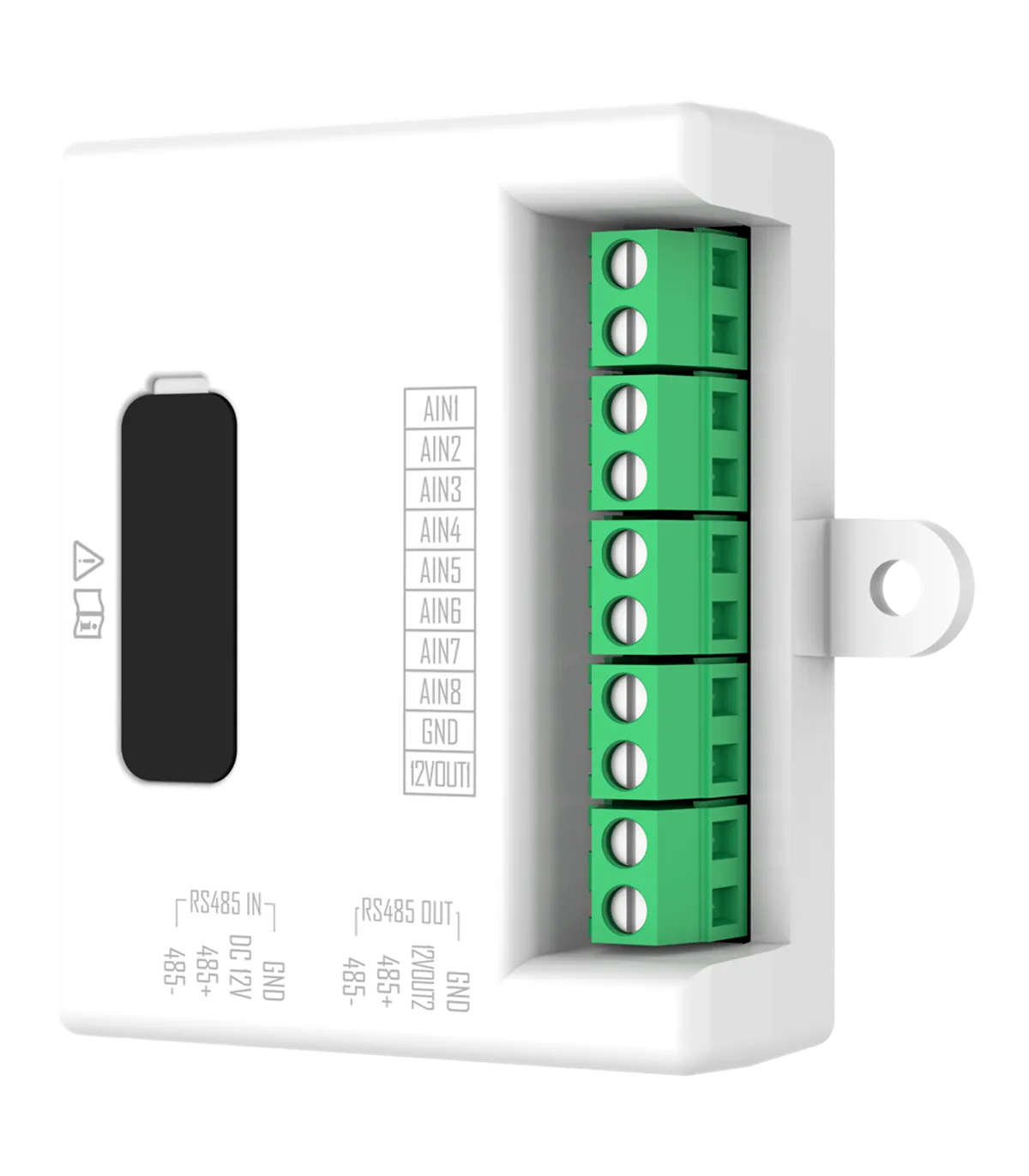

Hikvision Intercom Alarm Input Expansion Module, 8 RS-485 Inputs, Modular Video Door Station DS-KD-AL8

Hikvision Intercom Alarm Input Expansion Module, 8 RS-485 Inputs, Modular Video Door Station DS-KD-AL8

Hikvision DS-KD-KP/S - Stainless Steel RS485 Keypad Module for DS-KD8003-IME1/EU or IME2/EU

Alarm input extension module
8 alarm input channels
1 output channel of 12 VDC
RS485 connection
Compatible with Hikvision modular intercom
Cascading extension connection

Read moreShow less

€71.78

Reference:

DS-KD-AL8

Brand:

HIKVISION INTERCOM

Add to wishlist

Description

Hikvision
Alarm Input Extension Module
8 Alarm Input Channels
1 Output Channel of 12 VDC
RS485 Connection with Hikvision Modular Intercom
RS485 Connection with Other Alarm Input Extension Modules
Surface Mounting

Specifications: DS-KD-AL8

Brand	Hikvision
Model	DS-KD-AL8
Cascade	Up to 20 modules connected in series
Inputs	8 x Alarm, 1 x RS485 IN
Outputs	1 x 12 VDC (4 W / 300 mA max.), 1 x RS485 OUT
Communication	RS485
Power Supply	Via 4 wires from modular board
Operating Temperature	-30 ºC ~ +60 ºC
Dimensions	62 (W) x 55 (H) x 18 (D) mm
Weight	32 g

Package Contents

Hikvision Alarm Input Extension Module
User Instructions

Read moreShow less

Product Details

Reference DS-KD-AL8

Data sheet

Brand: HIKVISION INTERCOM

Specific References

EAN13: 6931847193768
