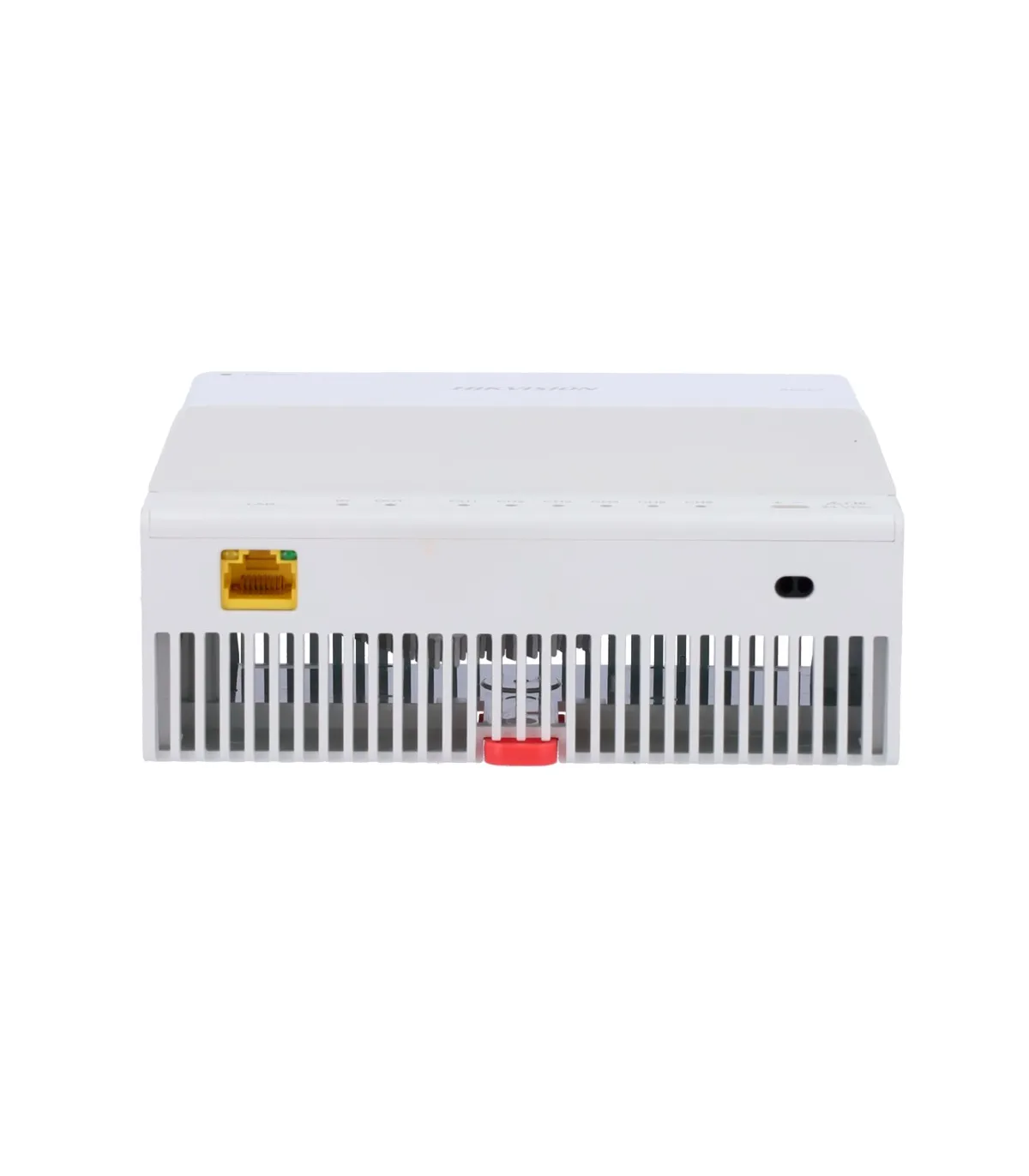

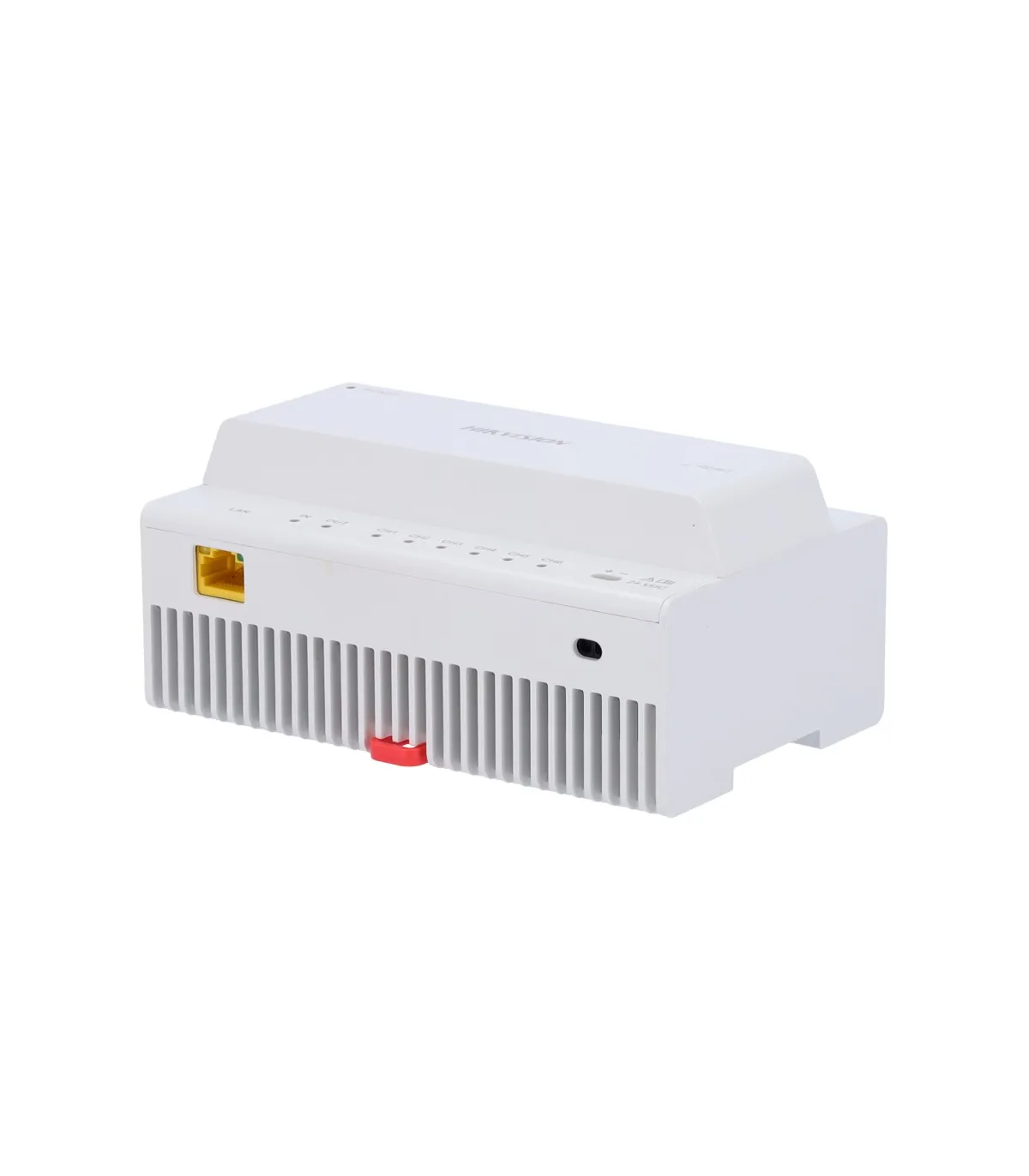

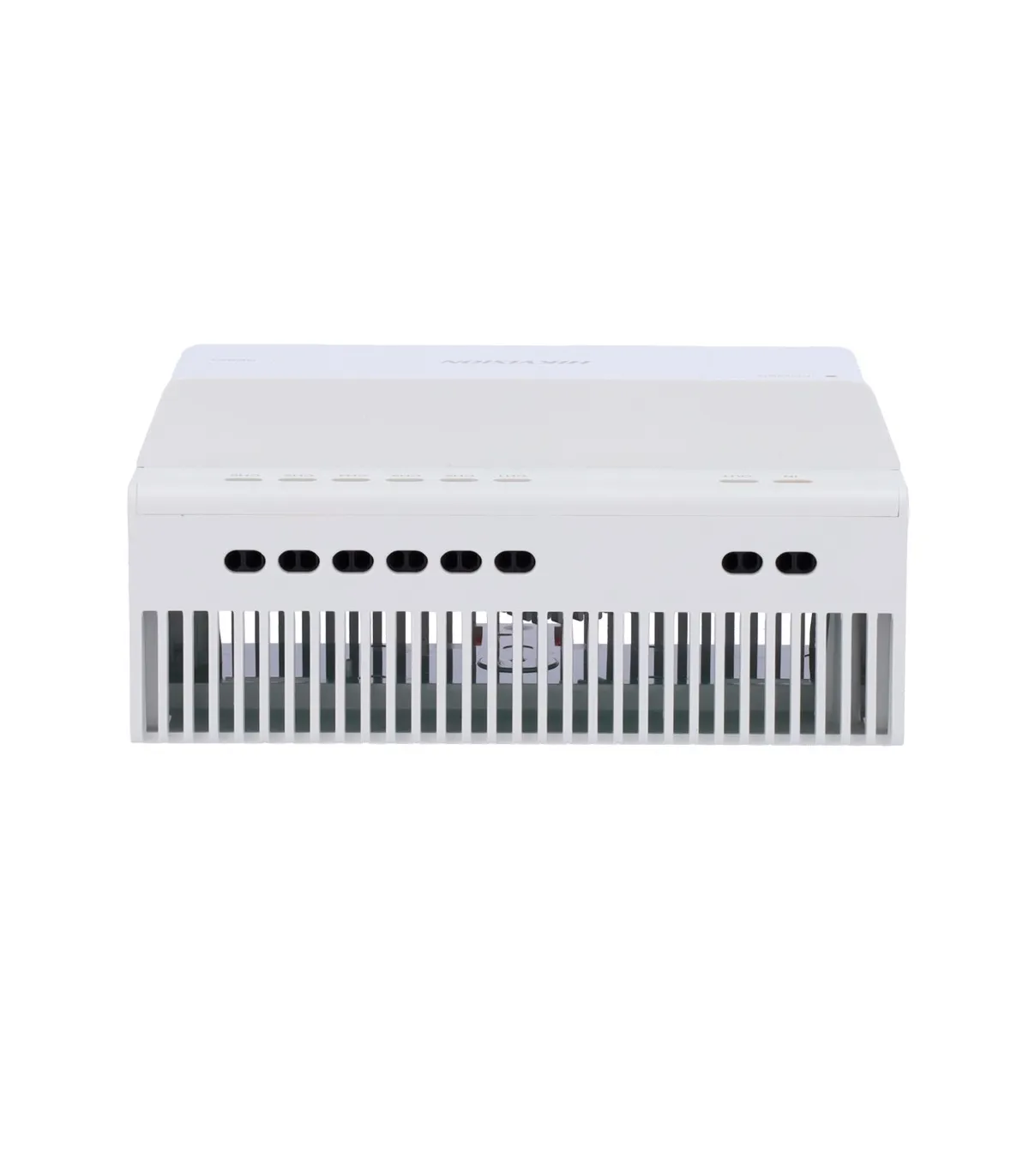

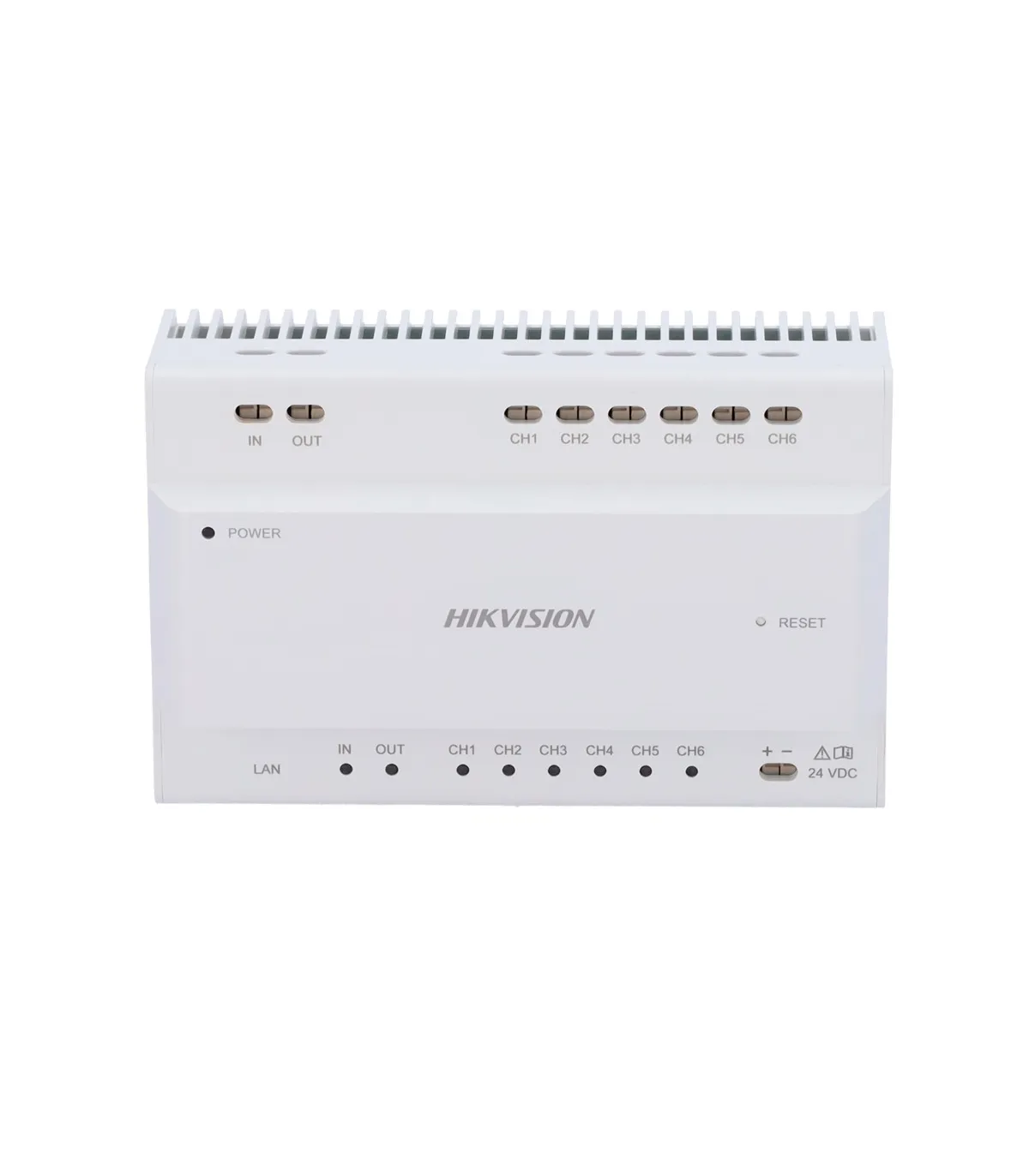

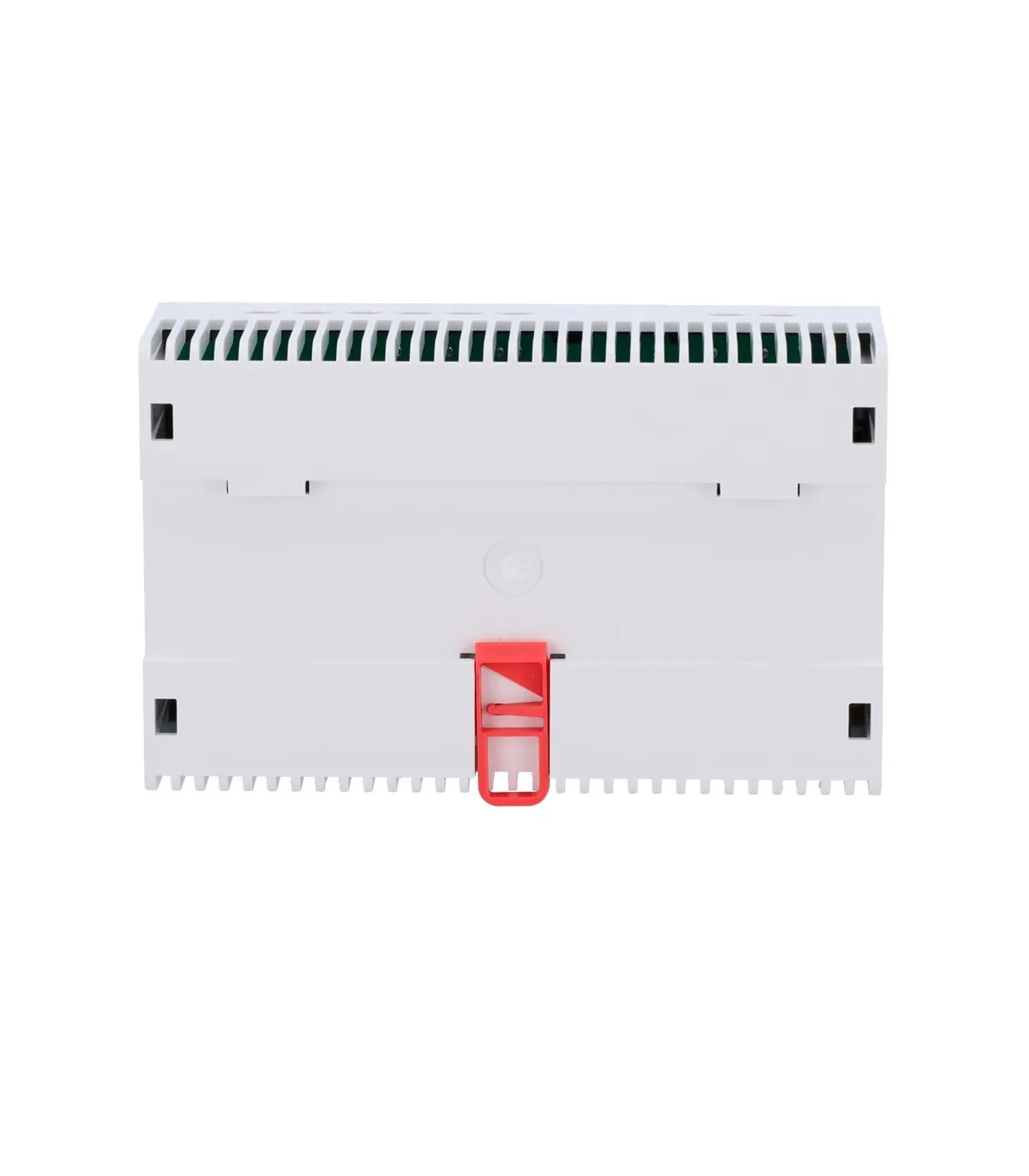

Hikvision DS-KAD706Y-S building converter

Hikvision DS-KAD706Y-S building converter

Hikvision DS-KAD706Y-S building converter

Building Converter
2-wire to IP
6 groups of 2-wire
TCP/IP with RJ45
Connects with DS-KAD706Y
Surface mount or DIN rail mount

Hikvision DS-KAD706Y-S converter for buildings

Hikvision
2-wire to IP converter
6 2-wire channels
TCP/IP connection via RJ45
Status indicators
2 channels for cascade hubs
Mounting on surface or rail

Technical specifications

Brand	Hikvision
Model	DS-KAD706Y-S
Operation mode	Data through 2-wire technology to DS-KAD706Y
Outputs	6 2-wire channels
Cascade	2 channels for cascading of DS-KAD706Y or DS-KAD704Y
Communication	2-wire technology (up to 6 devices)
Network interface	Ethernet 10/100 BaseT
Power	DC 24 V / 2.5 A max.
Temp. operation	-10º C ~ +55º C
Dimensions	144 (W) x 92 (H) x 66 (D) mm
Weight	250 g

2-wire hub for Hikvision video intercom distributor
Instructions for use
