€14.37
Mast/lamp post support
For bullet cameras
Range diameter 67~127 mm
Suitable for outdoor use
White color
Cable pass-through
PFA122 junction box.
- Caja de conexiones
- Para cámaras bullet o domos
- Apto para uso exterior
- Instalación en techo o pared
- Color blanco
- Pasador de cables
€13.05
Reference:
PFA122
Brand:

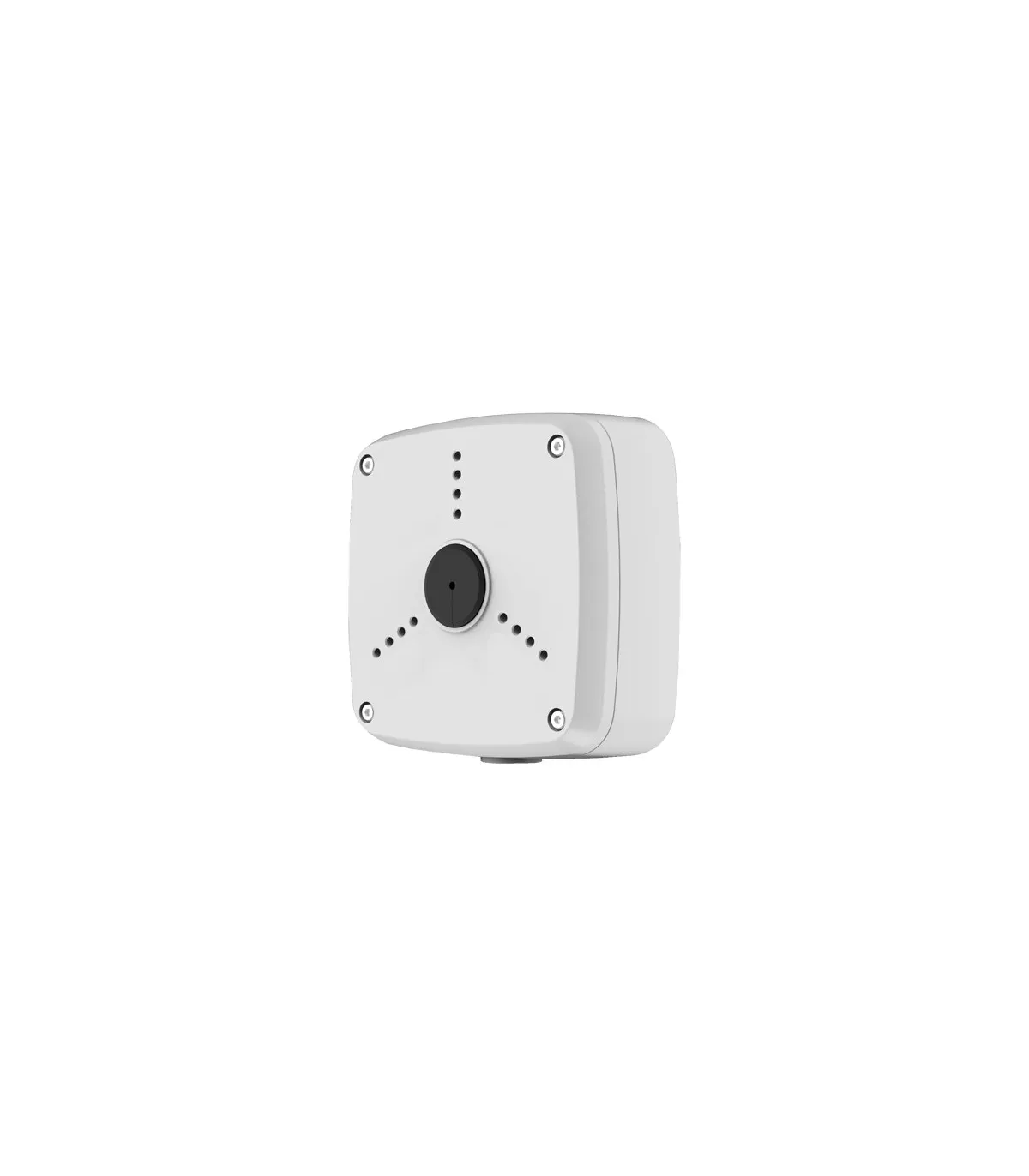

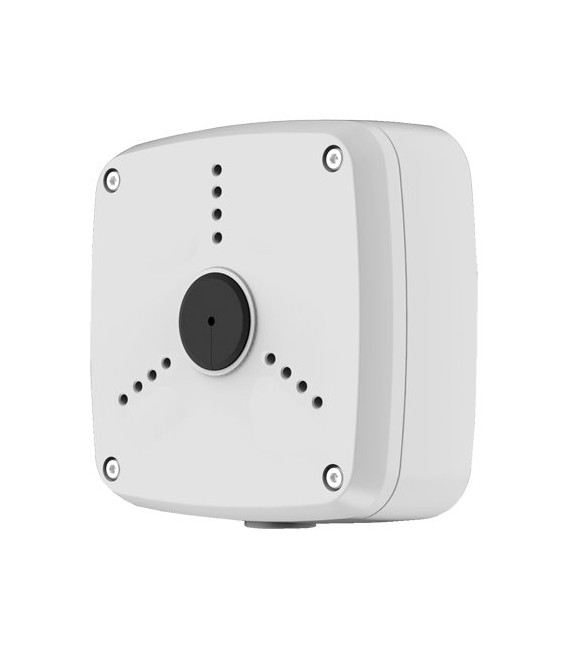

PFA122 Junction Box.
- Junction box
- For bullet or dome cameras
- Suitable for outdoor use
- Installation on ceiling or wall
- White color
- Cable pass-through
Technical Specifications

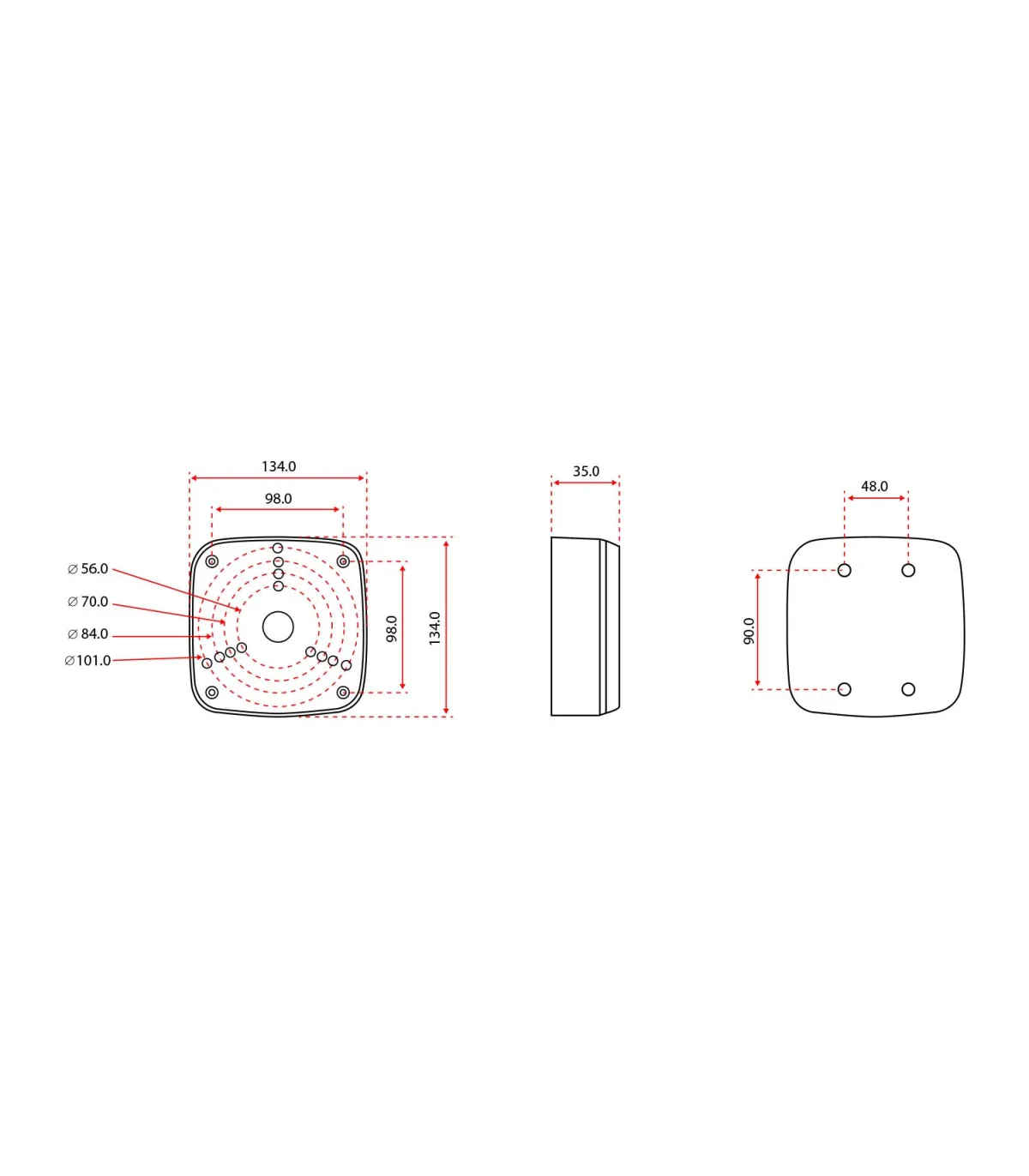

| Dimensions | 134 (H) x 134 (W) x 55 (D) mm |
| Maximum Load | 3 Kg |
| Weight | 500 g |
| Usage | Suitable for outdoor |
| Composition | Aluminum |
| Color | White |
Content
- - Bracket
- - 4 plugs and 4 screws for mounting
- - Allen key
- - 3 screws for camera fixation
PFA122
Data sheet
- Brand
- Dahua
- Type of camera
- Dome
- Use
- Outdoor
Specific References
- EAN13
- 8435325441368
