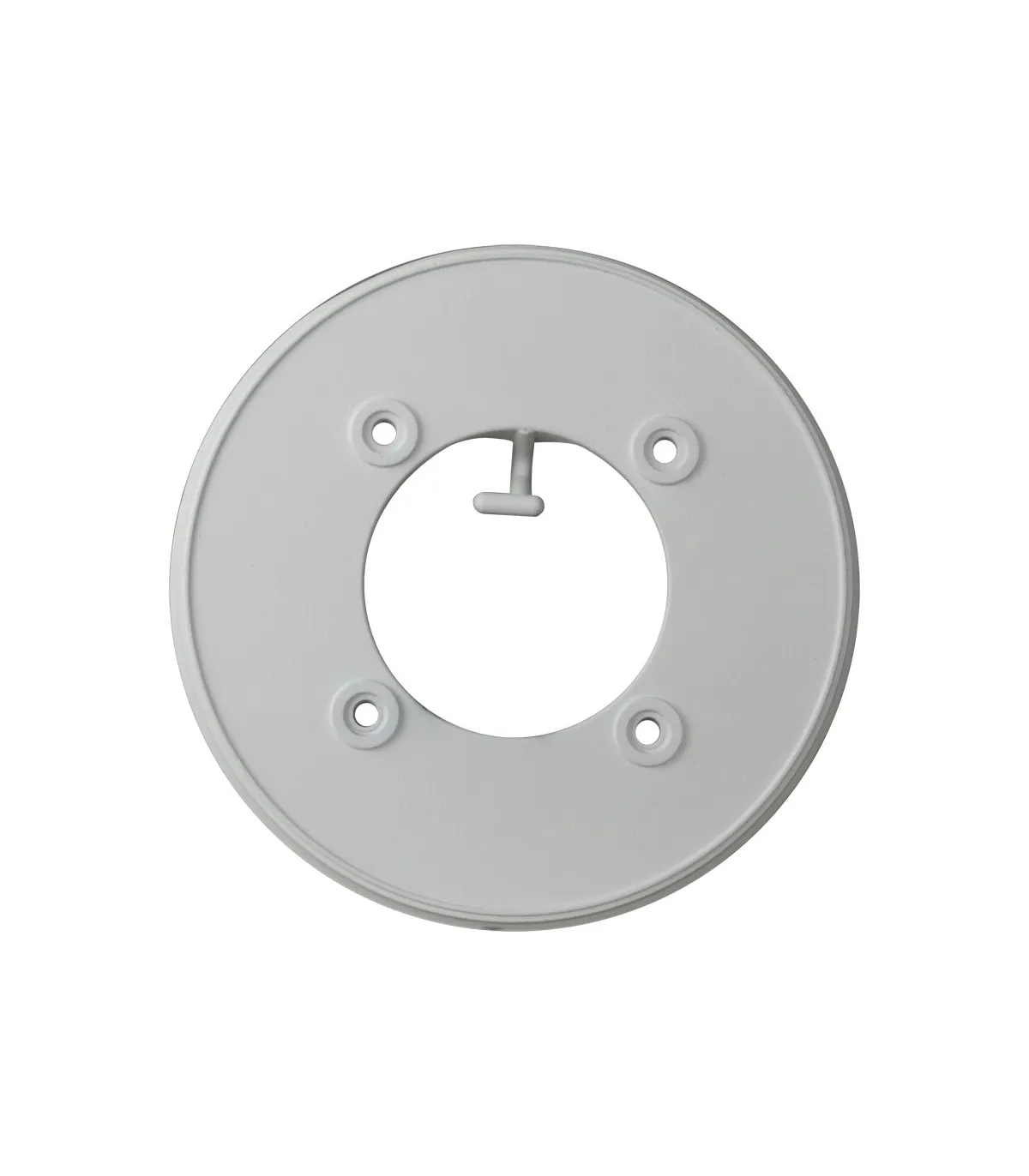

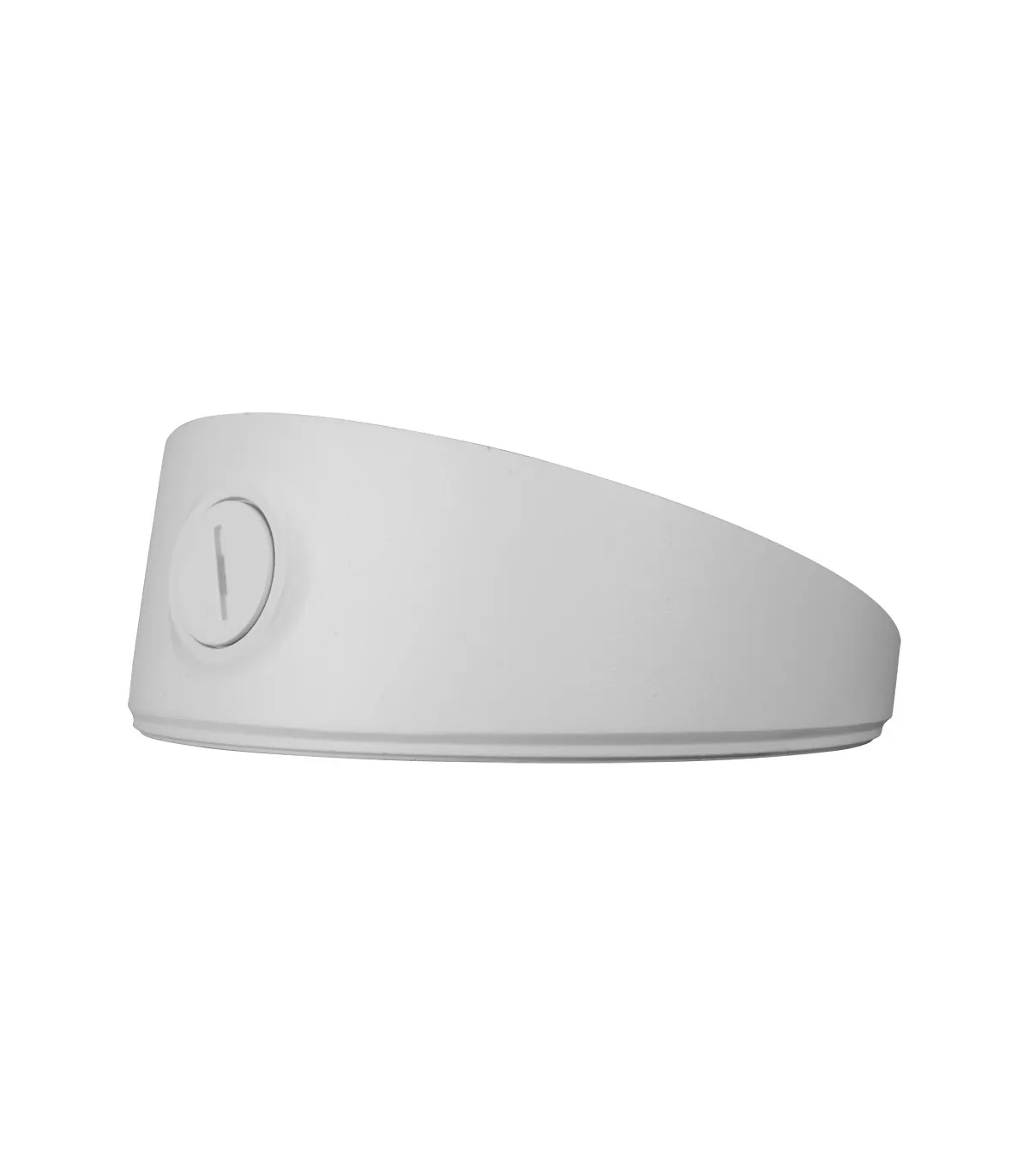

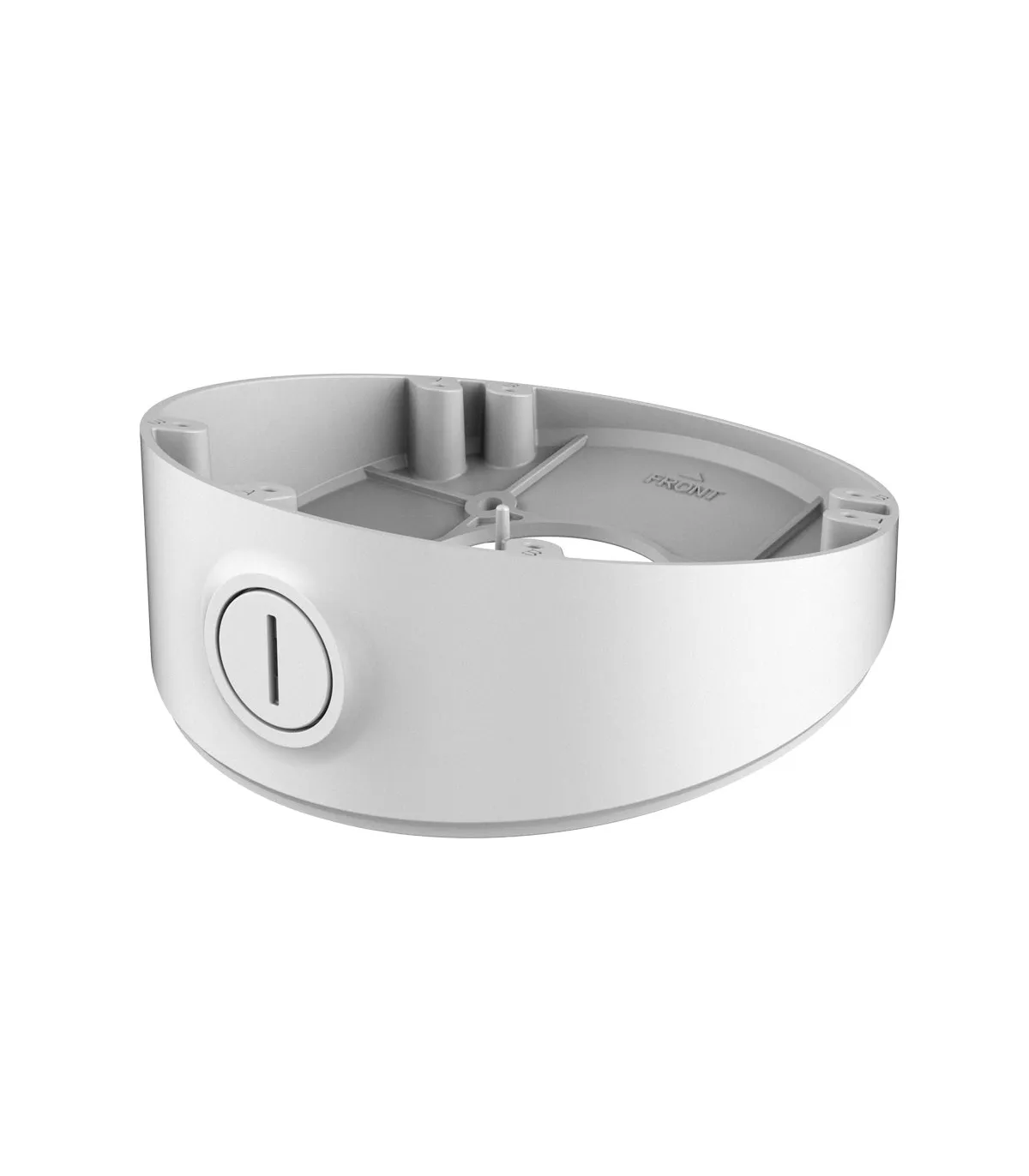

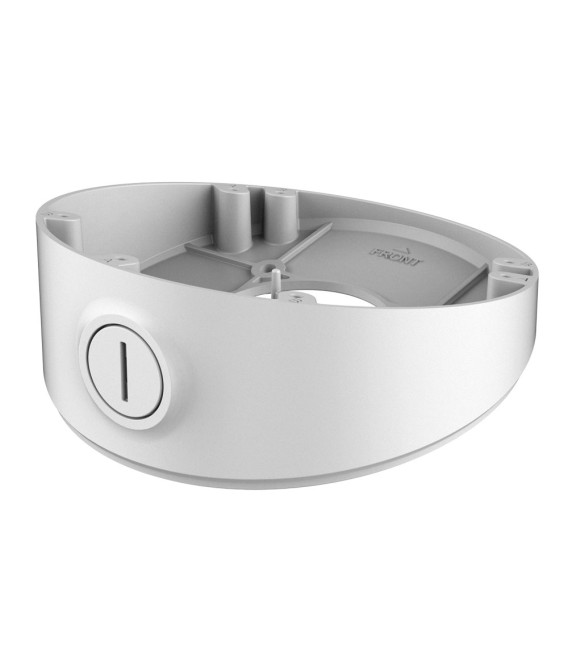

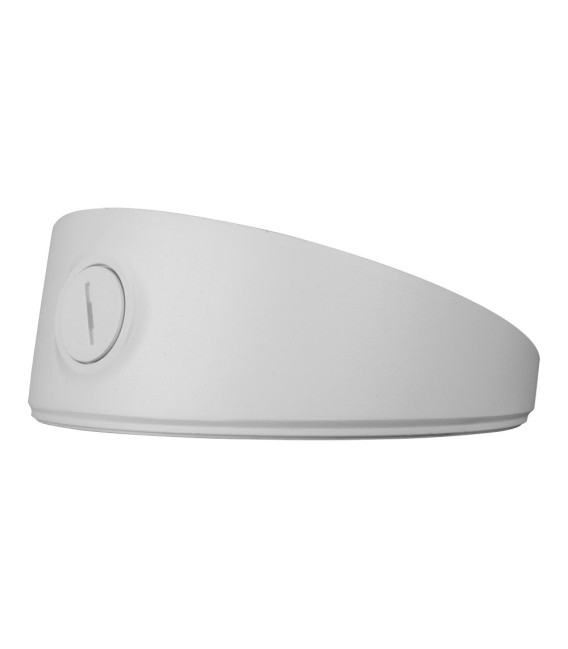

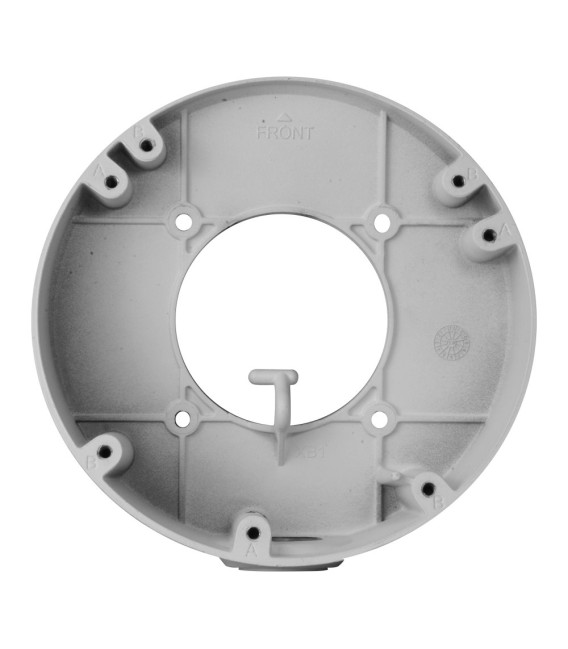

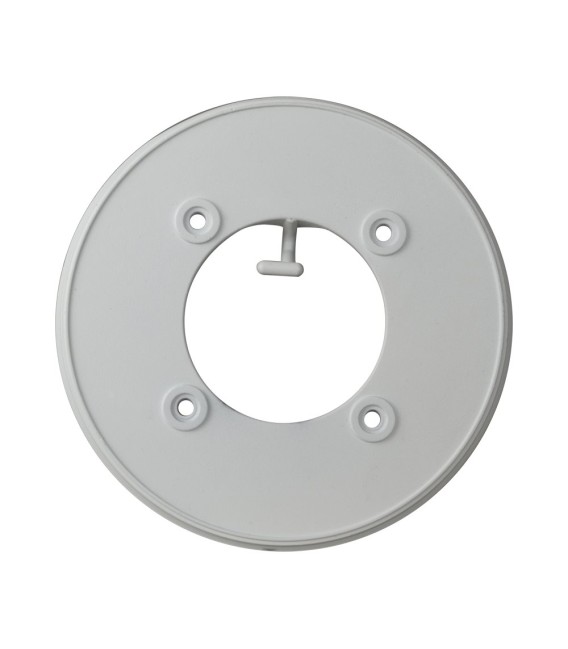

Inclined junction box for dome cameras PFA133-E

Inclined junction box for dome cameras PFA133-E

Inclined junction box for dome cameras PFA133-E

Caja de conexiones inclinada
Para cámaras domos
Ángulo de inclinación 20º
Instalación en techo o pared
Pasador de cables
Color blanco

Tilted Junction Box for Dome Cameras PFA133-E

Tilted junction box
For dome cameras
Tilt angle 20º
Installation on ceiling or wall
Cable pass-through
Color white

Technical Specifications

Material	Aluminum alloy
Tilt angle	20º
Maximum load capacity	3 kg
Dimensions	66.1 (H) x 159 (D) mm
Base dimensions	Option A: 140 (D) mm, 3 screws Option B: 142 (D) mm, 4 screws
Usage	Suitable for indoor/outdoor use
Operating temperature	-40º C ~ +60º C
Color	White
Weight	360 g

Ceiling mount bracket
Installation materials
