- Doorbell 3 Kit 4MP
- WiFi 2.4 GHz / 5000 mAh or AC 8-24 V
- 360° Panoramic Lens / IR up to 5 m
- Call button / Two-way audio
- PIR sensor / Human detection
- Chime / WiFi extender / Audio

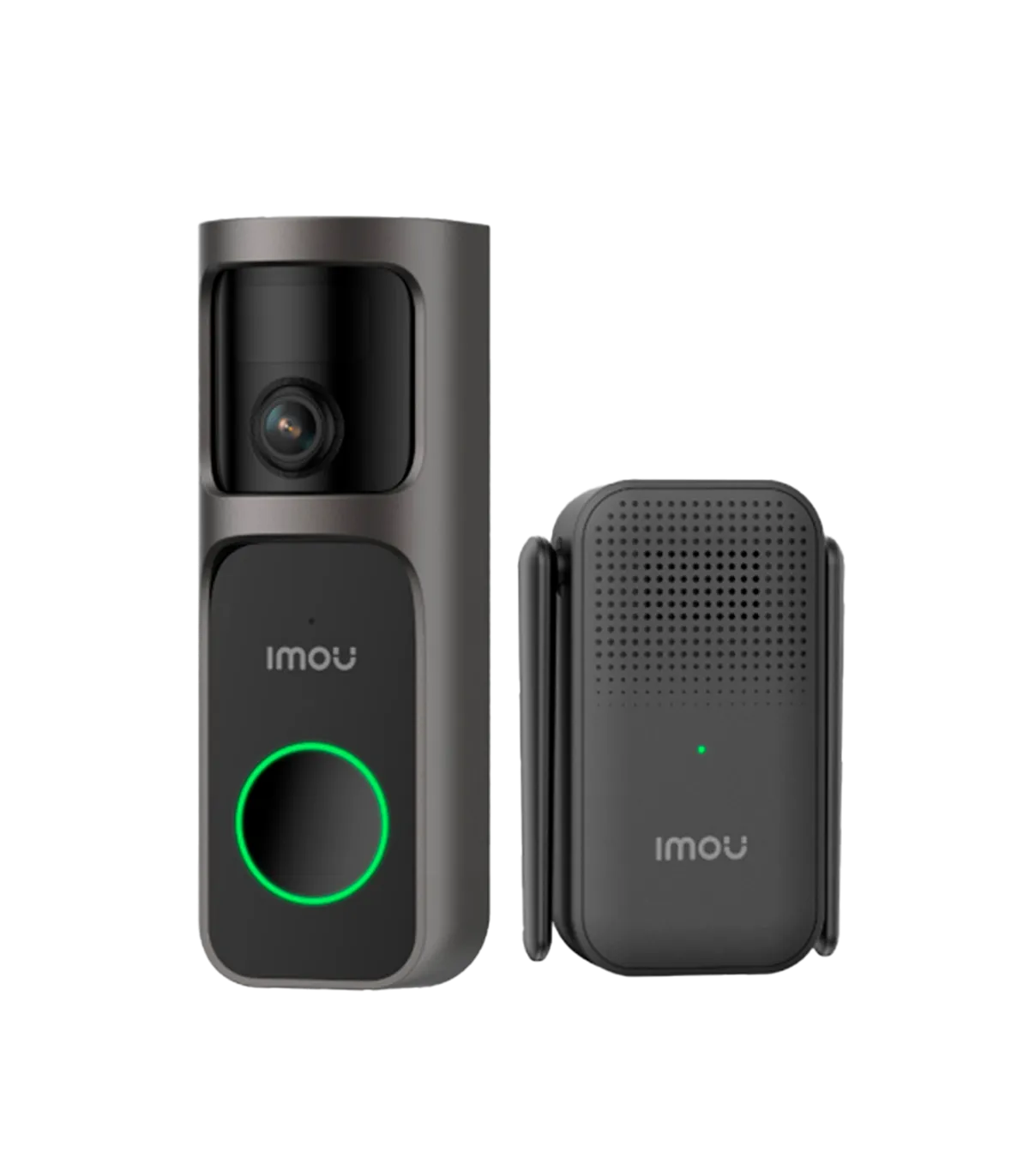

Imou Doorbell 3 WiFi Video Doorbell Kit 4MP (DB-3EP-4M0W/DS3-IMOU) with 360° panoramic view, 4MP CMOS sensor, intelligent human detection via PIR and two-way audio for complete control of the entrance to your home or business, even when you are away.
This kit includes a wireless video doorbell and an indoor chime that also works as a WiFi extender, allowing flexible installation and stable network coverage for monitoring your main entry point.
Why choose this model
Real security for your home or business starts at the door. This system lets you see who is approaching, at what time, and how often, creating a first line of perimeter protection against intrusion attempts, theft, or unauthorized access. With dedicated human detection and instant notifications on your smartphone, you minimize false alarms and gain reaction time in critical situations.
In addition, the two-way audio function allows you to interact with visitors, couriers, or customers even when you are not on-site, simulating presence and discouraging suspicious behavior. The combination of 360° panoramic view, local and cloud recording, and secure WiFi connection gives you full traceability of what happens at your entrance, reliable evidence in case of an incident, and clear control over who accesses your property.
Main features of DB-3EP-4M0W/DS3-IMOU
- 360° monitoring in 4MP: fisheye panoramic lens with 4MP resolution (1920 x 1920) to cover the entire access area without blind spots, ideal for narrow entrances or building portals.
- PIR human detection: the PIR sensor focuses on detecting people, reducing alerts caused by irrelevant motion (vehicles, shadows, pets) and improving monitoring accuracy.
- Flexible installation: battery or wired: works with a built-in 5000mAh battery or AC 8~24V power supply, suitable for both new installations and replacement of existing doorbells.
- Two-way audio + indoor chime: talk and listen in real time via the app, while the chime rings inside the home or business and extends WiFi coverage for a more stable connection.
- Local and cloud recording: supports microSD cards up to 512GB and Imou Protect cloud recording, providing an event history and secure backup of security footage.
Product specifications DB-3EP-4M0W/DS3-IMOU
| DOORBELL | |
| Brand | Imou |
| Model | DB-3EP-4M0W/DS3-IMOU | Doorbell 3 Kit |
| Image sensor | 1/3” Progressive Scan CMOS |
| Main stream encoding | 4MP (1920 x 1920) |
| Lens | 0.98 mm 360° fisheye panoramic view |
| Remote Pan/Tilt movement | Virtual dewarping movement Horizontal mode Vertical mode Virtual PTZ |
| Infrared illumination | 0 lux IR LEDs (5 m) |
| Audio | Two-way audio (microphone and speaker) / Chime |
| Detection types | Intelligent human detection via PIR |
| Internal storage | Supports microSD card (max. 512GB) |
| External storage | Imou Protect cloud recording via in-app subscription |
| Network interface | 2.4GHz WiFi IEEE 802.11 b/g/n |
| Remote access | Smartphone app: Imou Life Software: Imou PC No browser access available |
| Power supply | DC 5V1A USB-C |
| Protection rating | Suitable for outdoor use |
| Operating temperature | -20 ºC ~ +50 ºC |
| Dimensions | 150mm x 55mm x 50.3mm |
| Weight | 220g |
| CHIME | |
| Internal storage | Supports microSD card (max. 512GB) |
| External storage | Imou Protect cloud recording via in-app subscription |
| Power supply | 100~240 VAC |
| Operating temperature | -10 ºC ~ +45 ºC |
| Dimensions | 95.5 × 65.1 × 30.2mm |
| Weight | 79 g |
Package contents
- 1 Video Doorbell
- 1 USB Power Cable
- 1 Chime
- 1 Installation kit
- 1 Quick start guide
Data sheet
- Brand
- IMOU
- Type of camera
- PTZ
- Resolution
- 3 Mpx
- IR Distance
- IR 5 m
- Audio
- Mic + Altavoz + Chime
- Wi-Fi
- WiFi
- Indoor / Outdoor
- Indoor
- Product type
- IP Cam - Doorbell
- Connectivity
- WiFi 2.4GHz
- AI Detection
- Movimiento + Humanos + Sonido
Specific References
- EAN13
- 6976391032453
