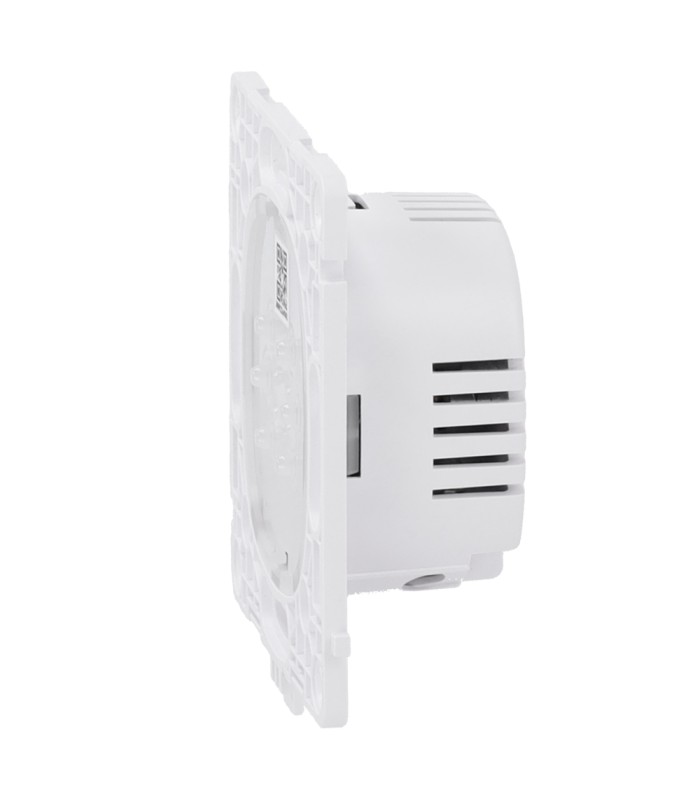

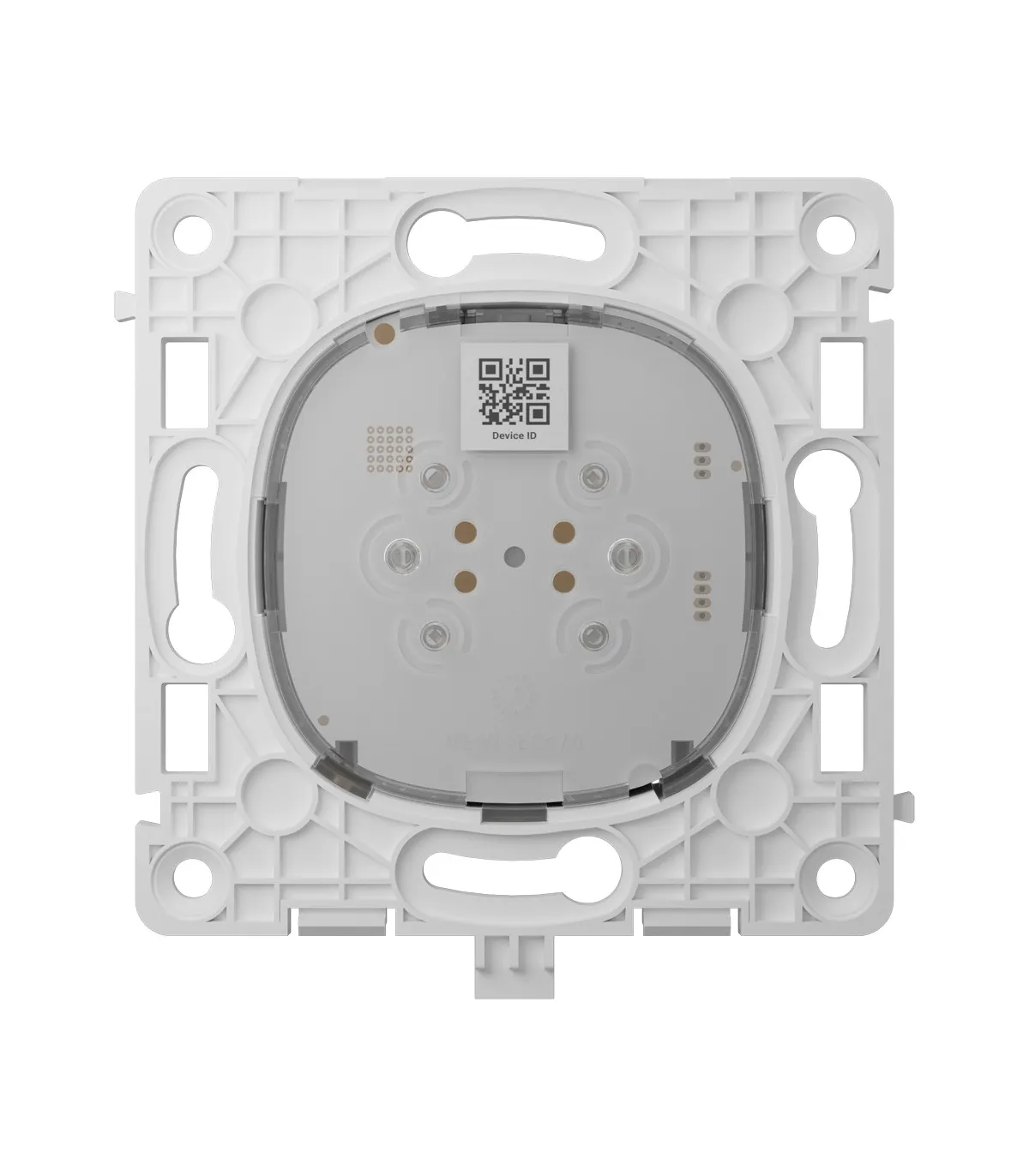

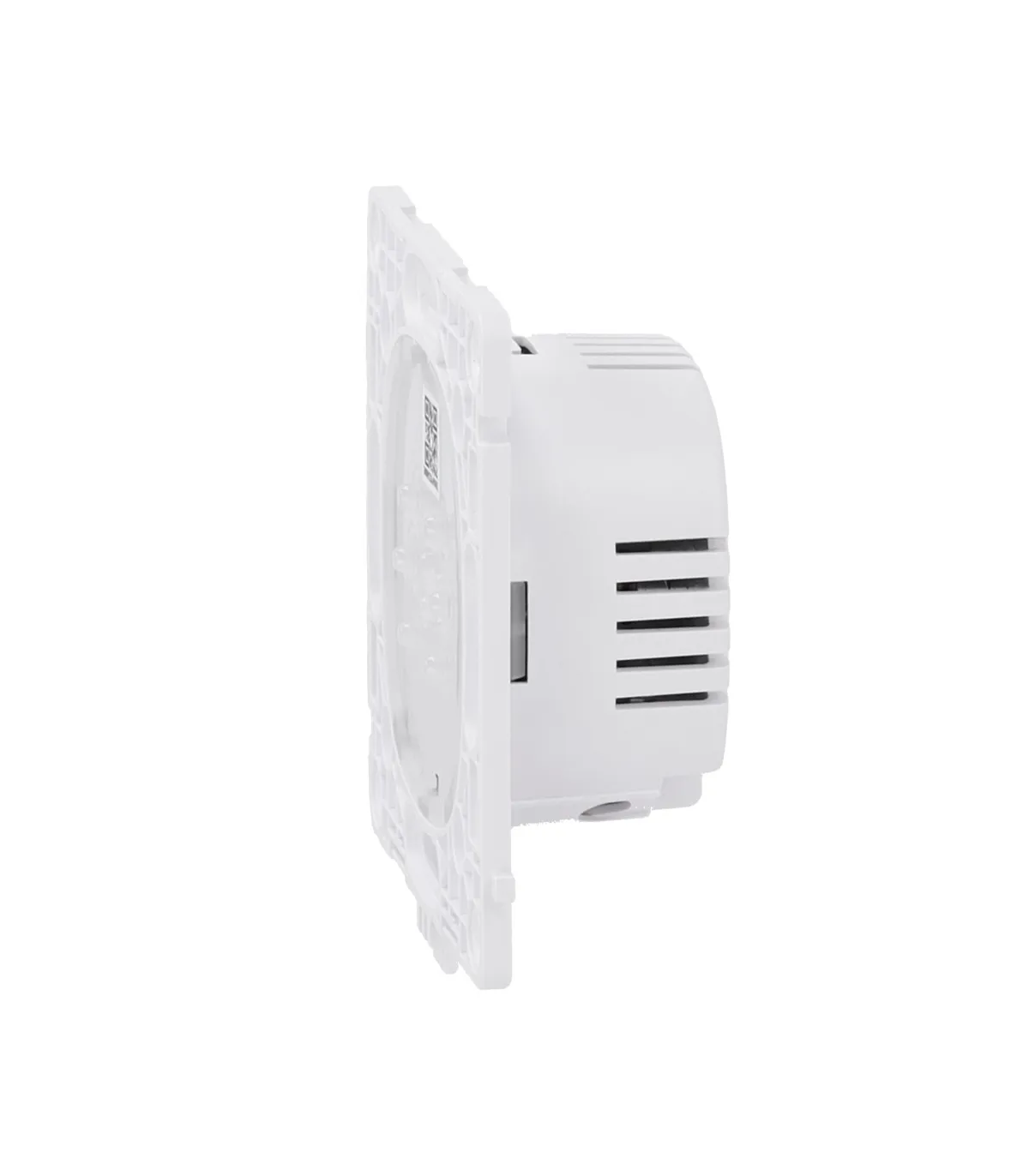

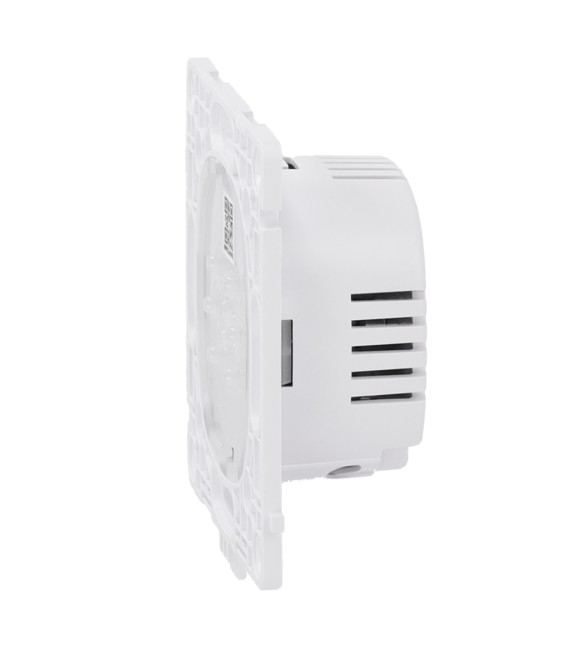

AJ-LIGHTCORE-DIMMER dimmable smart light switch relay
- Ajax
- Relay for dimmable smart light switch
- Bidirectional
- Wireless 868 MHz Jeweler
- Radio communication range 900 m
- Power supply 230 ~ V AC
- Does not need a neutral wire to work
- It is activated when you bring your hand closer than 15 mm to the touch panel
Technical specifications
| Brand | Ajax - LightSwitch LightCore (Dimmer) |
| Function | Relay for dimmable smart light switch |

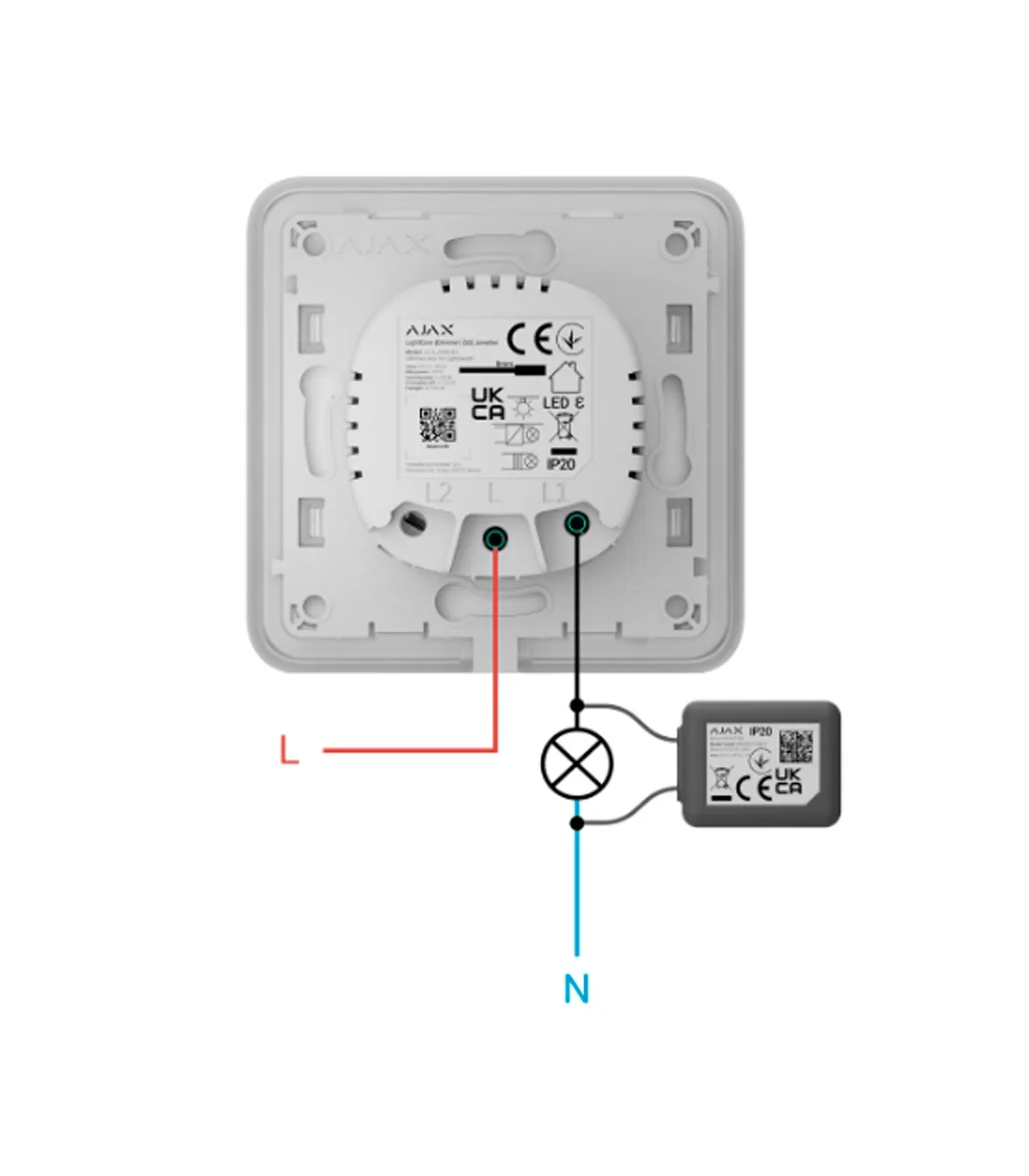

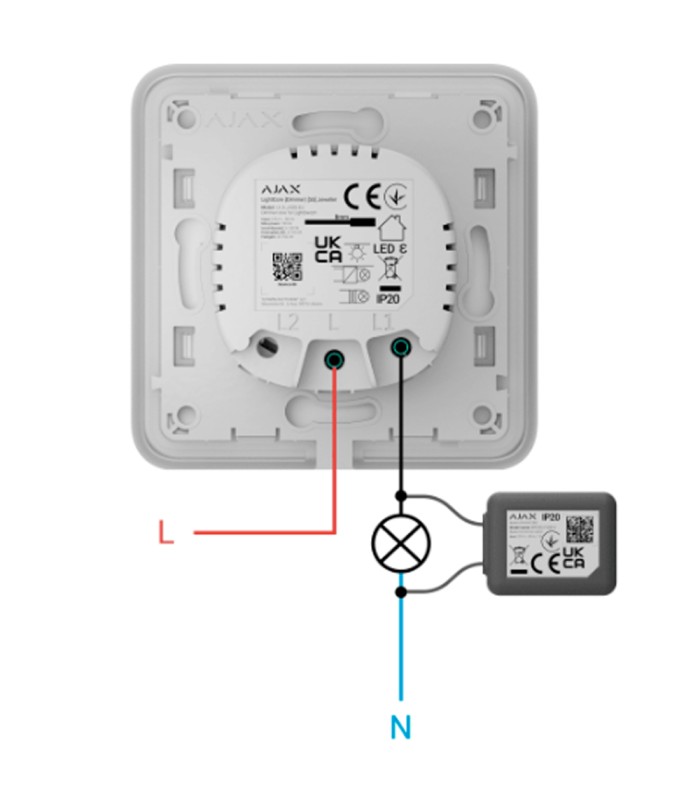

| Lamp compatibility | Dimmable incandescent bulb 8-150 VA Dimmable LED 8-150 VA Dimmable halogen bulb 20-150 VA Lower power devices: Add AJ-BYPASS-DIMMER |
| Brightness | Memory of previous brightness level with anti flashing |
| Transmission distance | Up to 900 m in open space |
| Frequency | 868 MHz Jeweler |
| Power input | AC 230 V / 50 Hz |
| Average consumption | 250 mW |
| Switched device power | 8 VA to 150 VA |
| Current and temperature protection | 0.75 A / +60ºC |
| Compatibility | Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2, Hub Hybrid |
| Use | Indoor |
| Temp. operation | -10º C ~ 40º C |
| Dimensions | 76.3 (H) x 72.3 (W) x 29.2 (D) mm |
| Weight | 46 g |

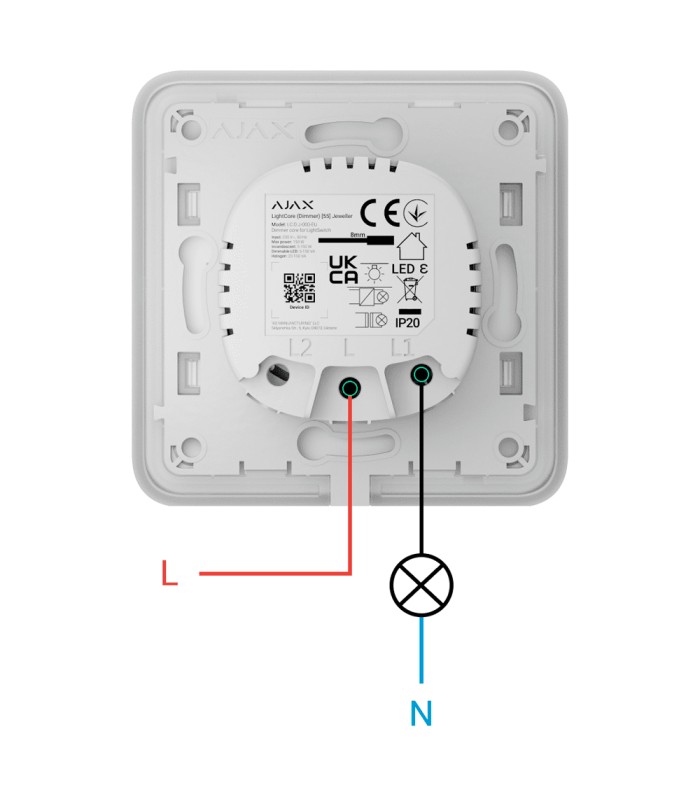

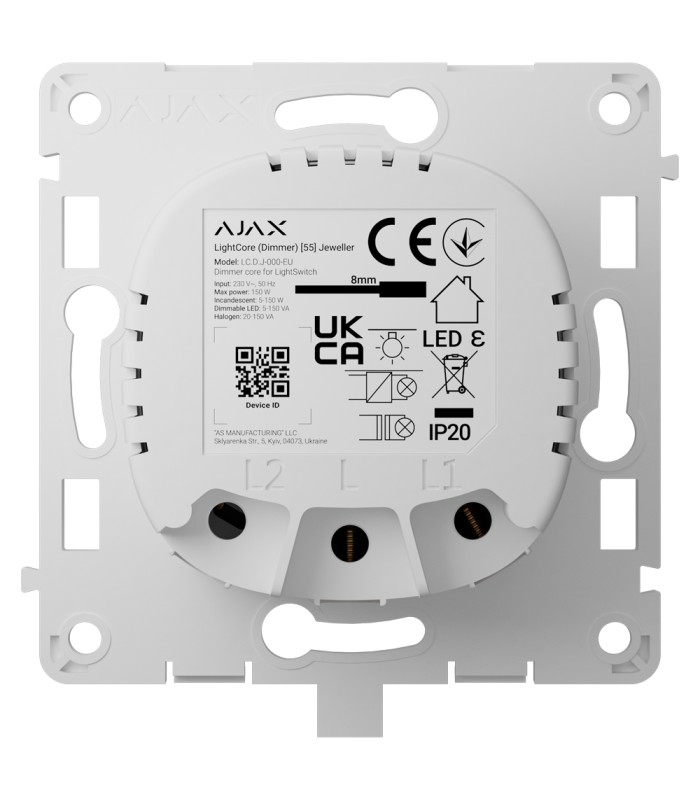

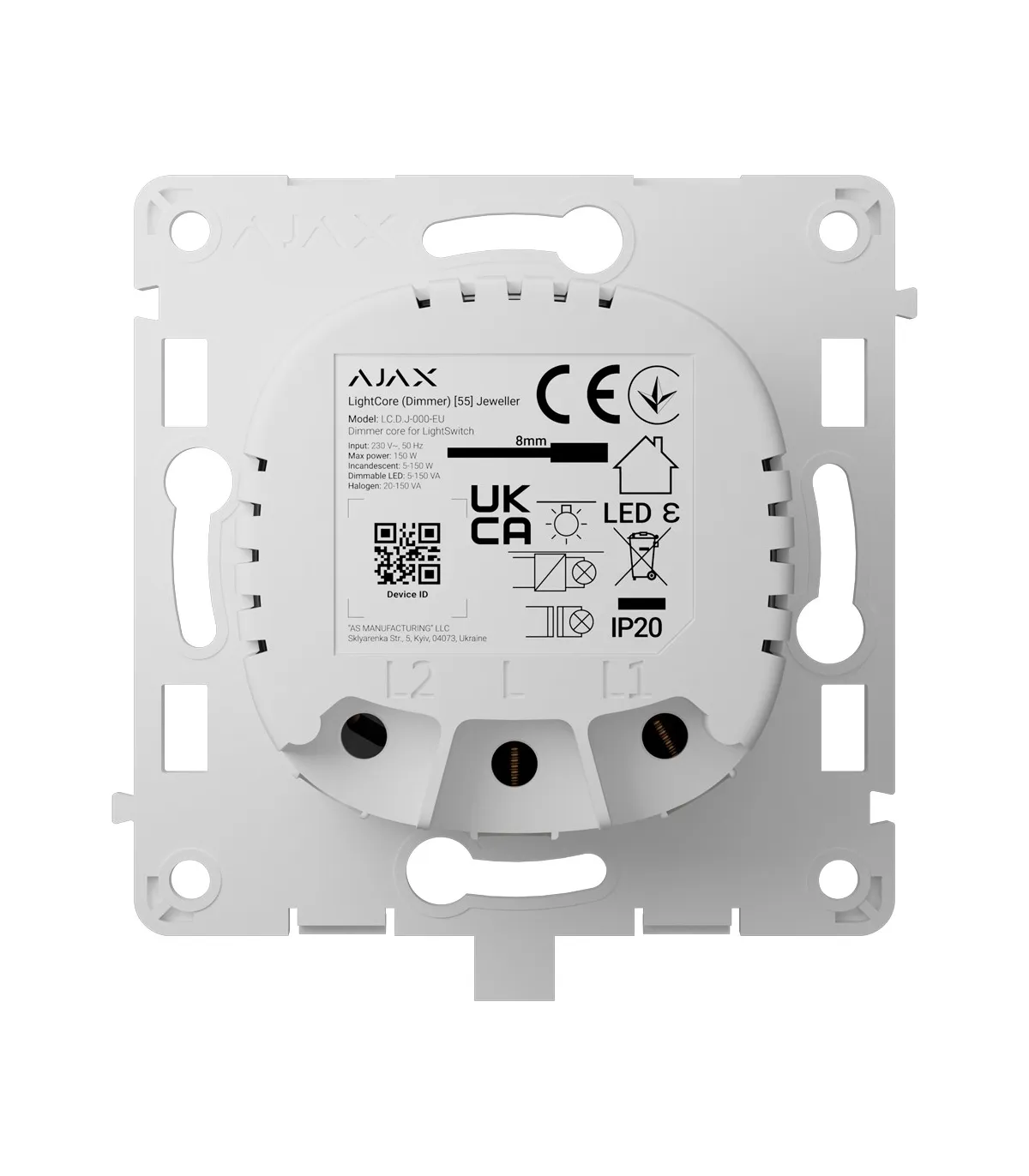

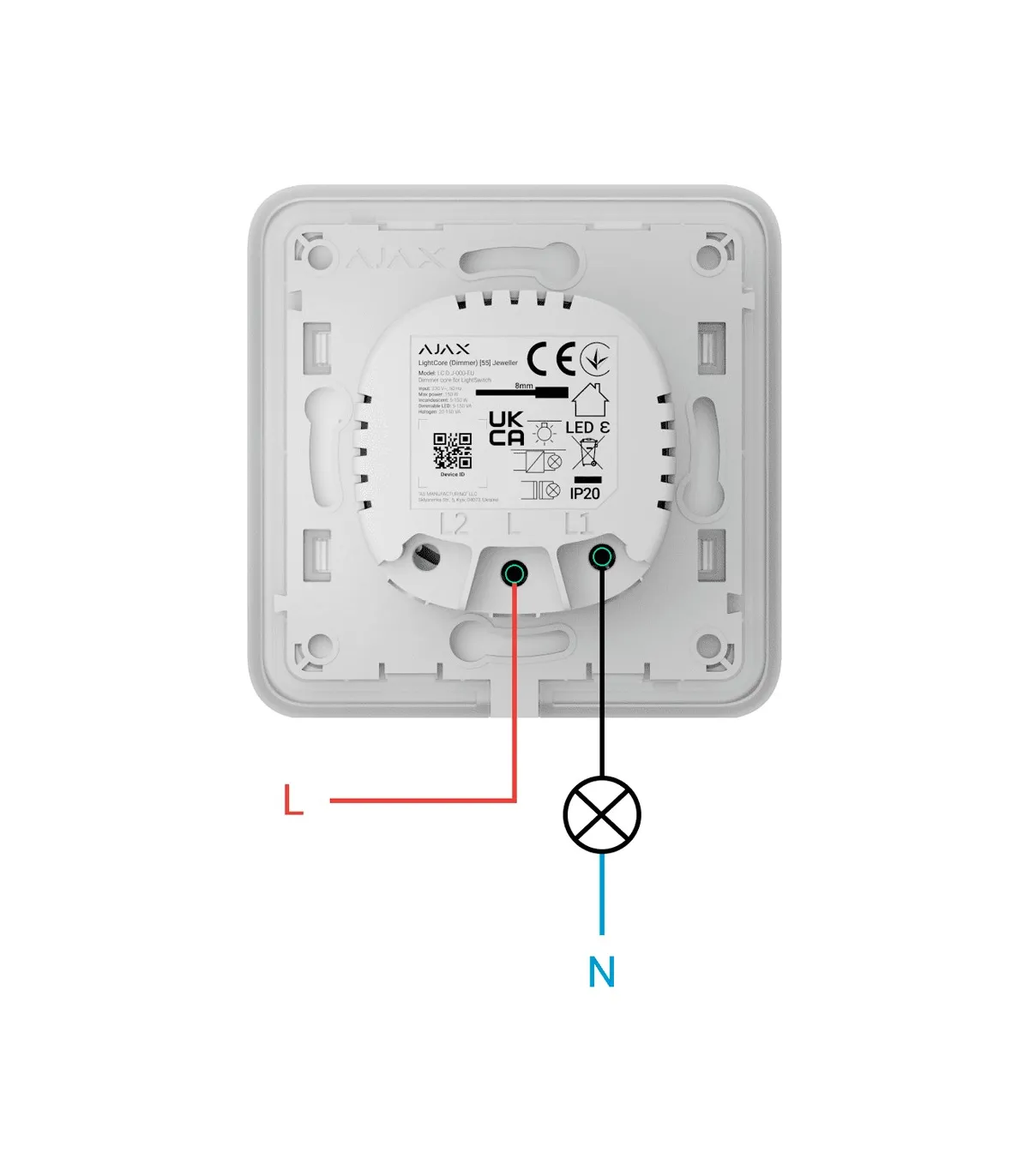

| Terminals | 1 terminal for power phase cable and 1 terminal for power cable of a lighting device or other load (without neutral wire) |
Contents
- Relay for dimmable smart light switch

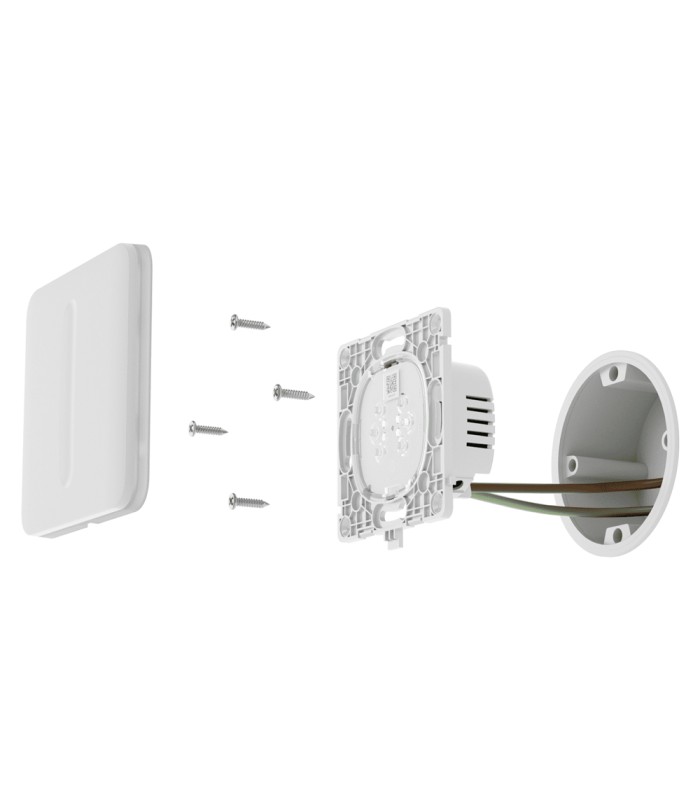

- Installation kit
- Instructions for use
